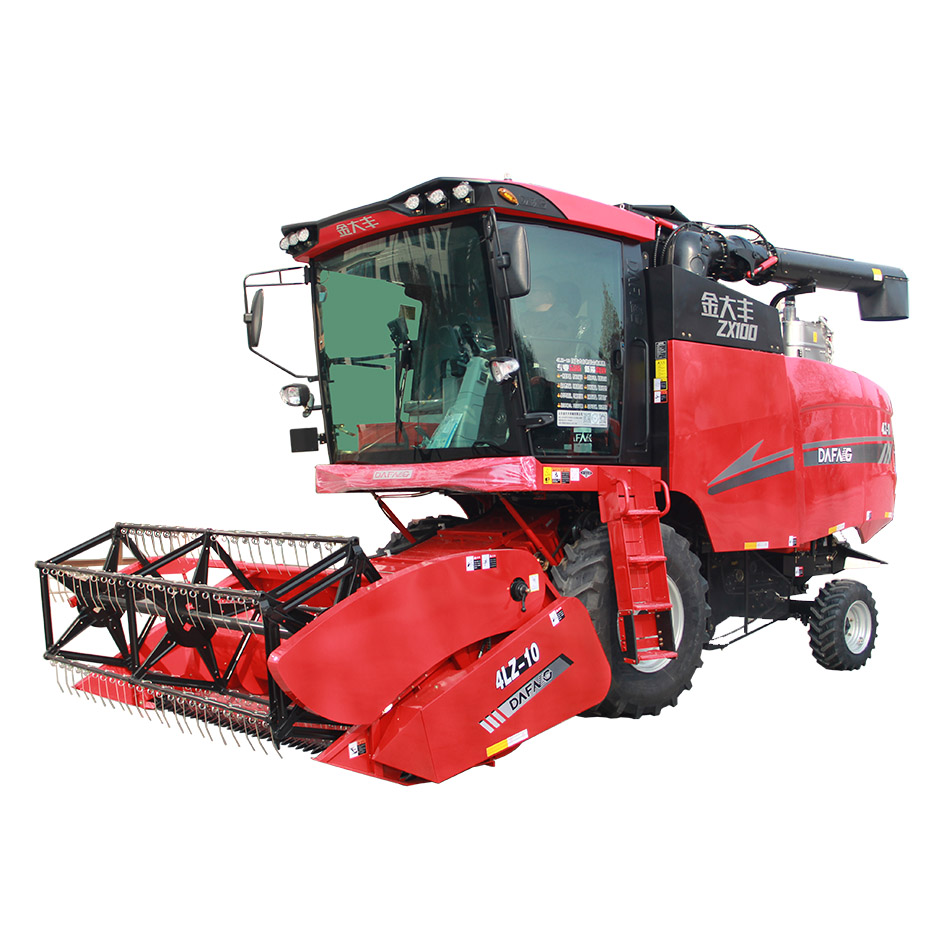

Grain Harvester
010203
Product parameters
| Model | 4LZ-10 | ||
| Dimension (L×W×H) | mm | 6550×3050×3550 | |
| Min. operating weight | kg | 7170 | |
| Wheelbase | mm | 2700 | |
| Wheel track (front/rear) | mm | F：1900/R：1850 | |
| Feeding speed | kg/s | 8 | |
| Productivity | hm²/h | 0.6-1 | |
| Working speed | km/h | 1-9 | |
| Mini clearance | mm | 290 | |
| Grain tank | m³ | 3.4 | |
| Hydraulic motor displacement | cm³/r | 56 | |
| Swash plate type axial variable piston pump displacement | cm³/r | 63 | |
| fuel tank capacity | L | 350 | |
| Cutting | Cutting width | mm | 2750 |
| Cutting table agitator type | / | Spiral toothed type | |
| Type of reel | / | Eccentric toothed type | |
| Cutting blade form： | / | Reciprocating | |
| Pulling wheel diameter | mm | Φ1000 | |
| Threshing room | Number of threshing drums | / | 1 |
| Main threshing drum type | / | Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2690 | |
| Concave plate sieve type | / | Grid format | |
| Detoxification method | / | Miscellaneous return drum | |
| Engine | Model | / | 200HP-GIII |
| Type | / | Vertical, water-cooling, four stroke, common rail | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 200HP/147kw | |
| Rated speed | r/min | 2200 | |
| Specification of guide wheel tire | 10.0/75-15.3 | ||
| Drive wheel tire specifications | 15R24 149A8 R-1 | ||

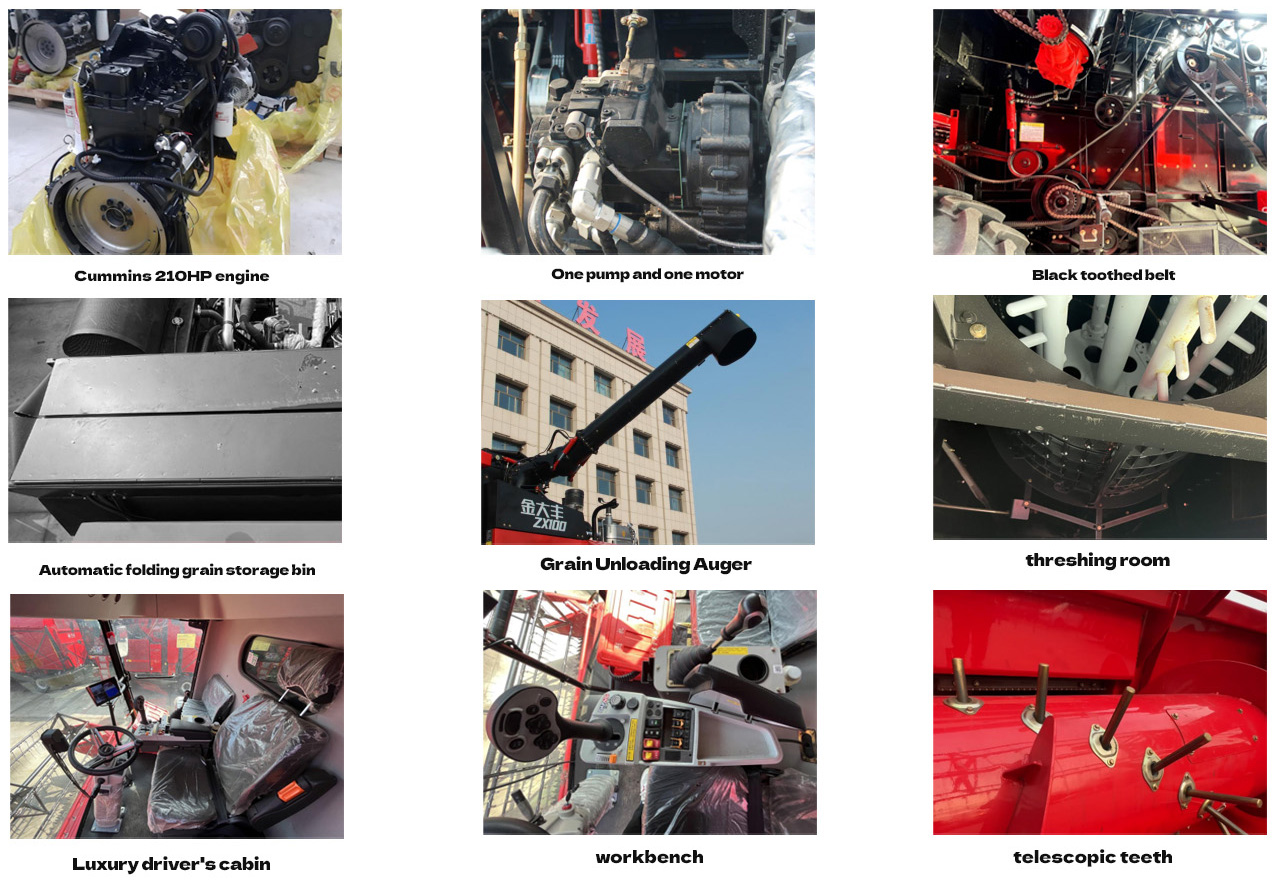

Product advantages
1. The YuCai 200 horsepower engine is 10 horsepower higher than similar models on the market, and the power is stronger, reaching the power level of medium-sized longitudinal axial flow wheat machine! 350L rotomolded fuel tank, long operation endurance!
2. The threshing chamber frame is made of 16 manganese material, which has high strength and is more durable!
3. The original travel pump and motor were upgraded to 63 pumps/56 motors, with closed side reduction tanks, large displacement walking power, not afraid of complex plots, and the transition speed can reach 40 km/h.
4. 84 cm feeding inlet, 2.69 m long drum, feeding smoother, threshing more thoroughly.
5. Giant energy loading: hydraulic one-key opening and closing automatic folding granary, the basic granary volume is 2.6m³, and then 0.8³ is added after opening and closing, and the granary volume is as high as 3.4m³, which can hold 5,000 kg of wheat.
6. Kirin arm: 2.5-4.5 meters adjustable hydraulic lifting and unloading + one-key swing out of the return position, more worry-free and convenient.
7. Positive pressure air-conditioned cab + dual display screen (column instrument panel + video surveillance), more comfortable operation.
8. The pull-out straw shredder can realize the rapid switching of row shredding and grass discharge, which is convenient for more machine harvesting operations.
9. It can be replaced with corn grain header and miscellaneous grain header to realize multi-purpose machine and increase the operation time of the operator!
2. The threshing chamber frame is made of 16 manganese material, which has high strength and is more durable!
3. The original travel pump and motor were upgraded to 63 pumps/56 motors, with closed side reduction tanks, large displacement walking power, not afraid of complex plots, and the transition speed can reach 40 km/h.
4. 84 cm feeding inlet, 2.69 m long drum, feeding smoother, threshing more thoroughly.
5. Giant energy loading: hydraulic one-key opening and closing automatic folding granary, the basic granary volume is 2.6m³, and then 0.8³ is added after opening and closing, and the granary volume is as high as 3.4m³, which can hold 5,000 kg of wheat.
6. Kirin arm: 2.5-4.5 meters adjustable hydraulic lifting and unloading + one-key swing out of the return position, more worry-free and convenient.
7. Positive pressure air-conditioned cab + dual display screen (column instrument panel + video surveillance), more comfortable operation.
8. The pull-out straw shredder can realize the rapid switching of row shredding and grass discharge, which is convenient for more machine harvesting operations.
9. It can be replaced with corn grain header and miscellaneous grain header to realize multi-purpose machine and increase the operation time of the operator!

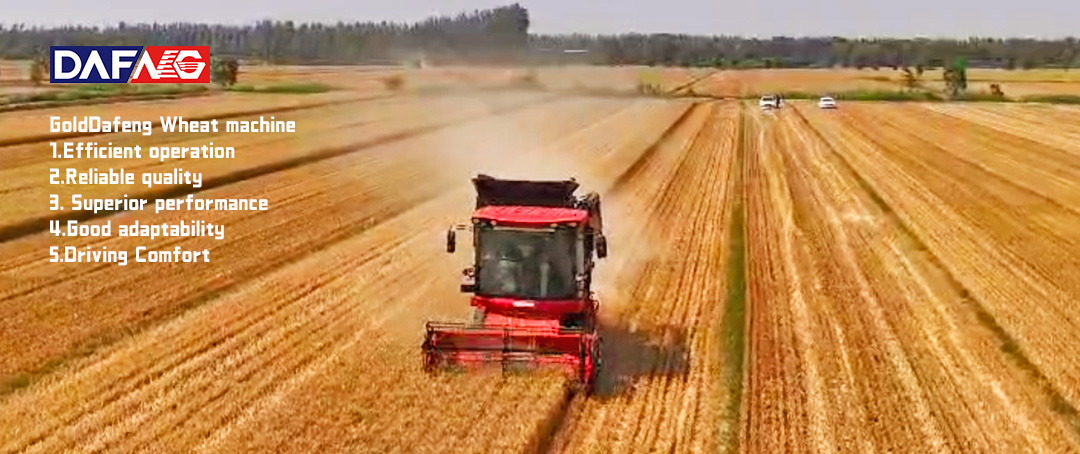

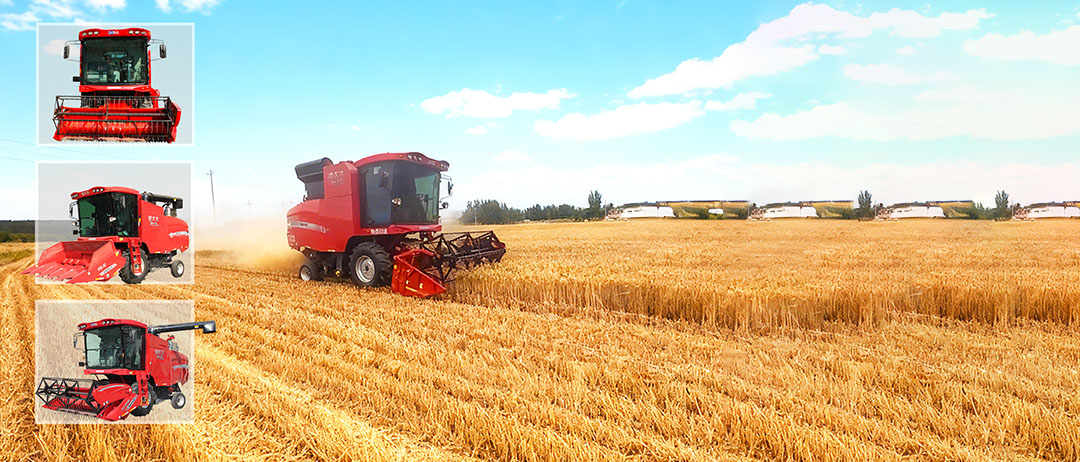

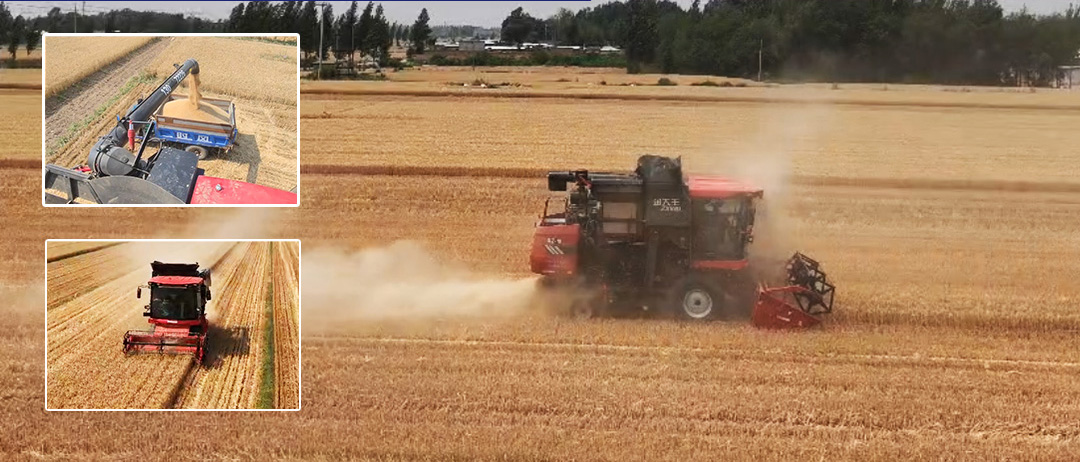

Product Application

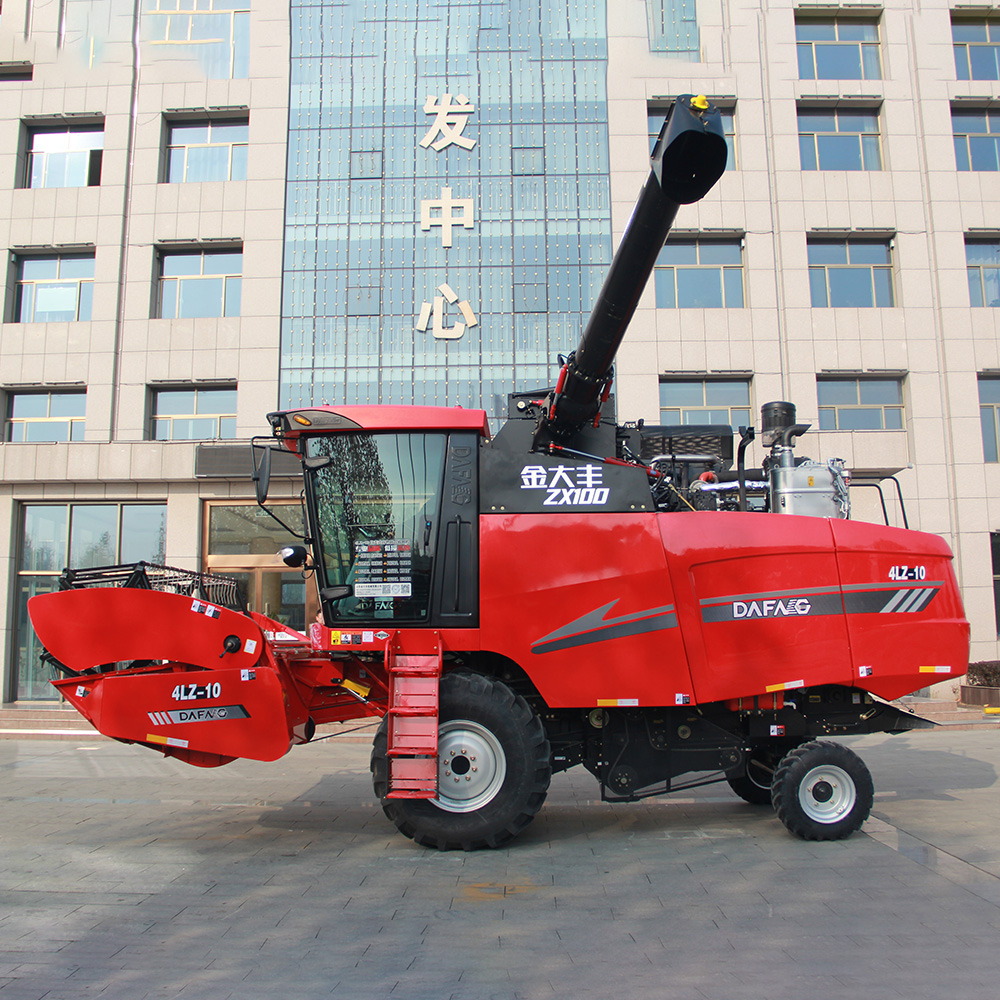

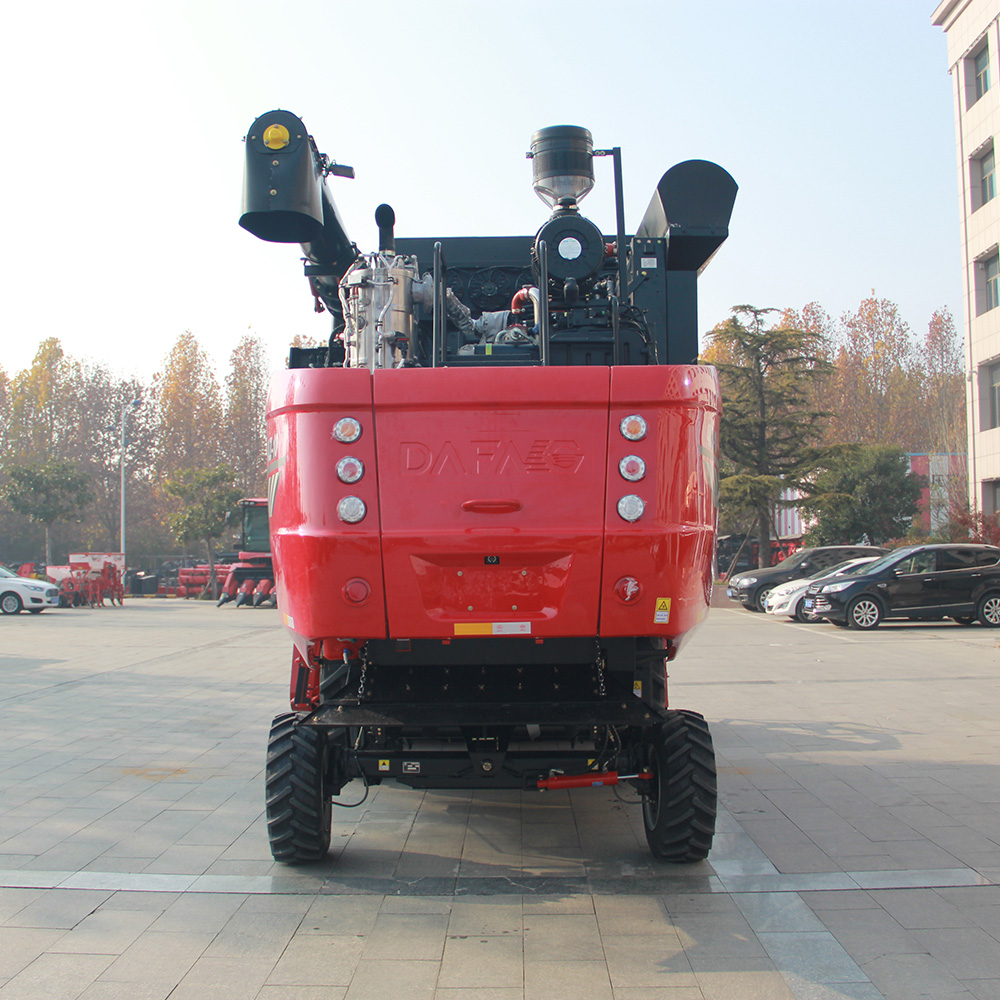

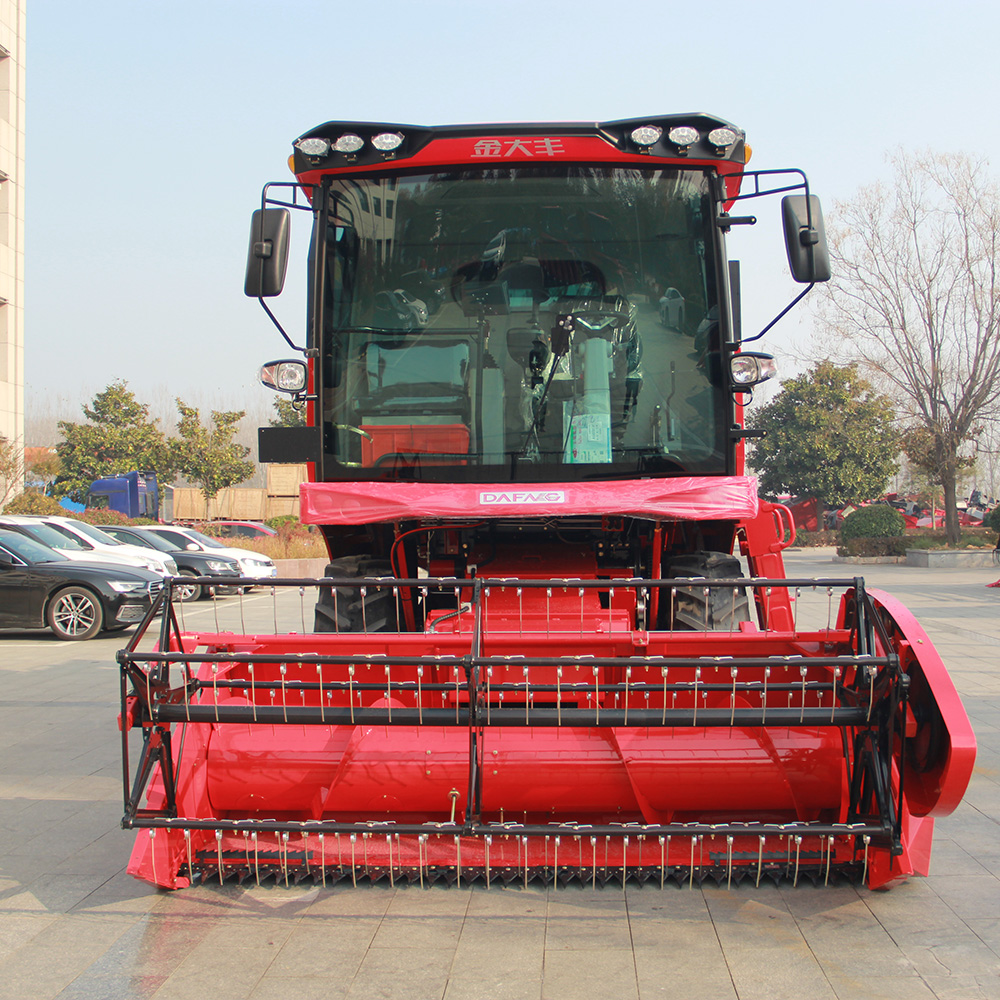

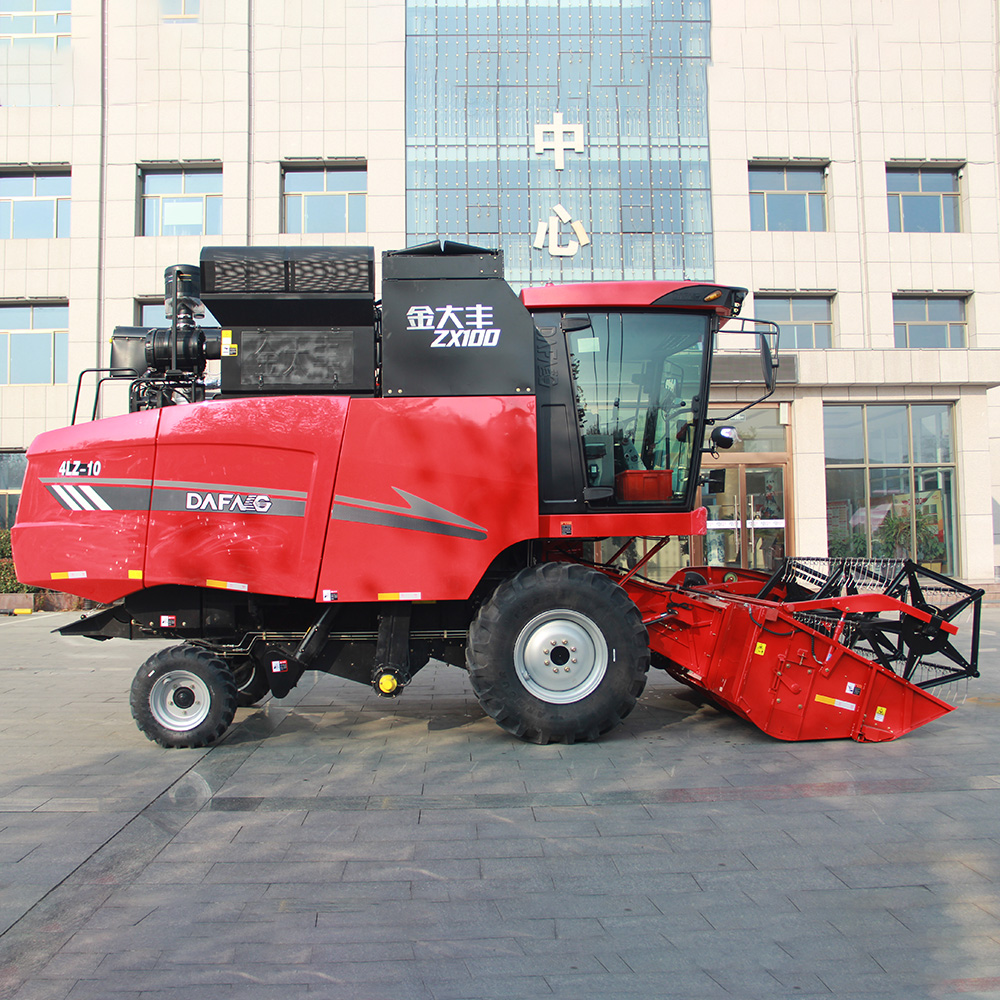

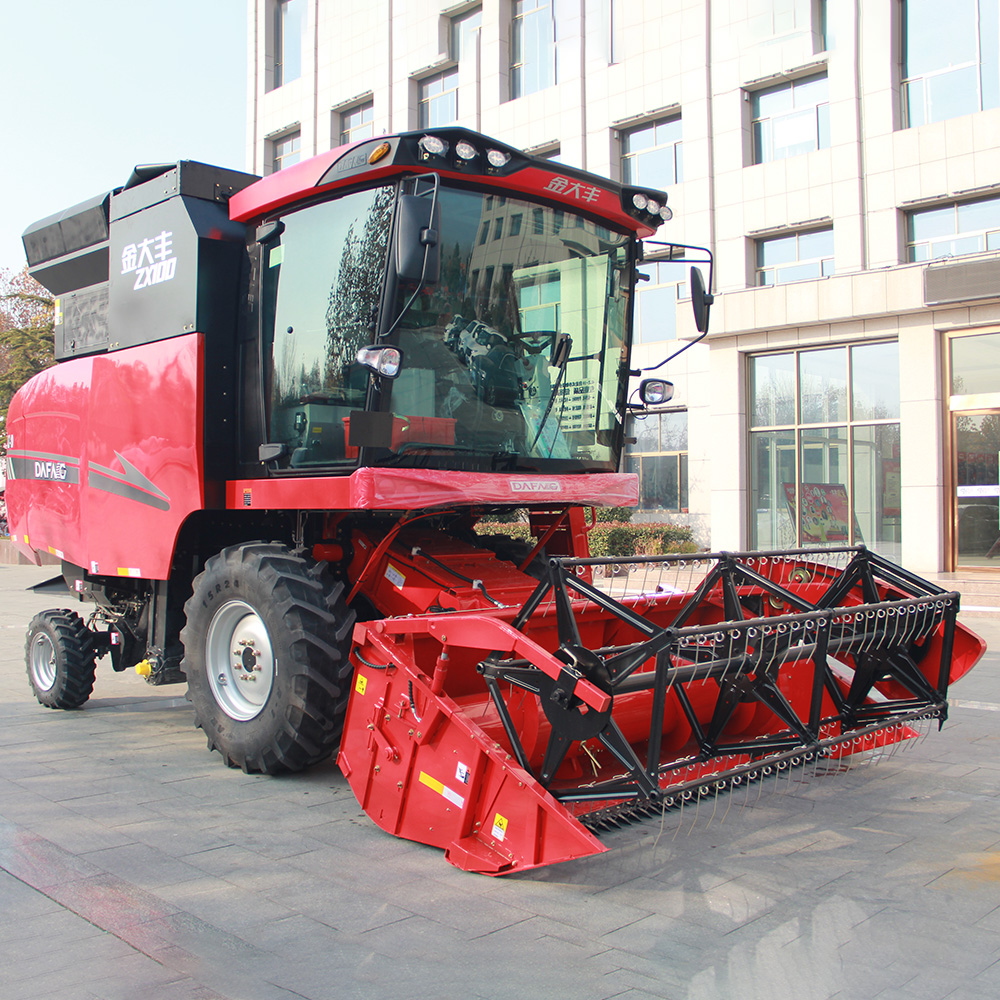

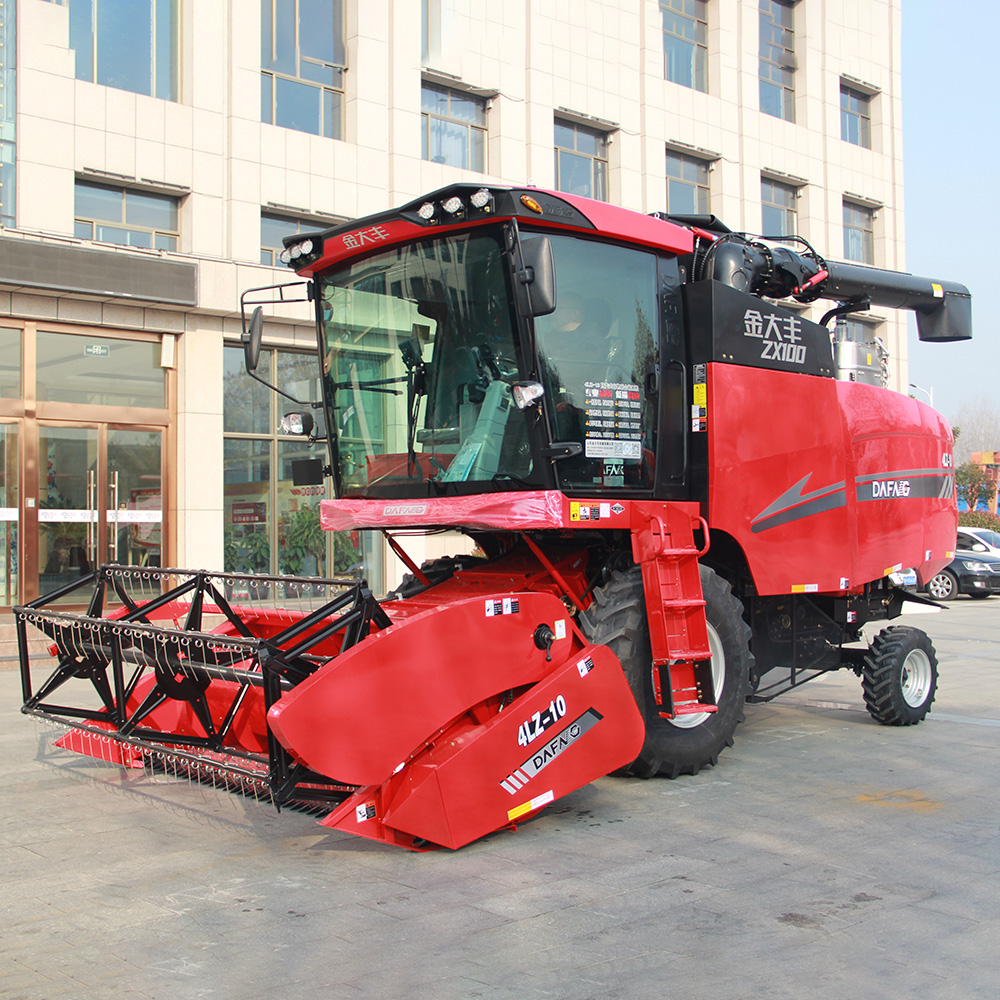

Product diagram
