Product parameters
| Model | ZL1004-Sun Canopy | ZL1004-cab |
| Dimension (L*W*H) | 4200*1800*2630 | 4200*1800*2630 |
| Min. operating weight | 2980 | 2980 |
| Wheelbase | 2045 | 2045 |
| Wheel track (front/rear) | 1350/1350-1600（Steplessly adjustable） | 1350/1350-1600（Steplessly adjustable） |
| Engine | Yangdong | Yangdong |
| Vertical, water-cooling, four stroke, common rail | Vertical, water-cooling, four stroke, common rail | |
| 4 | 4 | |
| 100HP/73.5KW | 100HP/73.5KW | |
| 2200 | 2200 | |
| Drive train | Single disc, dry, independent control, dual stage | Single disc, dry, independent control, dual stage |
| 12F+12R | 12F+12R | |
| shift sleeve | shift sleeve | |
| Steering | Full hydraulic steering | Full hydraulic steering |
| Brake | Hydraulic brakes, oil-immersed brakes, disc brakes | Hydraulic brakes, oil-immersed brakes, disc brakes |
| Walking device | 9.5-24/14.9-30 | 9.5-24/14.9-30 |
| Working device | Rear,two-point suspension | Rear,two-point suspension |
| Category II | Category II | |
| Height adjustment, float control | Height adjustment, float control | |
| 2 | 2 | |
| 6keys540/1000 | 6keys540/1000 |
Product advantages
Power Performance
Equipped with a turbocharged diesel engine rated at 100 horsepower, this machine delivers abundant power and substantial torque reserves, ensuring strong operational bursts of force while maintaining excellent fuel efficiency. It features reliable cold-start capabilities and is fully capable of meeting the demands of prolonged, continuous, heavy-load operations.
Transmission & Handling
It utilizes a 12+12 shuttle-shift transmission structure, offering smooth gear transitions, a wide range of gear options, and convenient switching between forward and reverse travel. Fitted with a large-diameter clutch, it ensures smooth engagement and complete disengagement, effectively preventing slippage during heavy-load operations. The hydraulic power steering system provides effortless steering and agile turning capabilities, significantly reducing driver fatigue.
Chassis & Load-Bearing Capacity
Featuring a reinforced 4WD chassis and a heavy-duty rear axle design, the machine boasts exceptional structural strength and load-bearing capacity, ensuring overall stability. It is equipped with a differential lock to enhance passability across complex terrain, making it ideally suited for high-load applications such as deep plowing, subsoiling, and heavy-duty towing.
Hydraulic Suspension System

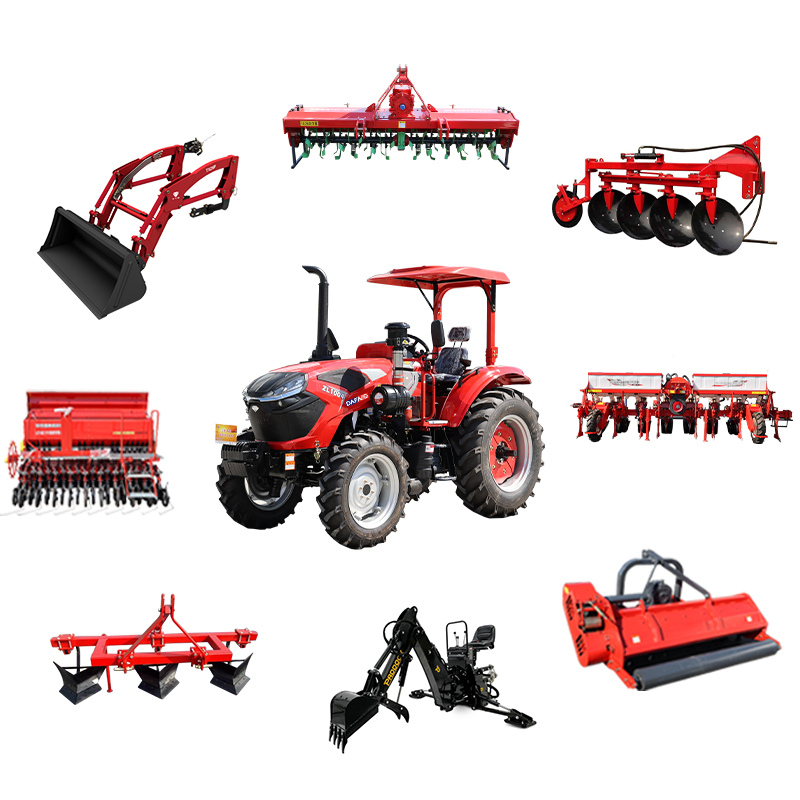

The machine features a robust hydraulic lift system with powerful lifting and lowering capabilities, paired with multi-way hydraulic output valves. This system delivers high lifting force and precise control, allowing for rapid and seamless integration with a wide variety of agricultural implements—including rotary tillers, plows, seeders, and straw return machines—thereby maximizing both hitching and operational efficiency.
Versatility & Passability
Designed with an optimal ground clearance and a wide range of adjustable wheel track widths, the machine can be configured to accommodate the specific row spacing requirements of various crops. It is universally applicable to both dryland and paddy field environments, making it highly adaptable to diverse land conditions.
Operator Comfort & Durability
The cabin features an ergonomic control layout and a flat-floor design, providing a spacious and comfortable operating environment. Key components throughout the machine are engineered for durability and reliability; routine maintenance is simple and straightforward, resulting in a low incidence of mechanical failure. This makes the machine an ideal choice for large-scale, intensive agricultural production operations.
product-related

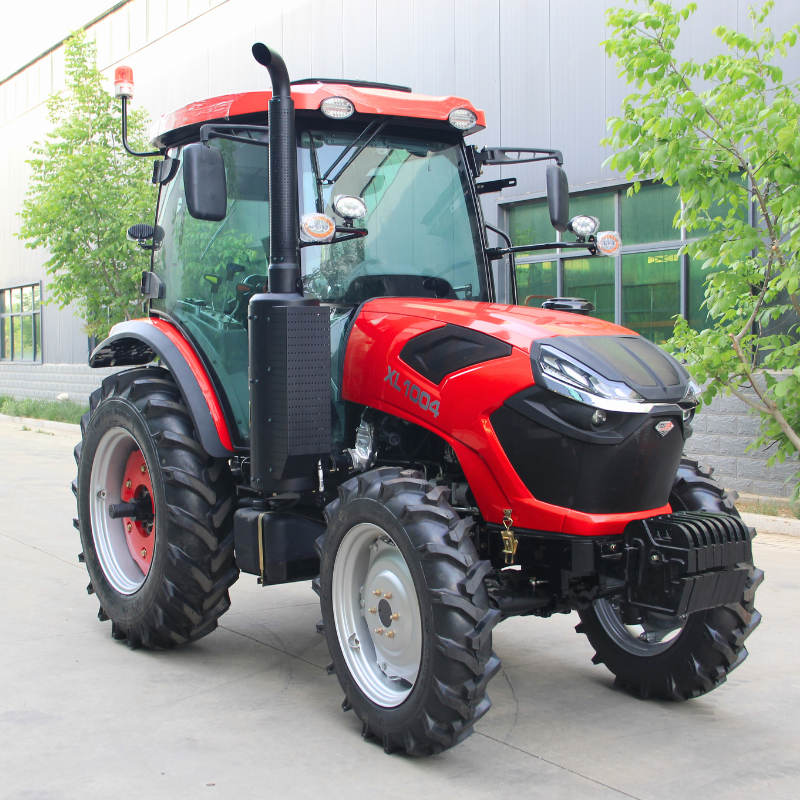

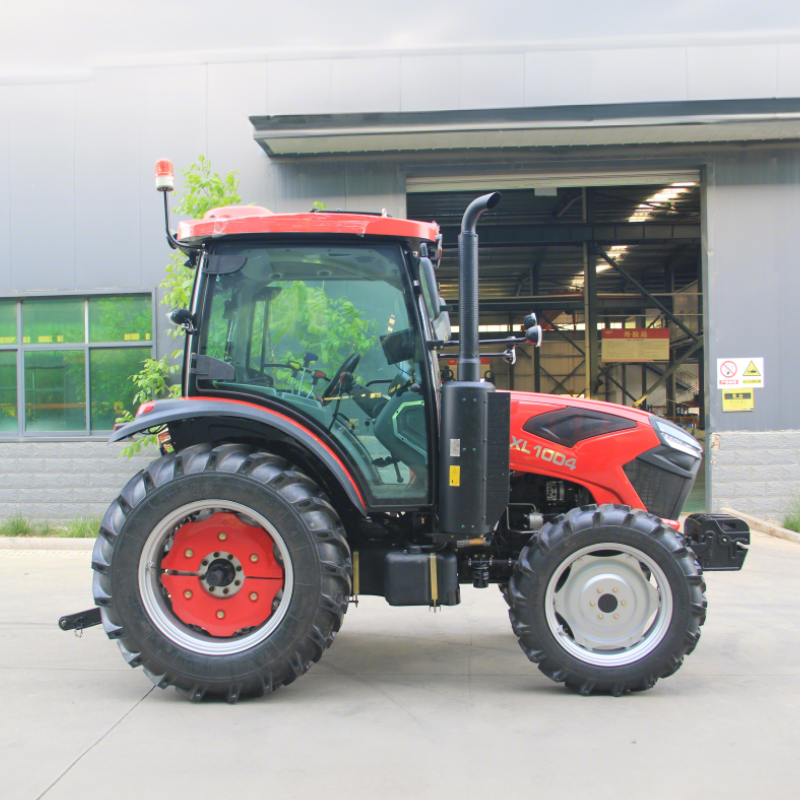

Product diagram
