XK Series 180-200 HP
01
Product parameters
| Model | XQ1804 | XQ2004 | XQ2204 | XQ2404 | XQ2604 | ||
| Dimension (L*W*H) | mm | 5600*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | |
| Min. operating weight | kg | 7700 | 7700 | 7700 | 7900 | 8340 | |
| Wheelbase | mm | 2800 | 2850 | 2850 | 2850 | 2850 | |
| Wheel track (front/rear) | mm | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | |
| Engine | Model | / | YUCHAI 180HP | YUCHAI 200HP | YUCHAI 220HP | YUCHAI 240HP | YUCHAI 260HP |
| Type | / | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | |
| Qty of cylinders | Cylinder | 6 | 6 | 6 | 6 | 6 | |
| Rated power | HP/KW | 180HP/132.3KW | 200HP /147kW | 220HP /161.8kW | 240HQ 176.5kW | 260HP 191.1kW | |
| Rated speed | r/min | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Drive train | Clutch type | / | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action |
| Gearbox | / | TS16F＋16R | TS16F＋16R | TS16F＋16R | TS16F＋16R | TS16F＋16R | |
| Gear shift type | / | Synchronizer | Synchronizer | Synchronizer | Synchronizer | Synchronizer | |
| Steering | Steering type | / | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering |
| Brake | Brake type | / | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes |
| Walking device | Tire size (front/rear) | / | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 |

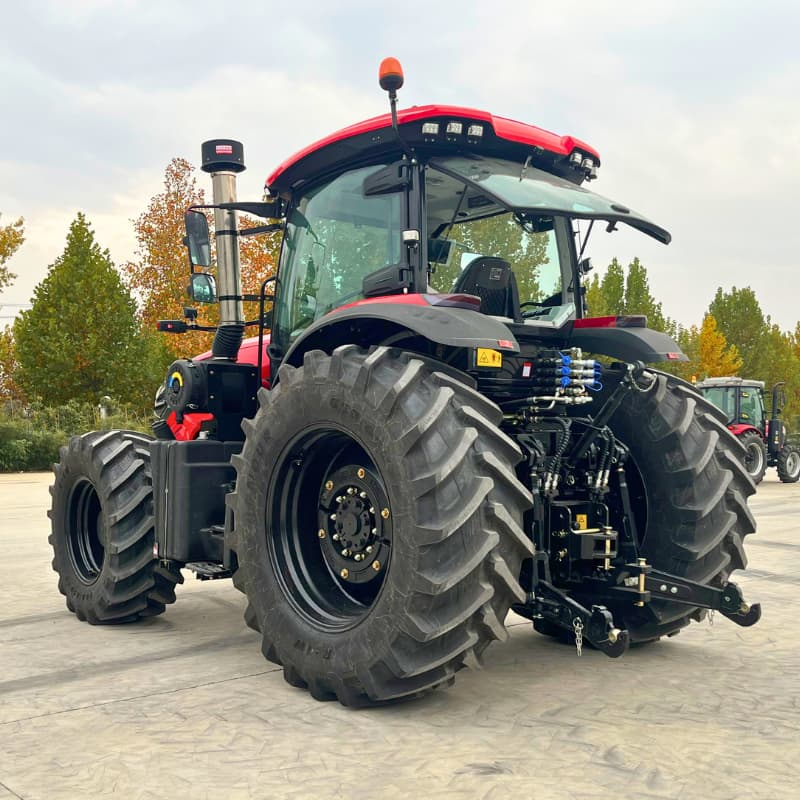

| Working device | Suspension device type | / | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 |
| Suspension device category | / | Category Ⅲ | Category Ⅲ | Category Ⅲ | Category Ⅲ | Category Ⅲ | |
| Tillage Depth Adjustment | / | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | |
| Hydraulic output device | Group | 4 | 4 | 4 | 4 | 4 | |
| Standard PTO speed | r/min | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | |
| Maximum lifting force | kN | ≥31.8kN | ≥35.3kN | ≥38.8kN | ≥42.3kN | ≥45.9kN | |
| Maximum traction | kN | ≥65.5kN | ≥65.5kN | ≥65.5kN | ≥67.0kN | ≥70.3kN | |
| Minimum turning circle radius (single-sided braking) | m | 5.1m | 5.1m | 5.1m | 5.1m | 5.1m | |
Product advantages
I. Core Power and Transmission (Core of High-Efficiency Operation)
14-inch Independent Dual-Action Clutch: Smooth engagement and complete disengagement, shock-free shifting, suitable for heavy-duty operations, extending the life of the transmission system.
Clutch Mechanical Assist System: Light pedal effort, no foot fatigue during long-term operation, reducing driver fatigue.
TC24+8 Synchronizer Shift Mechanism: Smooth, non-jamming shifting, wide gear ratio coverage, suitable for various scenarios such as farmland and transportation, easy for beginners to operate.
Adjustable Speed 760/850 RPM: Switch speed as needed, high-speed for high-efficiency operation, low-speed for energy saving and fuel economy, balancing efficiency and economy.
II. Drive and Load Capacity (Stable and Reliable Guarantee)
TG Front Drive Axle: Strong load capacity, high transmission efficiency, good passability in complex road conditions (muddy, uphill), less prone to failure.
Thickened and Heavy-Duty Half-Tube Design: Upgraded chassis rigidity, anti-torsional and shock resistance, suitable for rugged terrain and heavy-duty operations, doubling durability.
14.9-28/18.4-38 Large-diameter tires: Large contact area, strong grip, less prone to slipping, while also cushioning and reducing shock, protecting agricultural machinery and crops.
III. Operation and Comfort (Reduced Labor Intensity)

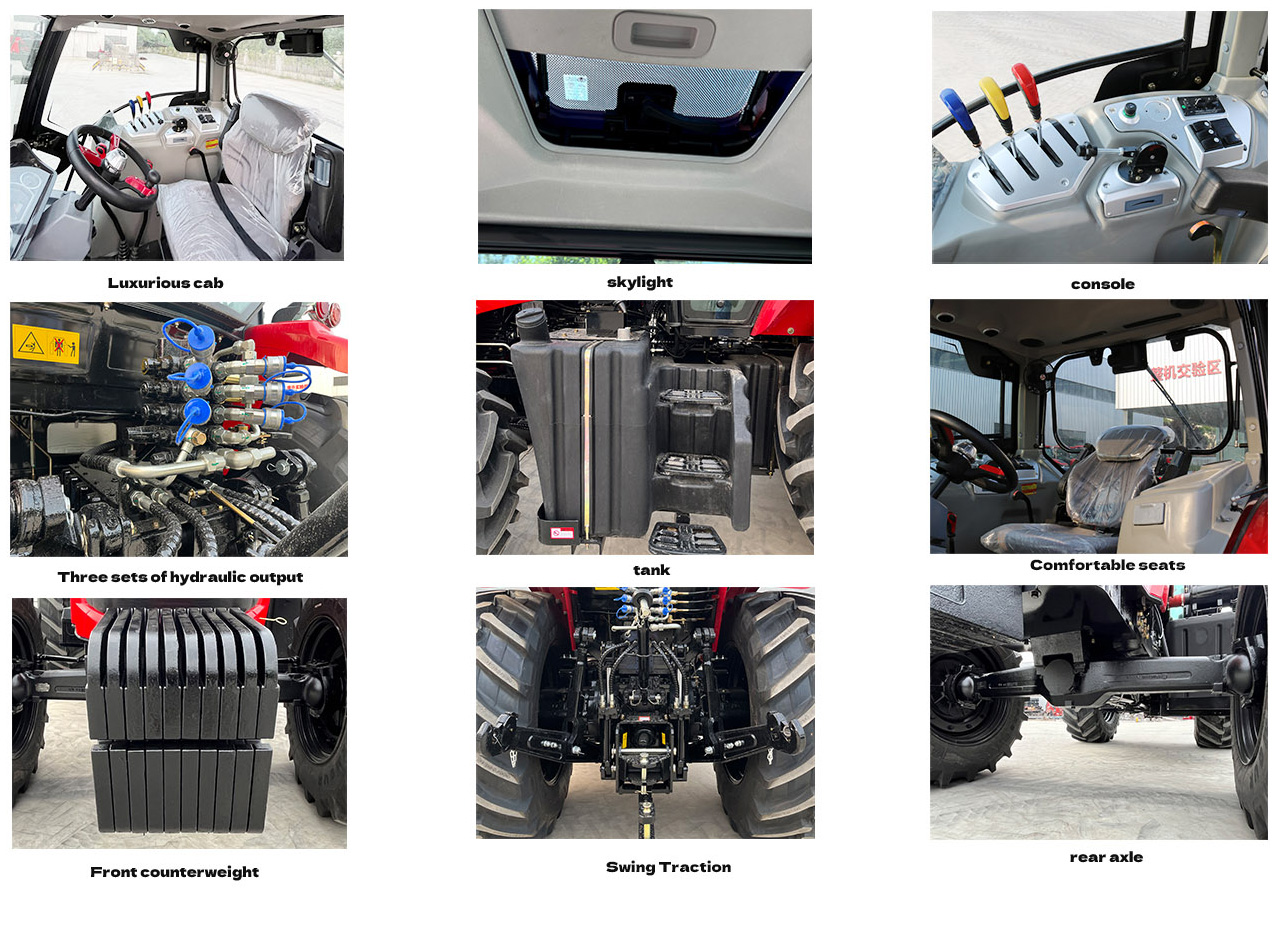

Luxury Air-Conditioned Cab: Excellent sealing, warm in winter and cool in summer, isolating external dust and noise for a more comfortable working environment.
Fully Hydraulic Steering System: Light and flexible steering, small turning radius, making field turns and precise operations easier.
Reversing Camera Configuration: Clearly displays rear road conditions, avoiding collisions with obstacles or crushing crops during operation, improving operational safety.
Infinitely Adjustable Rear Wheels: Freely adjusts wheel track according to crop row spacing and operational needs, offering greater adaptability and higher operational precision.
IV. Expanded Operational Functions (Meeting Multiple Scenarios)
Dual High-Pressure Lifters: High lifting force and stable settling, providing more stable attachment of implements such as plows, harrows, and seeders, preventing "sag" during deep plowing operations.
Three Hydraulic Output Interfaces: Allows simultaneous attachment of multiple hydraulic implements (such as hydraulic reversible plows and sprayers), eliminating the need for frequent switching and increasing operational efficiency.
Quick-Connect Suspension: Implement attachment/ Quick and easy disassembly reduces auxiliary time and improves overall work efficiency.
V. Protection and Counterweight (Stable Operation and Greater Durability)
Left and Right Side Guard Plates: Protect critical machine components from damage caused by weeds and stones during operation, extending the machine's lifespan.
Front Counterweight (10 plates, 60 kg/plate, total 600 kg): Increases the weight at the front of the machine, preventing it from tilting during deep plowing or climbing, resulting in greater stability.
Rear Counterweight (1 layer, 240 kg): Balances the machine's center of gravity, improves traction, and ensures stability under heavy loads.
14-inch Independent Dual-Action Clutch: Smooth engagement and complete disengagement, shock-free shifting, suitable for heavy-duty operations, extending the life of the transmission system.
Clutch Mechanical Assist System: Light pedal effort, no foot fatigue during long-term operation, reducing driver fatigue.
TC24+8 Synchronizer Shift Mechanism: Smooth, non-jamming shifting, wide gear ratio coverage, suitable for various scenarios such as farmland and transportation, easy for beginners to operate.
Adjustable Speed 760/850 RPM: Switch speed as needed, high-speed for high-efficiency operation, low-speed for energy saving and fuel economy, balancing efficiency and economy.
II. Drive and Load Capacity (Stable and Reliable Guarantee)
TG Front Drive Axle: Strong load capacity, high transmission efficiency, good passability in complex road conditions (muddy, uphill), less prone to failure.
Thickened and Heavy-Duty Half-Tube Design: Upgraded chassis rigidity, anti-torsional and shock resistance, suitable for rugged terrain and heavy-duty operations, doubling durability.
14.9-28/18.4-38 Large-diameter tires: Large contact area, strong grip, less prone to slipping, while also cushioning and reducing shock, protecting agricultural machinery and crops.
III. Operation and Comfort (Reduced Labor Intensity)
Luxury Air-Conditioned Cab: Excellent sealing, warm in winter and cool in summer, isolating external dust and noise for a more comfortable working environment.
Fully Hydraulic Steering System: Light and flexible steering, small turning radius, making field turns and precise operations easier.
Reversing Camera Configuration: Clearly displays rear road conditions, avoiding collisions with obstacles or crushing crops during operation, improving operational safety.
Infinitely Adjustable Rear Wheels: Freely adjusts wheel track according to crop row spacing and operational needs, offering greater adaptability and higher operational precision.
IV. Expanded Operational Functions (Meeting Multiple Scenarios)
Dual High-Pressure Lifters: High lifting force and stable settling, providing more stable attachment of implements such as plows, harrows, and seeders, preventing "sag" during deep plowing operations.
Three Hydraulic Output Interfaces: Allows simultaneous attachment of multiple hydraulic implements (such as hydraulic reversible plows and sprayers), eliminating the need for frequent switching and increasing operational efficiency.
Quick-Connect Suspension: Implement attachment/ Quick and easy disassembly reduces auxiliary time and improves overall work efficiency.
V. Protection and Counterweight (Stable Operation and Greater Durability)
Left and Right Side Guard Plates: Protect critical machine components from damage caused by weeds and stones during operation, extending the machine's lifespan.
Front Counterweight (10 plates, 60 kg/plate, total 600 kg): Increases the weight at the front of the machine, preventing it from tilting during deep plowing or climbing, resulting in greater stability.
Rear Counterweight (1 layer, 240 kg): Balances the machine's center of gravity, improves traction, and ensures stability under heavy loads.

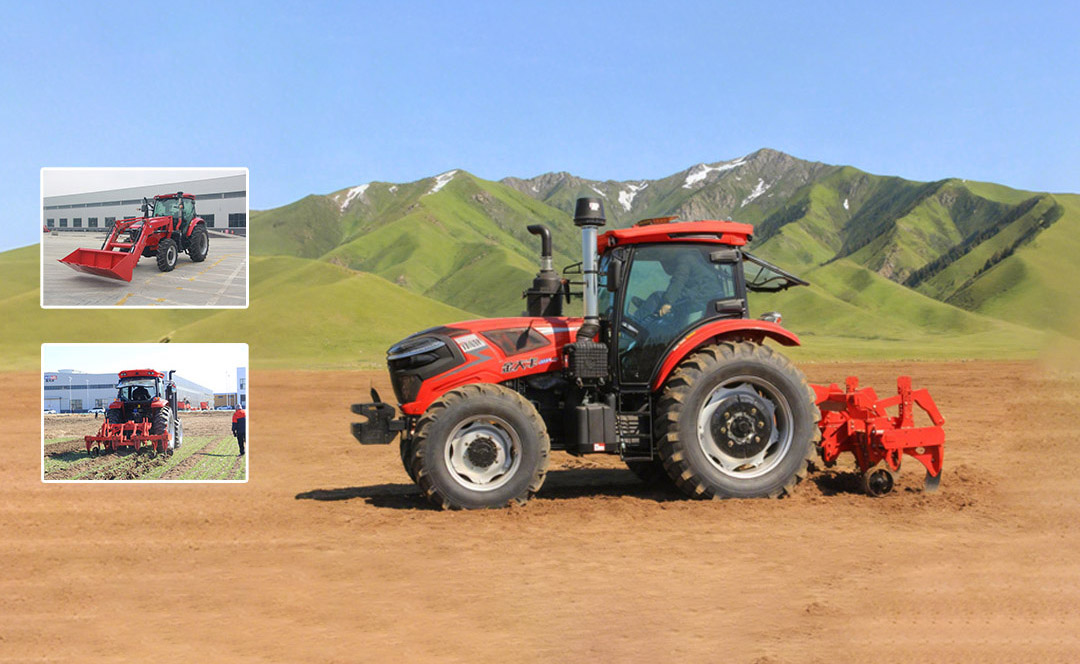

Product Application

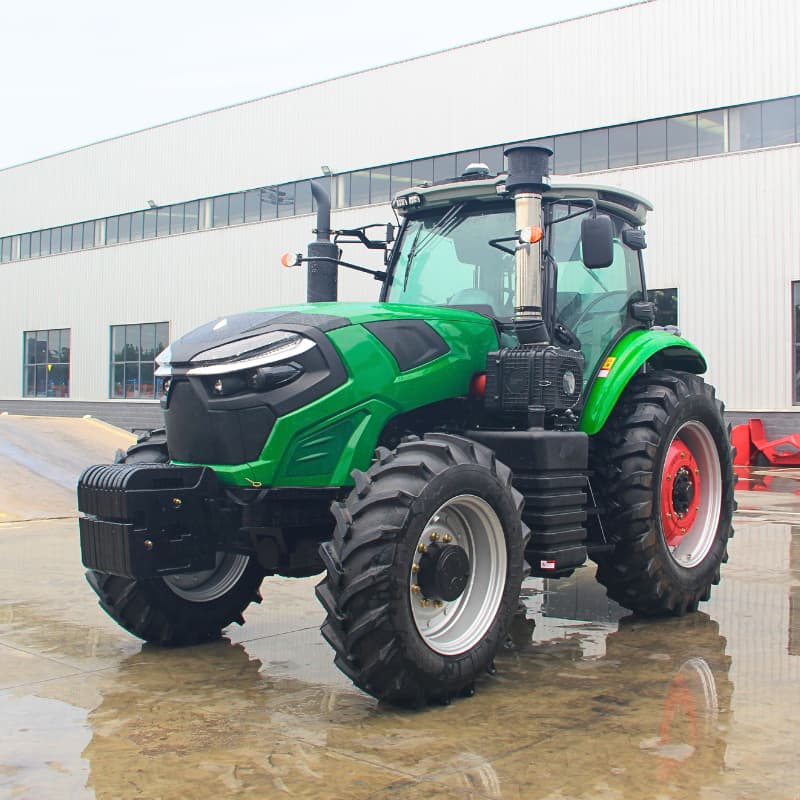

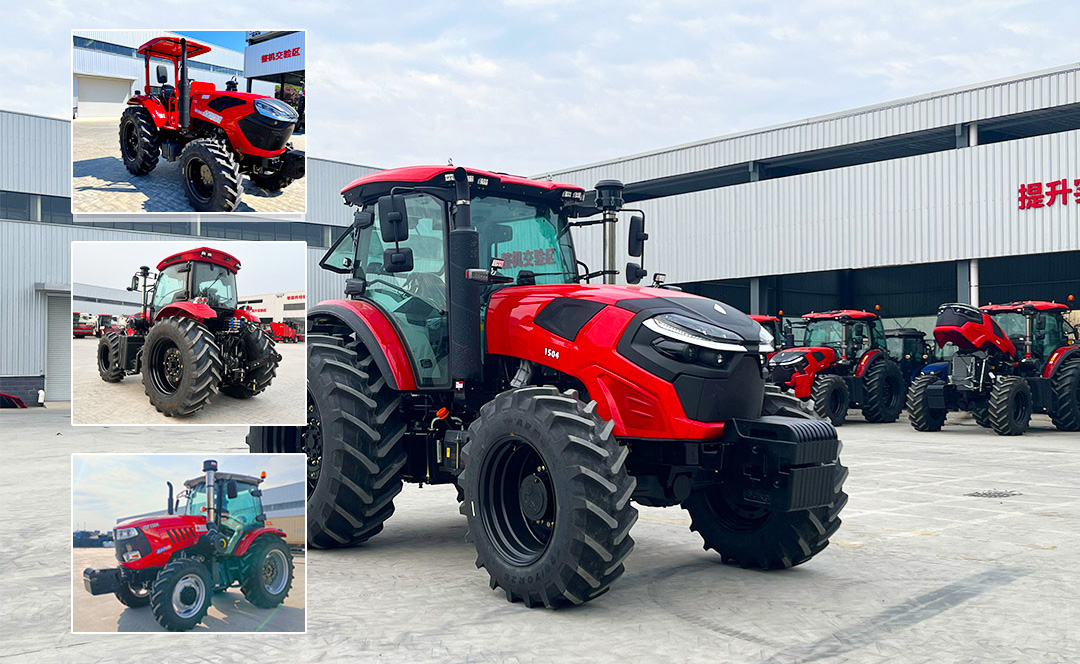

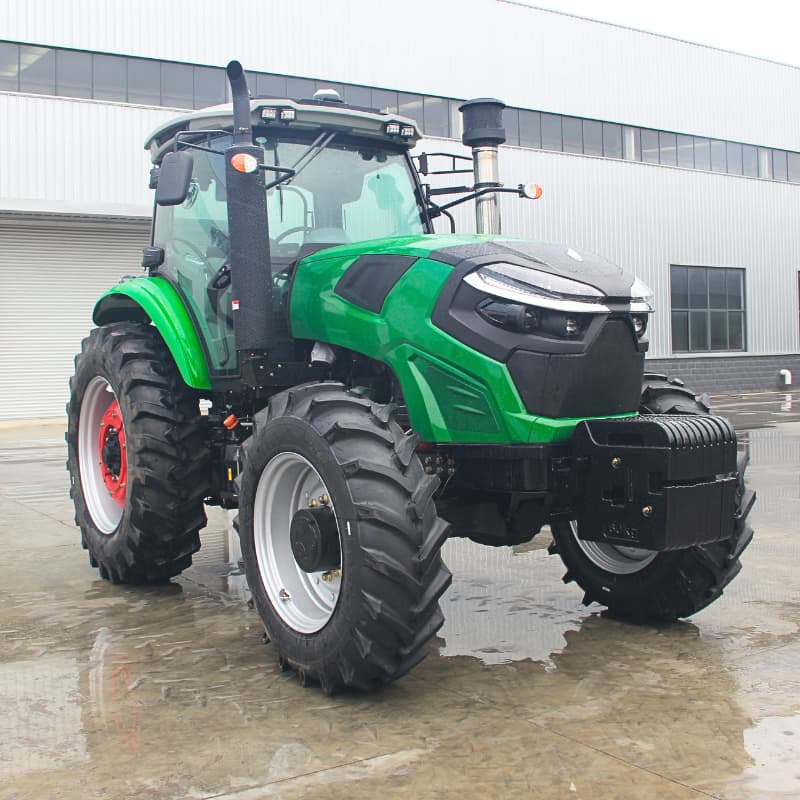

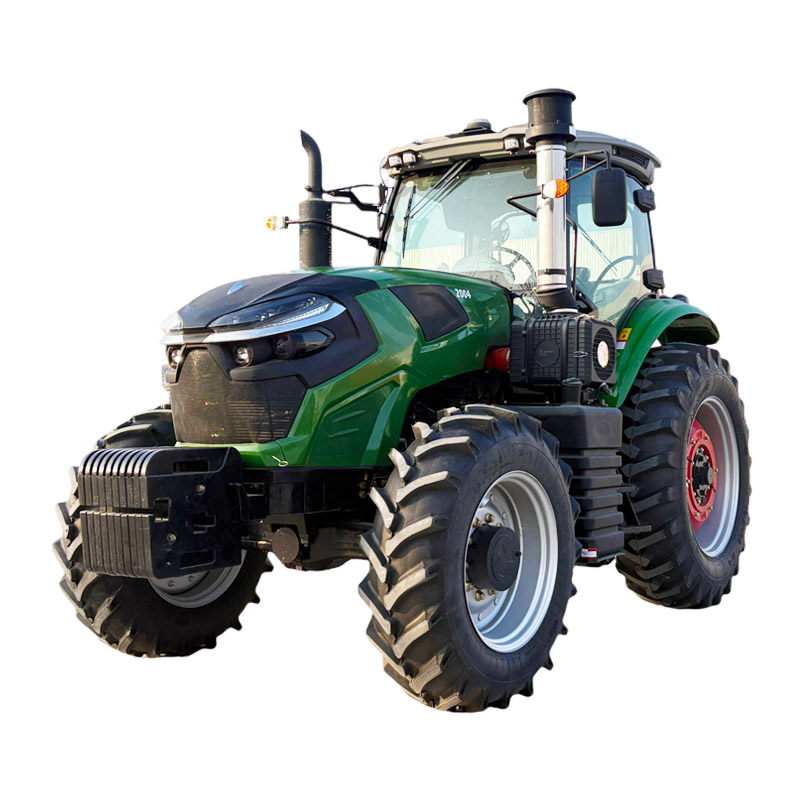

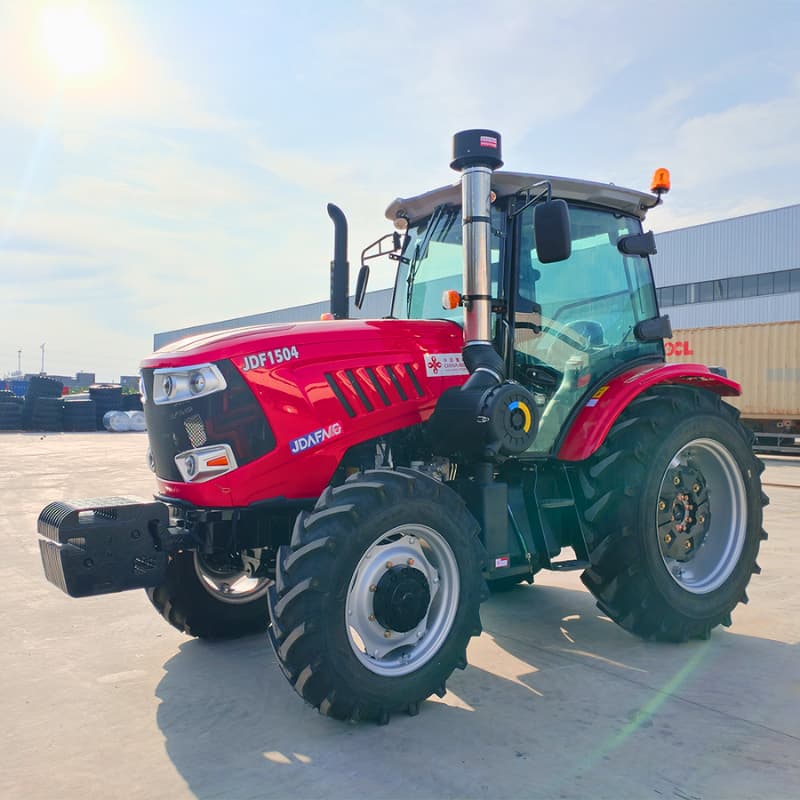

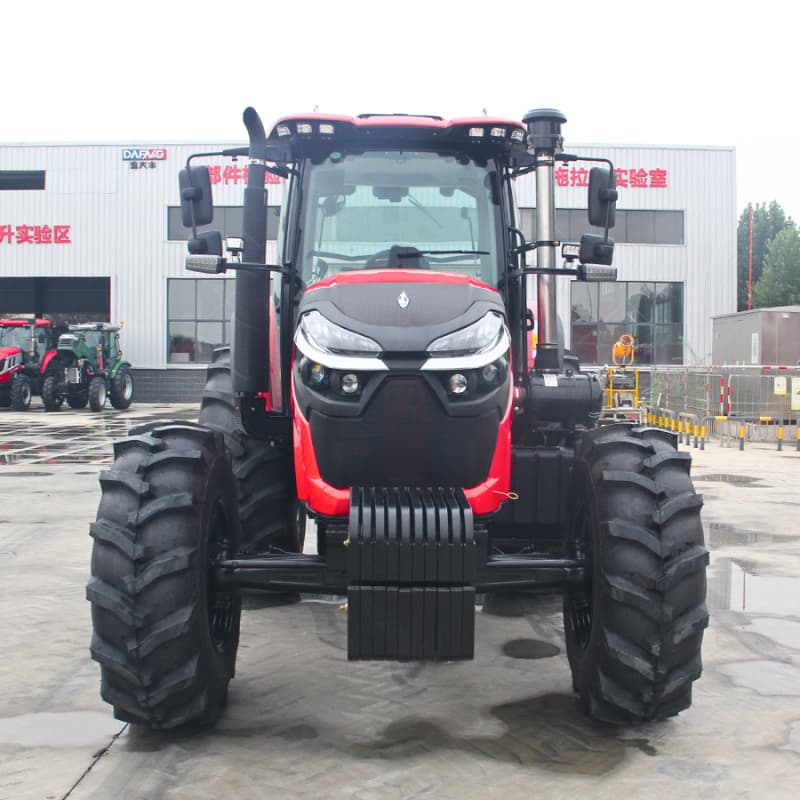

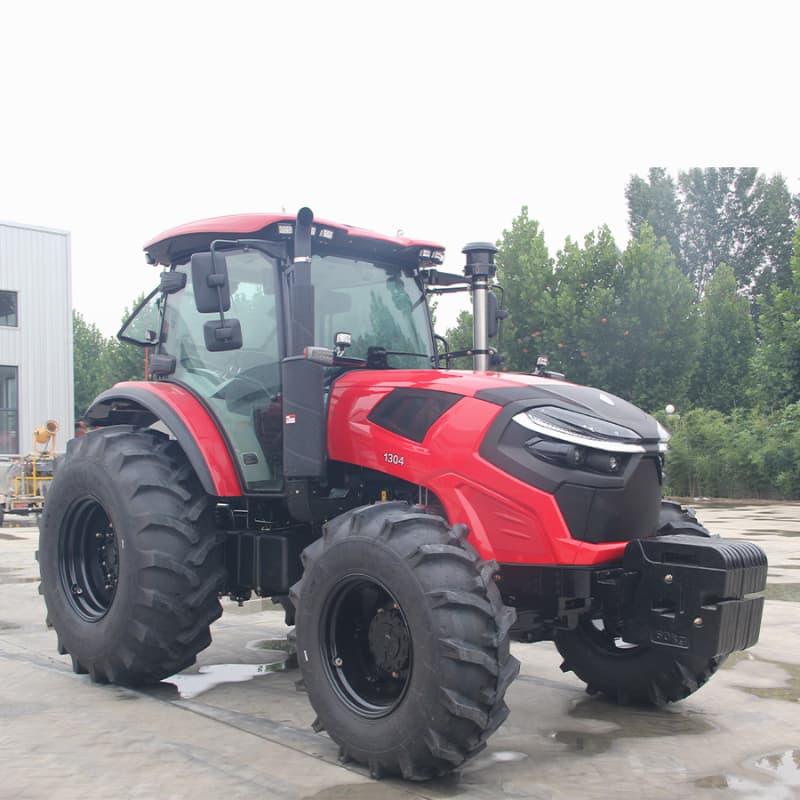

Product diagram
