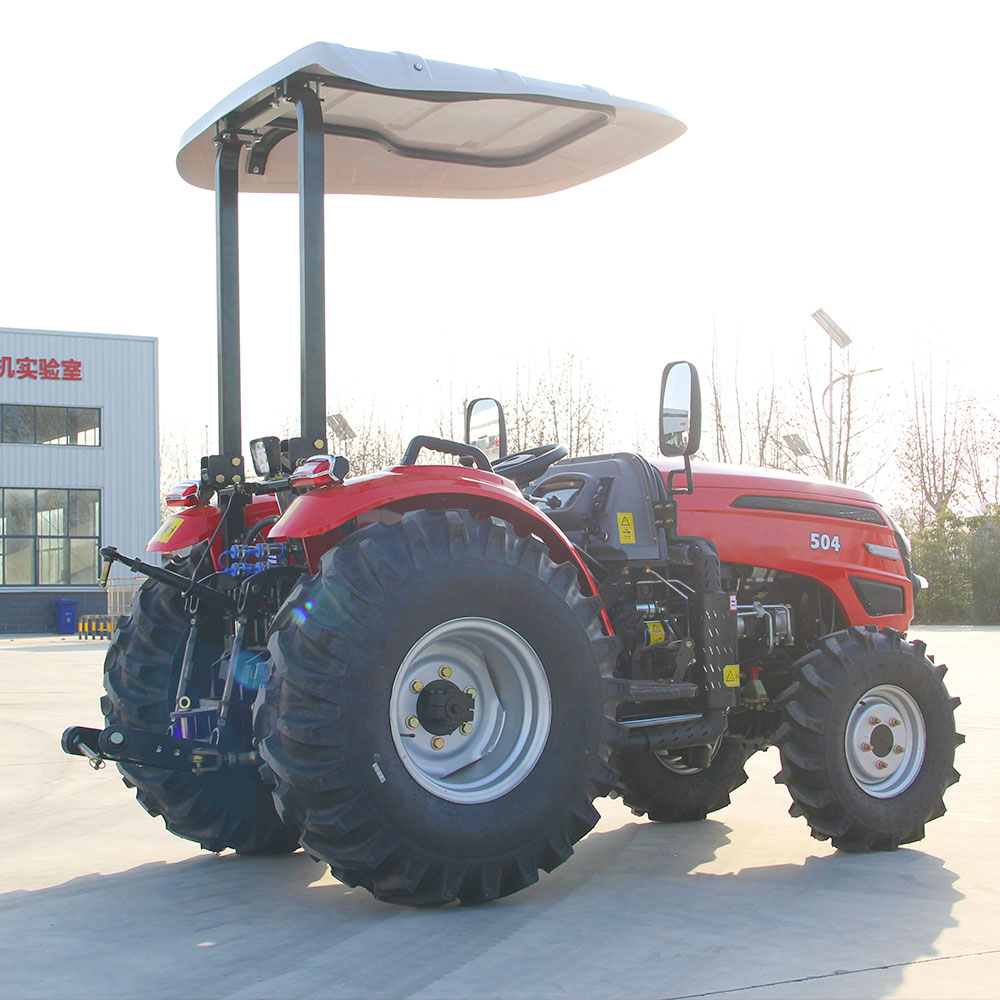

Product parameters
| Model | unit | XL504D | |
| Dimension (L*W*H) | mm | 3300*1410*2100 | |
| Min. operating weight | kg | 1630 | |
| Wheelbase | mm | 1860 | |
| Wheel track (front/rear) | mm | 1285/1205/1297/1325 | |
| Engine | Model | / | laidong |
| Type | / | Vertical, water-cooled, four-stroke | |
| Qty of cylinders | Cylinder | 4 | |
| Rated power | HP/KW | 50HP/36.8Kw | |
| Rated speed | r/min | 2400 | |
| Drive train | Clutch type | / | Single-acting |
| Gearbox | / | TY8F+2R | |
| Gear shift type | / | shift sleeve | |
| Steering | Steering type | / | Full hydraulic steering |
| Walking device | Tire size (front/rear) | / | 7.0-12/9.5-16 |
| Working device | Suspension device type | / | Rear-mounted, three-point suspension, Class 1 |
| Suspension device category | / | Class 1 | |
| Hydraulic output device | Group | 1 set of hydraulic output | |
| Standard PTO speed | r/min | 6keys540/1000 | |
Product advantages

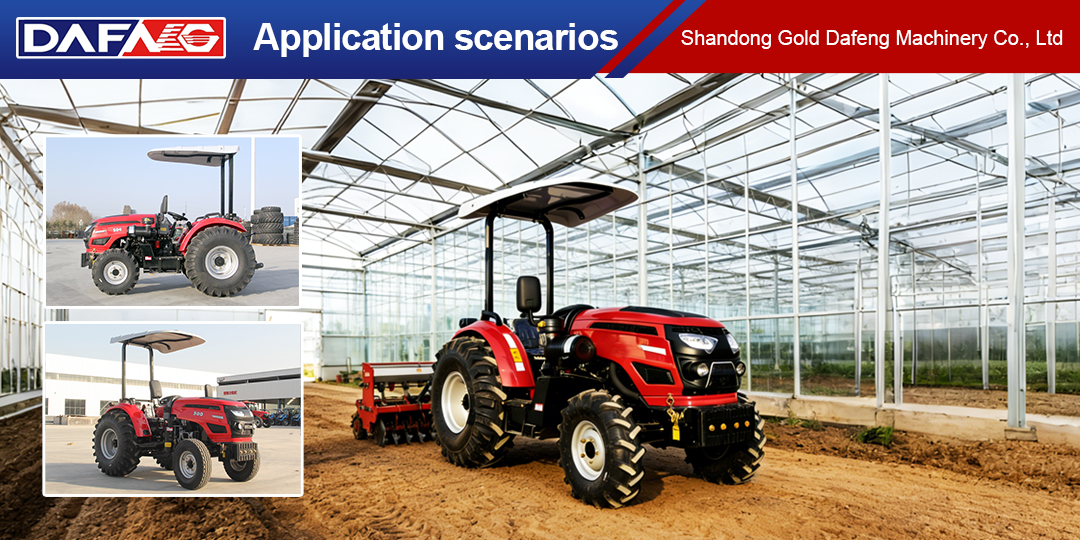

1.Low-profile, narrow-body design, perfectly suited for operation in the confined spaces of greenhouses and orchards.
2.50-horsepower, four-cylinder engine delivering ample torque, fuel efficiency, and high performance.
3.Ultra-compact turning radius, ensuring agile maneuverability within tight plots.
4.Simplified control system for easy operation and a quick learning curve.
5.Reinforced rear axle housing, offering high load-bearing capacity and exceptional durability.
6.Powerful hydraulic lift system, compatible with a wide range of horticultural and agricultural implements.
7.Specially designed narrow wheel track, allowing for unimpeded passage between crop rows.
8.Optimized ground clearance, ensuring excellent passability across various field terrains.
9.Comprehensive anti-rust treatment applied to the entire machine, enabling reliable operation in humid environments.
10.Low energy consumption and ease of maintenance make it a highly cost-effective solution for greenhouse and orchard operations.
product-related

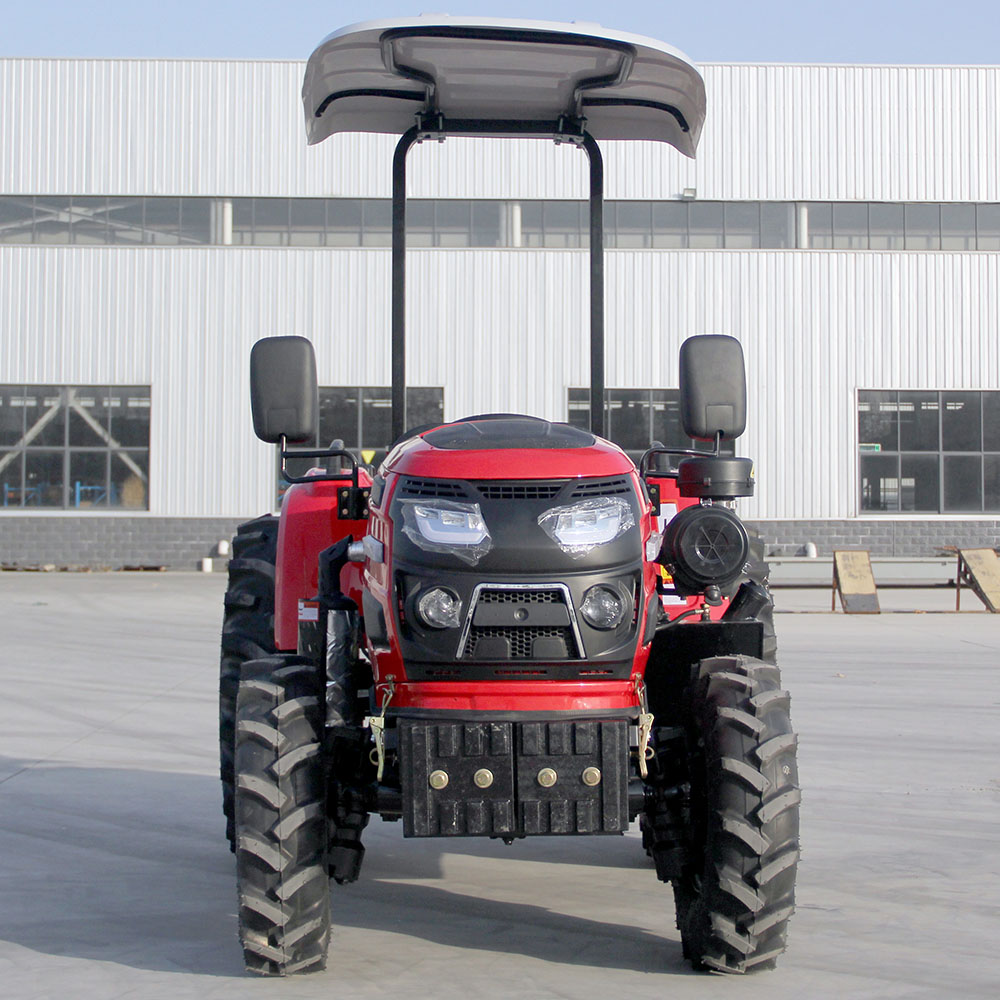

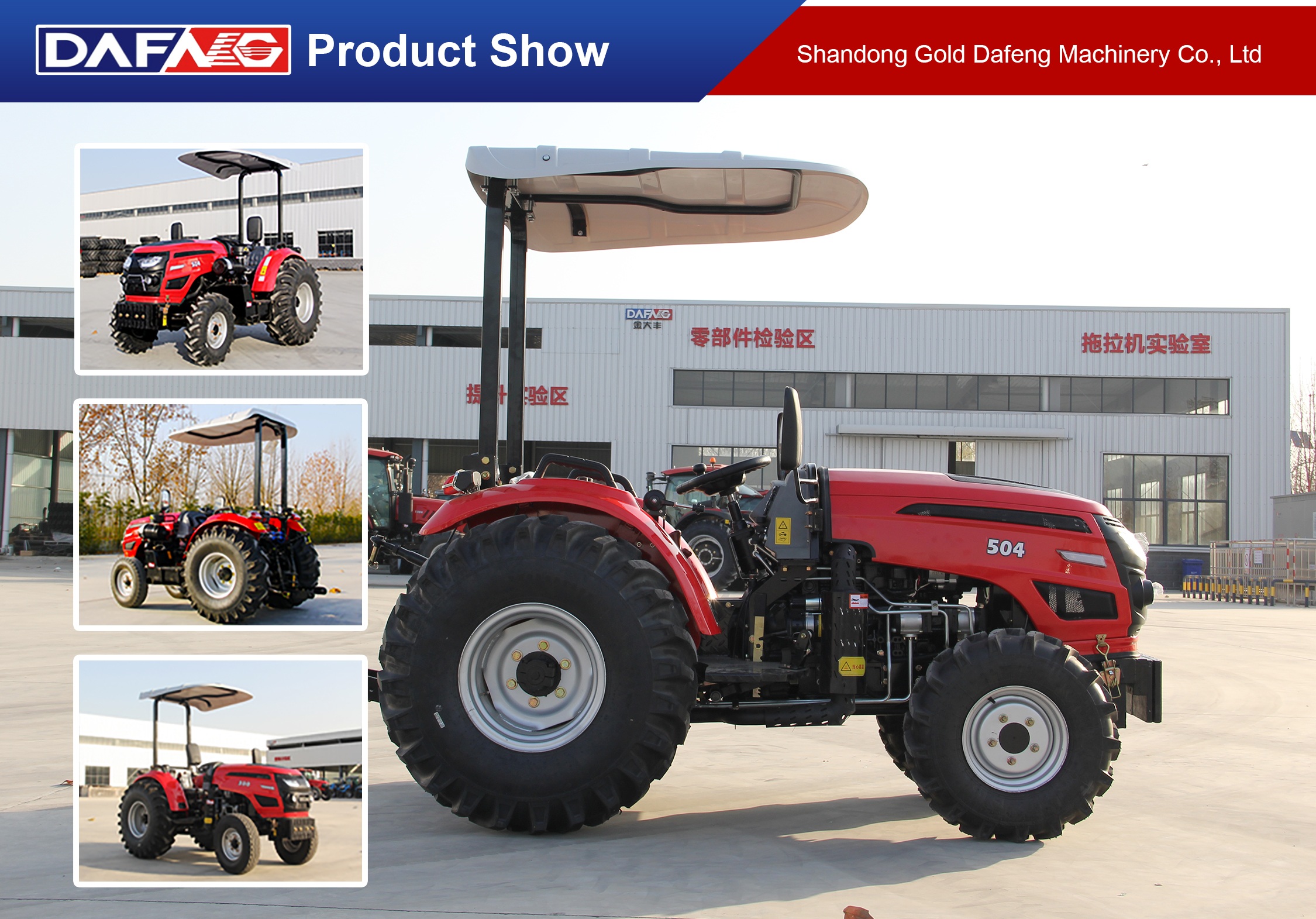

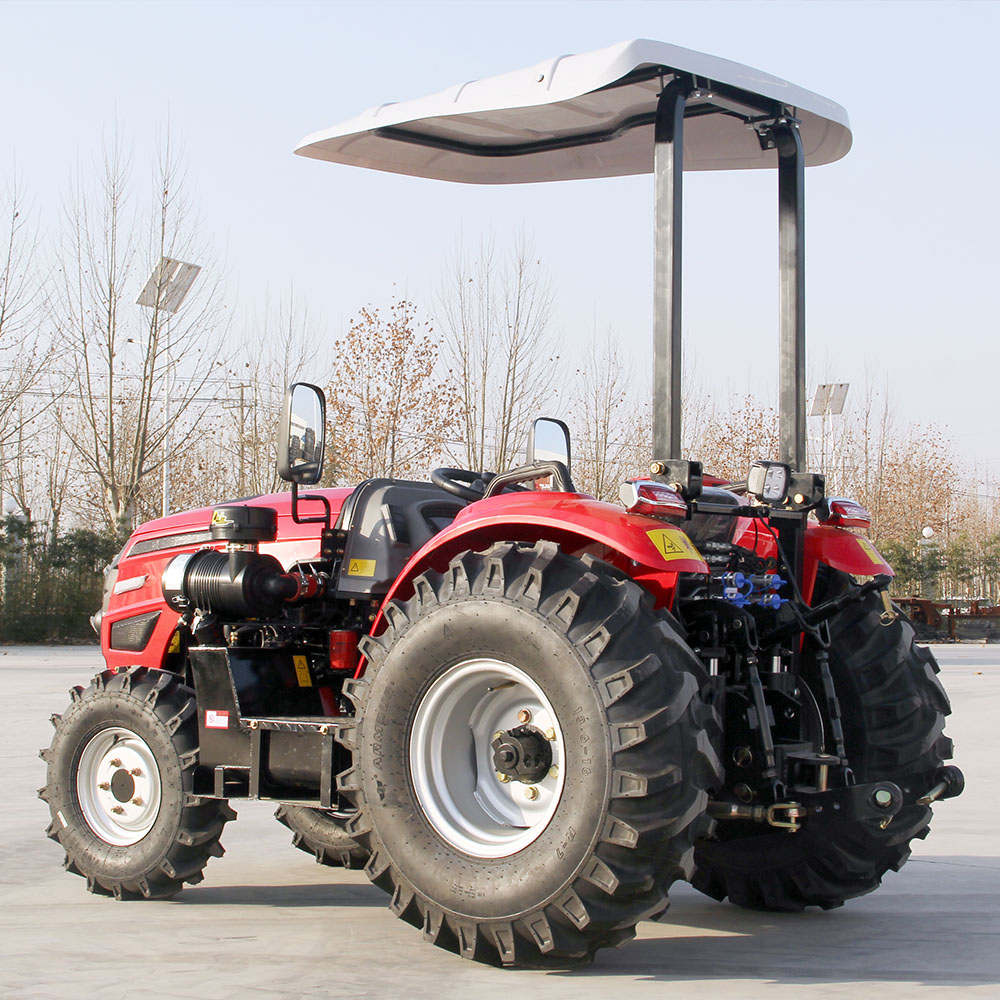

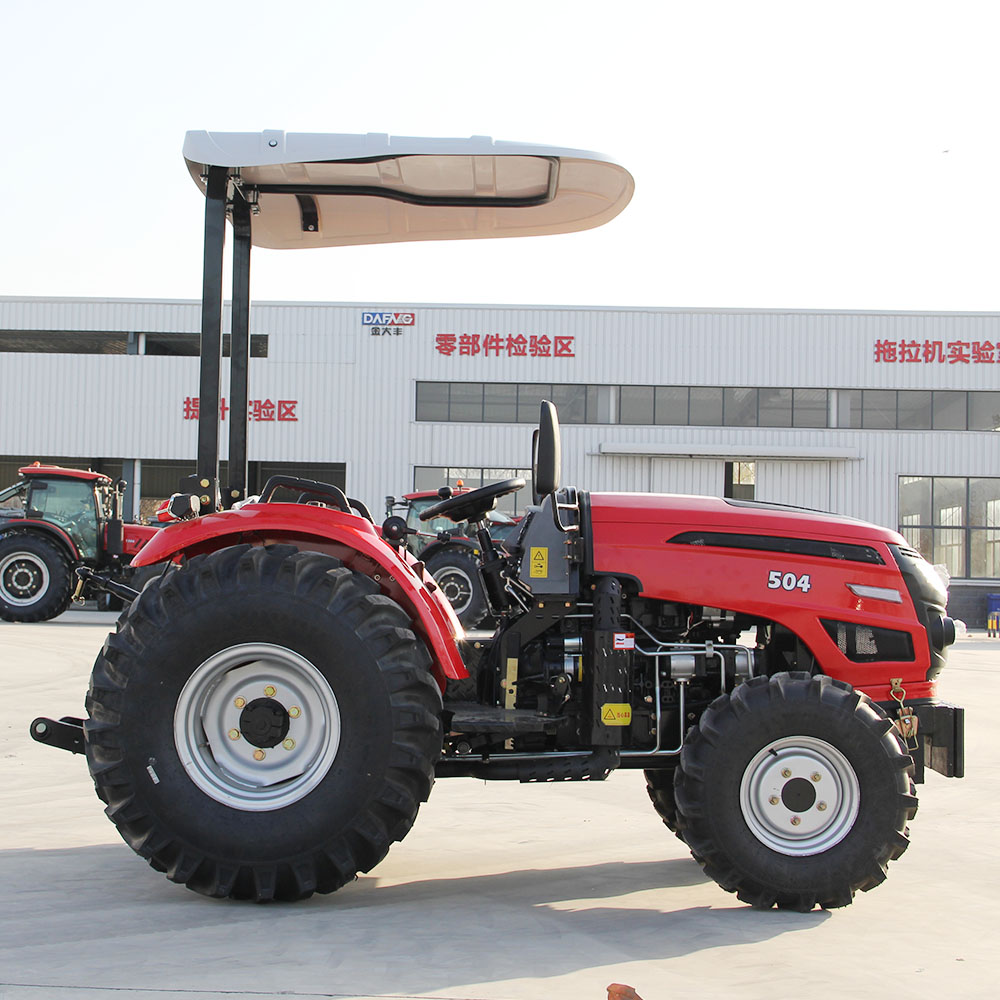

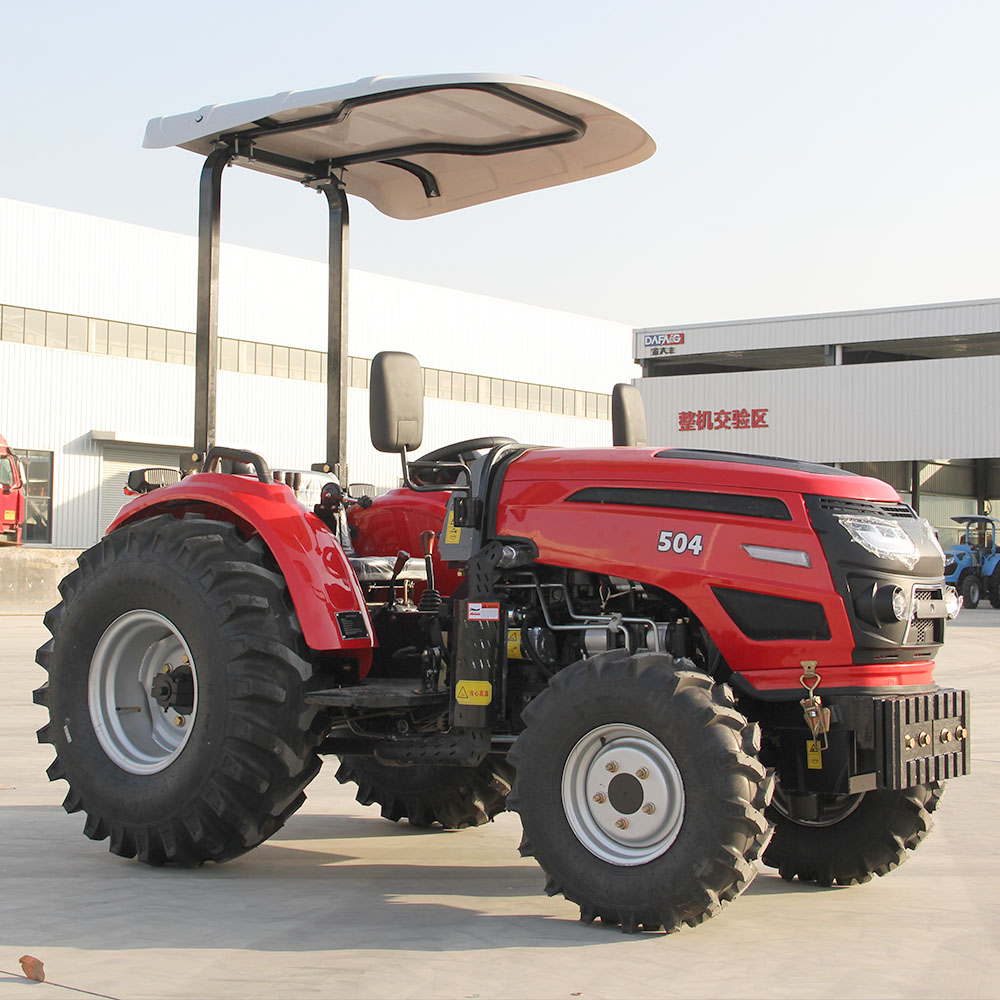

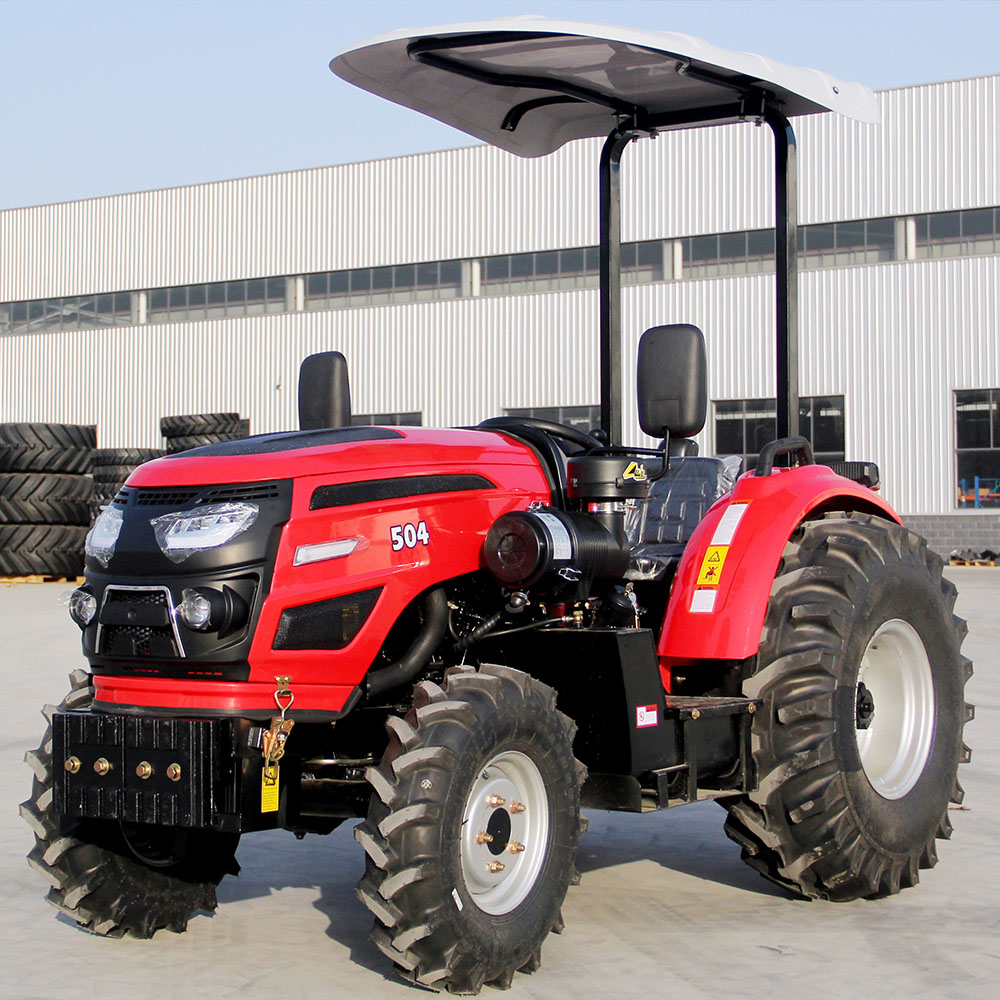

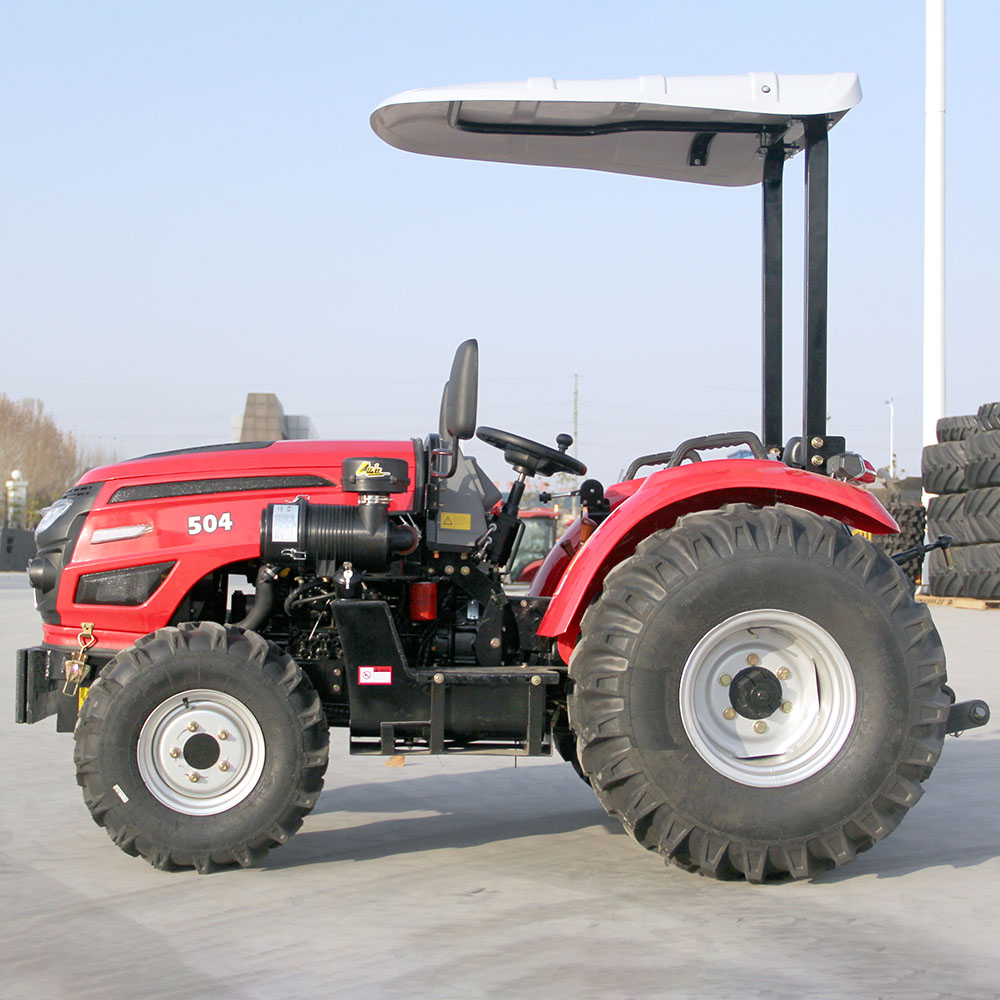

Product diagram
