Product parameters
| Project | unit | Small box series rotary tiller | Low-box reinforced rotavator | 9M medium box series rotary tiller | 10M large and medium-sized box series rotary tiller | 10M high box series rotary tiller | |||||||||
| Model | / | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-200 | 1GQN-230 | 1GQN-200 | 1GQN-230 | 1GQN-250 | 1GQN-280 | 1GQN-280 | 1GQN-300 |
| Structural style | / | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type | Frame type |
| Overall dimensions (L × W × H) | mm | 990×1430×1000 | 990×1580×1100 | 1100×1670×1155 | 1100×1820×1135 | 1100×2060×1140 | 1520×2380×1200 | 1520×2380×1200 | 1520×2620×1200 | 1520×2380×1200 | 1520×2620×1200 | 1520×2820×1200 | 1520×3060×1200 | 1520×3060×1200 | 1945×3215×1395 |
| Operating speed range | m/s | 0.5～1.0 | 0.5～1.0 | 0.56～1.39 | 0.56～1.39 | 0.56～1.39 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.3～1.2 | 0.56～1.39 |
| Working breadth | mm | 1250 | 1400 | 1500 | 1600 | 1800 | 2000 | 2000 | 2300 | 2000 | 2300 | 2500 | 2800 | 2800 | 3000 |
| Depth of cultivation | mm | 120～160 | 120～160 | 120～160 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 | 120～180 |
| Type of cutter shaft | / | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type | Uniaxial type |
| Maximum turning radius of cutter roll | mm | 225 | 225 | 225 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 |
| Total number of cutters installed on cutter roll | pcs | 32 | 32 | 36 | 44 | 52 | 60 | 60 | 64 | 60 | 64 | 72 | 80 | 80 | 84 |
| Model of rotary tiller blade | / | IT225 | IT225 | IT225 | IT245 | IT245 | ⅠT245 | ⅠT245 | ⅠT245 | ⅠT245 | ⅠT245 | ⅠT245 | ⅠT245 | ⅠT245 | IT245 |
| Calibrated power range of supporting tractor | kW | 14.7～22.1 | 25.7～36.8 | 22～47.8 | 29.4～47.8 | 44.8～52.1 | 66.2～88.2 | 66.2～88.2 | 73.5～110.3 | 66.2～88.2 | 73.5～110.3 | 88.2～117.6 | 88.2～132.3 | 88.2～132.3 | 102.9～191.1 |
Product advantages
1. The intermediate all-gear transmission is adopted, with high transmission efficiency and reliability, which can effectively reduce the power loss and improve the operation efficiency.
2. Thickening cutter shaft: the body of the cutter shaft is made of upgraded thickened seamless steel pipe, with high strength and long service life, which can effectively reduce wear and damage.
3. Wear-resistant blade: High-quality rotary tiller blade with special treatment and strong wear resistance can adapt to various soil conditions.
4. High flatness: the rotary cultivation depth is uniform and the surface flatness is high, which can effectively improve the soil structure and improve the soil aeration and water retention.
5. Strong soil crushing capacity: reasonable blade design and strong soil crushing capacity, which can crush soil, reduce soil lumps and improve soil cultivation quality.
6. Three-point suspension: adopt three-point suspension mode, which is convenient for coupling and flexible for operation, and can adapt to various terrains and operating conditions.
7. Easy maintenance: reasonable design, easy maintenance, easy replacement of key parts, reduced maintenance time and cost.
8. Low noise: low noise during operation, little impact on the environment, meeting the environmental protection requirements.
9. Low fuel consumption: the optimized power system and transmission design can effectively reduce fuel consumption and improve fuel economy.
2. Thickening cutter shaft: the body of the cutter shaft is made of upgraded thickened seamless steel pipe, with high strength and long service life, which can effectively reduce wear and damage.
3. Wear-resistant blade: High-quality rotary tiller blade with special treatment and strong wear resistance can adapt to various soil conditions.
4. High flatness: the rotary cultivation depth is uniform and the surface flatness is high, which can effectively improve the soil structure and improve the soil aeration and water retention.
5. Strong soil crushing capacity: reasonable blade design and strong soil crushing capacity, which can crush soil, reduce soil lumps and improve soil cultivation quality.
6. Three-point suspension: adopt three-point suspension mode, which is convenient for coupling and flexible for operation, and can adapt to various terrains and operating conditions.
7. Easy maintenance: reasonable design, easy maintenance, easy replacement of key parts, reduced maintenance time and cost.
8. Low noise: low noise during operation, little impact on the environment, meeting the environmental protection requirements.
9. Low fuel consumption: the optimized power system and transmission design can effectively reduce fuel consumption and improve fuel economy.

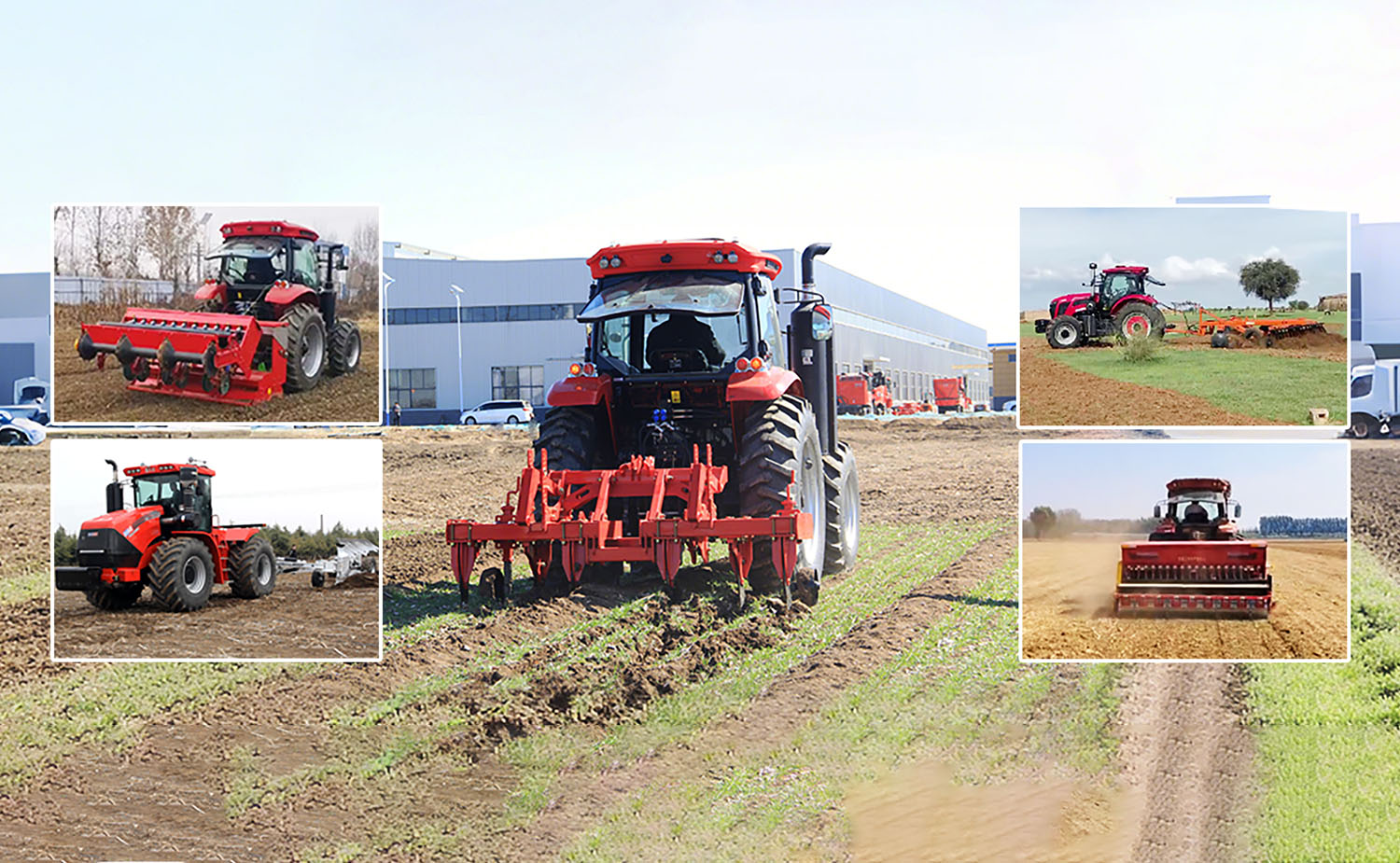

Product Application

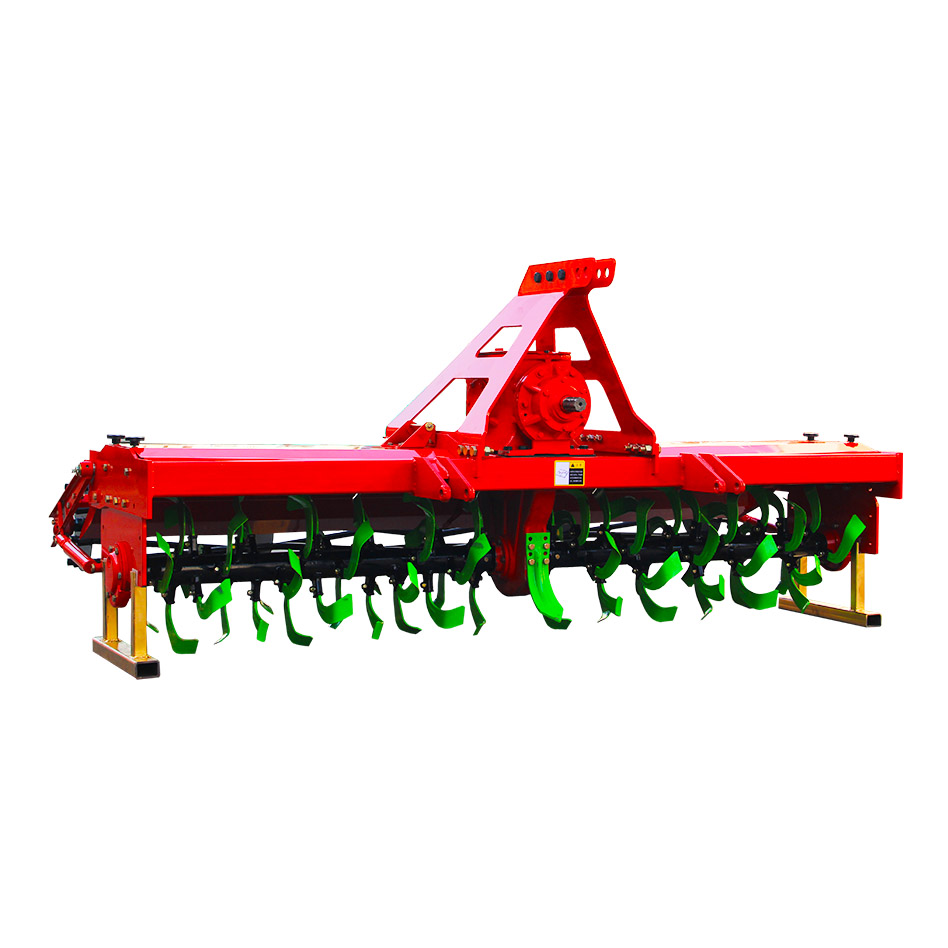

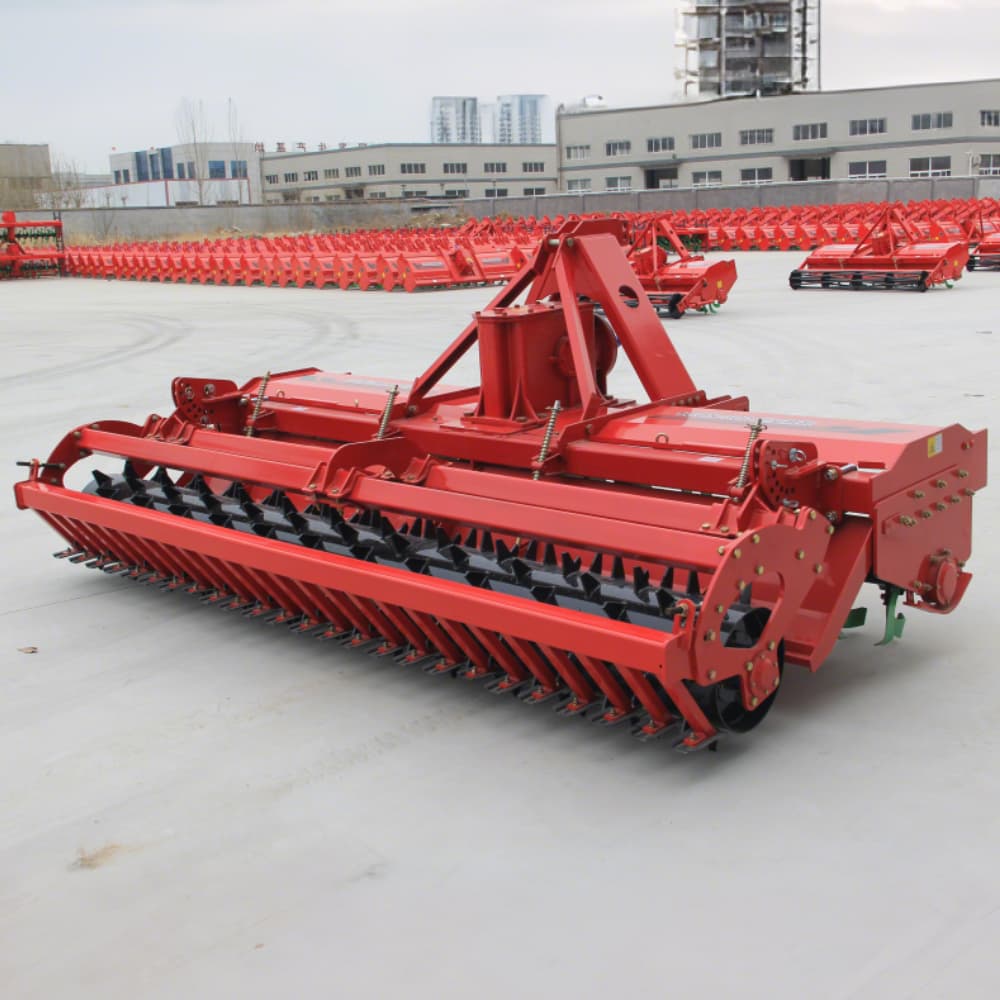

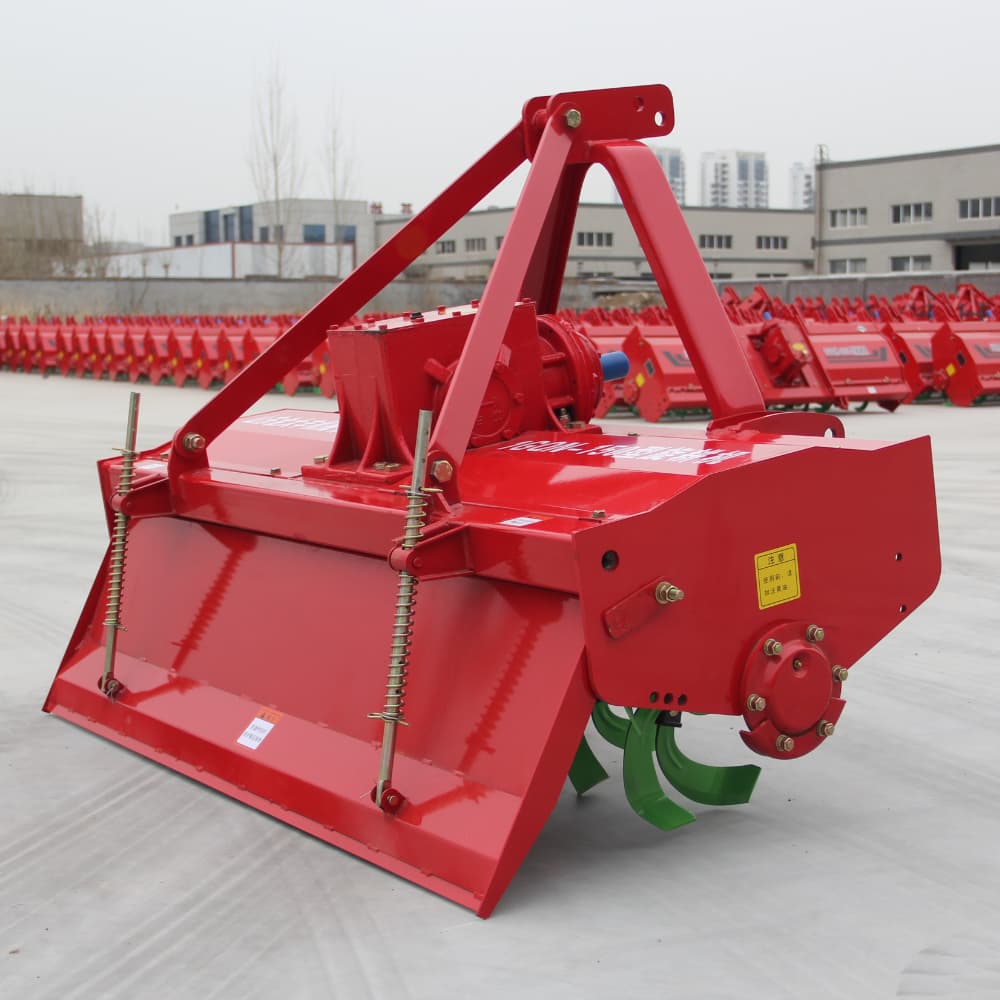

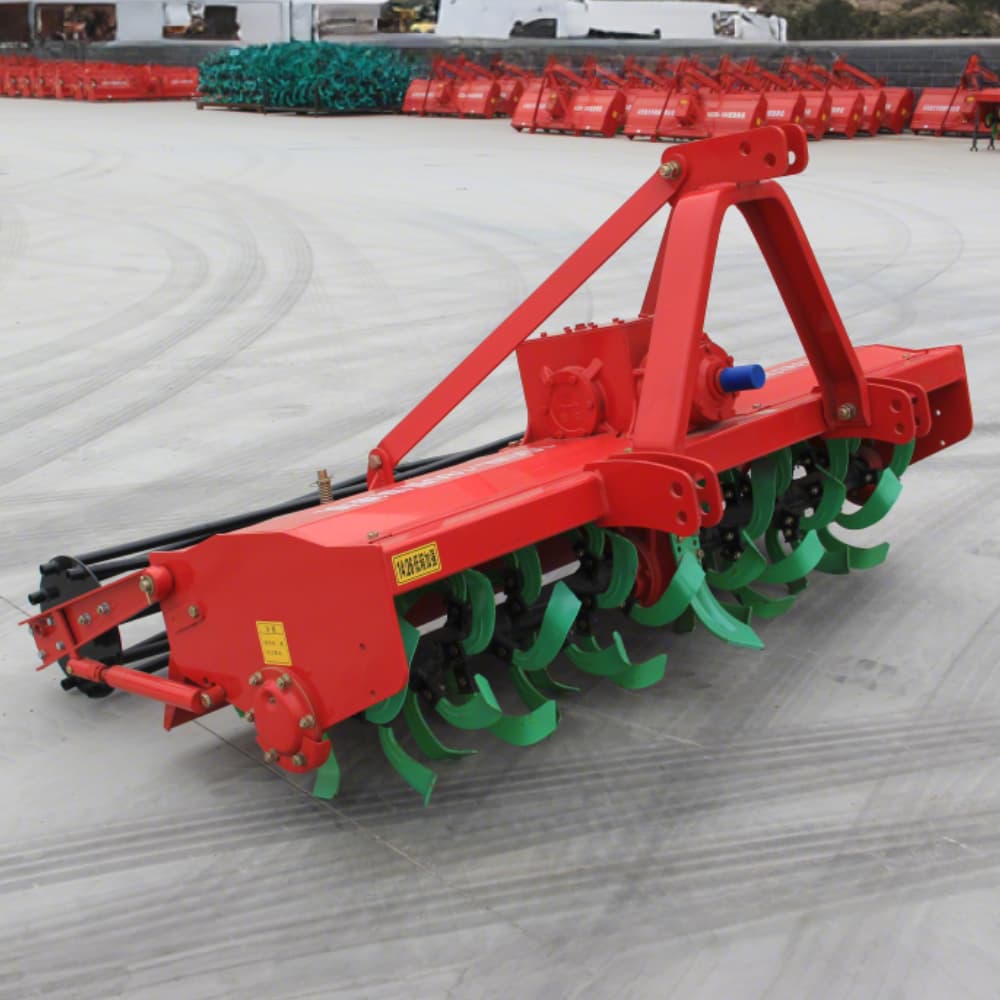

Product diagram
