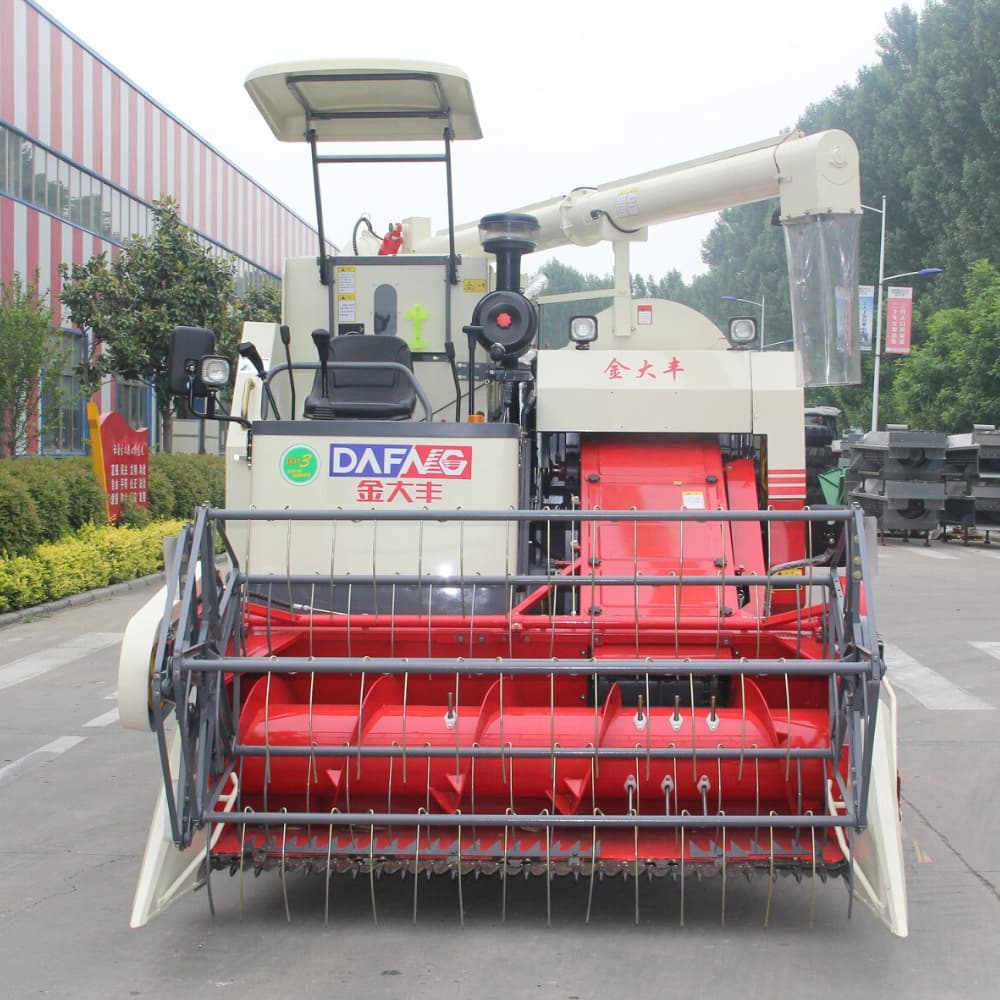

Rice Harvester
0102030405
Product parameters
| Model | 4LZ-5 | ||
| Dimension (L×W×H) | mm | 5450×2520×2870 | |
| Min. operating weight | kg | 3500 | |
| Track gauge of crawler | mm | 1150 | |
| Feeding speed | kg/s | 5 | |
| Productivity | hm²/h | 0.27～0.85 | |
| Working speed | km/h | 0.9～6.5 | |
| Mini clearance | mm | 300 | |
| Grain tank | m³ | 1.6 | |
| Fuel tank capacity | L | 140 | |
| Cutting | Cutting width | mm | 2000 |
| Cutting table agitator type | / | Screw pusher type | |
| Type of reel | / | Eccentric toothed type | |
| Reel lever lever | / | 5 | |
| Pulling wheel diameter | mm | Φ900 | |
| Threshing room | Number of threshing drums | / | 1 |
| Main threshing drum type | / | Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2000 | |
| Concave plate sieve type | / | Grid format | |
| Detoxification method | / | Plate-tooth blade type | |
| Engine | Model | / | CHANGCHAI 88HP-GII |
| Type | / | Turbocharging+mechanical injection | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 88HP/64.7kw | |
| Rated speed | r/min | 2600 | |
| Fuel consumption per unit operation volume | kg/hm2 | ≤35 | |
| Unloading system | Unloading height of grain | mm | 0.8-4000 |
| Grain unloading mode | / | 270°Multi-directional grain unloading | |
| Rubber Track | / | 450x90x51 | |
| Chassis Wheels | / | 6+1 | |
| Gearbox | / | 90 | |
| HST | / | KANZAKI 38cc | |
| Alarm system | / | Alarma de tanque de granos, alarma de refrigerante, alarma de batería, alarma de aceite del motor, alarma de bloqueo | |
| Closed cabin | / | Luxury air-conditioned cab | |
Product advantages
1. Optional plate type and "squirrel cage" grain dividers, with wide crop adaptability, especially for lodging crops, to reduce header losses;
2. Install a protective cover on the reel spring tube to effectively prevent grass entanglement;

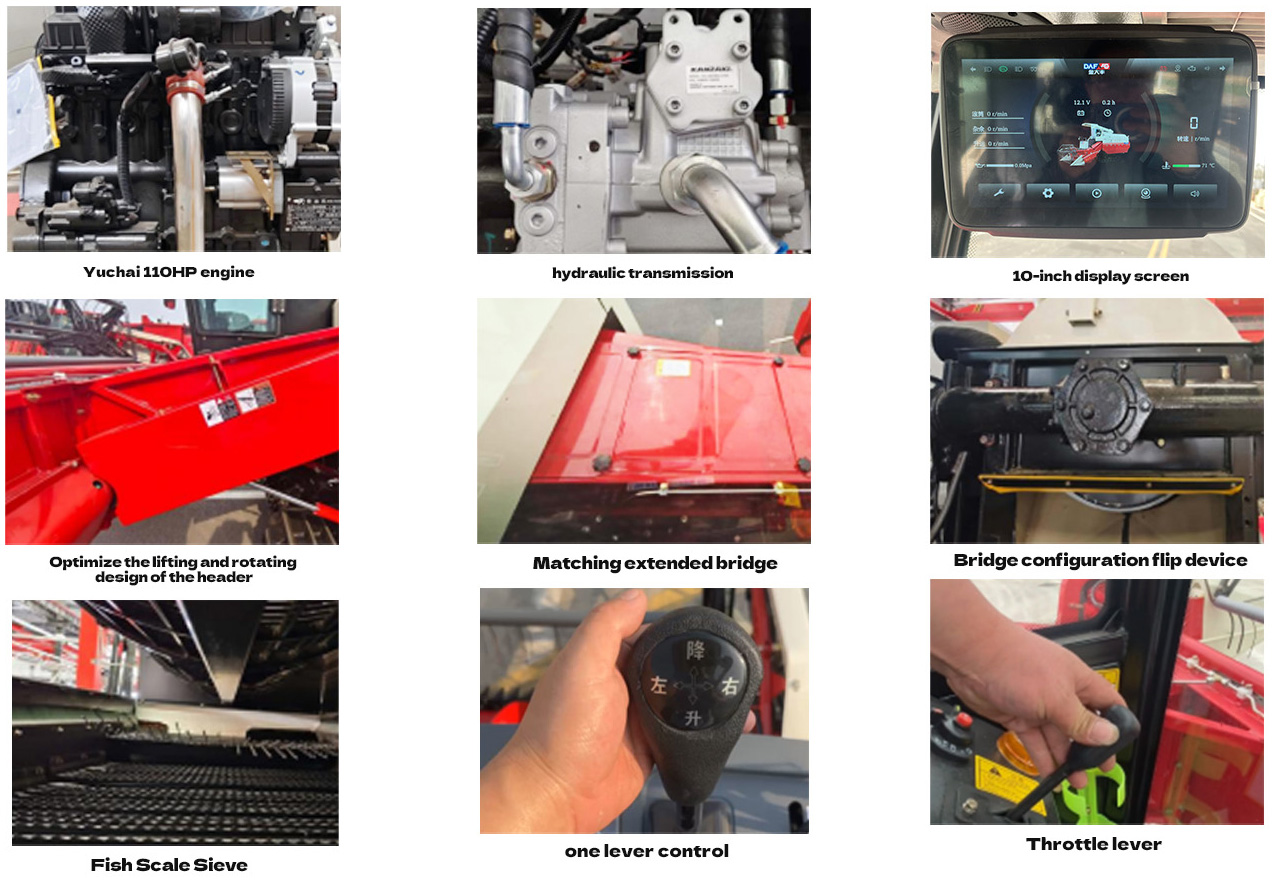

3. Optimize the lifting and rotating design of the cutting table, match the extended bridge, which not only solves the problem of low cutting (harvesting fallen crops) of the cutting table, but also solves the problem of high point passability of the cutting table;
The bottom point of the cutting edge guard is 40mm below the horizontal ground, and the high point is 1000mm above the horizontal ground;
4. Optimized design of the feeding entrance across the bridge, using floating wheels that can be freely adjusted according to the feeding amount to improve the conveying throughput;
5. The feeding inlet of the threshing chamber is made of arc-shaped thickened stainless steel plate, which improves its rigidity, strength and wear resistance;
6. Equipped with an efficient threshing, cleaning, and separation system, the threshing drum is up to 2 meters long and uses a new cleaning fan and an adjustable angle fish scale cleaning screen. The system has strong crop processing capabilities and solves the problems of poor threshing feeding and large cleaning losses;
7. High ground clearance chassis matching, with a minimum ground clearance of up to 300mm, improves anti sinking ability, and can be equipped with tracks, improving the passability and adaptability of paddy fields;
8. Matched with Changchai 88 horsepower National II engine, it has strong power, high operating efficiency, and low fuel consumption;
9. Adopting the original imported walking hydraulic transmission, matched with a 90 speed gearbox, it has fast speed, flexible steering, and good maneuverability;
10. A brand new control panel that is aesthetically pleasing, comfortable to operate, and more in line with ergonomics;Waterproof electrical components, long service life, recessed start switch installation, to avoid accidental collision and flameout;
11. Choose two types of straw post-treatment methods with wide regional adaptability;
12. Optional rapeseed, corn, and foxtail millet harvesting devices with strong adaptability, achieving multiple uses with one machine.
2. Install a protective cover on the reel spring tube to effectively prevent grass entanglement;
3. Optimize the lifting and rotating design of the cutting table, match the extended bridge, which not only solves the problem of low cutting (harvesting fallen crops) of the cutting table, but also solves the problem of high point passability of the cutting table;
The bottom point of the cutting edge guard is 40mm below the horizontal ground, and the high point is 1000mm above the horizontal ground;
4. Optimized design of the feeding entrance across the bridge, using floating wheels that can be freely adjusted according to the feeding amount to improve the conveying throughput;
5. The feeding inlet of the threshing chamber is made of arc-shaped thickened stainless steel plate, which improves its rigidity, strength and wear resistance;
6. Equipped with an efficient threshing, cleaning, and separation system, the threshing drum is up to 2 meters long and uses a new cleaning fan and an adjustable angle fish scale cleaning screen. The system has strong crop processing capabilities and solves the problems of poor threshing feeding and large cleaning losses;
7. High ground clearance chassis matching, with a minimum ground clearance of up to 300mm, improves anti sinking ability, and can be equipped with tracks, improving the passability and adaptability of paddy fields;
8. Matched with Changchai 88 horsepower National II engine, it has strong power, high operating efficiency, and low fuel consumption;
9. Adopting the original imported walking hydraulic transmission, matched with a 90 speed gearbox, it has fast speed, flexible steering, and good maneuverability;
10. A brand new control panel that is aesthetically pleasing, comfortable to operate, and more in line with ergonomics;Waterproof electrical components, long service life, recessed start switch installation, to avoid accidental collision and flameout;
11. Choose two types of straw post-treatment methods with wide regional adaptability;
12. Optional rapeseed, corn, and foxtail millet harvesting devices with strong adaptability, achieving multiple uses with one machine.

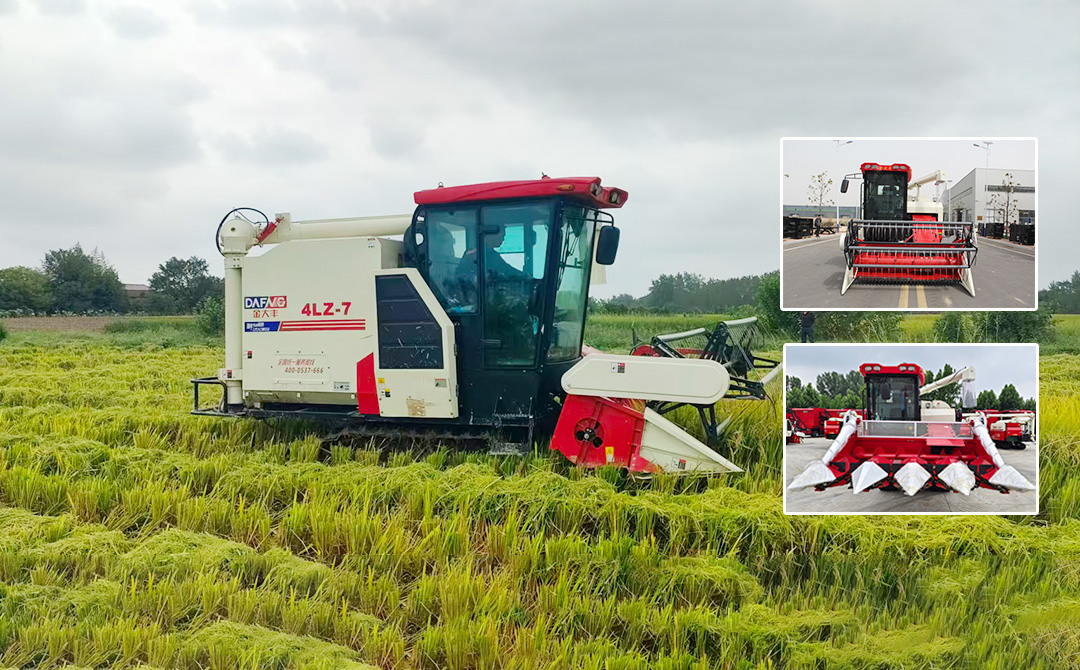

Product Application

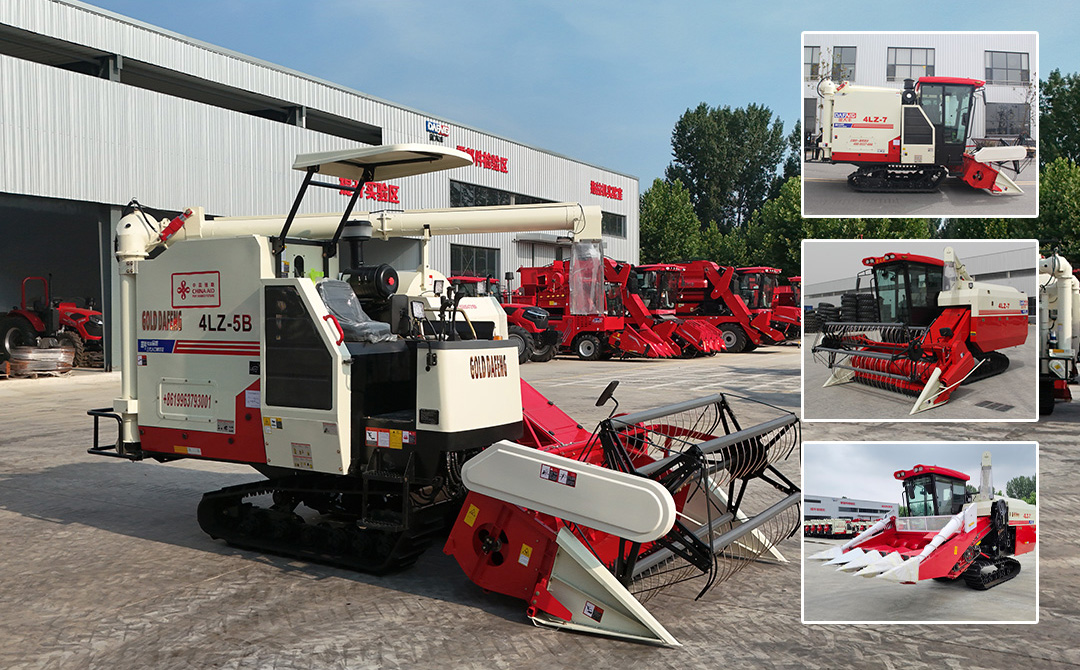

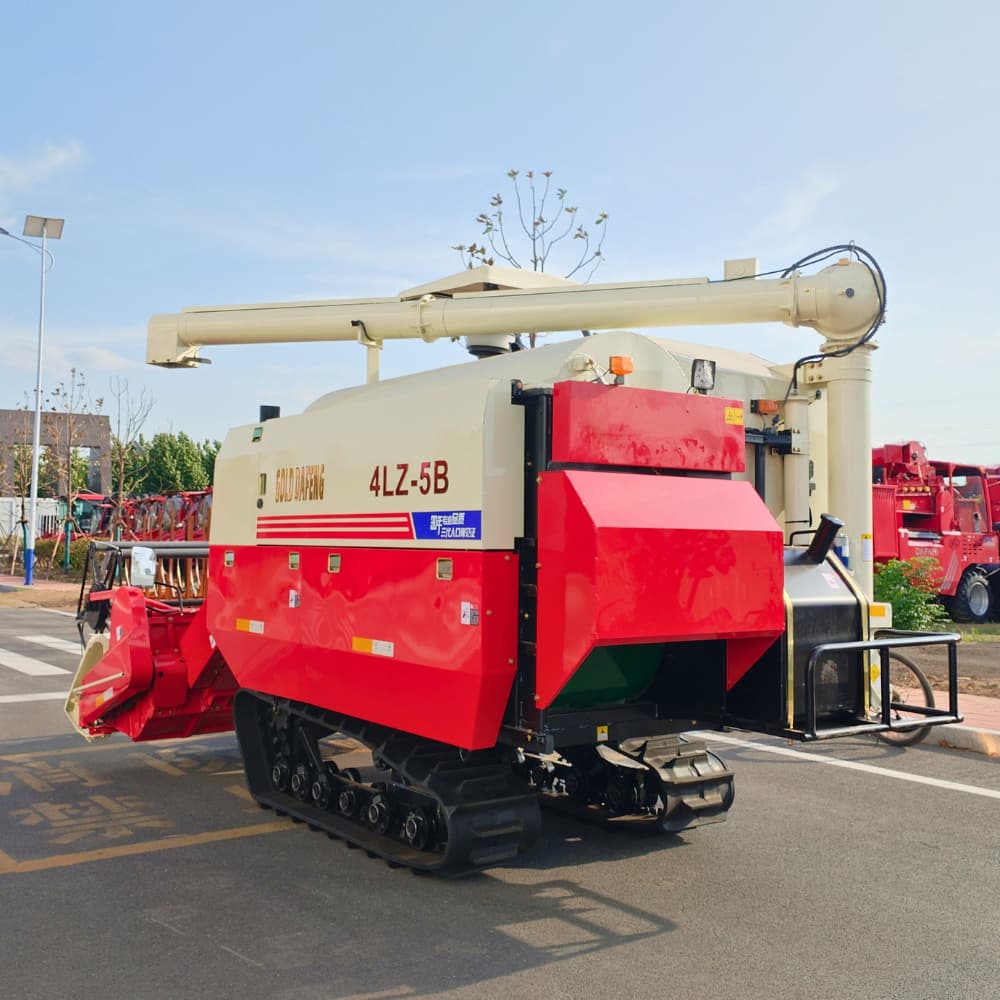

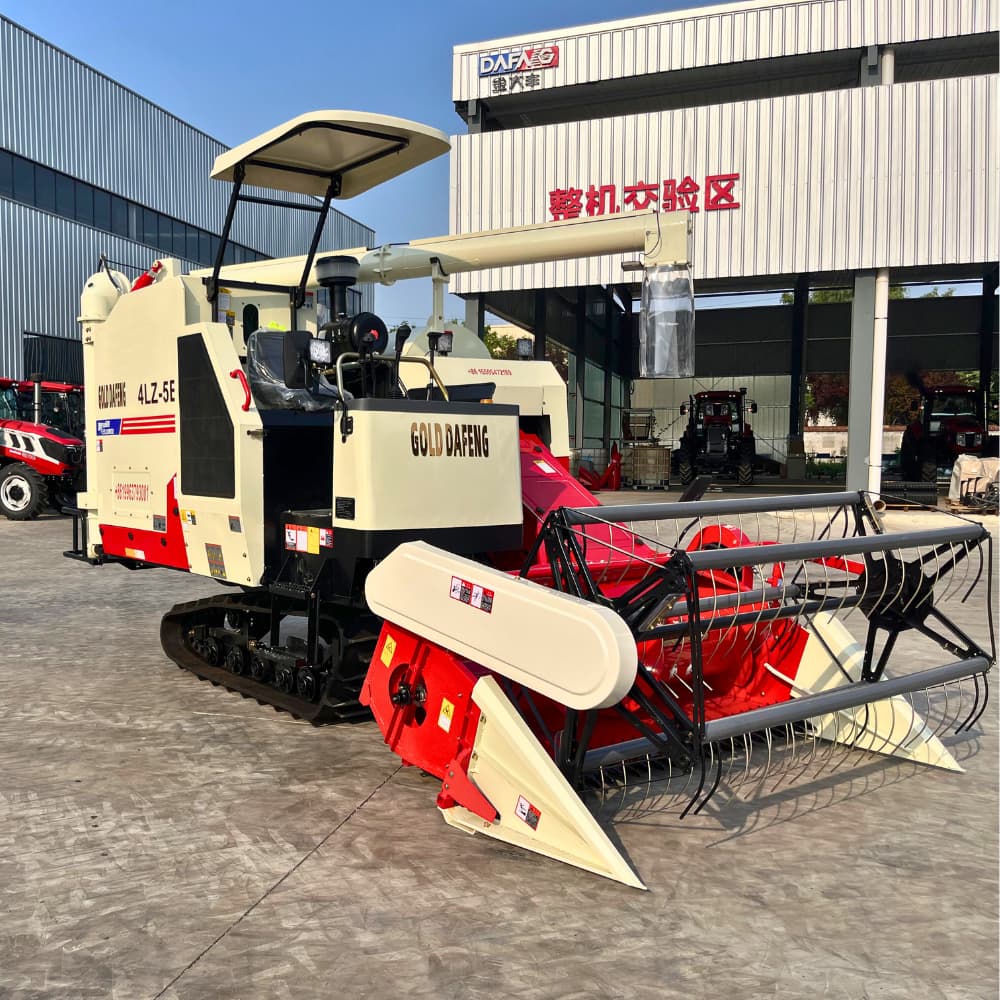

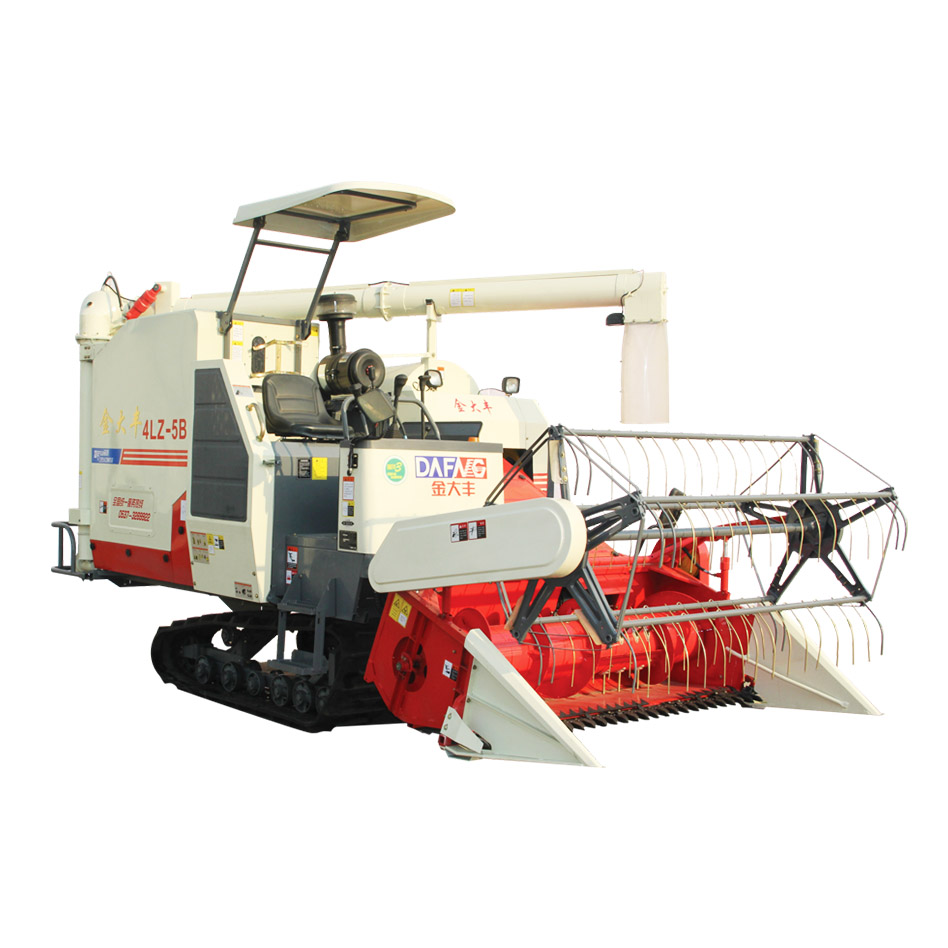

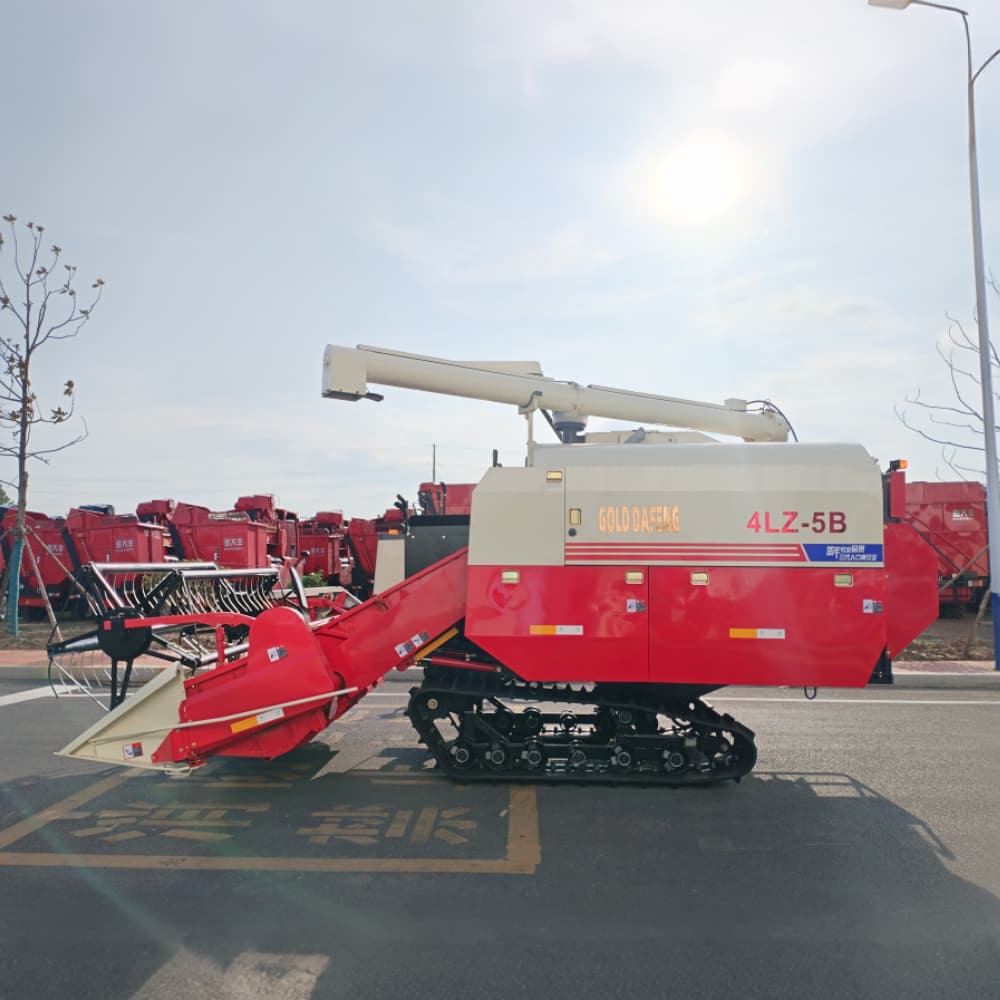

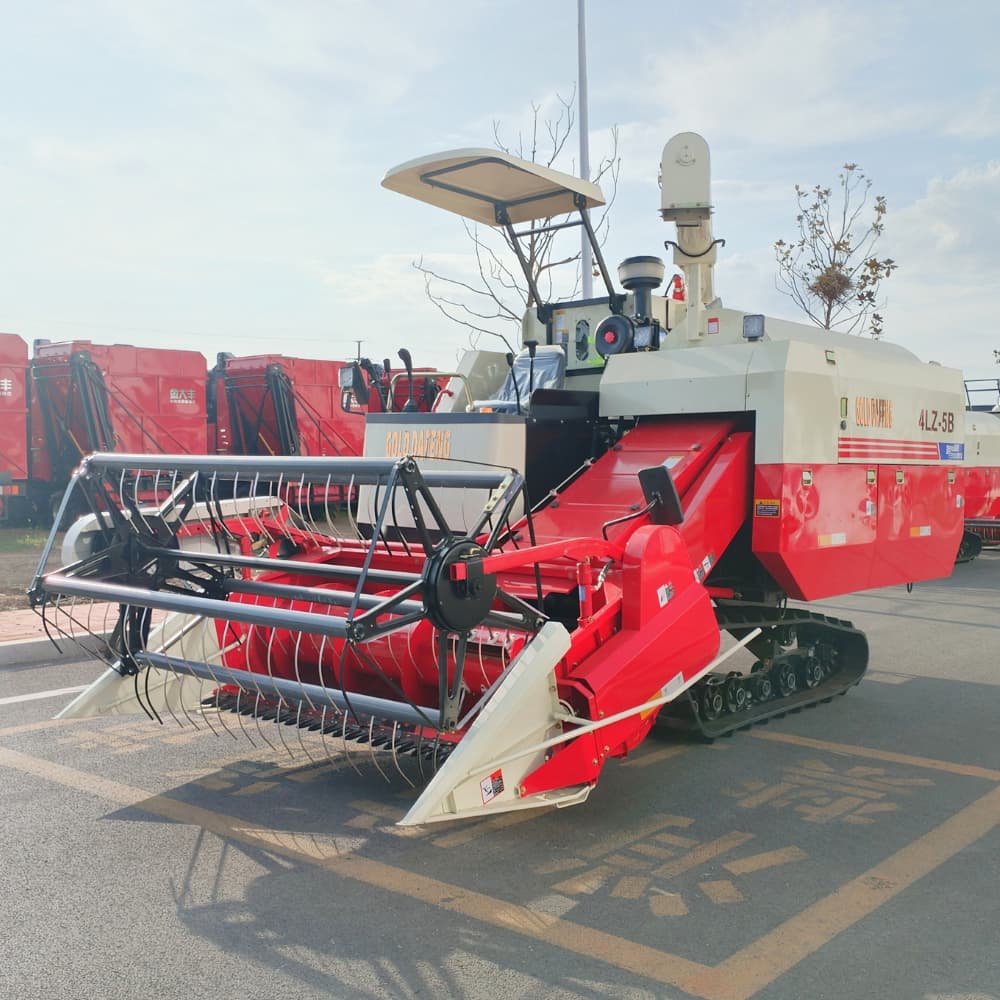

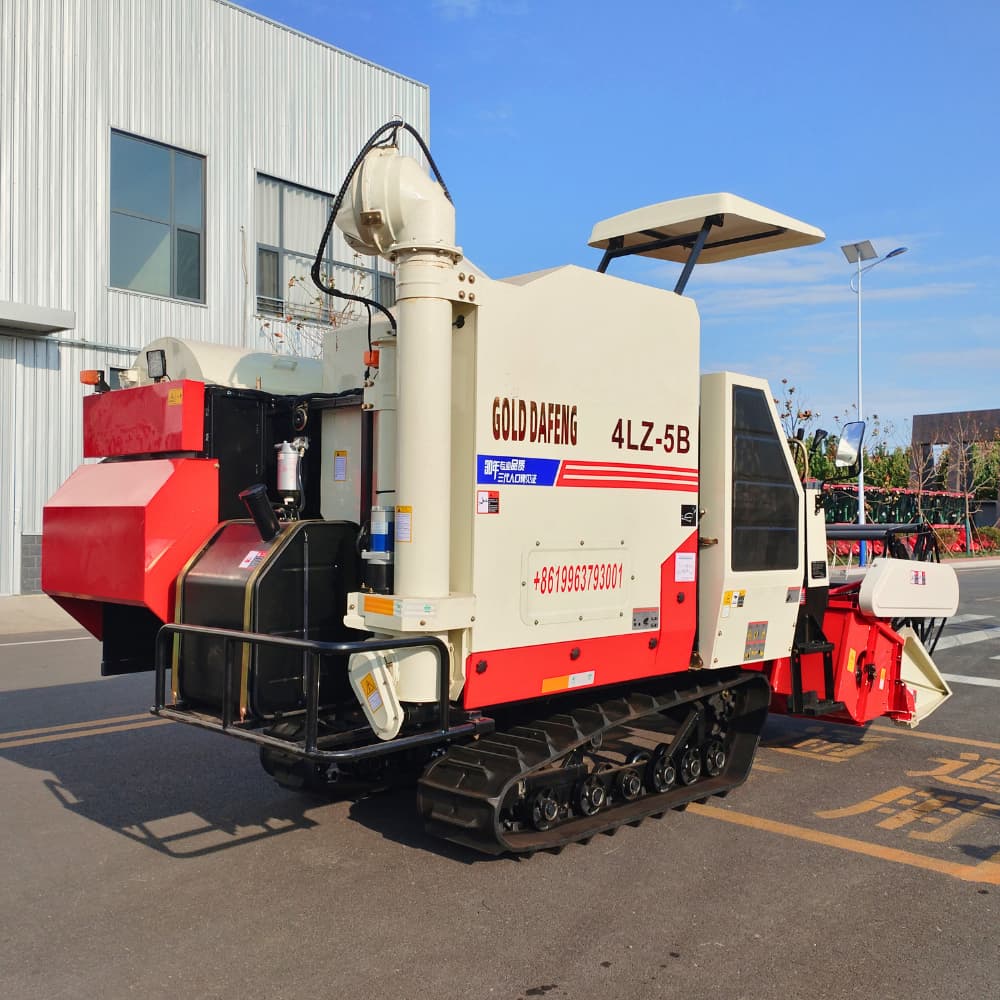

Product diagram
