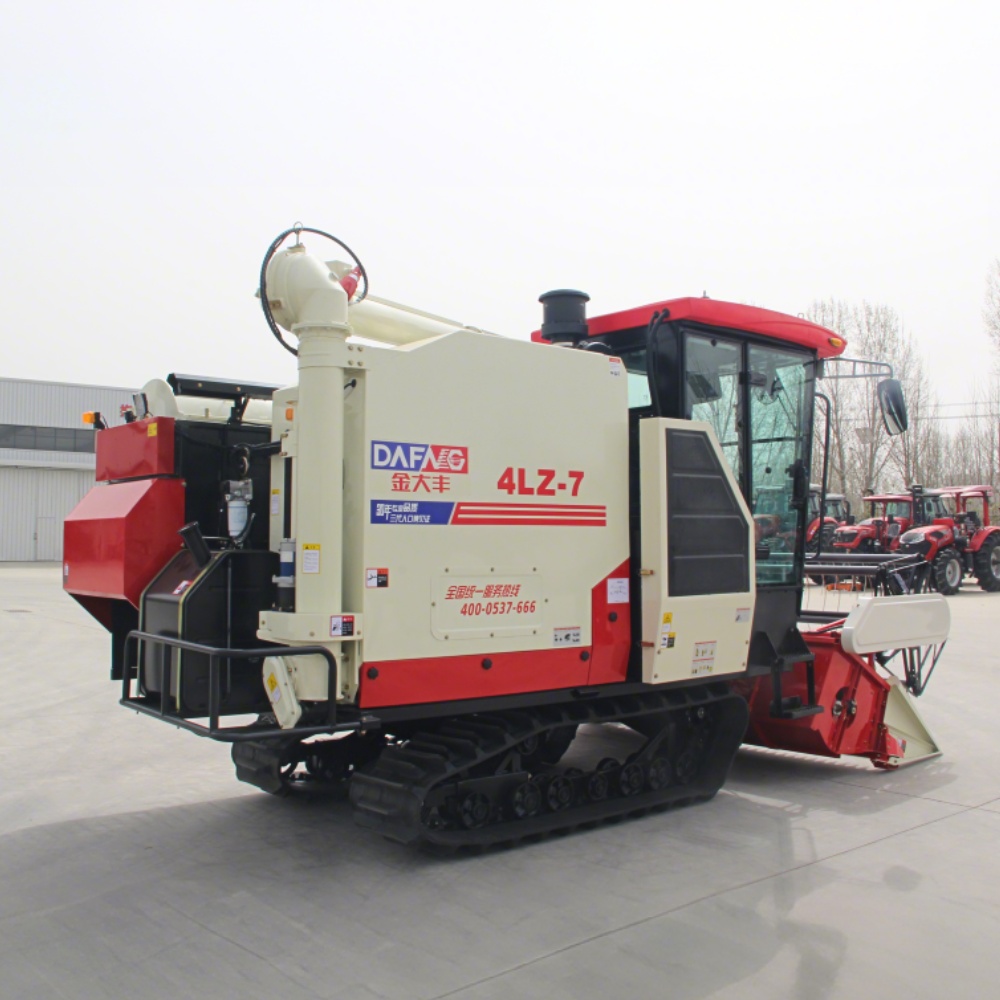

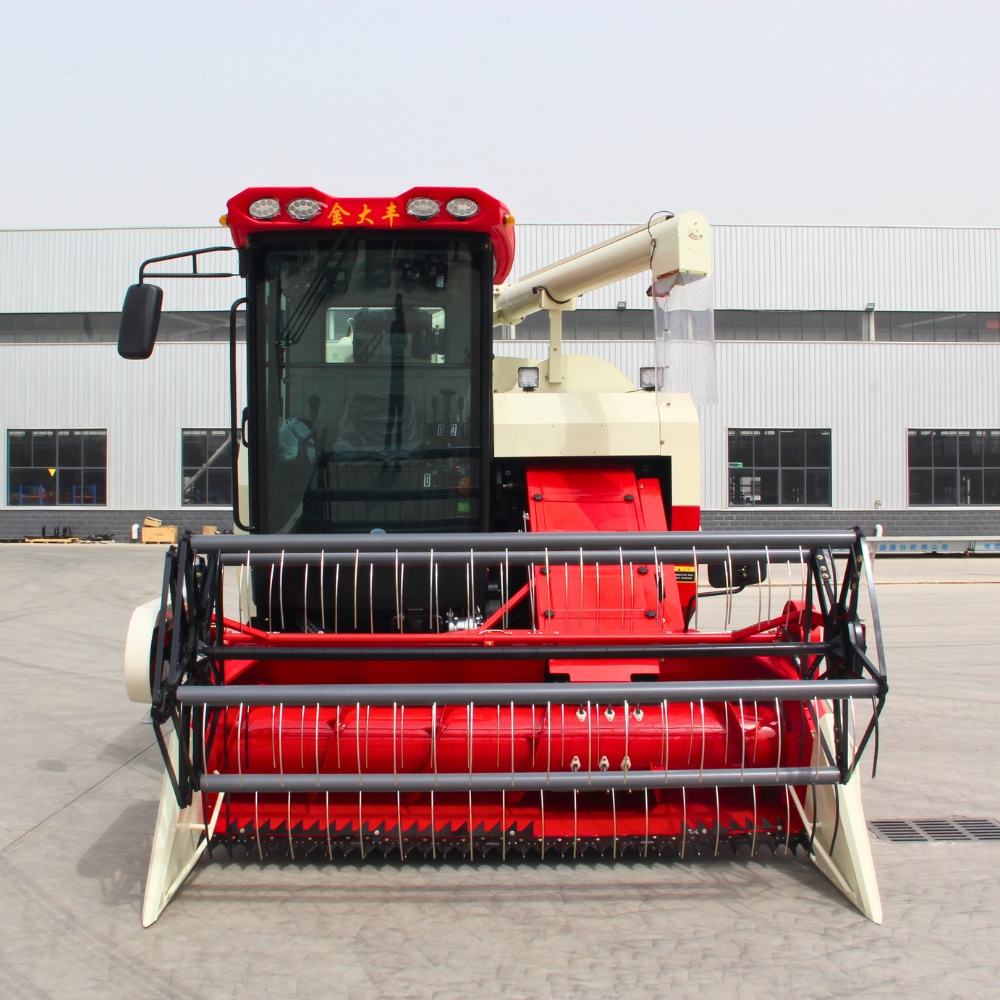

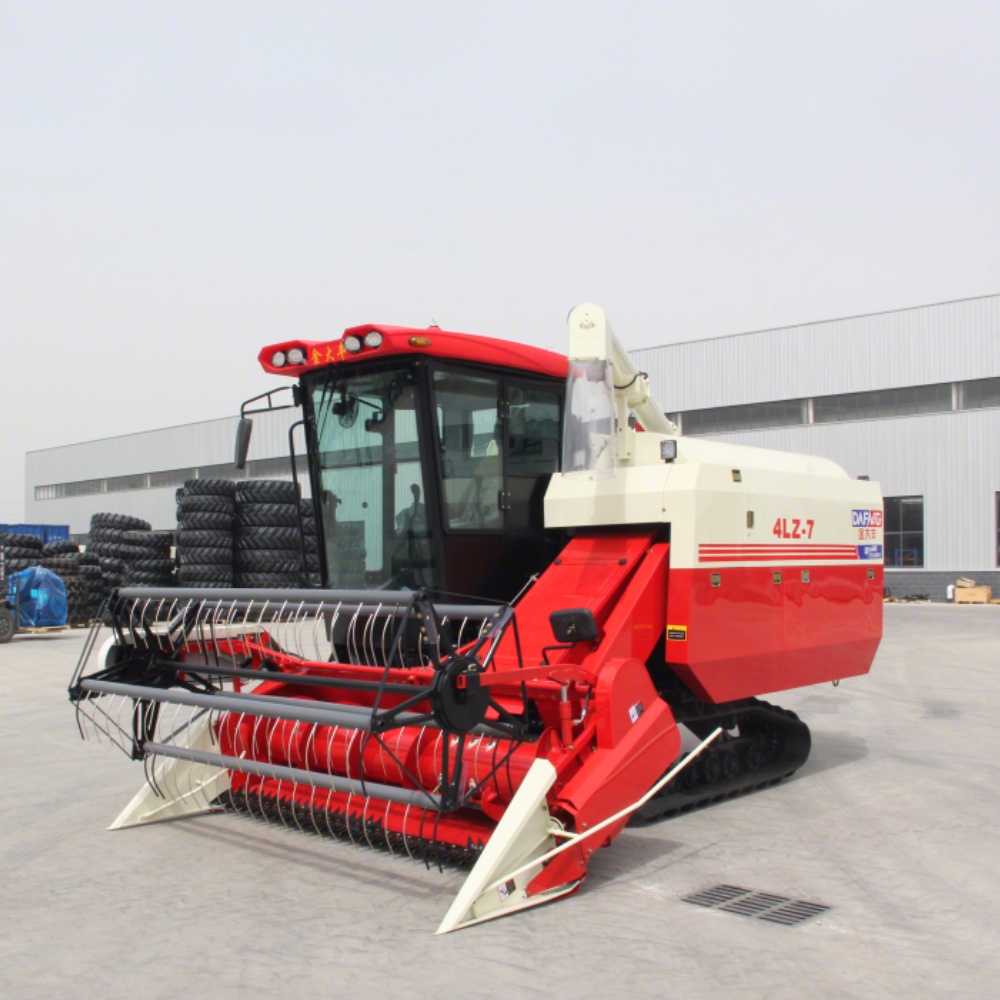

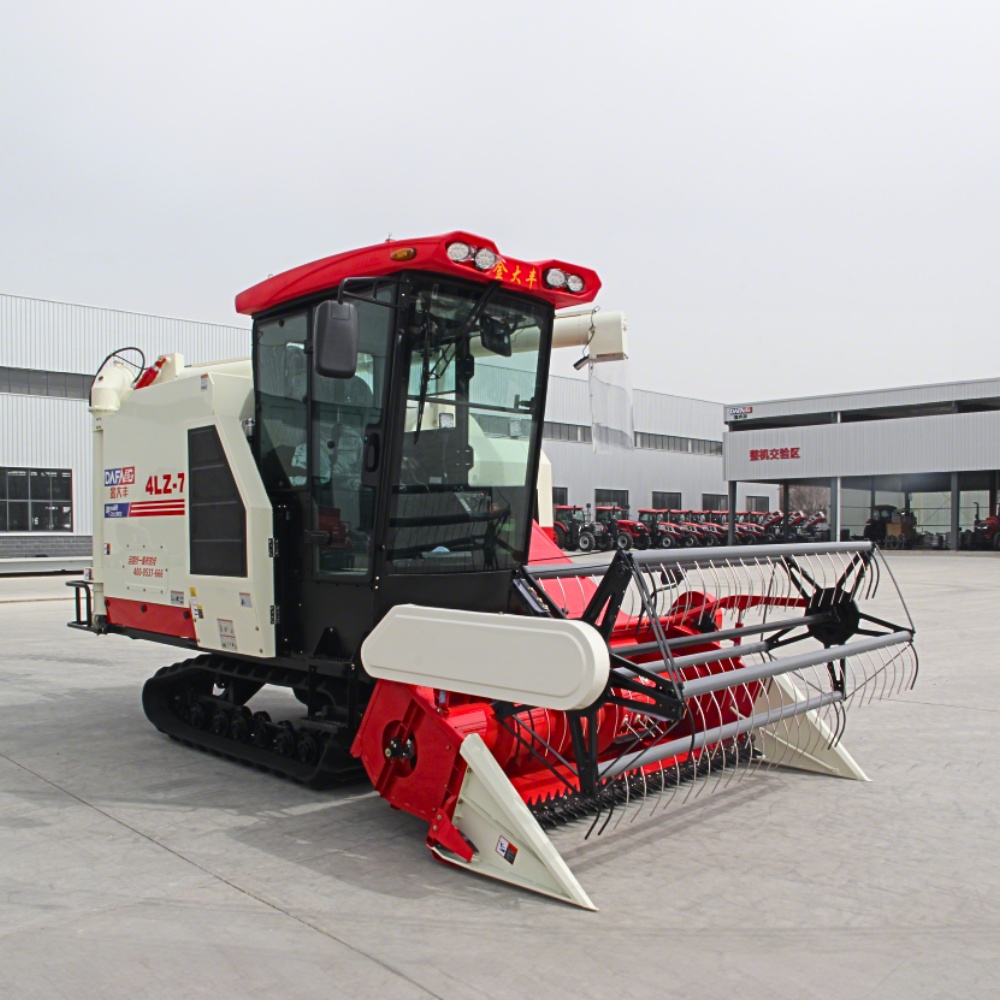

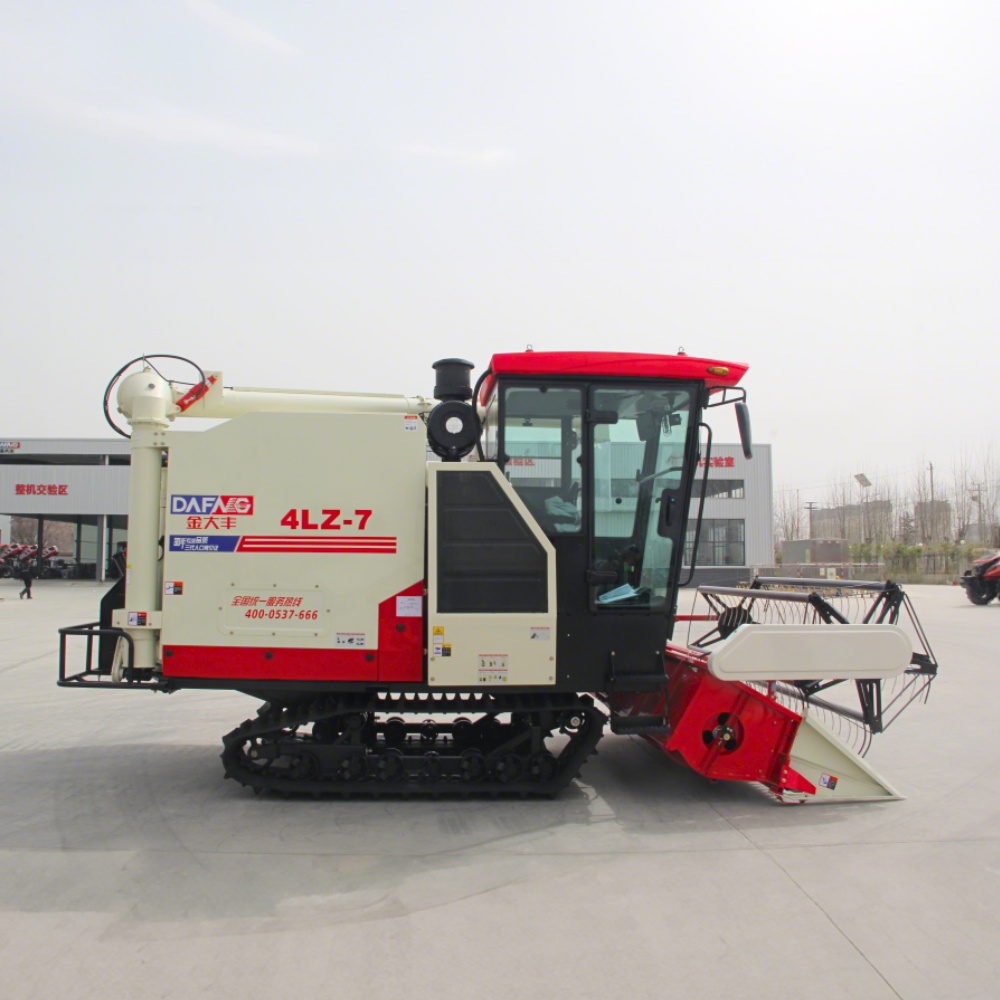

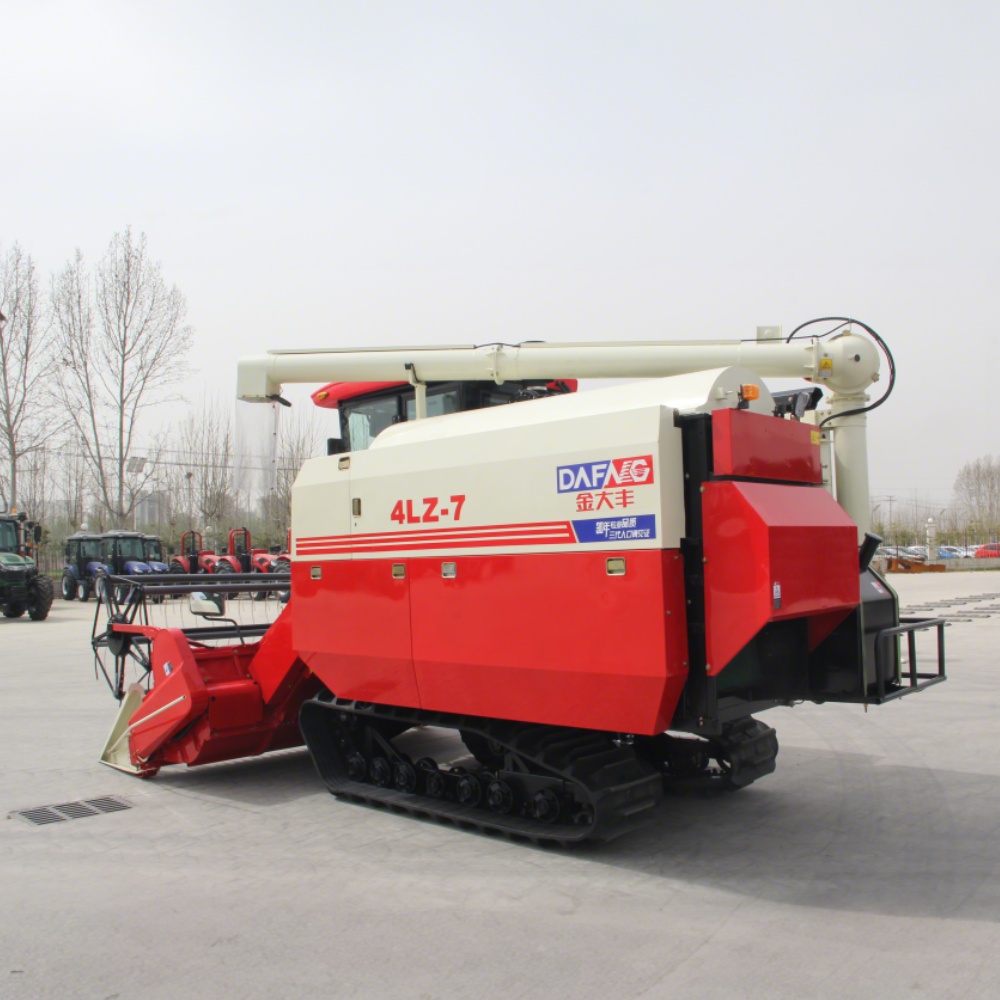

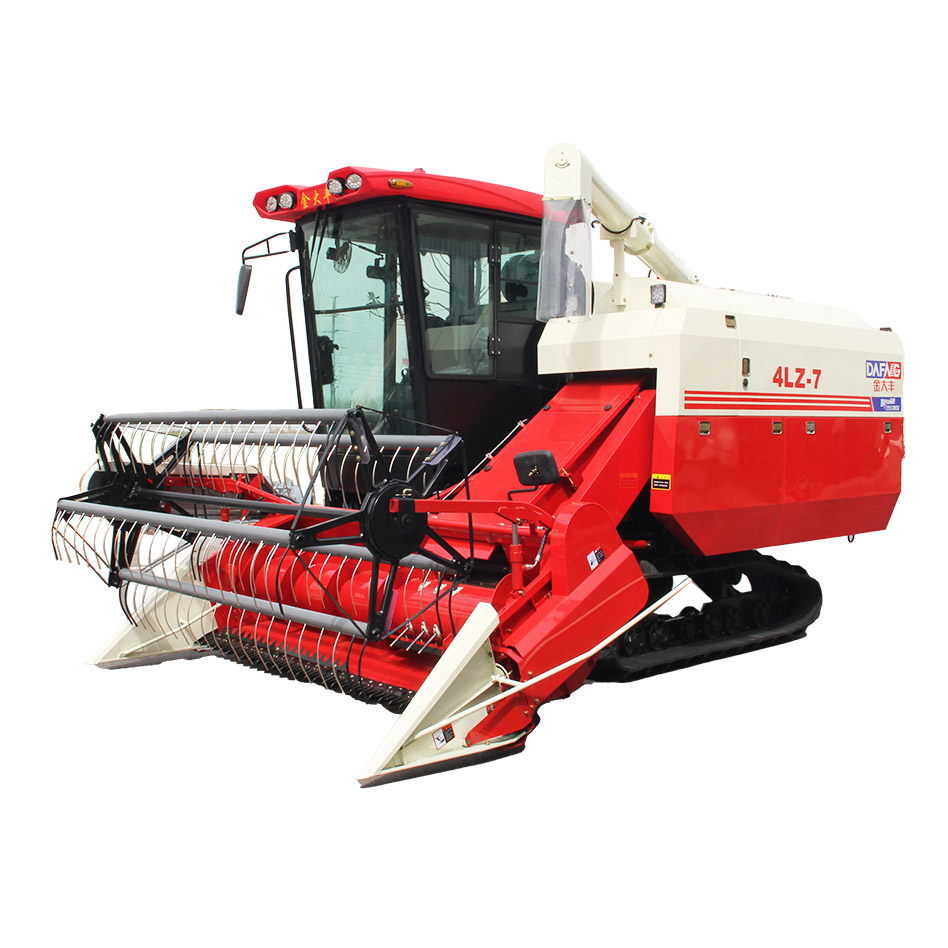

Rice Harvester
0102030405
Product parameters
| Model | 4LZ-7 | ||
| Dimension (L×W×H) | mm | 5900×2640×2940 | |
| Min. operating weight | kg | 3935 | |
| Track gauge of crawler | mm | 1250 | |
| Feeding speed | kg/s | 7 | |
| Productivity | hm²/h | 0.19～1.0 | |
| Working speed | km/h | 0.9～6.5 | |
| Mini clearance | mm | 340 | |
| Grain tank | m³ | 1.6 | |
| fuel tank capacity | L | 140 | |
| Cutting | Cutting width | mm | 2400 |
| Cutting table agitator type | / | Screw pusher type | |
| Type of reel | / | Eccentric toothed type | |
| Reel lever lever | / | 5 | |
| Pulling wheel diameter | mm | Φ900 | |
| Threshing room | Number of threshing drums | / | 1 |
| Main threshing drum type | / | Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2200 | |
| Concave plate sieve type | / | Grid format | |
| Detoxification method | / | Plate-tooth blade type | |
| Engine | Model | / | 110HP-GIII |
| Type | / | Turbocharging + High-Pressure Common Rail | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 110HP/80.1kw | |
| Rated speed | r/min | 2400 | |
| Fuel consumption per unit operation volume | kg/hm2 | ≤35 | |
| Unloading system | Unloading height of grain | mm | 800-4000 |
| Grain unloading mode | / | 360°Multi-directional grain unloading | |
| Rubber Track | / | 550x90Px56 | |
| hassis Wheels | / | 6+1 with scraper | |
| Gearbox | / | 95 | |
| HST | / | KANZAKI 52cc | |
| Monitoring and Video | / | Yes | |
| USB Charges | / | Yes | |
| Valve of Hydraulic on Header | / | Yes | |
| Working Area Recorder | / | Yes | |
| Alarm system | / | Grain tank alarm, coolant alarm, battery alarm, engine oil alarm and blockage alarm | |
| Pilothouse | / | Luxury air-conditioned cab | |

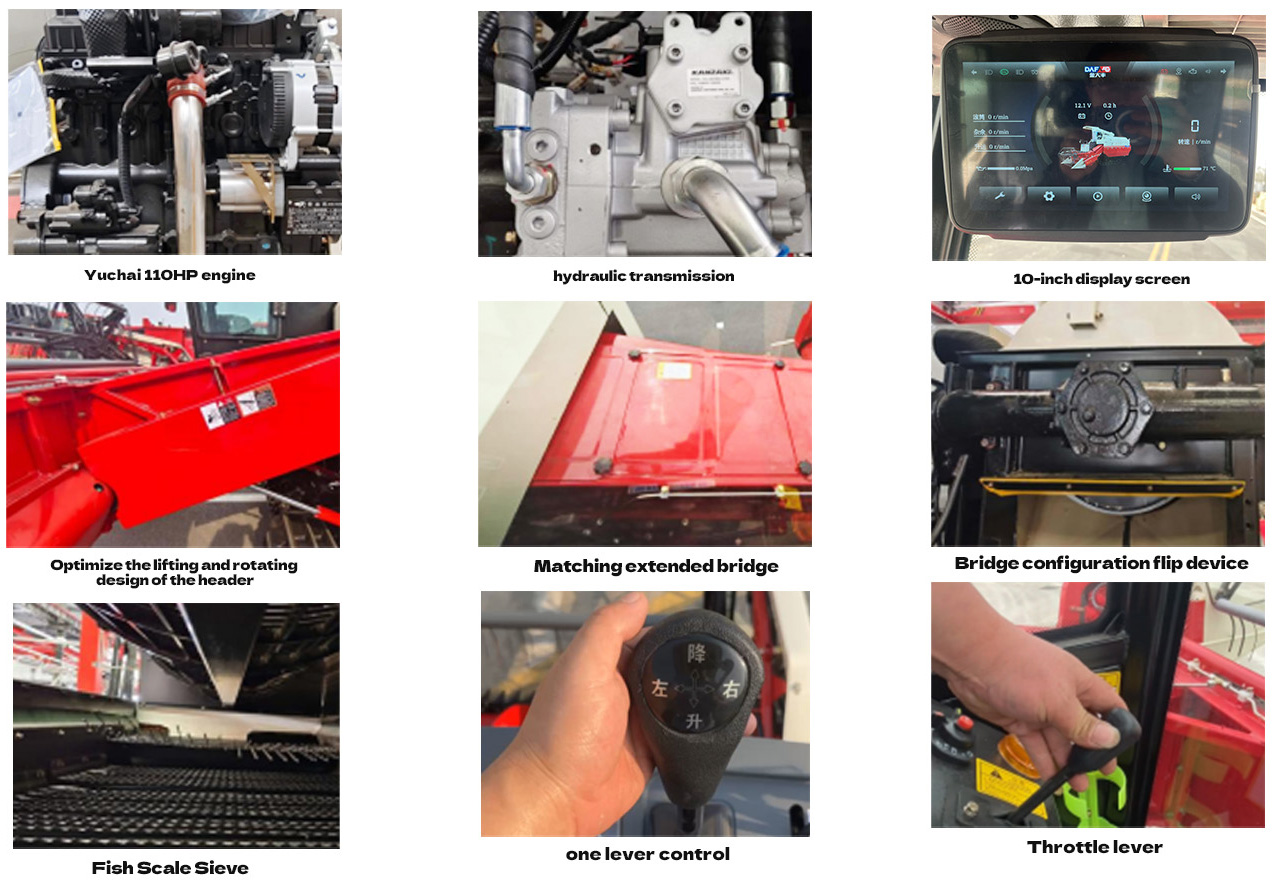

Product advantages
1. The cutting platform can be raised, lowered, and steered with a single lever, making work more convenient and efficient.
2. The reel tooth tube is equipped with a protective cover to effectively prevent hay entanglement.
3. Feed spiral blades: Utilize a carbonitriding process for higher strength and better wear resistance.
4. Threshing chamber feed inlet: Made of thickened stainless steel plate, with two round steel bars welded to the outside of the right feed inlet, greatly improving strength and wear resistance.
5. Minimum ground clearance of up to 320 mm, and upper chassis ground clearance of 640 mm, improving resistance to sinking.
6. Optional plate and cage-type straw sorters are available, suitable for various crops, especially lodged crops, and reducing harvesting platform losses.
7. Optimized header lifting and rotating design and extended bridge frame solve the problems of excessively low header width (resulting in stubble fall) and poor high-point passability. 8. The lowest point of the header blade guard is 40mm from the horizontal ground, and the highest point is 1000mm from the horizontal ground.
8. The feed inlet of the bridge frame has been optimized with floating wheels, which can be freely adjusted according to the feed volume to improve conveying performance; the bridge frame is equipped with a steering device to quickly handle blockages.
9. Equipped with a high-efficiency threshing, cleaning, and separating system, the threshing drum is 2.0 meters long and uses a new type of cleaning fan and an adjustable angle fish-scale cleaning screen, which has a strong crop processing capacity and solves the problems of insufficient threshing feed and large cleaning losses.
10. Multi-functional harvester: The Jindafeng rice harvester can harvest a variety of crops, including rice, wheat, and corn, with a feed speed of 7 kg/s. Equipped with a dedicated corn harvesting device, it can directly harvest corn kernels. This machine has a simple structure, sufficient power reserve, strong adaptability, high operating efficiency, good reliability, and high cost performance.
11. The sunshade structure provides a wide field of vision. This structure is simple, economical, and practical. In hot weather, drivers can work for long periods without having to rest prematurely due to the unbearable heat, thus making better use of the busy farming season.
2. The reel tooth tube is equipped with a protective cover to effectively prevent hay entanglement.
3. Feed spiral blades: Utilize a carbonitriding process for higher strength and better wear resistance.
4. Threshing chamber feed inlet: Made of thickened stainless steel plate, with two round steel bars welded to the outside of the right feed inlet, greatly improving strength and wear resistance.
5. Minimum ground clearance of up to 320 mm, and upper chassis ground clearance of 640 mm, improving resistance to sinking.
6. Optional plate and cage-type straw sorters are available, suitable for various crops, especially lodged crops, and reducing harvesting platform losses.
7. Optimized header lifting and rotating design and extended bridge frame solve the problems of excessively low header width (resulting in stubble fall) and poor high-point passability. 8. The lowest point of the header blade guard is 40mm from the horizontal ground, and the highest point is 1000mm from the horizontal ground.
8. The feed inlet of the bridge frame has been optimized with floating wheels, which can be freely adjusted according to the feed volume to improve conveying performance; the bridge frame is equipped with a steering device to quickly handle blockages.
9. Equipped with a high-efficiency threshing, cleaning, and separating system, the threshing drum is 2.0 meters long and uses a new type of cleaning fan and an adjustable angle fish-scale cleaning screen, which has a strong crop processing capacity and solves the problems of insufficient threshing feed and large cleaning losses.
10. Multi-functional harvester: The Jindafeng rice harvester can harvest a variety of crops, including rice, wheat, and corn, with a feed speed of 7 kg/s. Equipped with a dedicated corn harvesting device, it can directly harvest corn kernels. This machine has a simple structure, sufficient power reserve, strong adaptability, high operating efficiency, good reliability, and high cost performance.
11. The sunshade structure provides a wide field of vision. This structure is simple, economical, and practical. In hot weather, drivers can work for long periods without having to rest prematurely due to the unbearable heat, thus making better use of the busy farming season.

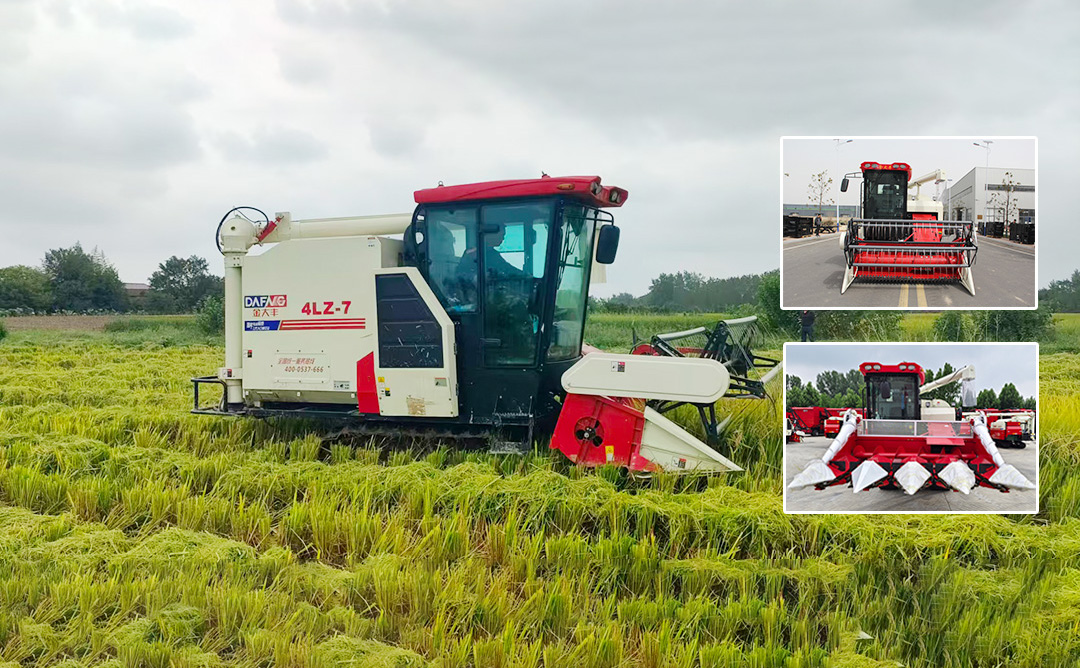

Product Application
Product diagram
