Product parameters
| Model | 4LZ-5 | 4LZ-7 | ||
| Dimension (L×W×H) | mm | 5450×2520×2870 | 5900×2640×2940 | |
| Min. operating weight | kg | 3500 | 3935 | |
| Track gauge of crawler | mm | 1150 | 1250 | |
| Feeding speed | kg/s | 5 | 7 | |
| Productivity | hm²/h | 0.27～0.85 | 0.19～1.0 | |
| Working speed | km/h | 0.9～6.5 | 0.9～6.5 | |
| Mini clearance | mm | 300 | 340 | |
| Grain tank | m³ | 1.6 | 1.6 | |
| Fuel tank capacity | L | 140 | 140 | |
| Cutting | Cutting width | mm | 2000 | 2400 |
| Cutting table agitator type | / | Screw pusher type | Screw pusher type | |
| Type of reel | / | Eccentric toothed type | Eccentric toothed type | |
| Reel lever lever | / | 5 | 5 | |
| Pulling wheel diameter | mm | Φ900 | Φ900 | |
| Threshing room | Number of threshing drums | / | 1 | 1 |
| Main threshing drum type | / | Longitudinal axial flow rod tooth type | Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2000 | Φ620×2200 | |
| Concave plate sieve type | / | Grid format | Grid format | |
| Detoxification method | / | Plate-tooth blade type | Plate-tooth blade type | |
| Engine | Model | / | CHANGCHAI 88HP-GII | 110HP-GIII |
| Type | / | Turbocharging+mechanical injection | Turbocharging + High-Pressure Common Rail | |
| Qty of cylinders | / | 4 | 4 | |
| Rated power | HP/KW | 88HP/64.7kw | 110HP/80.1kw | |
| Rated speed | r/min | 2600 | 2400 | |
| Fuel consumption per unit operation volume | kg/hm2 | ≤35 | ≤35 | |
| Unloading system | Unloading height of grain | mm | 0.8-4000 | 800-4000 |
| Grain unloading mode | / | 270°Multi-directional grain unloading | 360°Multi-directional grain unloading | |
| Rubber Track | / | 450x90x51 | 550x90Px56 | |
| Chassis Wheels | / | 6+1 | 6+1 with scraper | |
| Gearbox | / | 90 | 95 | |
| HST | / | KANZAKI 38cc | KANZAKI 52cc | |
| Alarm system | / | Alarma de tanque de granos, alarma de refrigerante, alarma de batería, alarma de aceite del motor, alarma de bloqueo | Grain tank alarm, coolant alarm, battery alarm, engine oil alarm and blockage alarm | |
| Closed cabin | / | Luxury air-conditioned cab | Luxury air-conditioned cab | |
Product advantages
Highly adaptable chassis for paddy fields: Featuring a raised ground clearance design, with a minimum ground clearance of 330–340mm, and optional track configuration, it offers excellent anti-sinking performance in muddy fields and strong maneuverability. The header is compatible with plate or cage-type dividers, providing good harvesting results for lodged rice. The blade guard design allows for low-cutting operations and reduces the risk of weed entanglement.
Highly efficient threshing and low-loss cleaning: Long-axis flow extended drum (2.2 meters and above), with an arc-shaped thickened stainless steel plate at the threshing chamber feed inlet; equipped with a new adjustable fish-scale screen and high-efficiency blower, ensuring thorough secondary cleaning with low breakage and entrainment losses; pre-drilled holes for cutting long stalks effectively address the problem of blockage caused by high humidity and long straw.
Powerful power and high operating efficiency: Powered by a Yuchai National II engine, providing ample power reserves and economical fuel consumption; a large feed capacity combined with a wide header, optimized and upgraded conveyor bridge, and floating wheels that adapt to the feed volume; precise matching of the hydraulic system and gearbox ensures fast transfer speeds and stable and reliable operating efficiency.
Comfortable and easy-to-maintain operation: The panoramic sealed positive pressure air-conditioned cab features dual-screen monitoring and an ergonomic handle for convenient operation; electrical components are waterproof, and the recessed start switch prevents accidental operation; the entire machine uses a high-strength 16Mn steel frame, and the threshing chamber and straw crushing blades (made of tungsten alloy) are highly wear-resistant; the front-flipping hood design facilitates daily maintenance and repair.
Multi-purpose and straw processing: Multiple crop cutting stands can be optionally installed for rapeseed, corn, millet, etc.; straw processing supports crushing and returning to the field or baling, with spirally arranged crushing blades for even spreading and minimal vibration during operation.
product-related

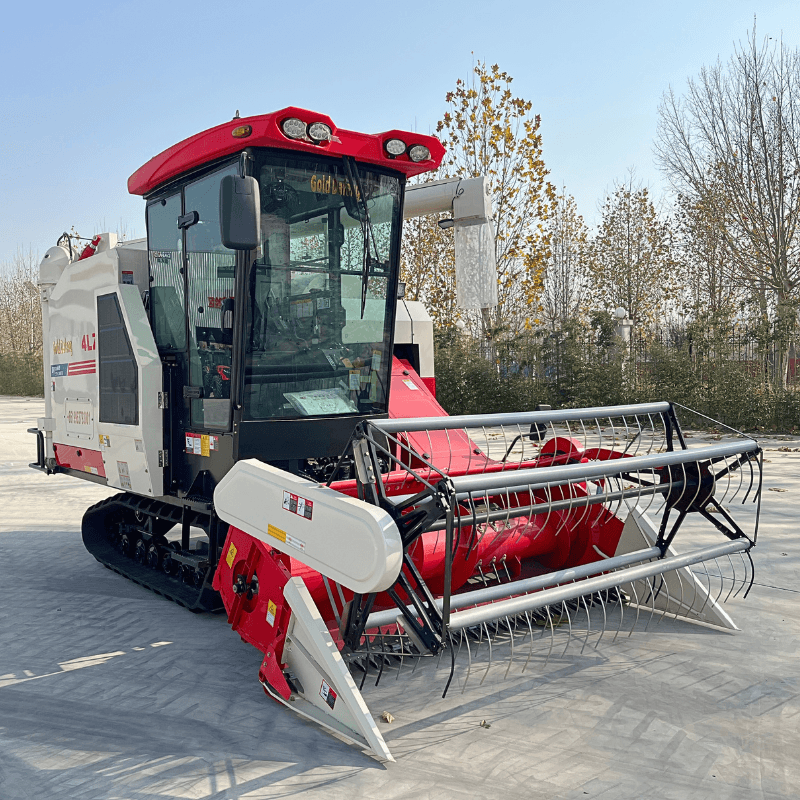

Product diagram
