Product parameters
| Product Name | Square baler |
| External dimensions | 3580×2610×1700mm |
| Total weight | 1600kg |
| power | 51~191KW |
| Power take-off shaft | 540 r/min |
| Pickup width | 1960mm |
| Pickup rotation radius | 215mm |
| Pickup roller speed | 136mm |
| Pick up the number of bullet teeth | 70pcs |
| Pickup distance | 66mm |
| packing method | 4-tooth crank type |
| Compression type | Spring loading density control |
| Compression frequency | 100r/min |
| Piston stroke | 550mm |
| Compression chamber dimensions (width x height) | 440X360mm |
| Bundle length | 300~1320mm |
| Knotter type | Type D |
| Number of knotters | 2 |
| Number of ropes | 10 |
| Transmission method | Chain drive and gear drive |
| Gearbox type | bevel gear transmission |
| Transmission ratio | 5.43 |
Product advantages
1. Widen the compression chamber and increase the weight of a single bale.
2. The compaction pump uses imported special bearings, offering good sealing performance, maintenance-free operation, and durability.
3. The inlet steel wire provides good rigidity, fatigue resistance, wear resistance, and durability.
4. The imported D-nozzle has a reliable structure and a high baling rate.
5. The mechanical grass bale density adjustment device has a simple structure, is easy to operate, and performs reliably. The length of the grass bales is adjustable between 300 and 1320 mm to meet the needs of different users. The length of the grass bales can be adjusted according to different working conditions. Operation is simple. Facilitates the loading, unloading, and transport of straw bales.
6. Suitable for baling natural grasses, plantation grasses, wheat straw, and other straw. It can complete the operations of collecting, feeding, compacting, and baling straw in a single operation. 7. The original knot is imported from Lasbo, Germany (a high-quality domestic knot is also available). It features high precision, good coordination, advanced and stable performance, high efficiency, is not sensitive to changes in rope material and size, and has good adaptability.
7. The standard coupling device requires no tools for easy connection to the tractor.
8. A shredder can be installed for double shredding, resulting in greater strength.
9. A dust removal device can be installed for clean, dust-free, efficient, and environmentally friendly operation.
2. The compaction pump uses imported special bearings, offering good sealing performance, maintenance-free operation, and durability.
3. The inlet steel wire provides good rigidity, fatigue resistance, wear resistance, and durability.
4. The imported D-nozzle has a reliable structure and a high baling rate.
5. The mechanical grass bale density adjustment device has a simple structure, is easy to operate, and performs reliably. The length of the grass bales is adjustable between 300 and 1320 mm to meet the needs of different users. The length of the grass bales can be adjusted according to different working conditions. Operation is simple. Facilitates the loading, unloading, and transport of straw bales.
6. Suitable for baling natural grasses, plantation grasses, wheat straw, and other straw. It can complete the operations of collecting, feeding, compacting, and baling straw in a single operation. 7. The original knot is imported from Lasbo, Germany (a high-quality domestic knot is also available). It features high precision, good coordination, advanced and stable performance, high efficiency, is not sensitive to changes in rope material and size, and has good adaptability.
7. The standard coupling device requires no tools for easy connection to the tractor.
8. A shredder can be installed for double shredding, resulting in greater strength.
9. A dust removal device can be installed for clean, dust-free, efficient, and environmentally friendly operation.
Product Application

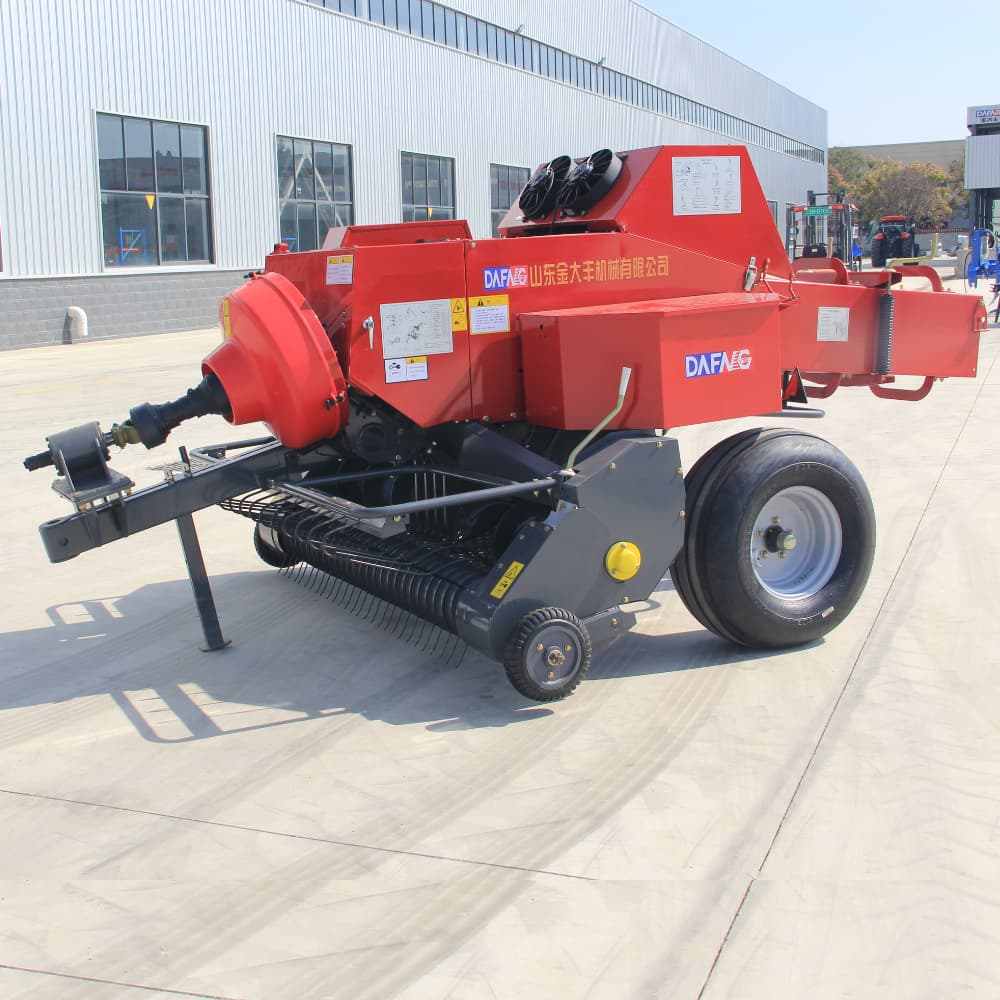

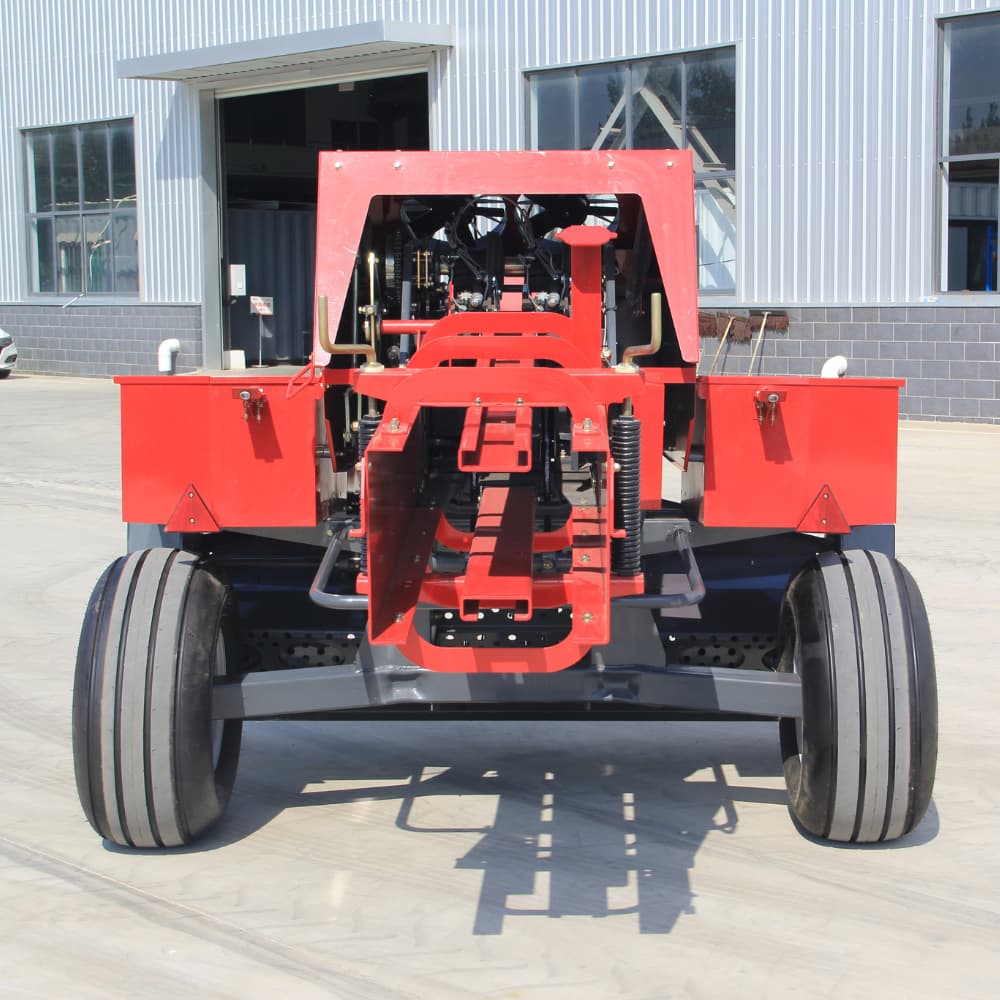

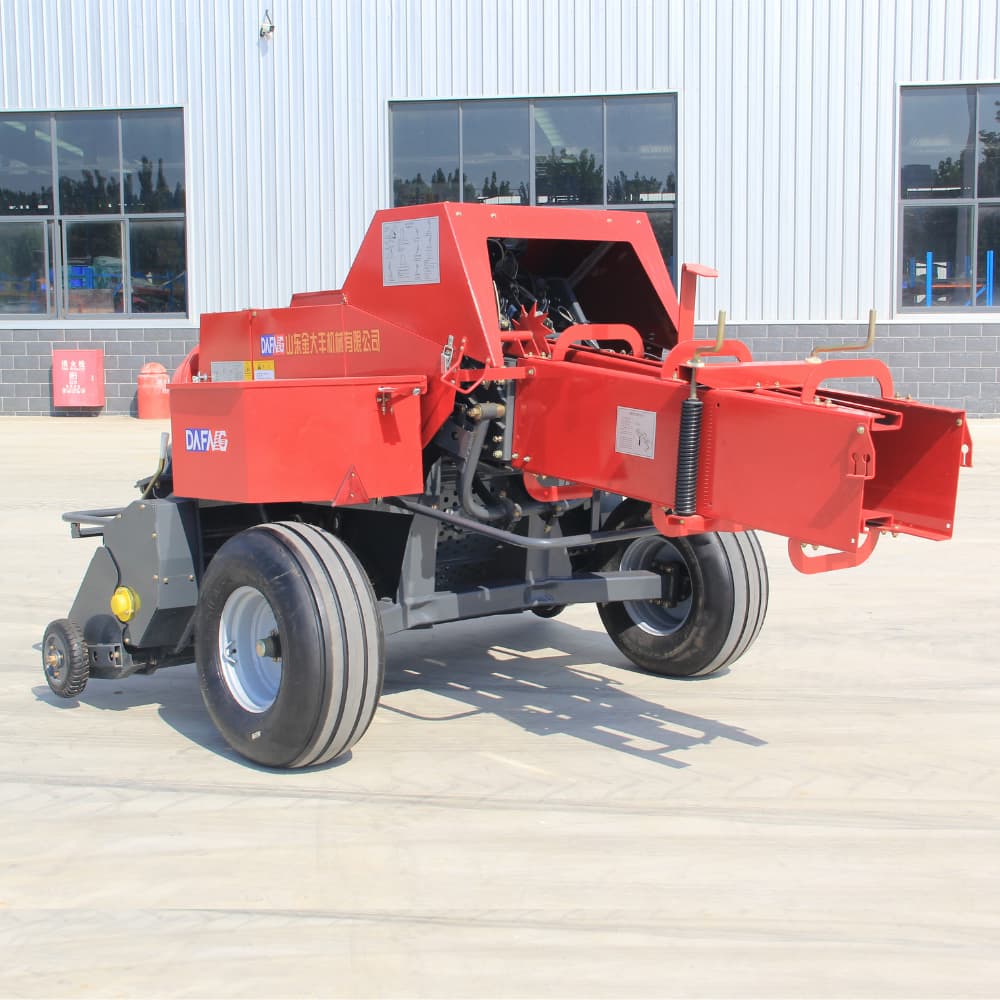

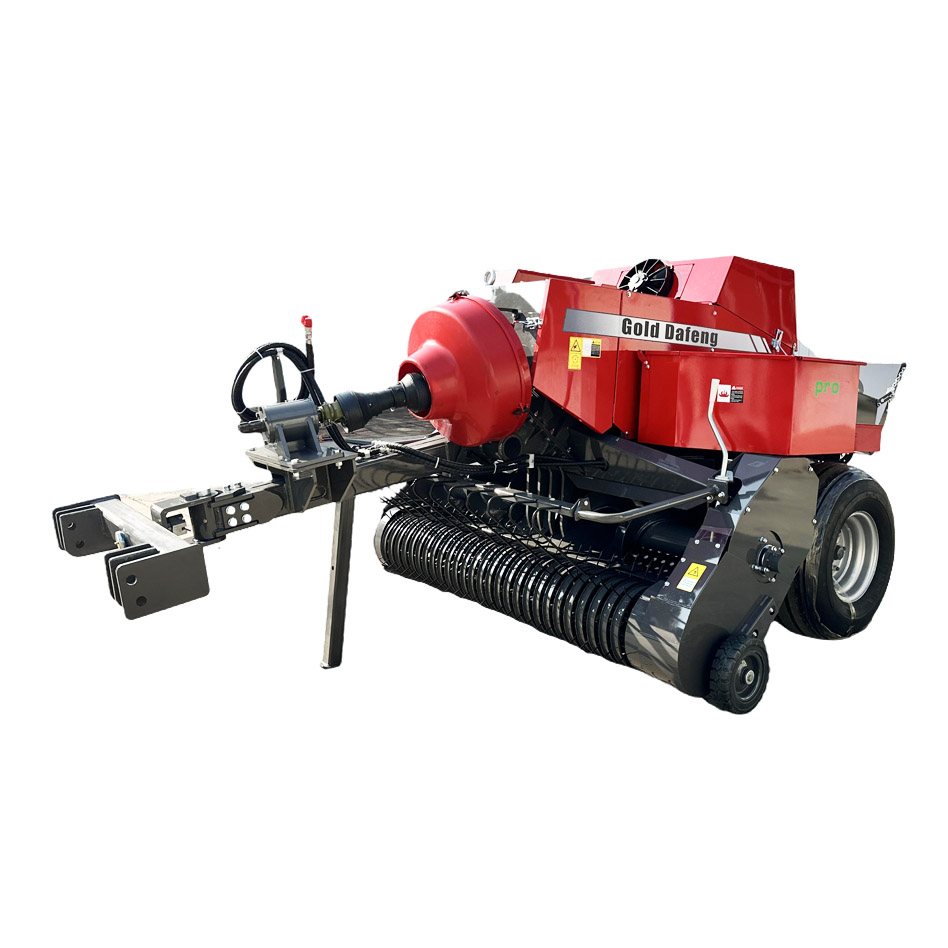

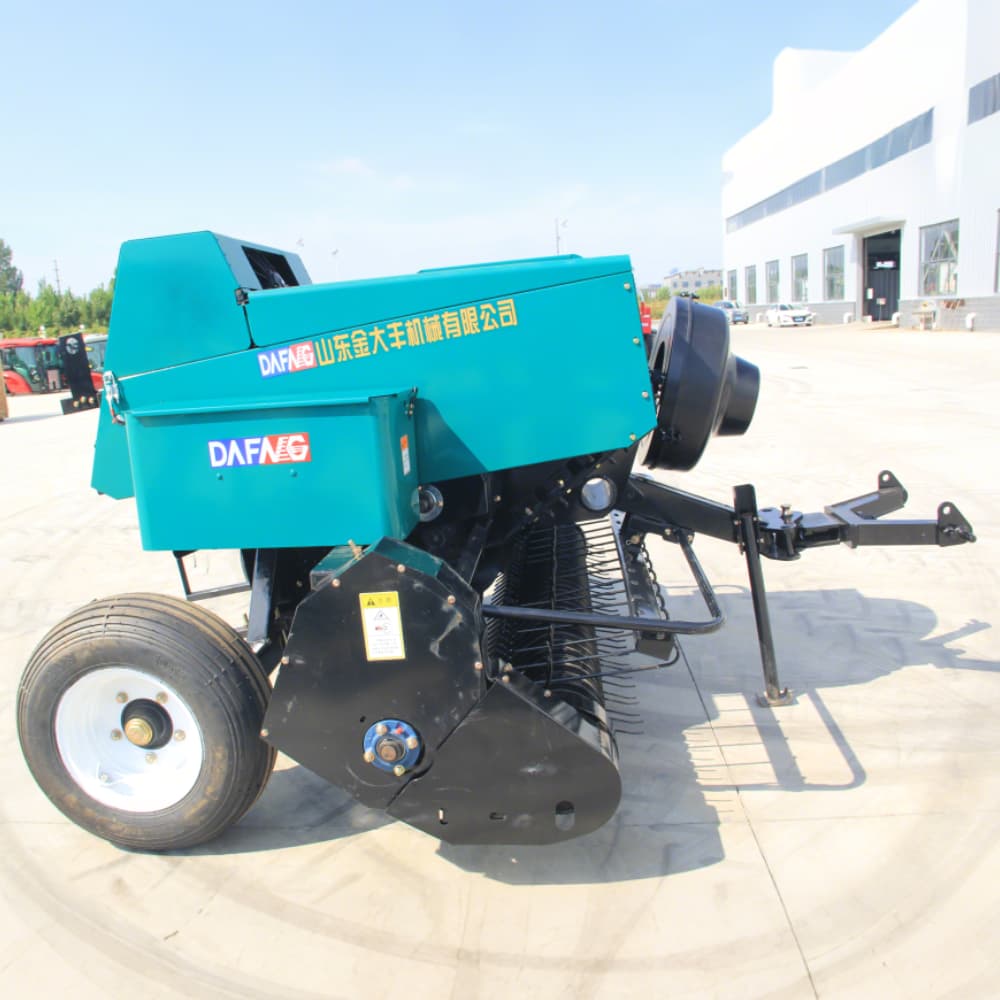

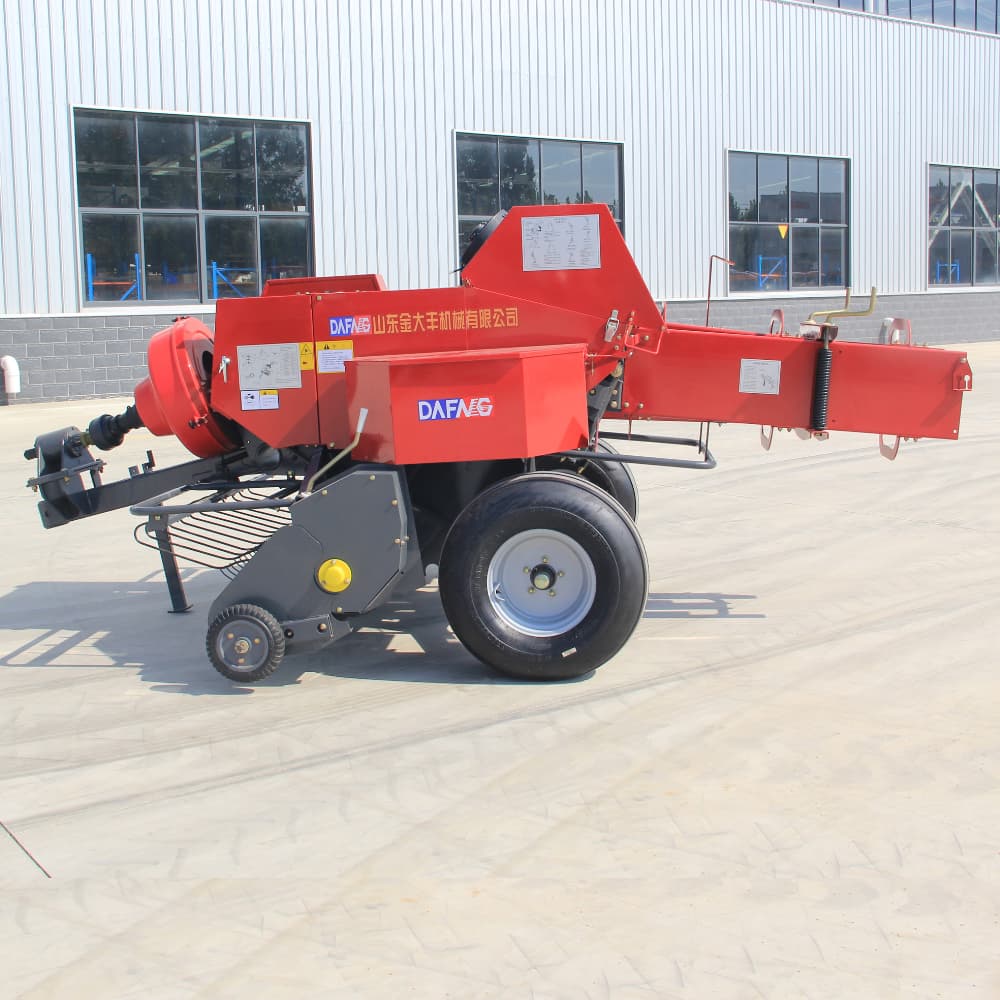

Product diagram
