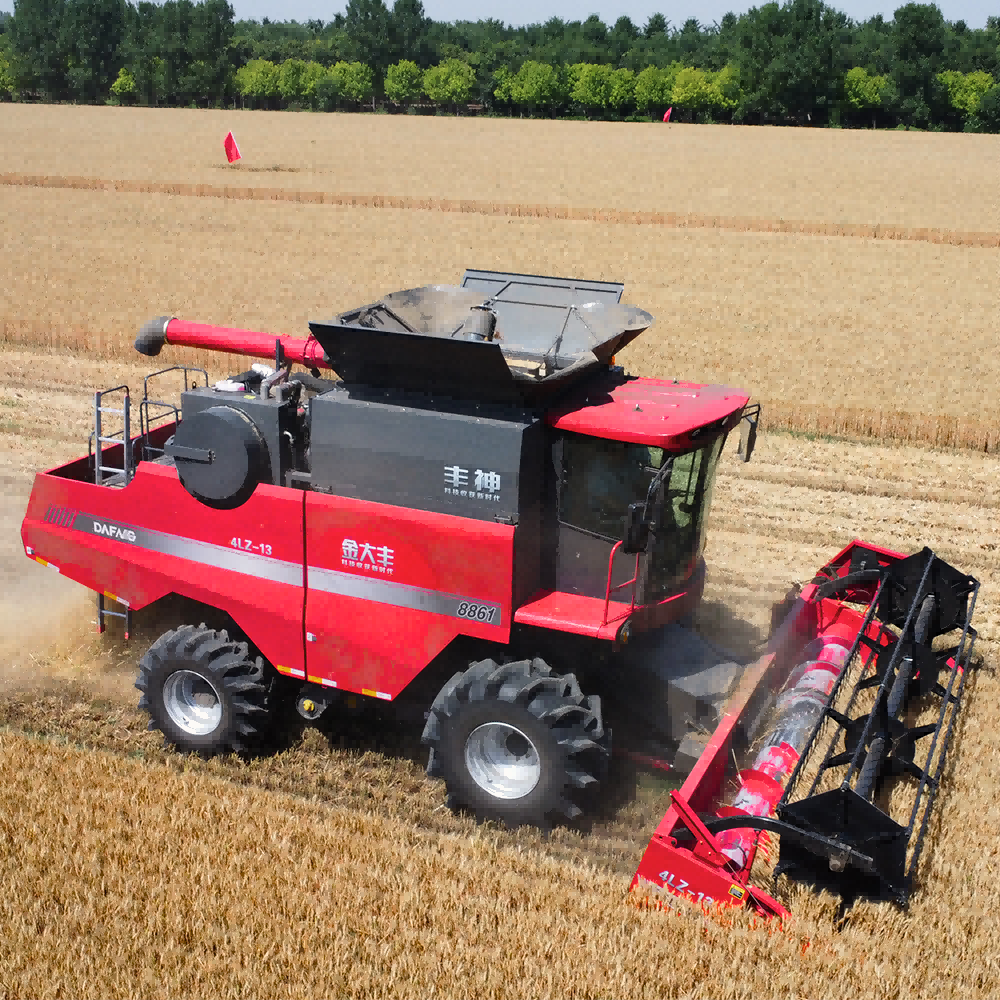

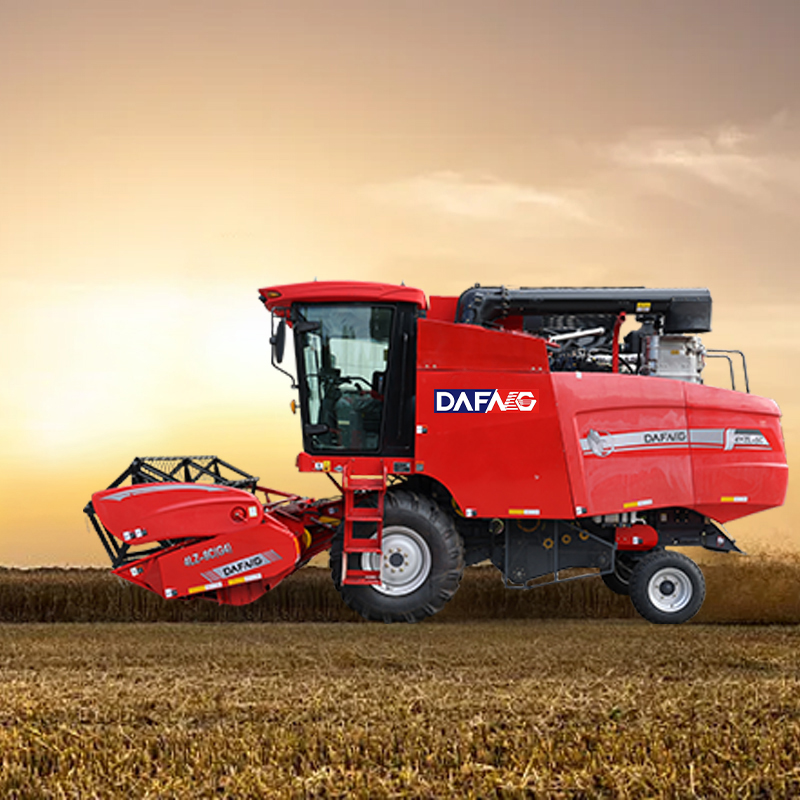

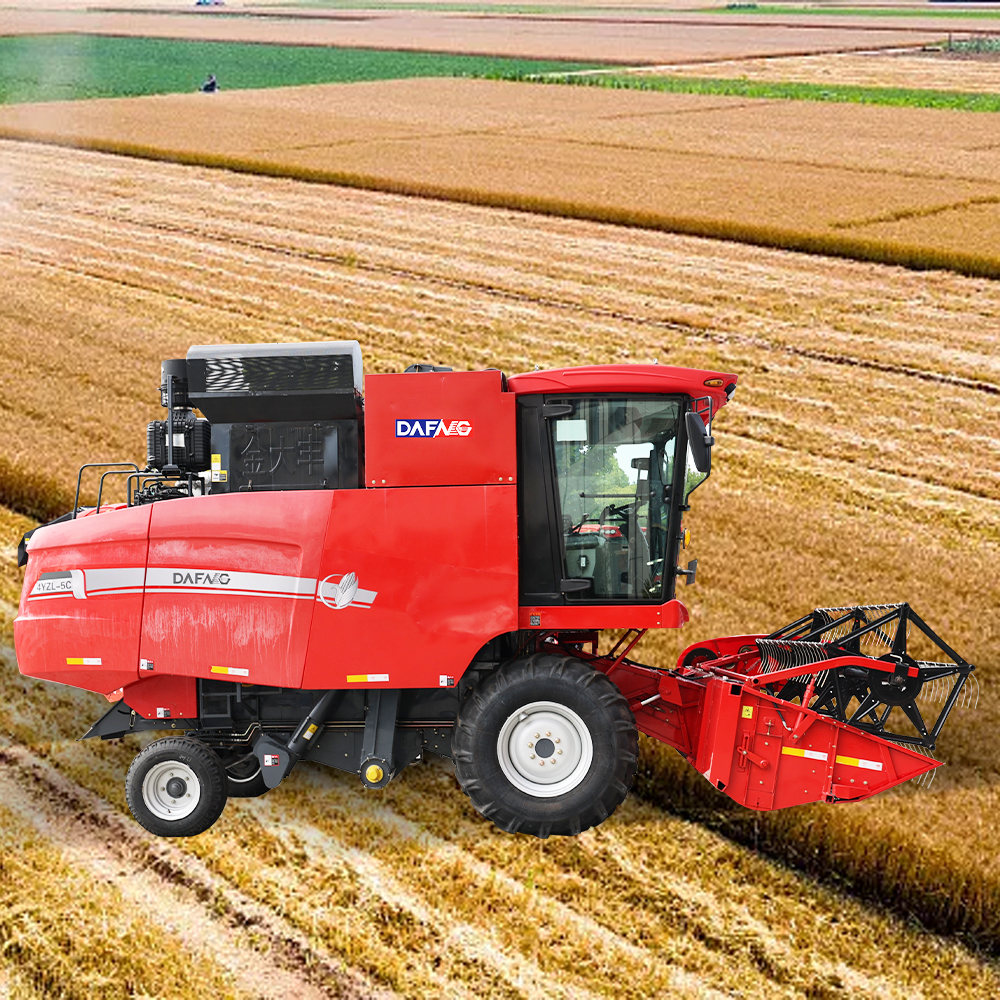

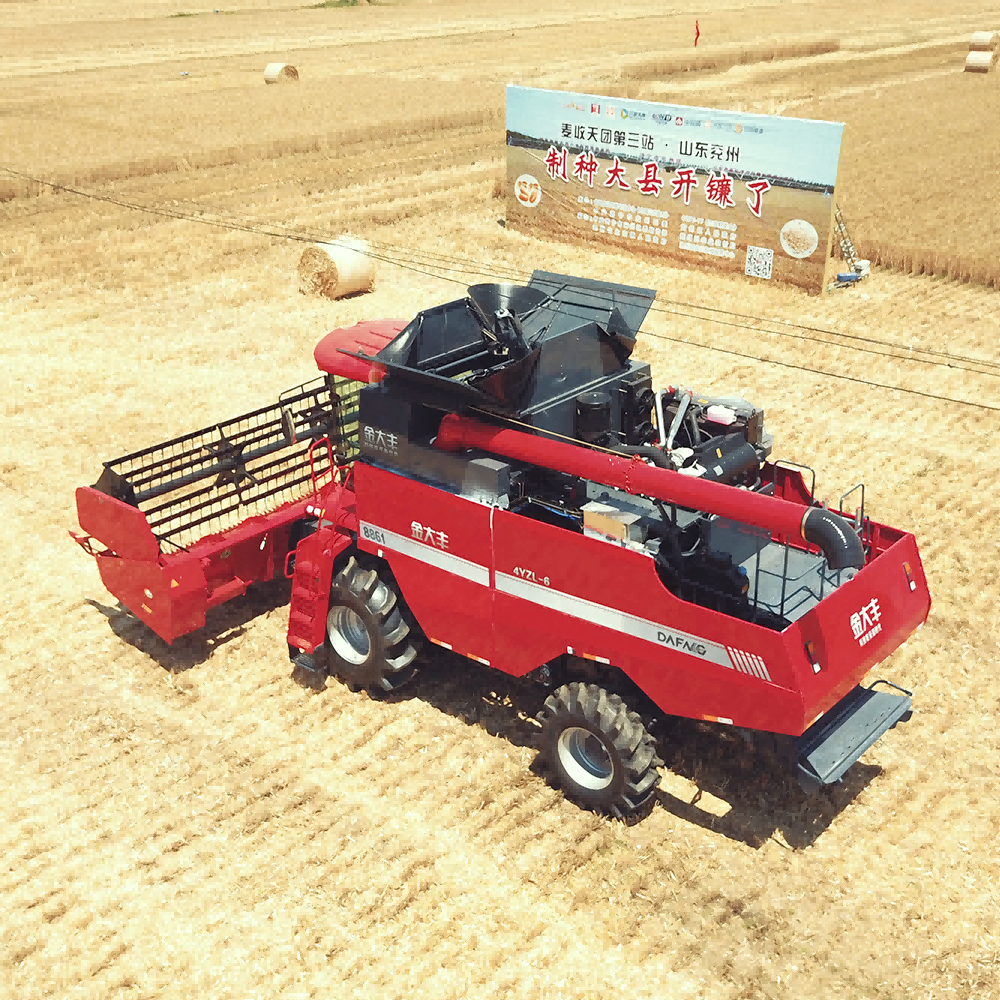

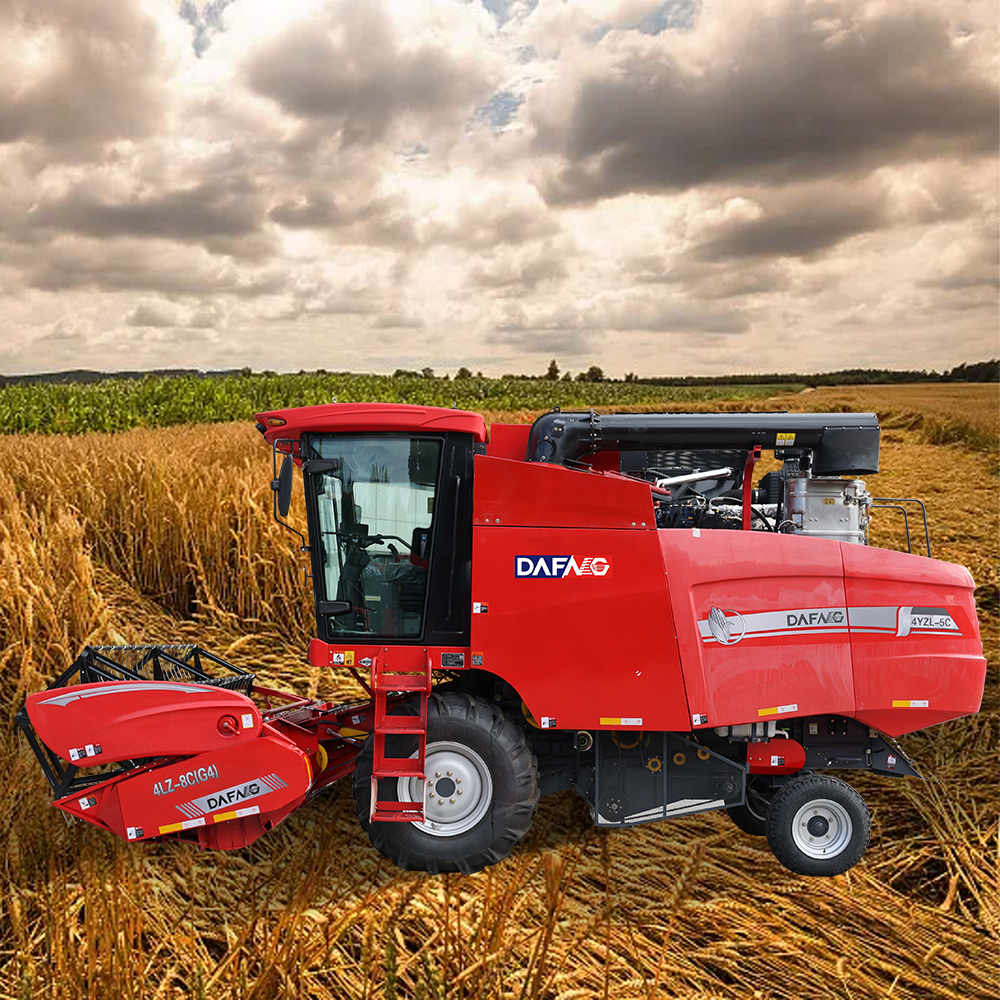

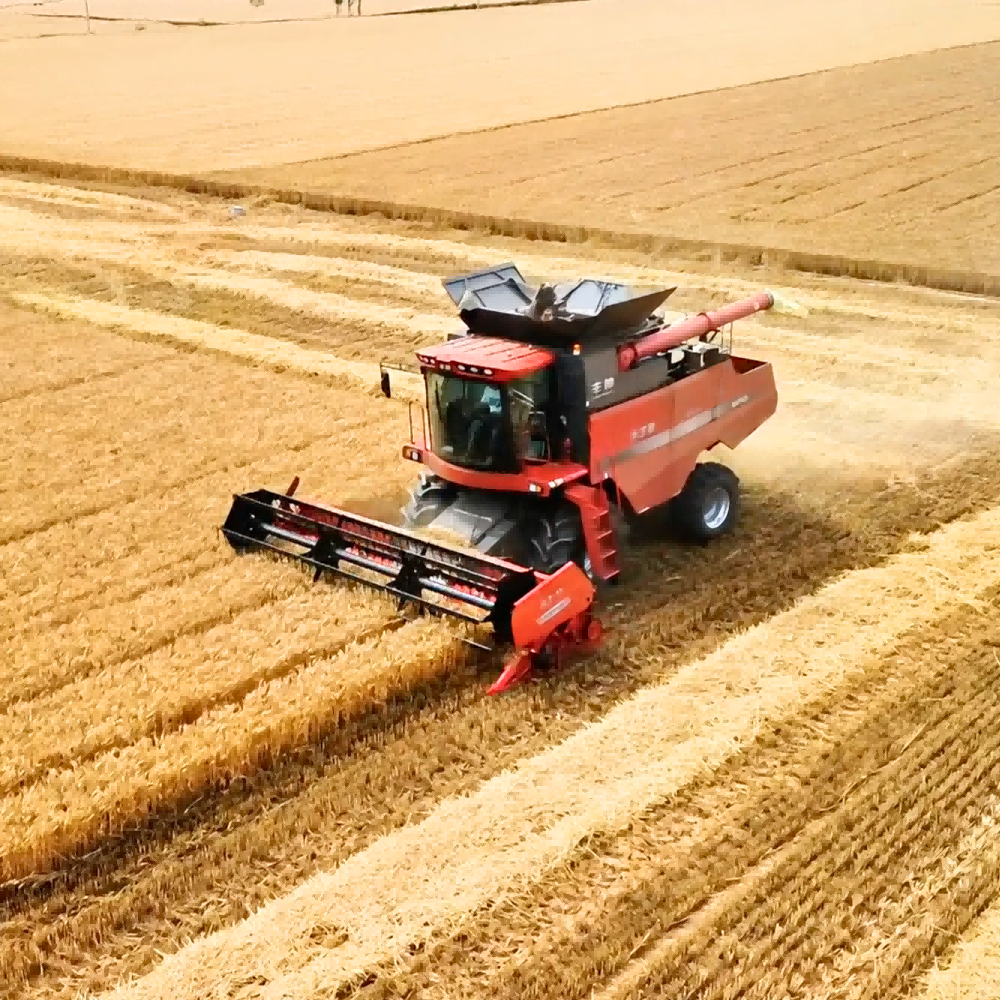

Grain Harvester
0102030405
Product parameters
| Model | 4LZ-10 | 4LZ-13 | ||
| Dimension (L×W×H) | mm | 6550×3050×3550 | 7850x3350x3900 | |
| Min. operating weight | kg | 7170 | 11200 | |
| Wheelbase | mm | 2700 | 3305 | |
| Wheel track (front/rear) | mm | F：1900/R：1850 | 2600 | |
| Feeding speed | kg/s | 8 | 13 | |
| Productivity | hm²/h | 0.6-1 | 0.6-1.5 | |
| Working speed | km/h | 1-9 | 1.5-6 | |
| Mini clearance | mm | 290 | 430 | |
| Grain tank | m³ | 3.4 | 7.5 | |
| fuel tank capacity | L | 350 | 370 | |
| Threshing room | Number of threshing drums | / | 1 | 1 |
| Main threshing drum type | / | Longitudinal axial flow rod tooth type | Longitudinal axial flow rod tooth type | |
| Dimensions of the granule drum (outer diameter x length) | mm | Φ620×2690 | Φ610×2995 | |
| Concave plate sieve type | / | Grid format | Grid format | |
| Detoxification method | / | Miscellaneous return drum | Secondary re-tripping of return roller | |
| Engine | Model | / | 200HP-GIII | 260HP-GIII |
| Type | / | Vertical, water-cooling, four stroke, common rail | Vertical, water-cooling, four stroke, common rail | |
| Qty of cylinders | / | 4 | 6 | |
| Rated power | HP/KW | 200HP/147kw | 260HP/191kw | |
| Rated speed | r/min | 2200 | 2200 | |
| Specification of guide wheel tire | 10.0/75-15.3 | ≤35 | ||
| Drive wheel tire specifications | 15R24 149A8 R-1 | 28L-26 | ||
Product advantages
1.High-efficiency operation: 13kg/s feed capacity + 0.6-1.5hm²/h efficiency, axial flow threshing, fast & non-clogging
2.Powerful engine: 260HP, 4WD + hydrostatic CVT, strong rough-field passability
3.Long-lasting operation: 7.5m³ grain bin + 370L fuel tank, less unloading/refueling downtime
4.Stable & durable: 11200kg weight + 430mm ground clearance, complex terrain adaptable, robust
5.Easy operation: Auto mechanical unloading + multi-gear, lower manual intensity
6.High adaptability: 28L-26 drive wheels + 19.5L-24 guide wheels, good grip, stable
