Product parameters
| Model | unit | 2BFBQ-16(6)(250) | 2BFBQ-20(8)(300) | |
| Structural type | / | Hanging type; Drive harrowing; drilling | Hanging type; Drive harrowing; drilling | |
| Dimension (L×W×H) | mm | 2900×3040×1850 | 2900×3040×1850 | |
| Mass of complete machine | kg | 2600 | 3210 | |
| Supporting power range | Kw | 117～147 | 132～162 | |
| Working width | mm | 2500 | 3000 | |
| Tillage depth | mm | ≥100 | ≥100 | |
| line spacing | mm | 150 | 150 | |
| Number of working lines | lines | 16 | 20 | |
| Operating speed range | m/s | 2.23～2.78 | 2.23～2.78 | |
| Hourly production rate of operation | hm2/h | 1.6～2.0 | 2.0～2.5 | |
| Seed planter type | / | Slotted wheel | Slotted wheel | |
| Seed planter material | / | Non metallic materials | Non metallic materials | |
| Number of seeding devices | Pcs | 16 | 20 | |
| Type of seeding and trenching device | / | Double disc type | Double disc type | |
| Number of seeding and trenching devices | Pcs | 16 | 20 | |
| Seed box capacity | L | 500 | 600 | |
| Method of adjusting sowing amount | / | Screw adjustment | Screw adjustment | |
| Seed planter driving mode | / | Ground wheel drive | Ground wheel drive | |
| Type of fertilizer applicator | / | Outer sheave type | Outer sheave type | |
| Number of Fertilizer Dischargers | Pcs | 6 | 8 | |
| Fat box capacity | L | 780 | 780 | |
| Adjustment method of fertilizer discharge amount | / | Electronic control | Electronic control | |
| Drive mode of fertilizer dispenser | / | Electric drive system | Electric drive system | |
| Spacing between rake teeth | cm | 24.5 | 24.5 | |
| Number of rake groups | Group | 10 | 12 | |
| Number of rake teeth | Pcs | 20 | 24 | |
| Ground wheel type | / | Nail tooth iron wheel | Nail tooth iron wheel | |
| Wheel diameter | mm | 655 | 655 | |
| Type of sowing and soil covering device | / | Combing rake teeth | Combing rake teeth | |
| Pre/post broadcast suppression organization configuration method | / | Not independent/independent | Not independent/independent | |
| Pre/post broadcast suppression organization configuration type | / | Ballast roller/rubber wheel | Ballast roller/rubber wheel | |
| Imitation method | / | Monomer independent profile | Monomer independent profile | |
| Imitation mechanism type | / | Parallel four-bar type | Parallel four-bar type | |
Product advantages
1. High-efficiency operation: complete rotary cultivation, fertilizer application, seeding, soil covering, compaction and other processes at one time, and improve the work efficiency through multiple operations.
2. Precise seeding: the fluted wheel type seed metering device has high seeding accuracy and strong working reliability.
3. Convenient adjustment: row spacing, seeding depth, fertilizer amount, etc. can be adjusted to adapt to different agronomic requirements.
4. Strong durability: key parts are made of high-quality materials, with long service life.
5. Monitoring system: equipped with seeding operation monitoring terminal to monitor seeding in real time and improve operation quality.
2. Precise seeding: the fluted wheel type seed metering device has high seeding accuracy and strong working reliability.
3. Convenient adjustment: row spacing, seeding depth, fertilizer amount, etc. can be adjusted to adapt to different agronomic requirements.
4. Strong durability: key parts are made of high-quality materials, with long service life.
5. Monitoring system: equipped with seeding operation monitoring terminal to monitor seeding in real time and improve operation quality.

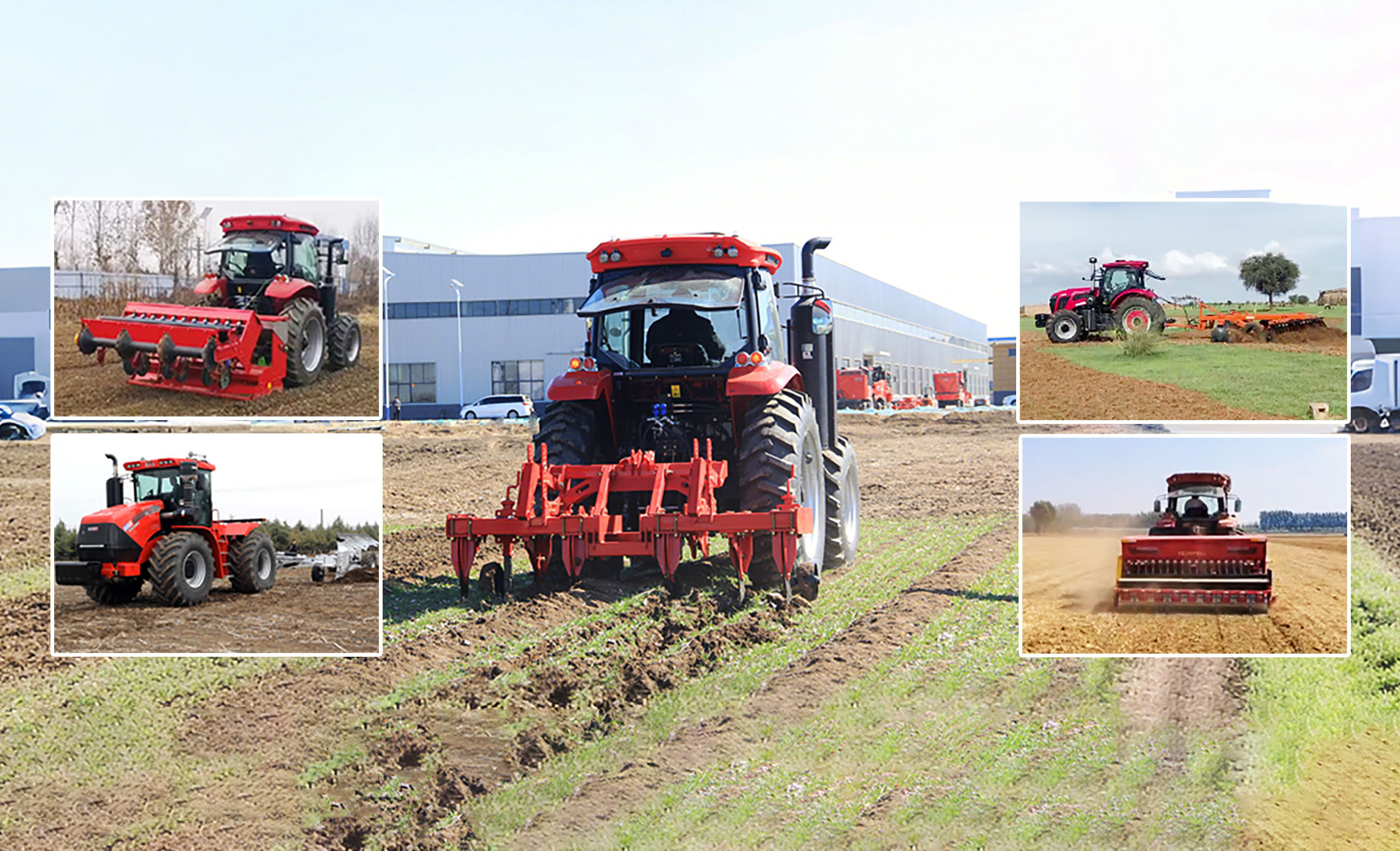

Product Application

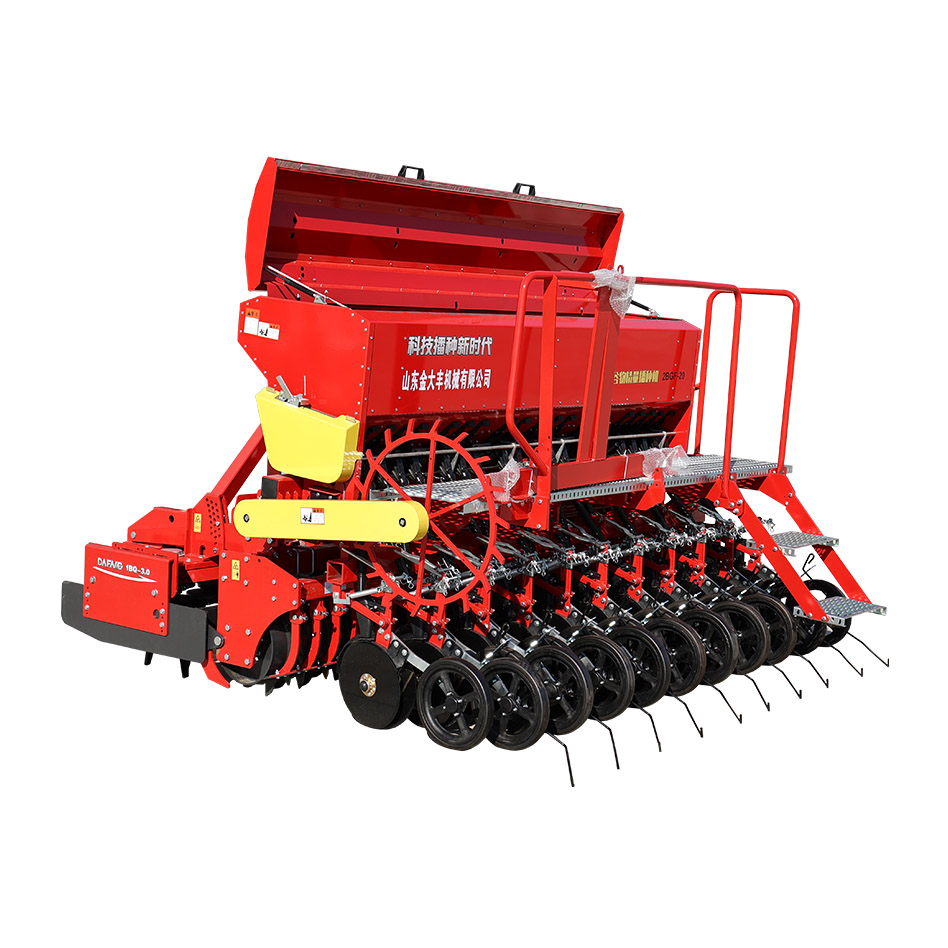

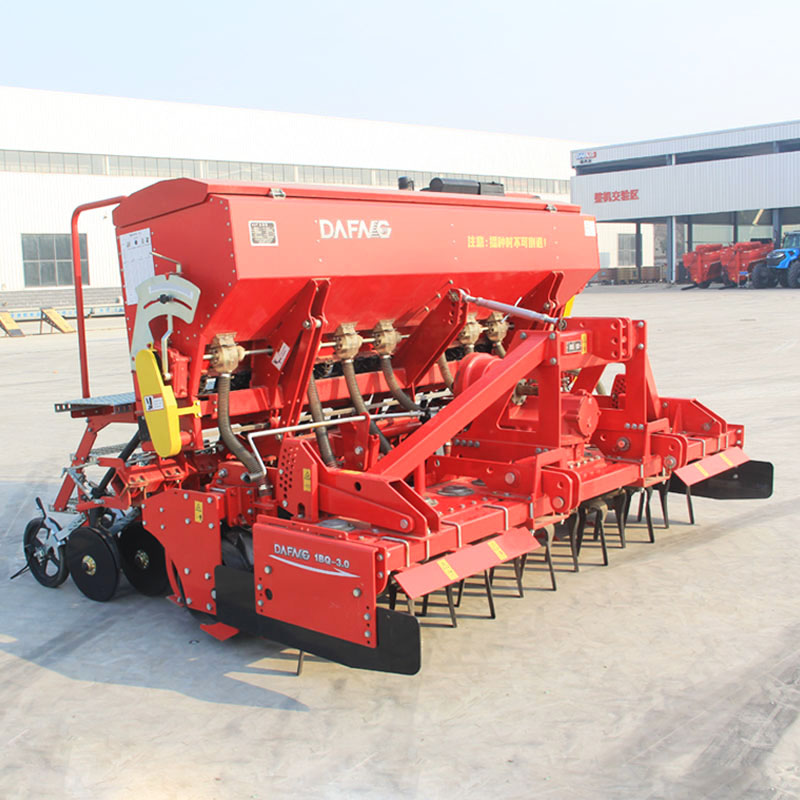

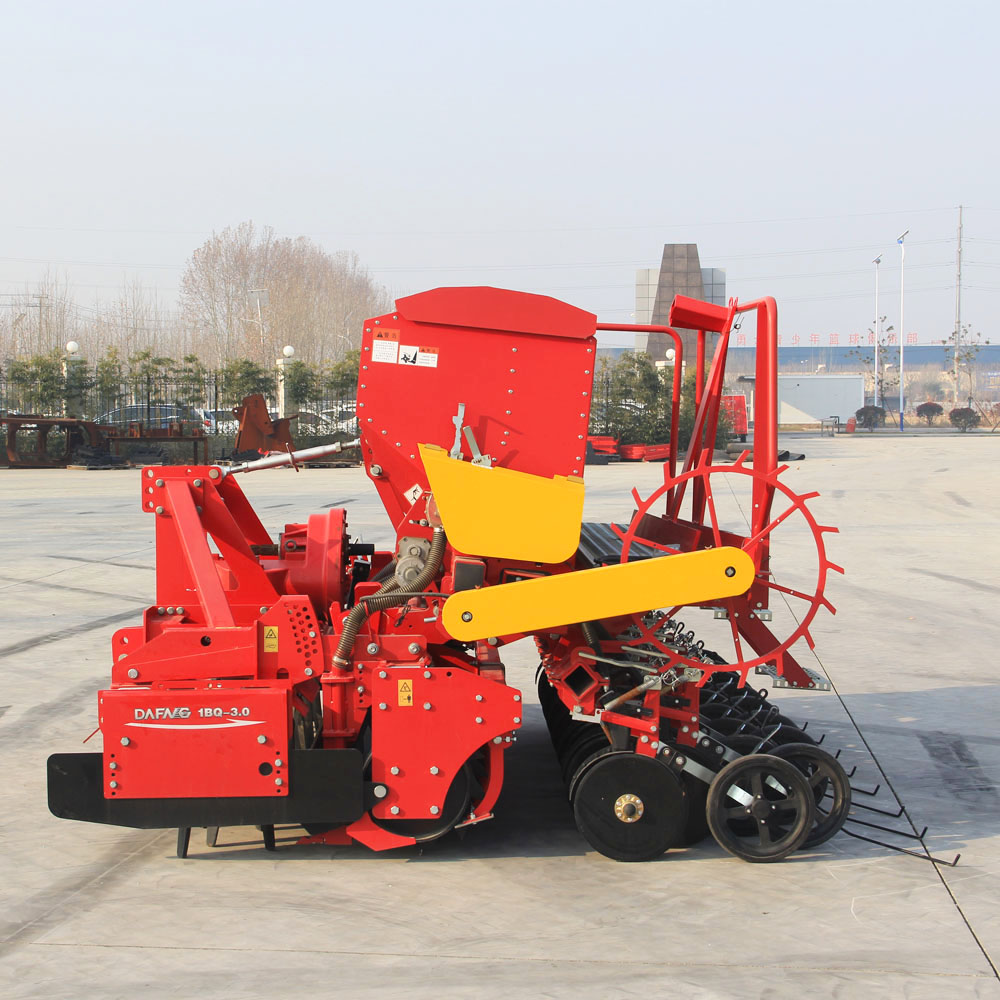

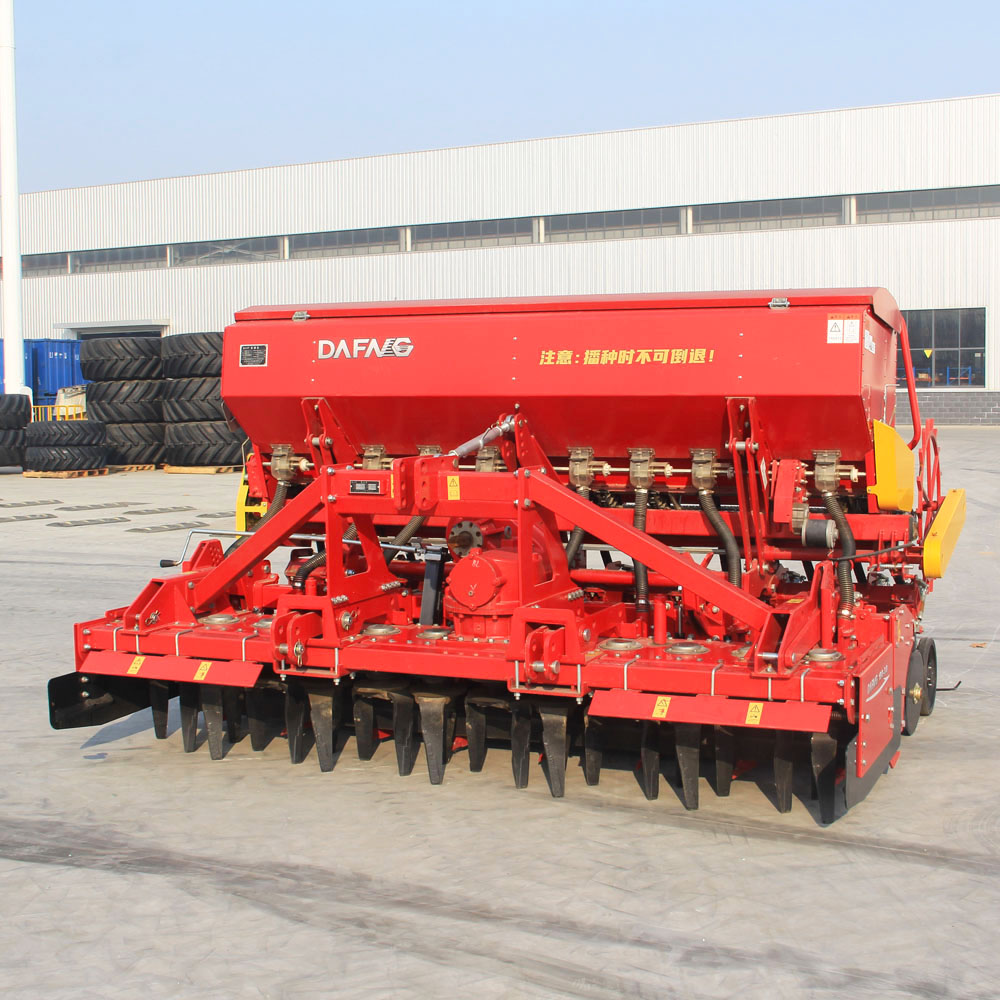

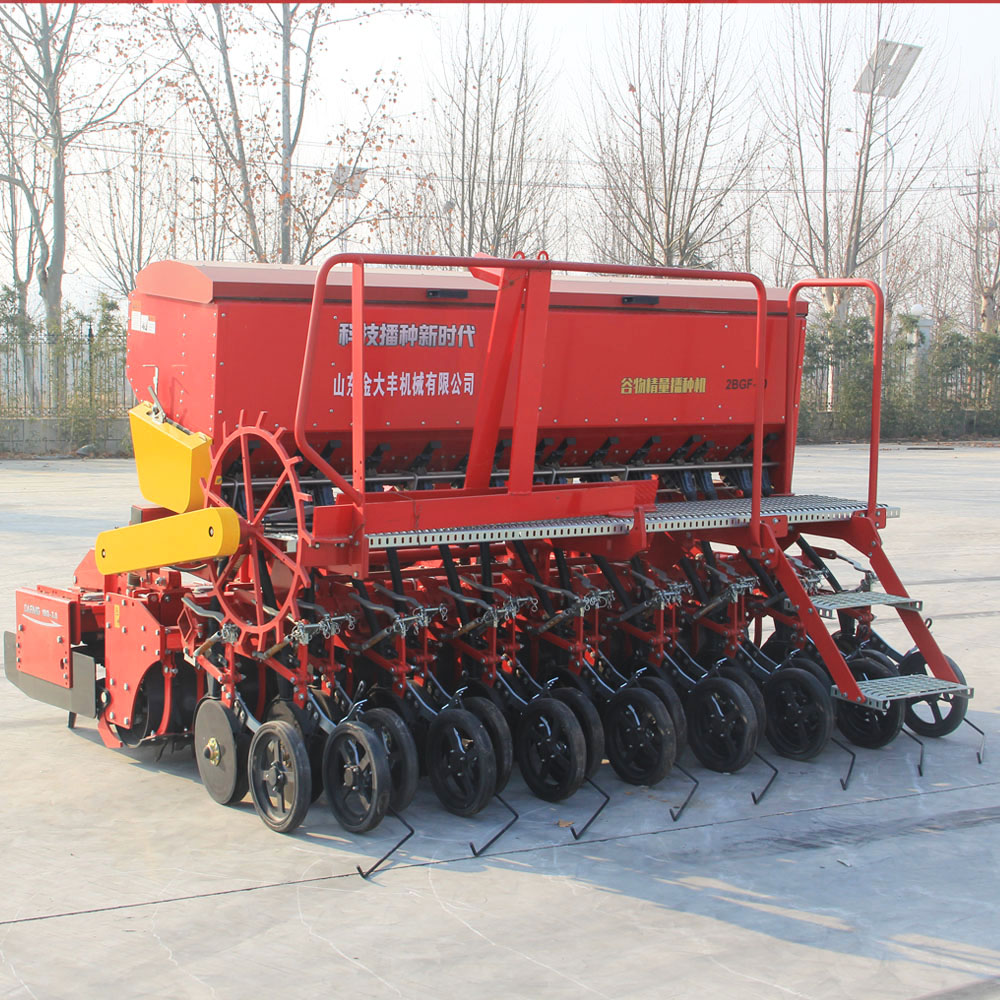

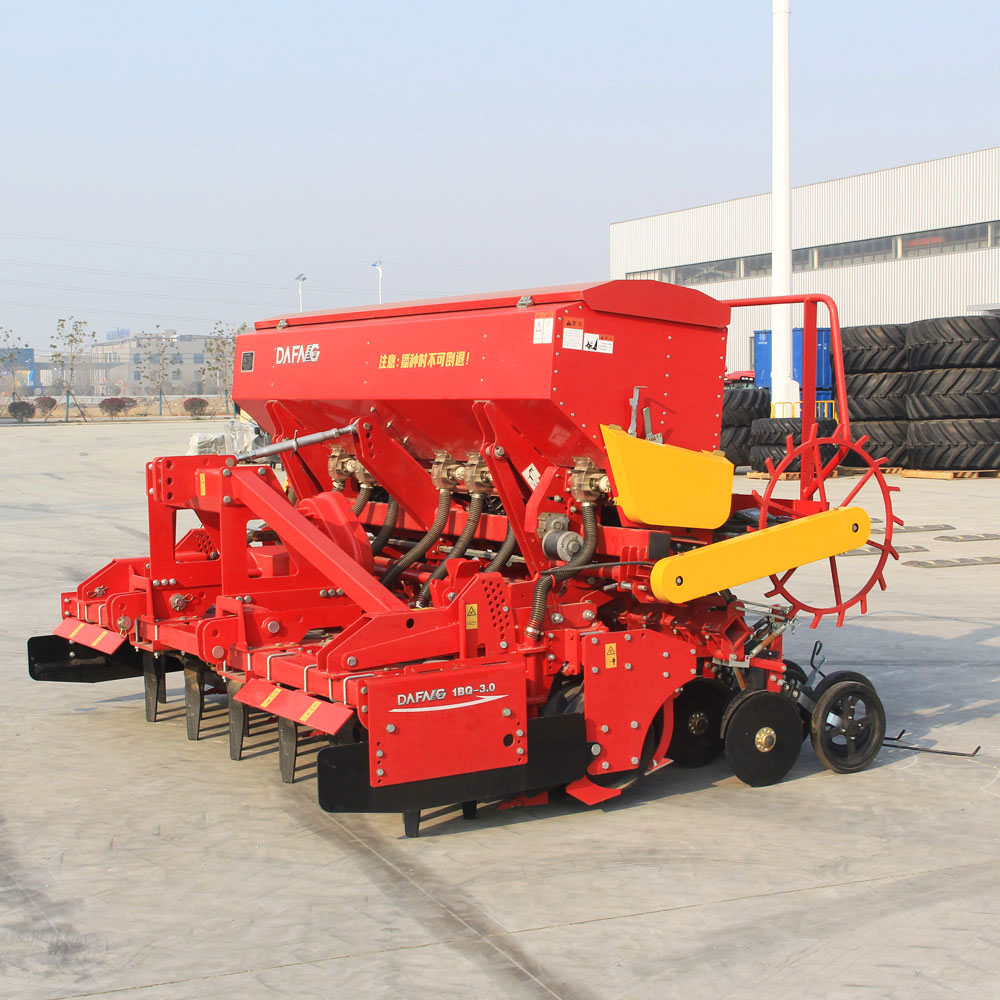

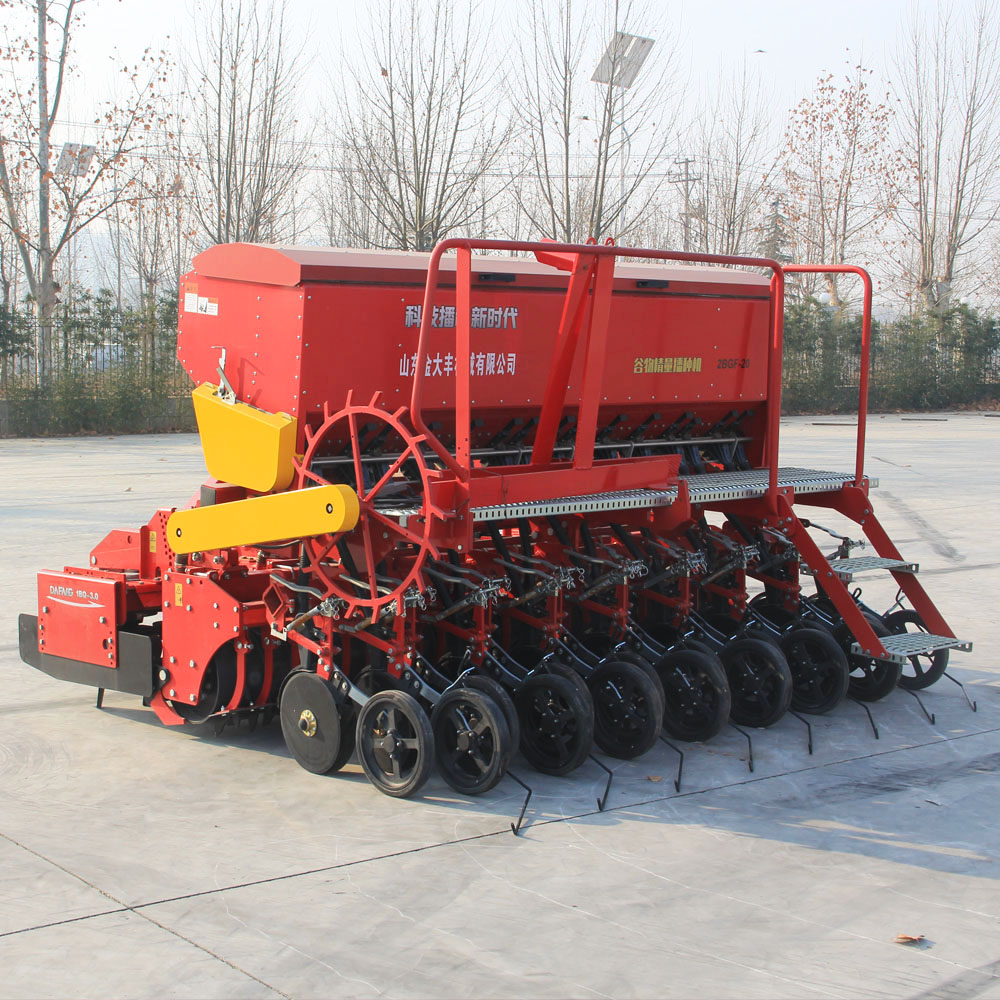

Product diagram
