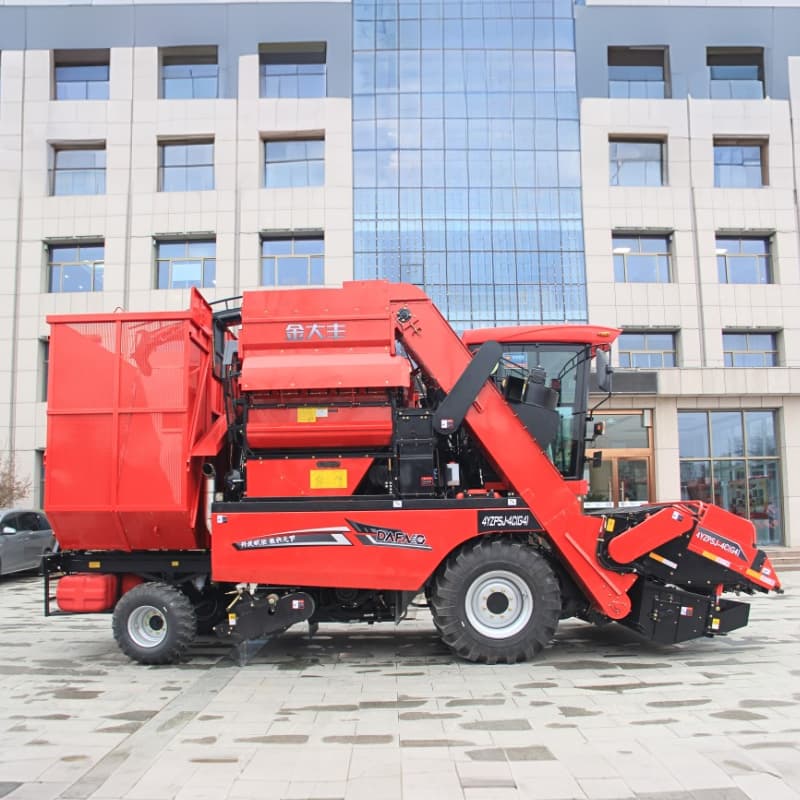

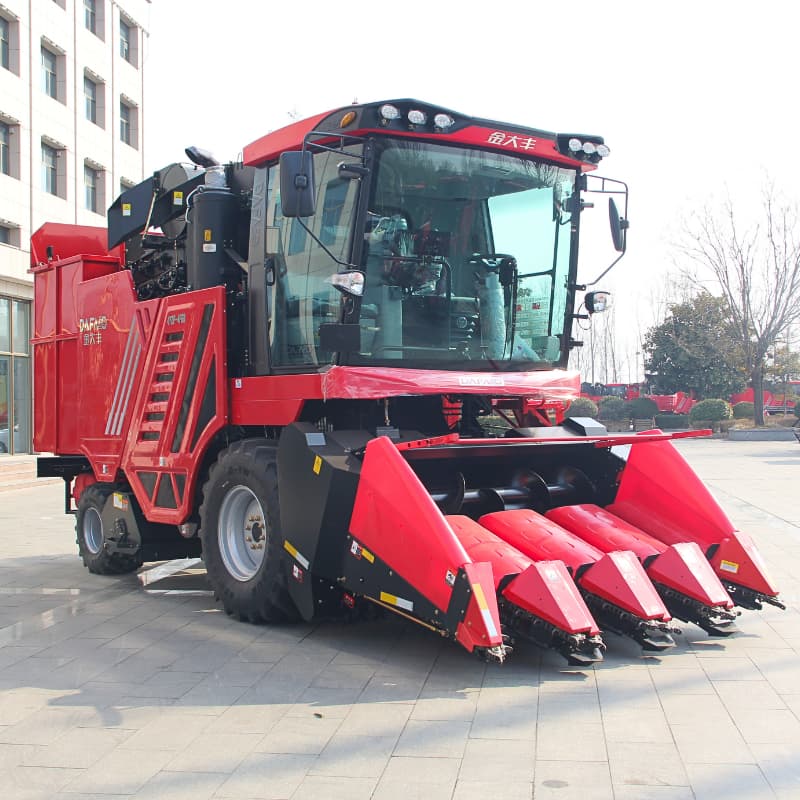

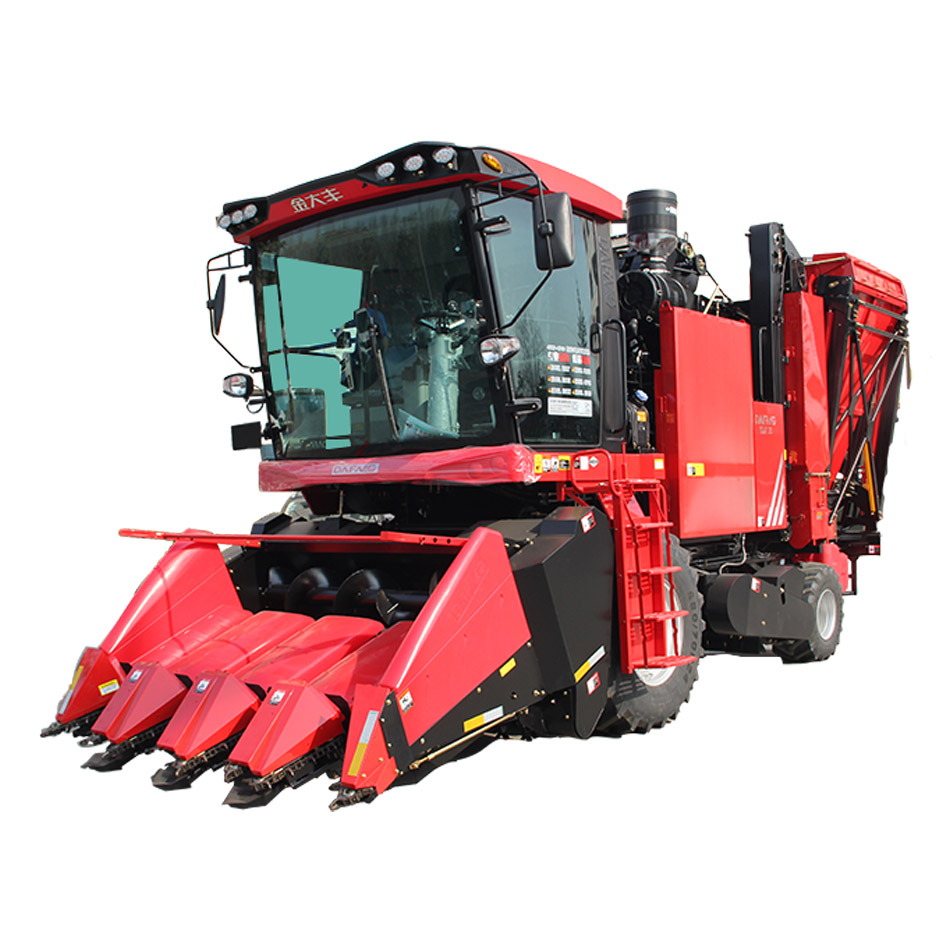

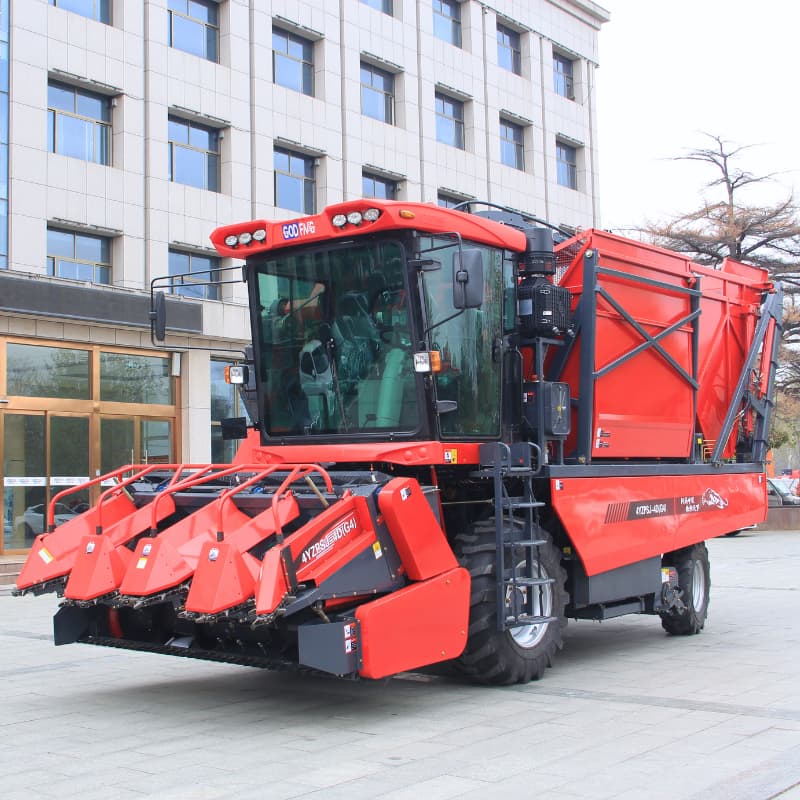

Corn Harvester
0102030405
Product parameters
| Model | 4YZP-4FD | ||
| Structural type | / | wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H) | mm | 7120×2780×3400 | |
| Mass of complete machine | kg | 9630 | |
| Header | Header type | / | horizontal type |
| Number of operating lines (number of channels) | lines | 4 | |
| row pitch | mm | 600 | |
| Available row distance： | mm | 550-650 | |
| Working breadth | mm | 2380 | |
| Type of ear picking mechanism | / | Ear picking roller type | |
| Number of ear picking rollers | pcs | 8 | |
| lift conveyer | Layout of ear elevator | / | Center placed |
| Structural type of ear elevator | / | Chain scraper type | |
| Engine | Model | / | 280GIII |
| Type | / | Six-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 6 | |
| Rated power | HP/KW | 280HP/206KW | |
| Rated speed | r/min | 2200 | |
| Peeler | Type of stripping mechanism | / | Rubber roller |
| Number of stripping rollers | 个 | 20 | |
| Field returning machine | ype | / | Swing blade type |
| Location of straw crushing and returning mechanism | / | Between front and rear tires | |
| Working Width of Straw Crushing and Returning Mechanism | mm | 2300 | |
| Type of cab | / | Luxury air-conditioned cab | |
| Type of transmission mechanism： | / | Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type： | / | Two drive system | |
| Mini clearance： | mm | 240 | |
| Working speed： | km/h | 2-6 | |
| Drive wheel track： | mm | 1920 | |
| Guide wheel track： | mm | 1700 | |
| wheel base： | mm | 3000 | |
| Drive wheel tire specifications： | / | 15R24 149A8 R-1 Radial tubeless tyre 15R24 149A8 R-1 |
|
| Specification of guide wheel tire： | / | 400-60-15.5-16PR-I-3E Diagonal Tubeless Tire 400-60-15.5-16PR-I-3E |
|
| Productivity： | hm²/h | 0.4-0.7 | |
| Grain tank： | m³ | 3.2 | |
| fuel tank capacity： | L | 420 | |
Product advantages

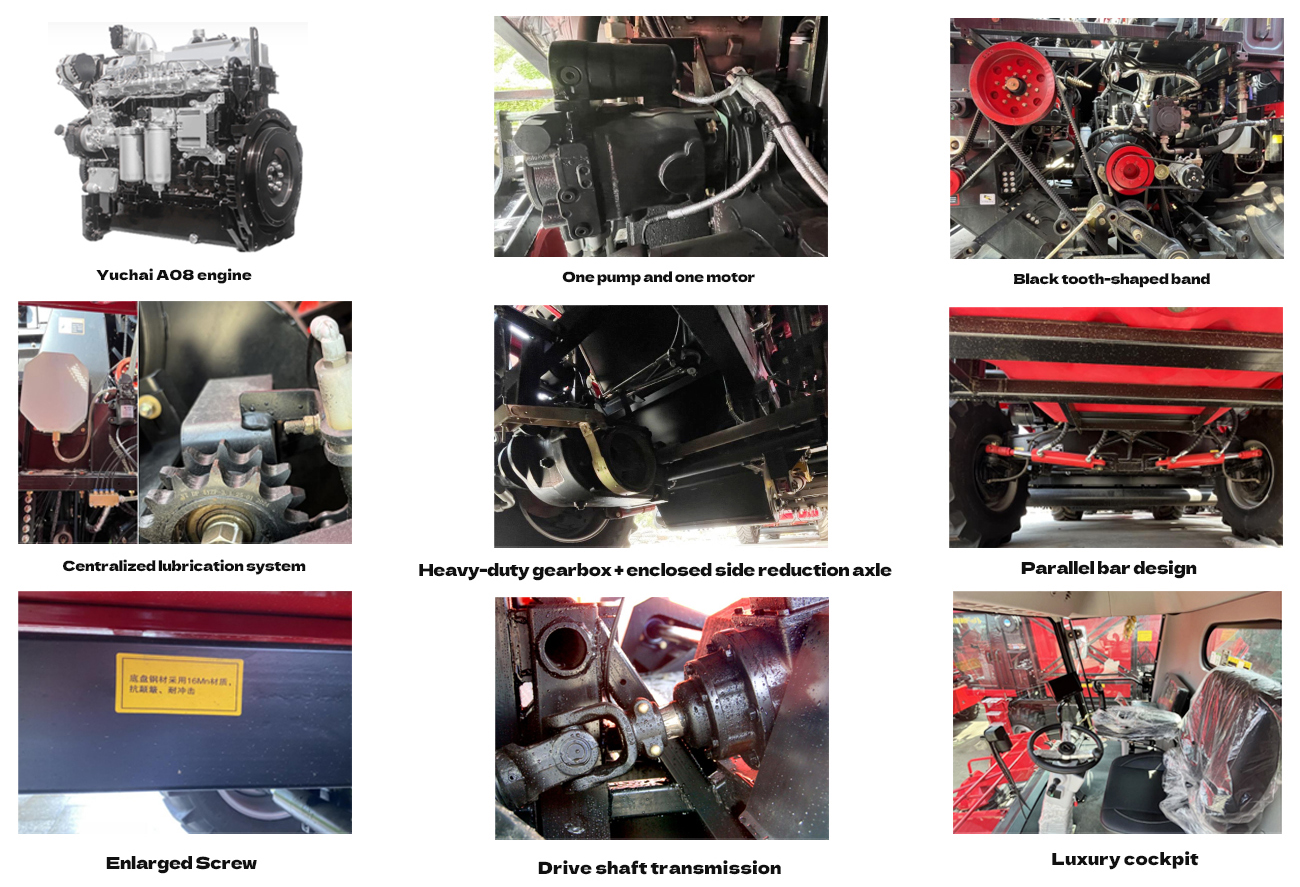

1. Strong power:280 HP engine, strong power: light load, medium load and heavy load three-gear frequency conversion, energy saving and fuel saving.
2. Comfortable operation: one pump, one motor, hydraulic walking, original built-in air conditioner.
3. Multi-function electronic control handle, column type driving instrument, Chinese panel showing driving data, convenient for the driver to read.Shifting to the reverse gear will automatically start the returning machine, making the driving safer;
4. Super-strong chassis: the frame adopts 16 sections and triangular support beam structure, which is resistant to bumping and impact.The driving wheel adopts radial tire, with stronger grip.Widened guide wheel, with good anti-seffect.
5. High-efficiency operation: Header row spacing is 600mm, double-side chain transmission, and the reel angle is adjustable, which is applicable to a wide range of row spacing;Ultra-wide 810mm ear elevator, with stronger ability to improve ear, 20-roller high-efficiency husking machine, with high husking rate;
6. Convenient maintenance: the transmission chain adopts the automatic lubrication device, and the stripping machine and fan bearings adopt the centralized oil injection method, which saves time and mind. The air pump is added and the quick coupling is reserved for the driver to clean the dust and straw fragments on the harvester with the air nozzle.
7. Intelligent material technology: after scanning code and registering mobile APP, it can be interconnected with the harvester through mobile bluetooth for intelligent control and troubleshooting.
2. Comfortable operation: one pump, one motor, hydraulic walking, original built-in air conditioner.
3. Multi-function electronic control handle, column type driving instrument, Chinese panel showing driving data, convenient for the driver to read.Shifting to the reverse gear will automatically start the returning machine, making the driving safer;
4. Super-strong chassis: the frame adopts 16 sections and triangular support beam structure, which is resistant to bumping and impact.The driving wheel adopts radial tire, with stronger grip.Widened guide wheel, with good anti-seffect.
5. High-efficiency operation: Header row spacing is 600mm, double-side chain transmission, and the reel angle is adjustable, which is applicable to a wide range of row spacing;Ultra-wide 810mm ear elevator, with stronger ability to improve ear, 20-roller high-efficiency husking machine, with high husking rate;
6. Convenient maintenance: the transmission chain adopts the automatic lubrication device, and the stripping machine and fan bearings adopt the centralized oil injection method, which saves time and mind. The air pump is added and the quick coupling is reserved for the driver to clean the dust and straw fragments on the harvester with the air nozzle.
7. Intelligent material technology: after scanning code and registering mobile APP, it can be interconnected with the harvester through mobile bluetooth for intelligent control and troubleshooting.
Product Application

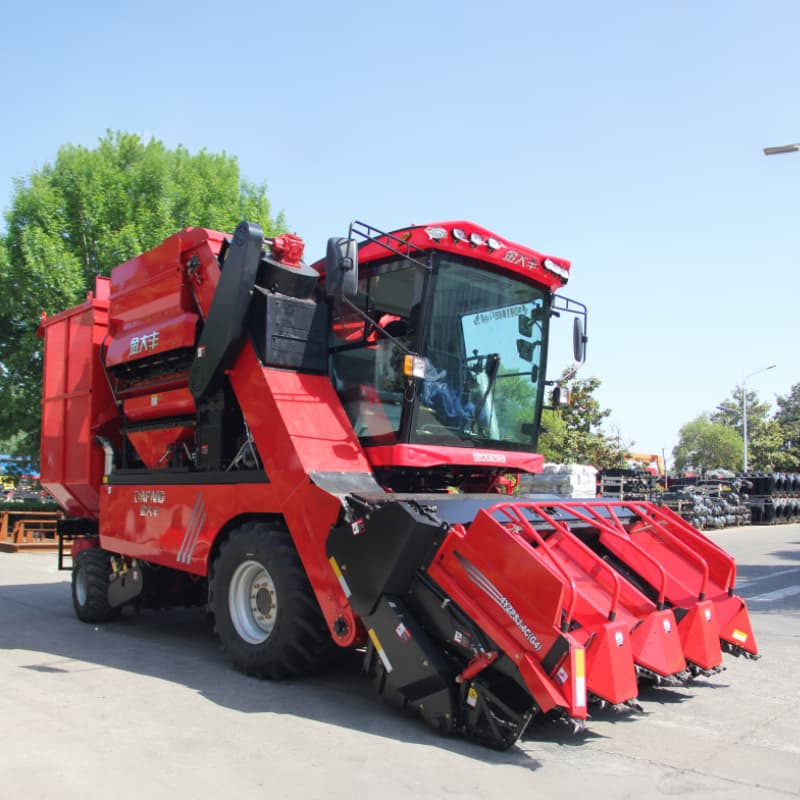

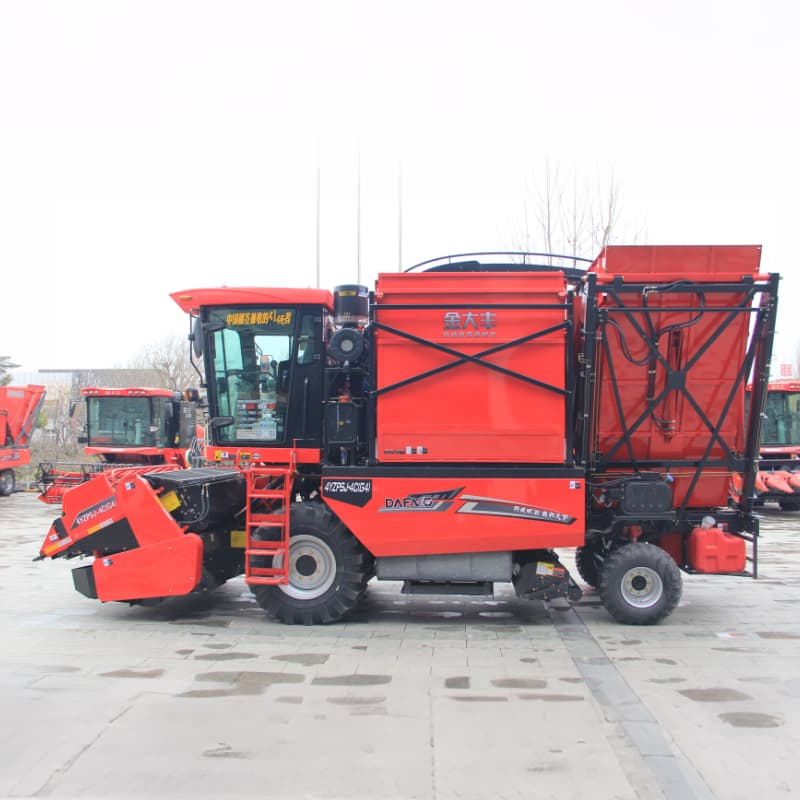

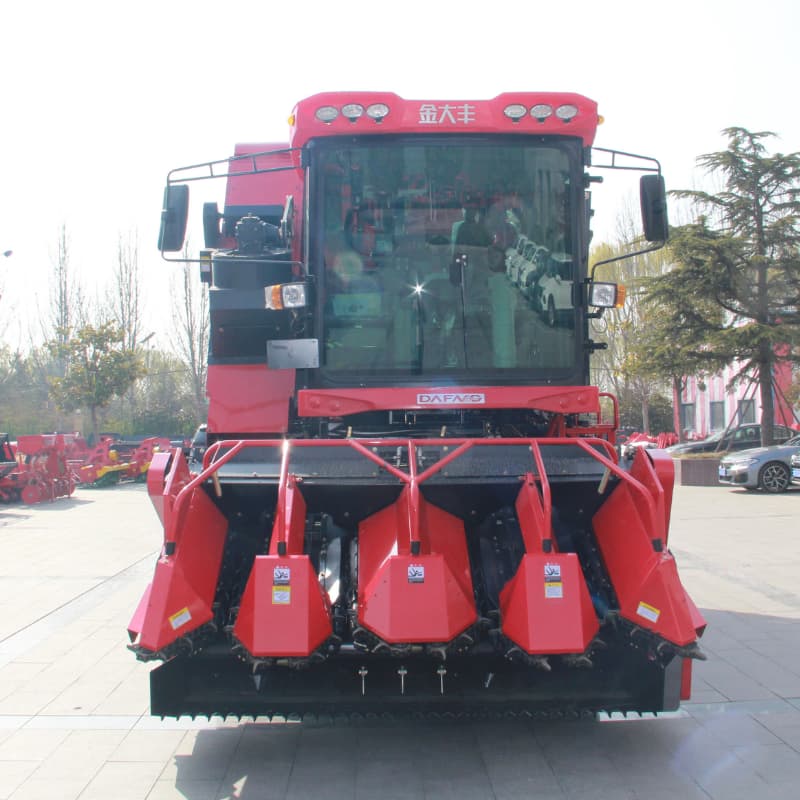

Product diagram
