Corn Harvester
0102030405
Product parameters
| Model | 4YZP-3H | ||
| Structural type： | / | wheel type, ear picking, peeling, straw returning | |
| Dimension (L×W×H)： | mm | 6350×1820×3120 | |
| Mass of complete machine | kg | 4780 | |
| Header | Header type | / | horizontal type |
| Number of operating lines (number of channels) | lines | 3 | |
| row pitch | mm | 520 | |
| Available row distance： | mm | 470-570 | |
| Working breadth | mm | 1670 | |
| Type of ear picking mechanism | / | Stem pulling roller, ear picking plate | |
| Number of ear picking rollers | 件 | 6 | |
| lift conveyer | Layout of ear elevator | / | Right placed |
| Structural type of ear elevator | / | Chain scraper type | |
| Engine | Model | / | SD120GⅣ |
| Type | / | four-cylinder, in-line, four-stroke, high-pressure common rail | |
| Qty of cylinders | / | 4 | |
| Rated power | HP/KW | 120HP/88.24KW | |
| Rated speed | r/min | 2400 | |
| Peeler | Type of stripping mechanism | / | Flat roller, rubber roller |
| Number of stripping rollers | 个 | 12 | |
| Field returning machine | ype | / | Swing blade type |
| Location of straw crushing and returning mechanism | / | Below the harvesting head | |
| Working Width of Straw Crushing and Returning Mechanism | mm | 1380 | |
| Grain unloading mode： | / | Hydraulic rollover type | |
| Grain recycling box form： | / | Fixed gate type | |
| Type of cab： | / | Simple driving cab | |
| Type of transmission mechanism： | / | Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type： | / | 4x4WD | |
| Mini clearance： | mm | 280 | |
| Working speed： | km/h | 1.84～5.2 | |
| Drive wheel track： | mm | 1300 | |
| Guide wheel track： | mm | 1365 | |
| wheel base： | mm | 2200 | |
| Drive wheel tire specifications： | / | Herringbone widening tire (13.6-20 with inner tube 14 layers) | |
| Specification of guide wheel tire： | / | Herringbone tyre 10-15 (12 levels) | |
| Productivity： | hm²/h | 0.3～0.4 | |
| Grain tank： | m³ | 1.7 | |
| fuel tank capacity： | L | 142 | |
Product advantages

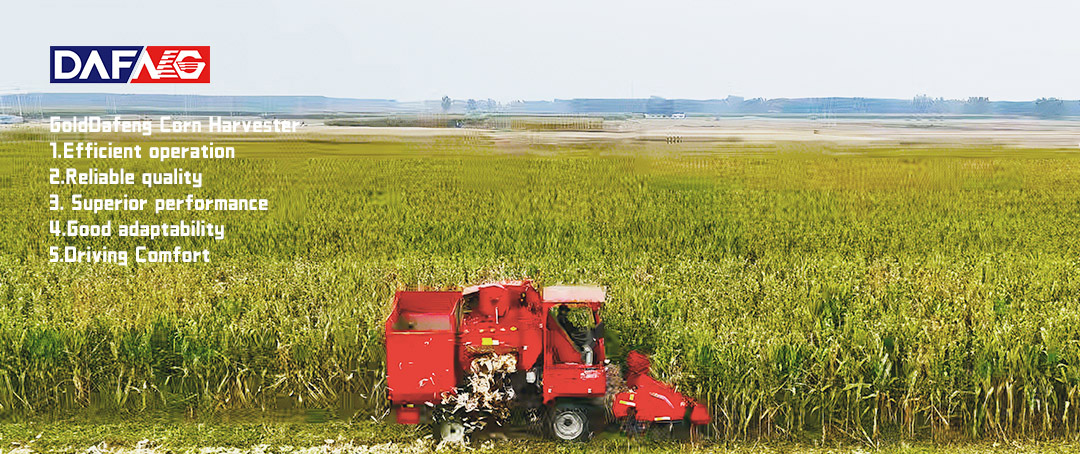

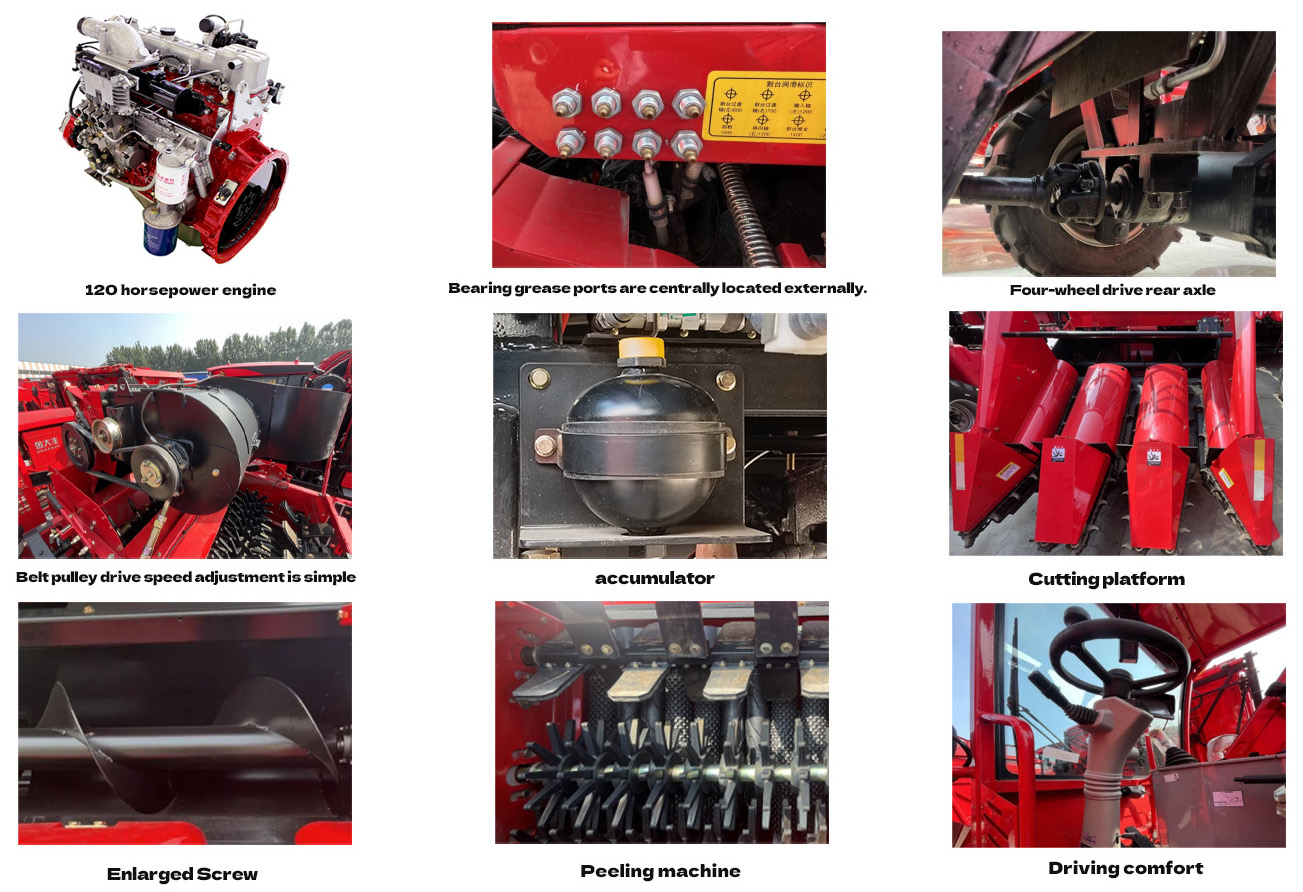

The "Jin Dafeng" three-row self-propelled corn harvester features a compact structure and a small turning radius, allowing for flexible maneuverability and making it suitable for small fields and complex terrains (such as mountains and hills). Its new non-row cutterhead is adaptable to different corn maturity stages, offering a wide range of applications. Equipped with a front-mounted shredder, it provides excellent straw crushing and returning to the field. The reinforced gearbox and enclosed side reduction gearbox make it suitable for complex working conditions. The walking system features an HST hydraulic transmission, allowing for speed adjustments based on different plots of land.

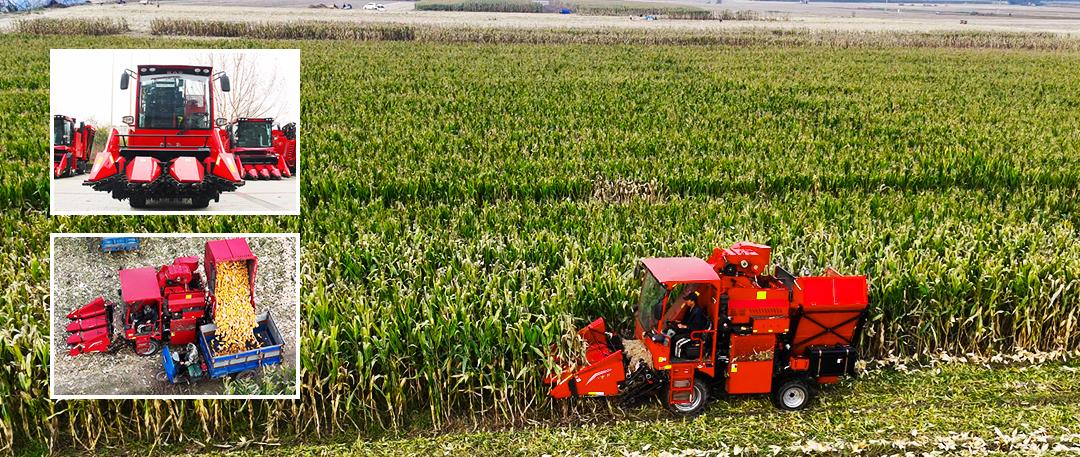

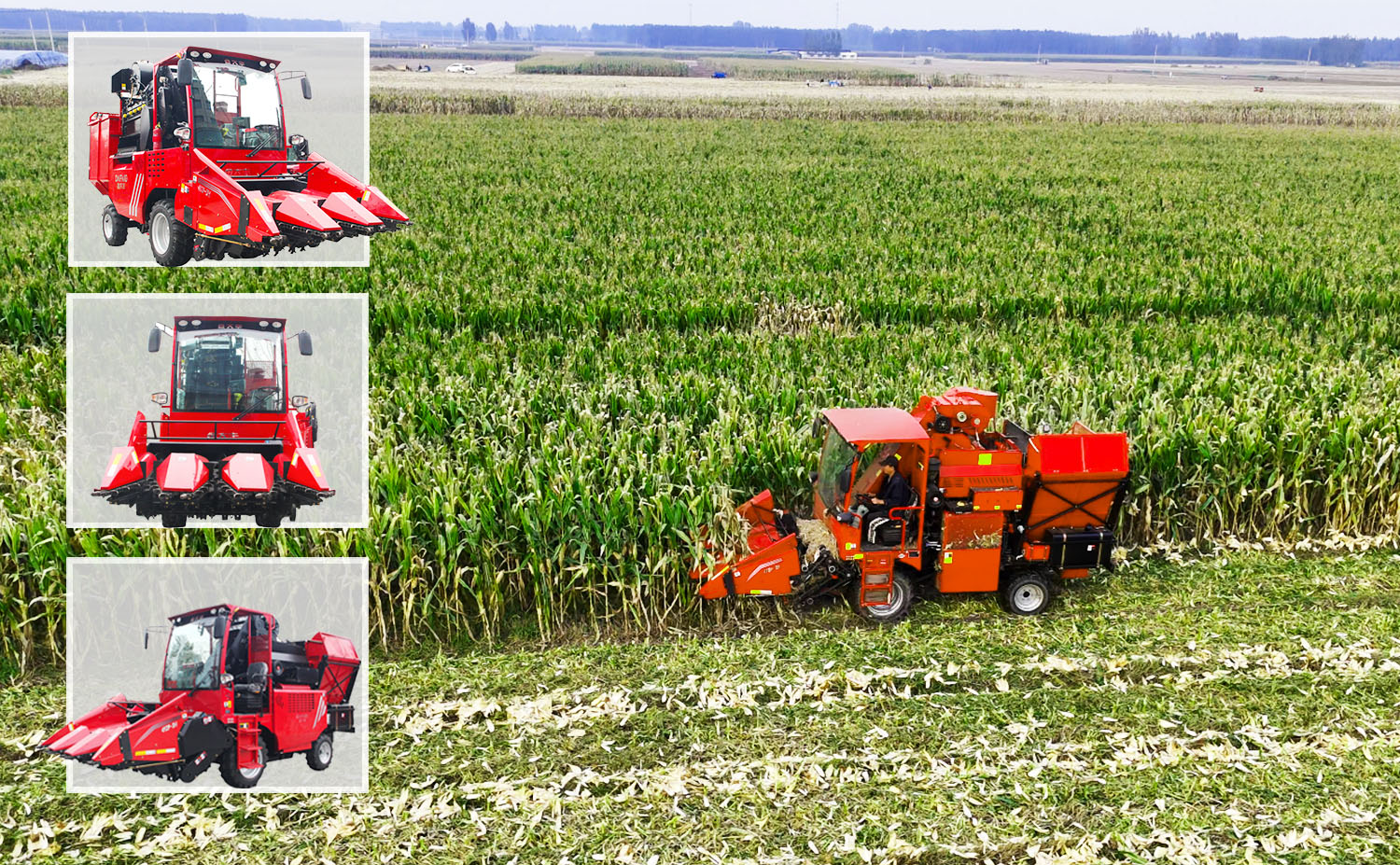

Product Application

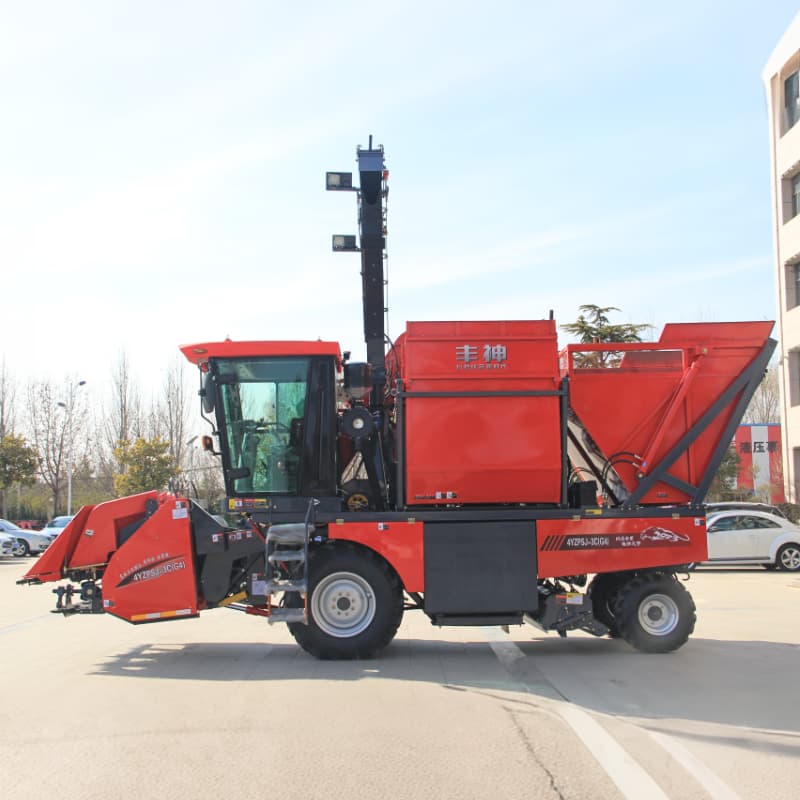

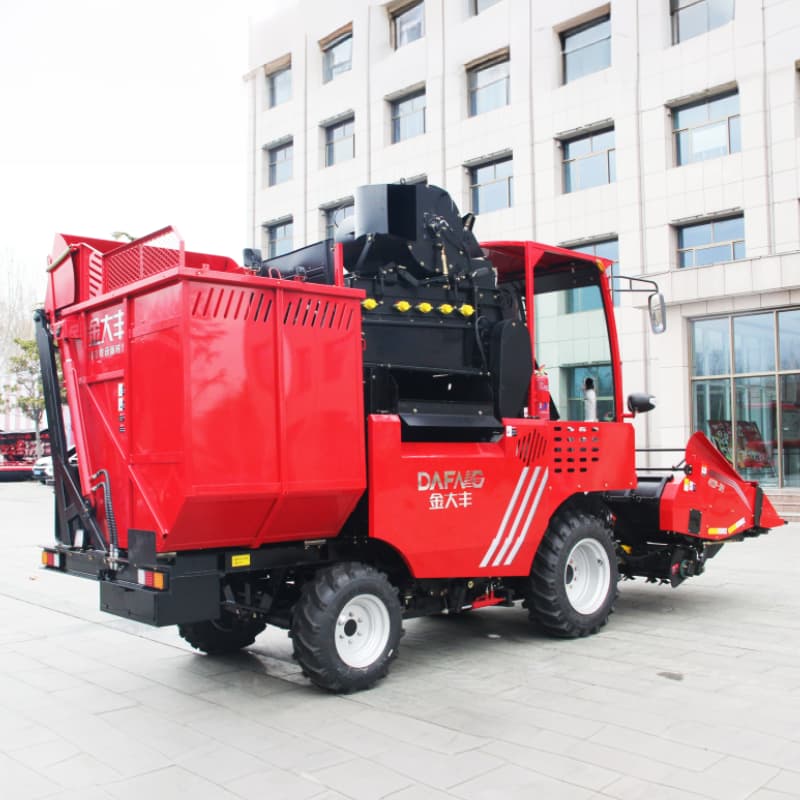

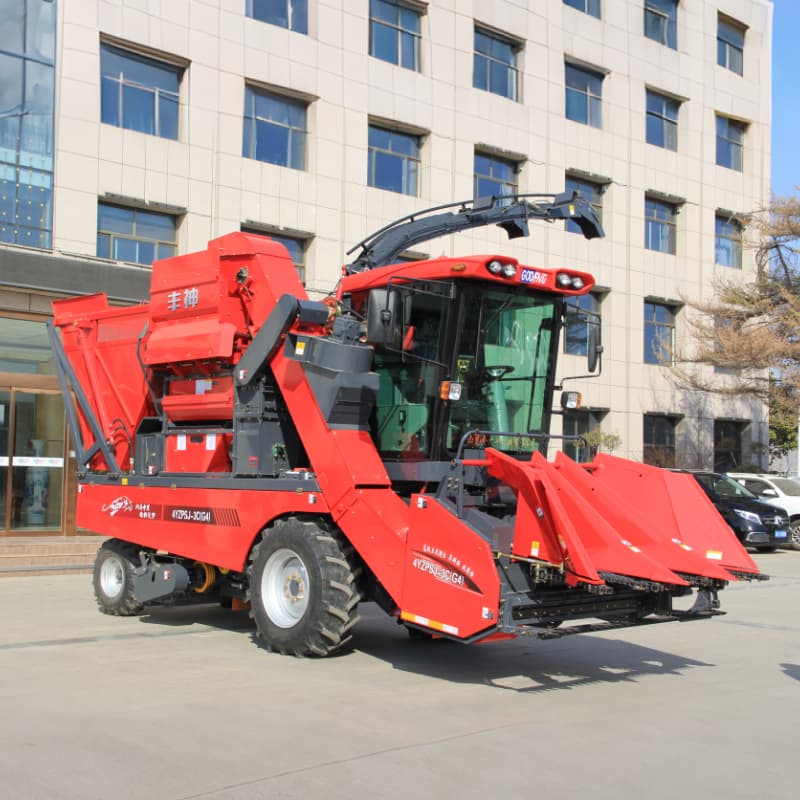

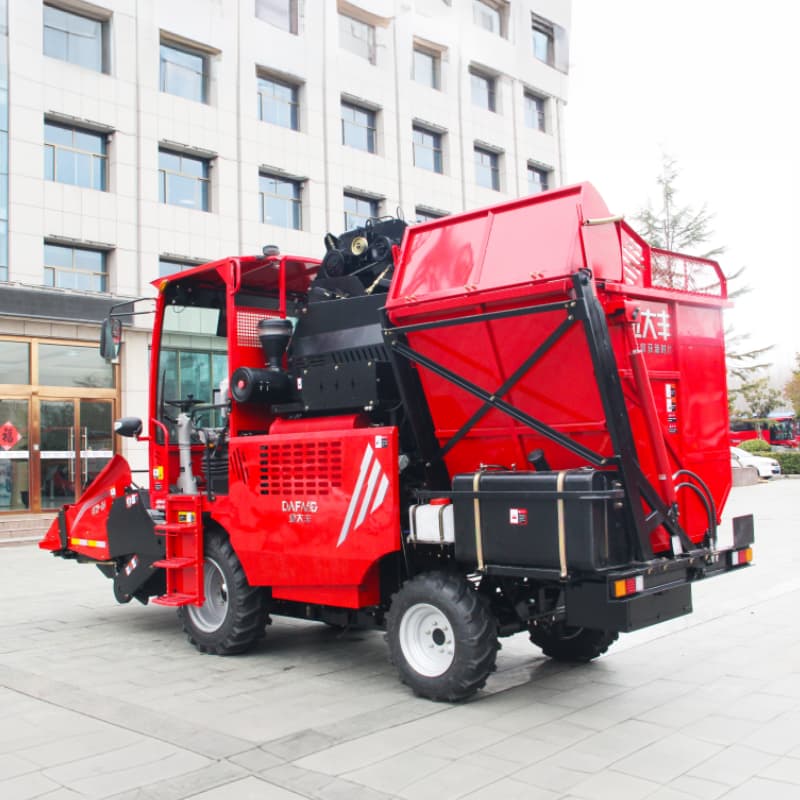

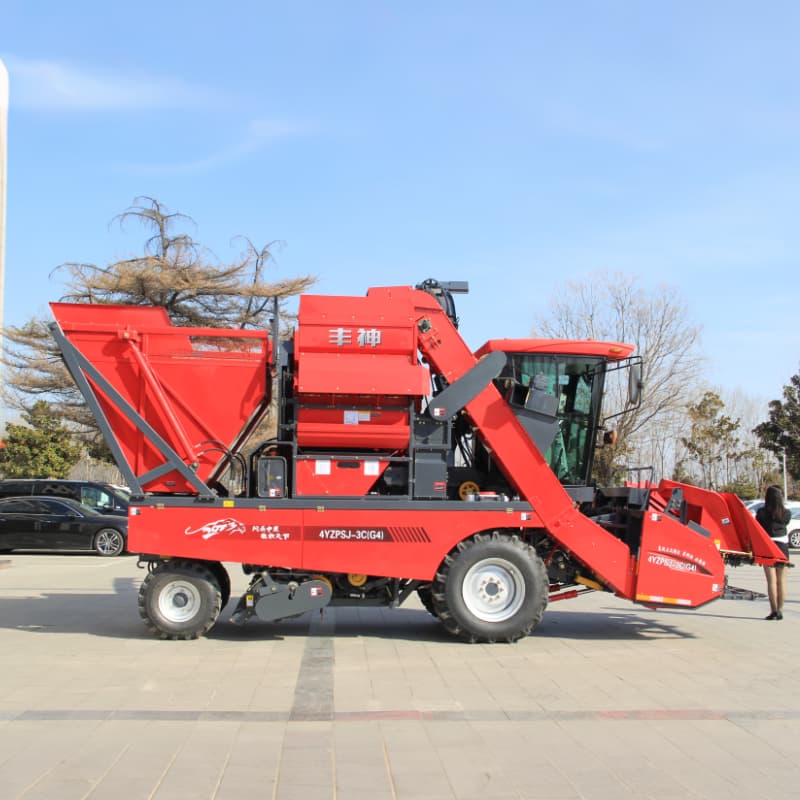

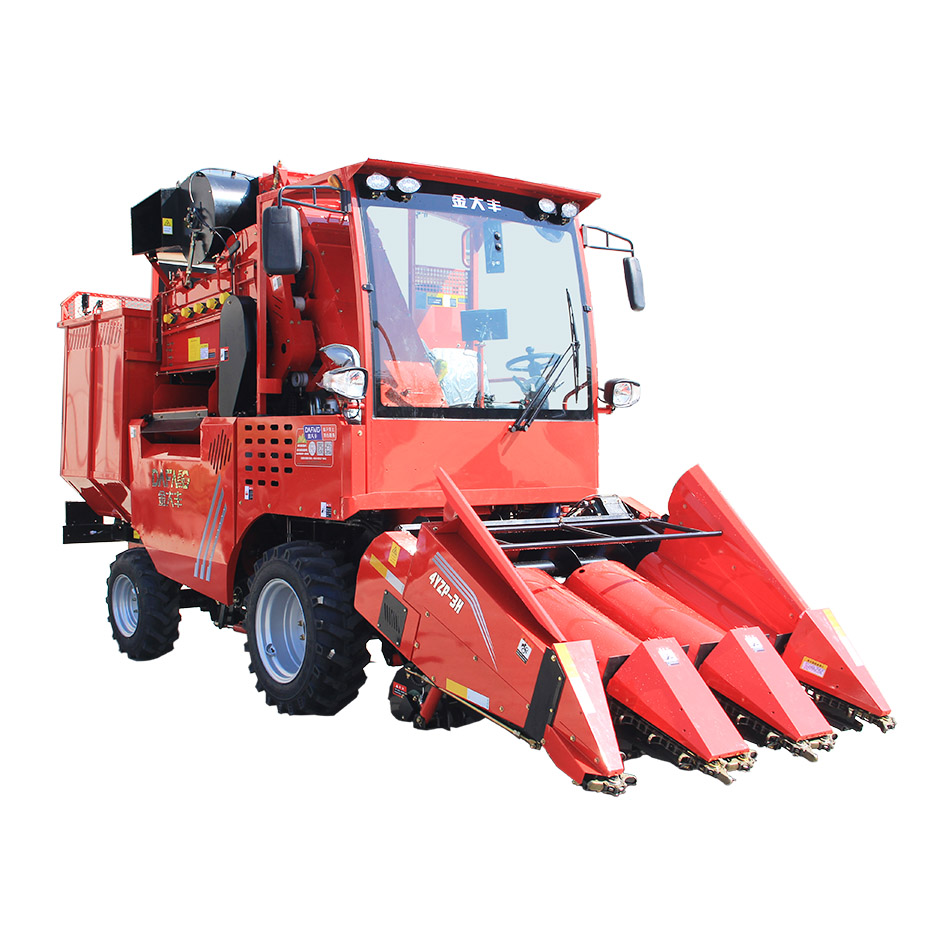

Product diagram
