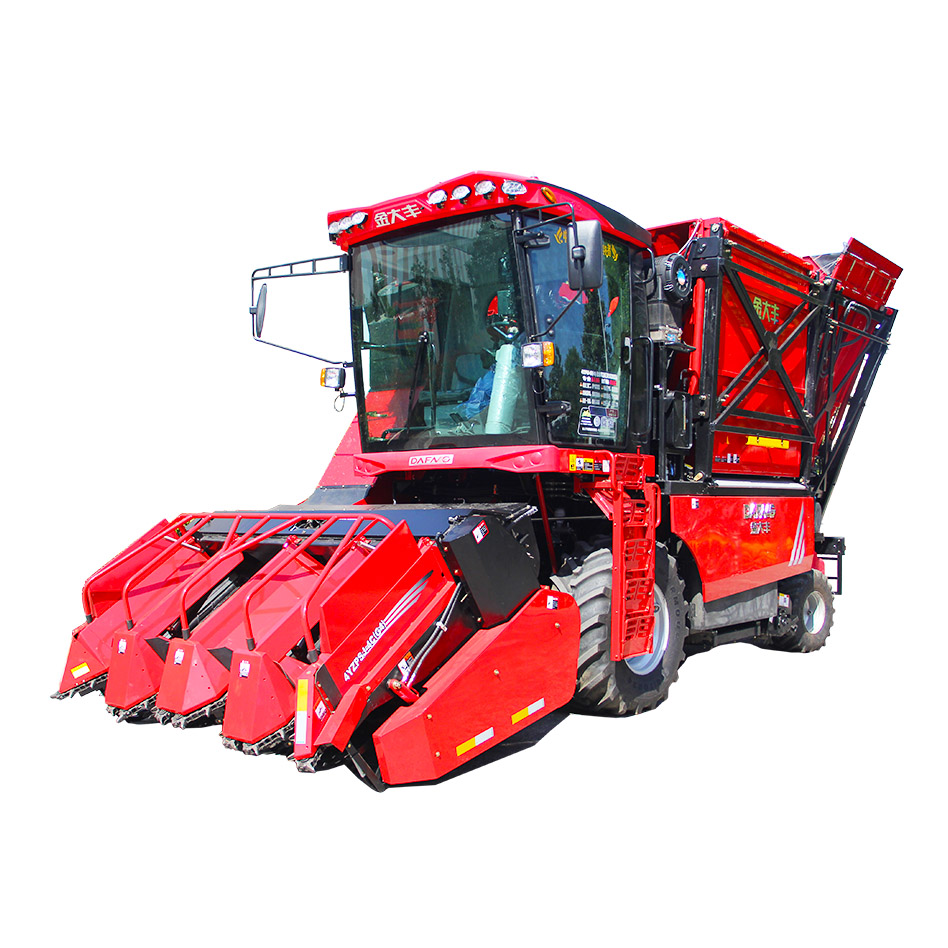

Corn Harvester
0102030405
Product parameters
| Model | 4YZPSJ-4C | ||
| Structural type： | / | wheel type, ear picking, peeling, straw returning、Straw recovery | |
| Dimension (L×W×H)： | mm | 7950×2800×3800 | |
| Mass of complete machine： | kg | 13010 | |
| Header | Header type | / | Horizontal |
| Cutting knife form | / | Reciprocating cutter | |
| Number of operating lines (number of channels) | row | 4 | |
| row pitch | mm | 550-650 | |
| Working breadth | mm | 2600 | |
| Type of ear picking mechanism | / | Picking roller type | |
| Number of ear picking rollers | 件 | 8 | |
| lift conveyer | Layout of ear elevator | / | Right placed |
| Structural type of ear elevator | / | Chain scraper type | |
| Engine | Model | / | 320GIII |
| Type | / | Six-cylinder, in-line, vertical, water-cooled, high-pressure common rail | |
| Qty of cylinders | / | 6 | |
| Rated power | HP/KW | 320HP/235.2KW | |
| Rated speed | r/min | 2300 | |
| Peeler | Type of stripping mechanism | / | High-low roller and rubber roller |
| Number of stripping rollers | pcs | 20 | |
| Field returning machine | Type | / | Swing blade type |
| Location of straw crushing and returning mechanism | / | Between front and rear tires | |
| Working Width of Straw Crushing and Returning Mechanism | mm | 2250 | |
| Grain unloading mode： | / | Hydraulic side-turn unloading | |
| Grain recycling box form： | / | Fixed open and close type | |
| Type of cab： | / | Luxury air-conditioned cab | |
| Type of transmission mechanism： | / | Mechanical transmission+hydrostatic stepless transmission | |
| Driving Type： | / | Two drive system | |
| Mini clearance： | mm | 270 | |
| Working speed： | km/h | 1.84～5.2 | |
| Drive wheel track： | mm | 1970 | |
| Guide wheel track： | mm | 1900 | |
| wheel base： | mm | 3448 | |
| Drive wheel tire specifications： | / | 500_70R24-R-4-164A8 Radial tubeless tire 500_70R24-R-4-164A8 |
|
| Specification of guide wheel tire： | / | 00_60R15.5 140A8 R-1 TL Radial tubeless tire 400_60R15.5 140A8 R-1 TL |
|
| Productivity： | hm²/h | 0.4～0.65 | |
| Grain tank： | m³ | 2.8 | |
| Grass bin volume： | m³ | 7.2 | |
| fuel tank capacity： | L | 420 | |

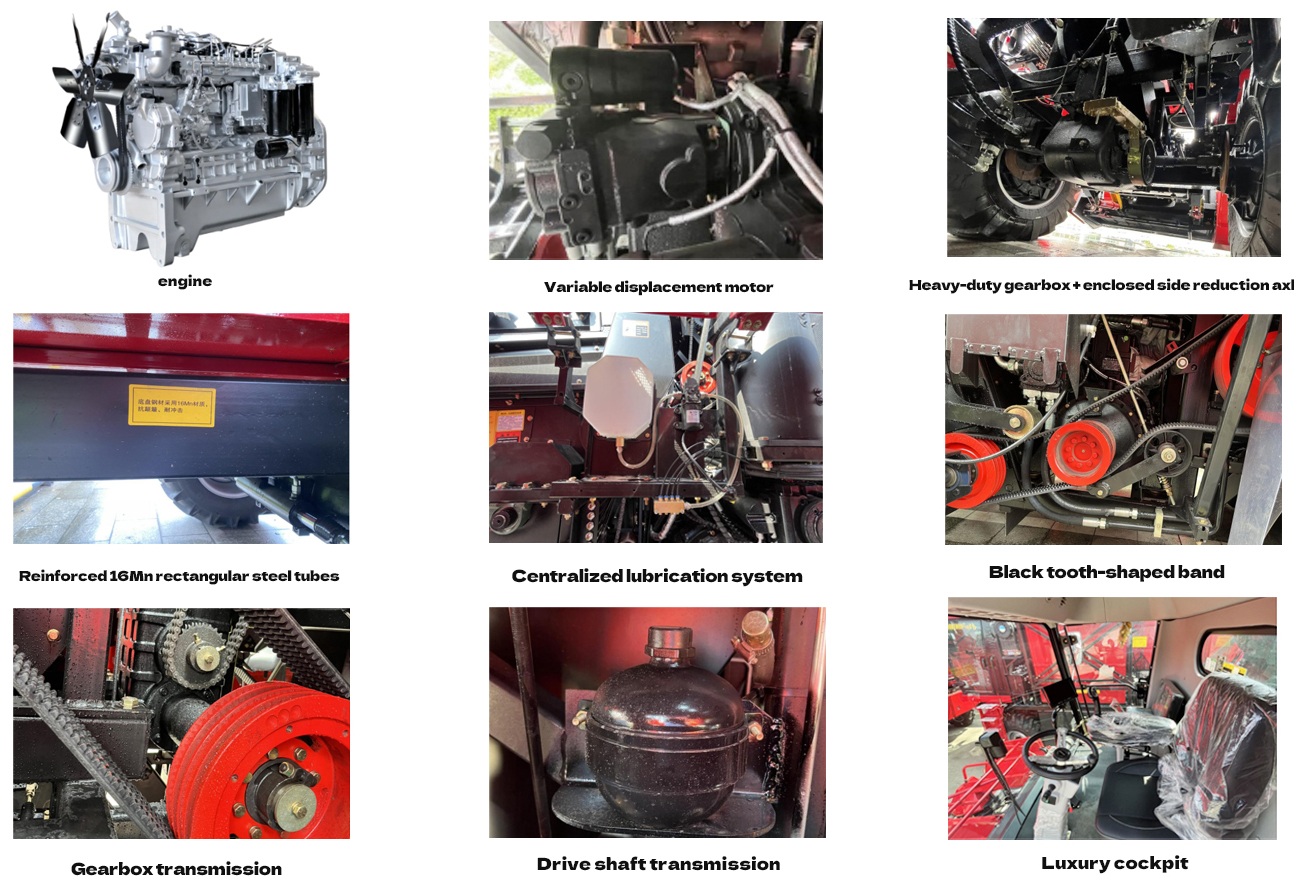

Product advantages
1. Powerful power: Yuchai 320 horsepower engine, displacement of 8 liters, with large displacement plunger pump and drive motor, powerful, fast running speed and high operating efficiency.
2. Fan reversal function: The engine has a fan reversal function. When the water tank temperature reaches 92 degrees Celsius, it can automatically or manually blow back to quickly clean the corn husks adsorbed on the water tank to prevent the engine from overheating.
3. Large number of peeling rollers: The number of peeling rollers reaches 20, with good peeling effect, which can effectively reduce the breakage rate of corn ears and improve the harvest quality.
4. Full-width non-row header: The full-width non-row header is suitable for large and small row spacings, with stronger adaptability, which can meet the harvesting needs under different planting modes.
5. Large hay bin volume: The hay bin lies 53 cm, and the volume increases to 7.2 cubic meters, which is 16% larger than the 6.2 cubic meters of the industry's side-overturned. The hay bin has an inner flap with exclusive technology, which is hydraulically controlled and raised and lowered separately. The hay can be easily unloaded within 30 seconds, and the unloading is cleaner, without the need for manual climbing to pull the hay.
6. Convenient unloading of grain in the granary: The volume of the granary is 2.8 cubic meters, and the unloading height is 3.2 meters. After the hay bin is lifted twice, the unloading height can reach 4.3 meters, and even a vehicle pulling earth can be easily unloaded.
7. Hydraulic stepless speed change: It adopts hydraulic stepless speed change and one-lever operation of electric control handle, which is fast and more convenient. The driver can achieve precise control of speed and direction through simple operation, reducing labor intensity.
8. Intelligent control system: After registering the mobile phone APP, the vehicle can be intelligently controlled and troubleshooted, which improves the intelligent level of operation and facilitates users to understand the operating status of the equipment in time and solve problems quickly.
9. High-strength frame chassis: The frame chassis is made of 16 manganese material, which has good anti-bump and impact resistance. The configuration of Deere 1000 front axle and closed side reduction box makes it more suitable for operation under complex working conditions, ensuring the stability and durability of the whole machine.
2. Fan reversal function: The engine has a fan reversal function. When the water tank temperature reaches 92 degrees Celsius, it can automatically or manually blow back to quickly clean the corn husks adsorbed on the water tank to prevent the engine from overheating.
3. Large number of peeling rollers: The number of peeling rollers reaches 20, with good peeling effect, which can effectively reduce the breakage rate of corn ears and improve the harvest quality.
4. Full-width non-row header: The full-width non-row header is suitable for large and small row spacings, with stronger adaptability, which can meet the harvesting needs under different planting modes.
5. Large hay bin volume: The hay bin lies 53 cm, and the volume increases to 7.2 cubic meters, which is 16% larger than the 6.2 cubic meters of the industry's side-overturned. The hay bin has an inner flap with exclusive technology, which is hydraulically controlled and raised and lowered separately. The hay can be easily unloaded within 30 seconds, and the unloading is cleaner, without the need for manual climbing to pull the hay.
6. Convenient unloading of grain in the granary: The volume of the granary is 2.8 cubic meters, and the unloading height is 3.2 meters. After the hay bin is lifted twice, the unloading height can reach 4.3 meters, and even a vehicle pulling earth can be easily unloaded.
7. Hydraulic stepless speed change: It adopts hydraulic stepless speed change and one-lever operation of electric control handle, which is fast and more convenient. The driver can achieve precise control of speed and direction through simple operation, reducing labor intensity.
8. Intelligent control system: After registering the mobile phone APP, the vehicle can be intelligently controlled and troubleshooted, which improves the intelligent level of operation and facilitates users to understand the operating status of the equipment in time and solve problems quickly.
9. High-strength frame chassis: The frame chassis is made of 16 manganese material, which has good anti-bump and impact resistance. The configuration of Deere 1000 front axle and closed side reduction box makes it more suitable for operation under complex working conditions, ensuring the stability and durability of the whole machine.

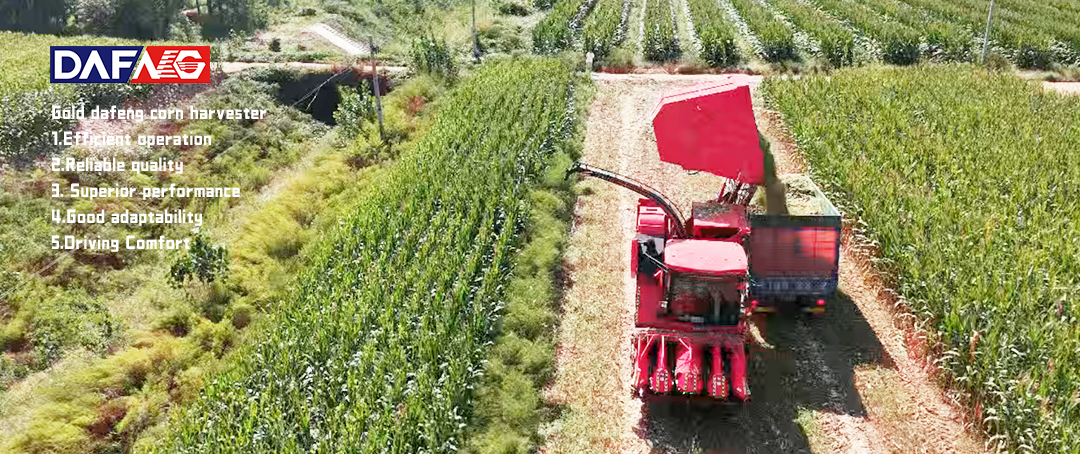

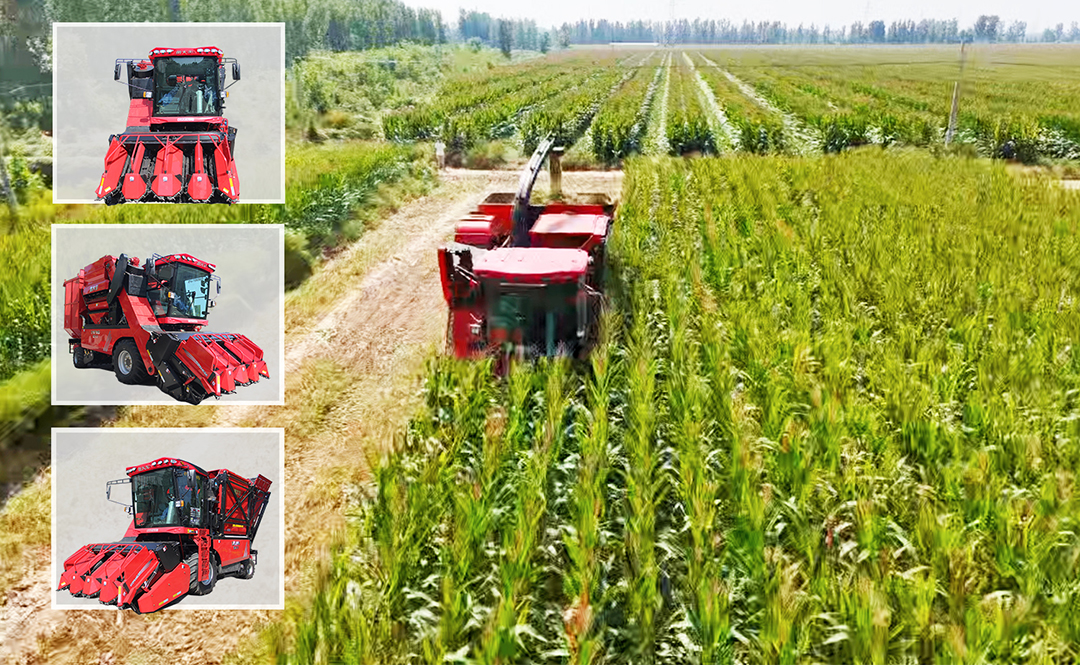

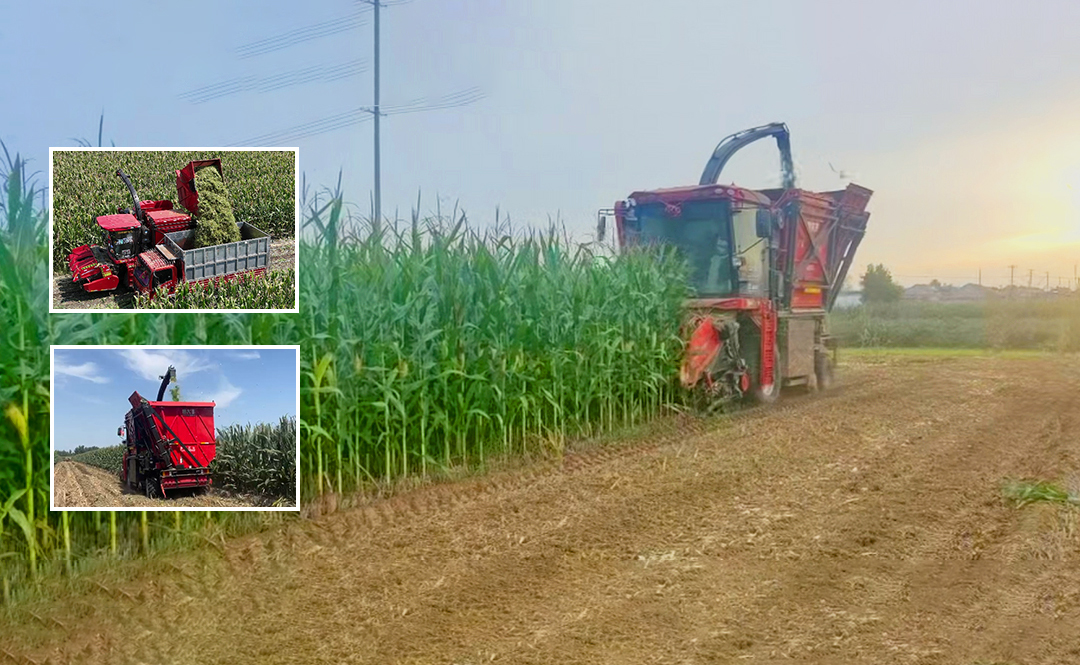

Product Application

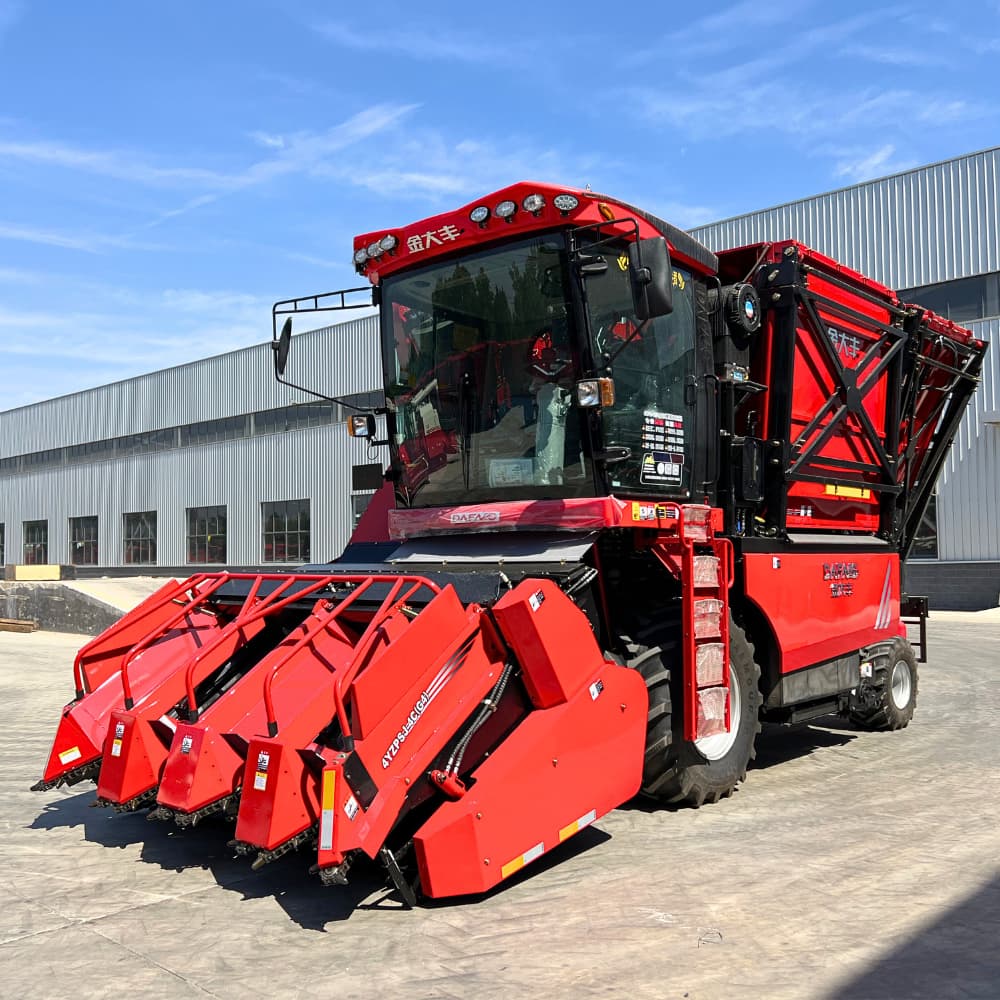

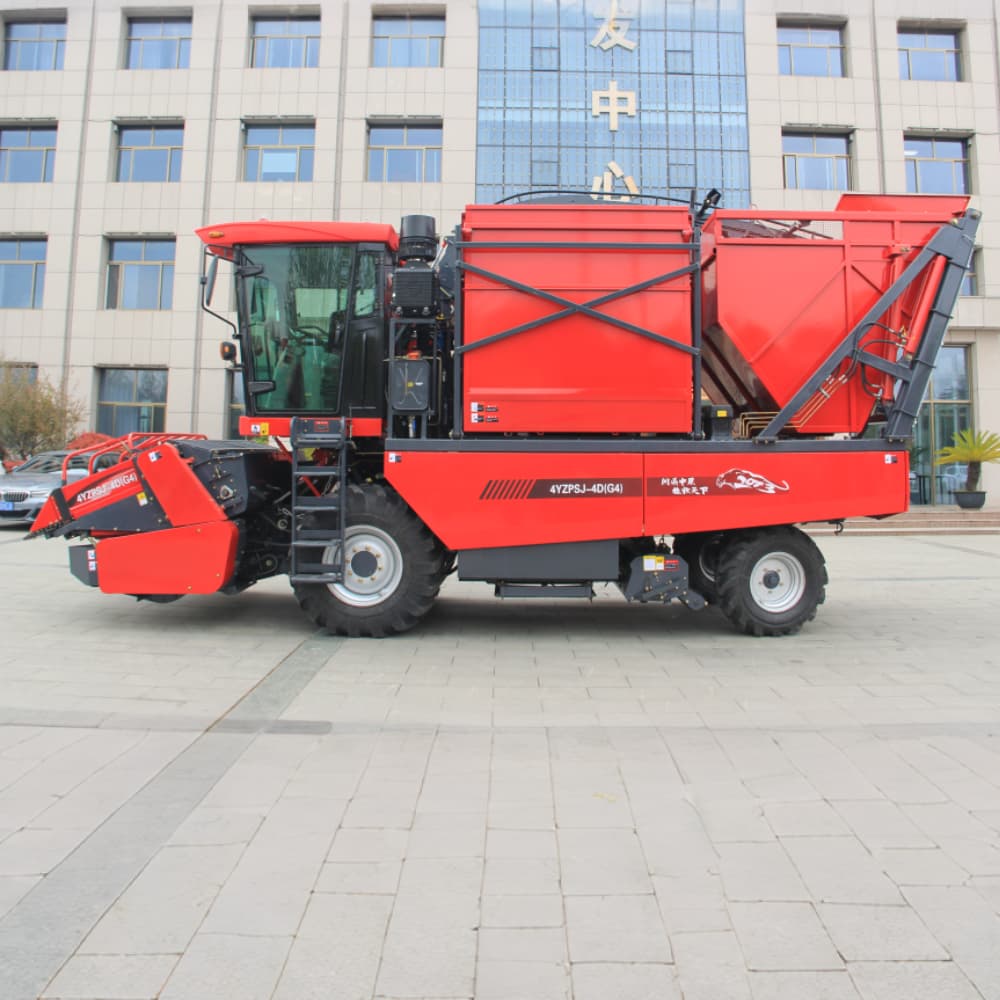

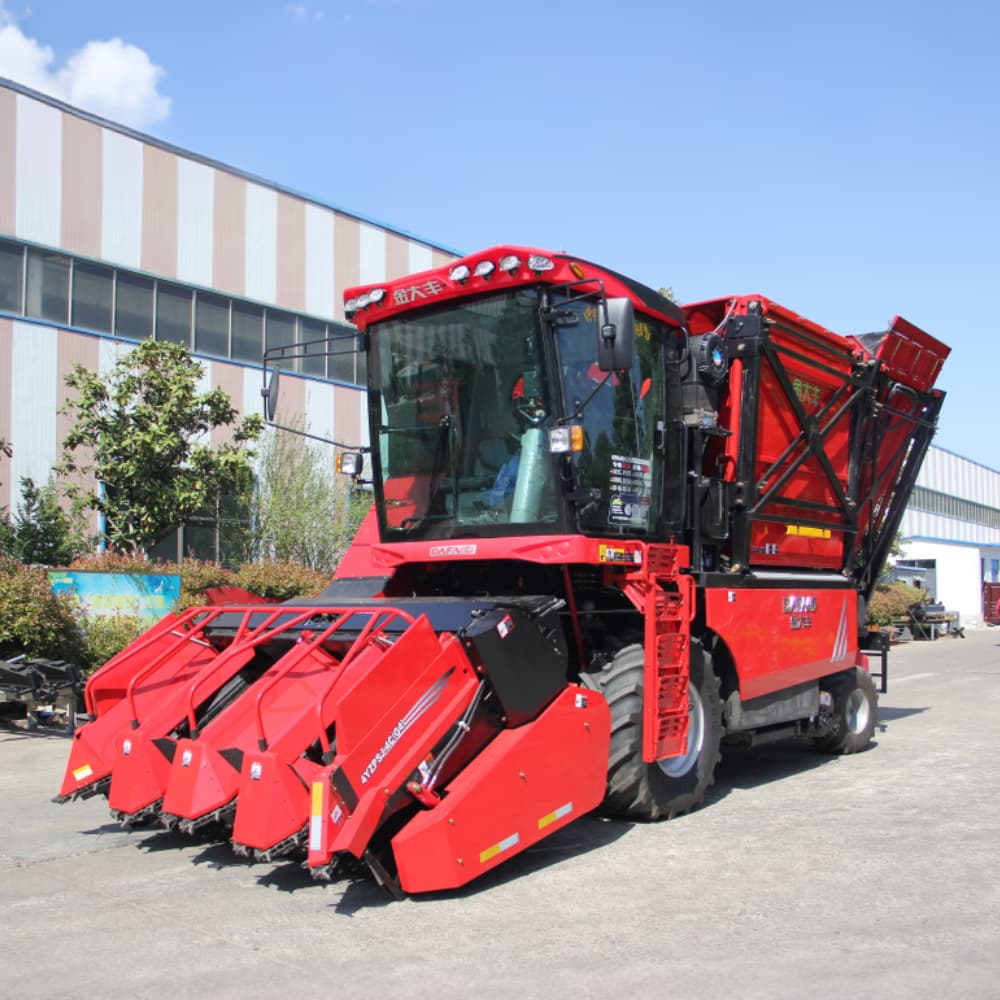

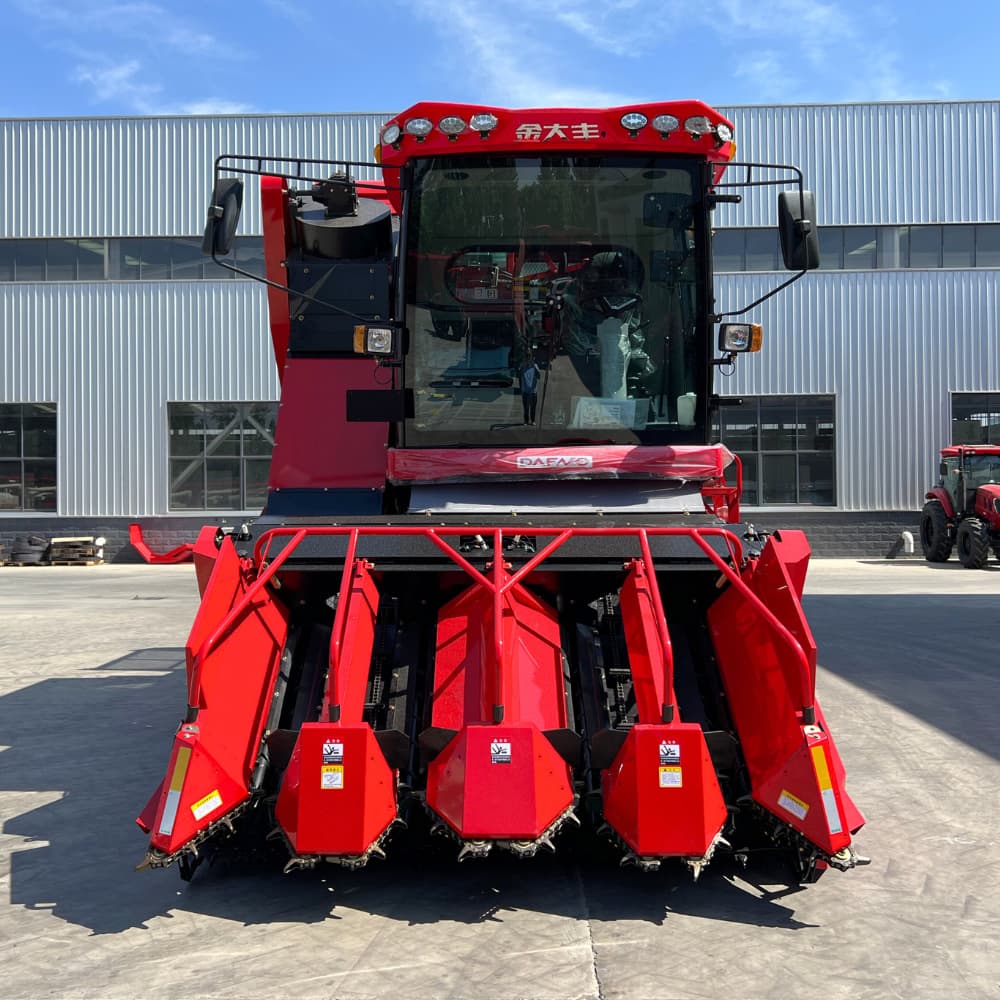

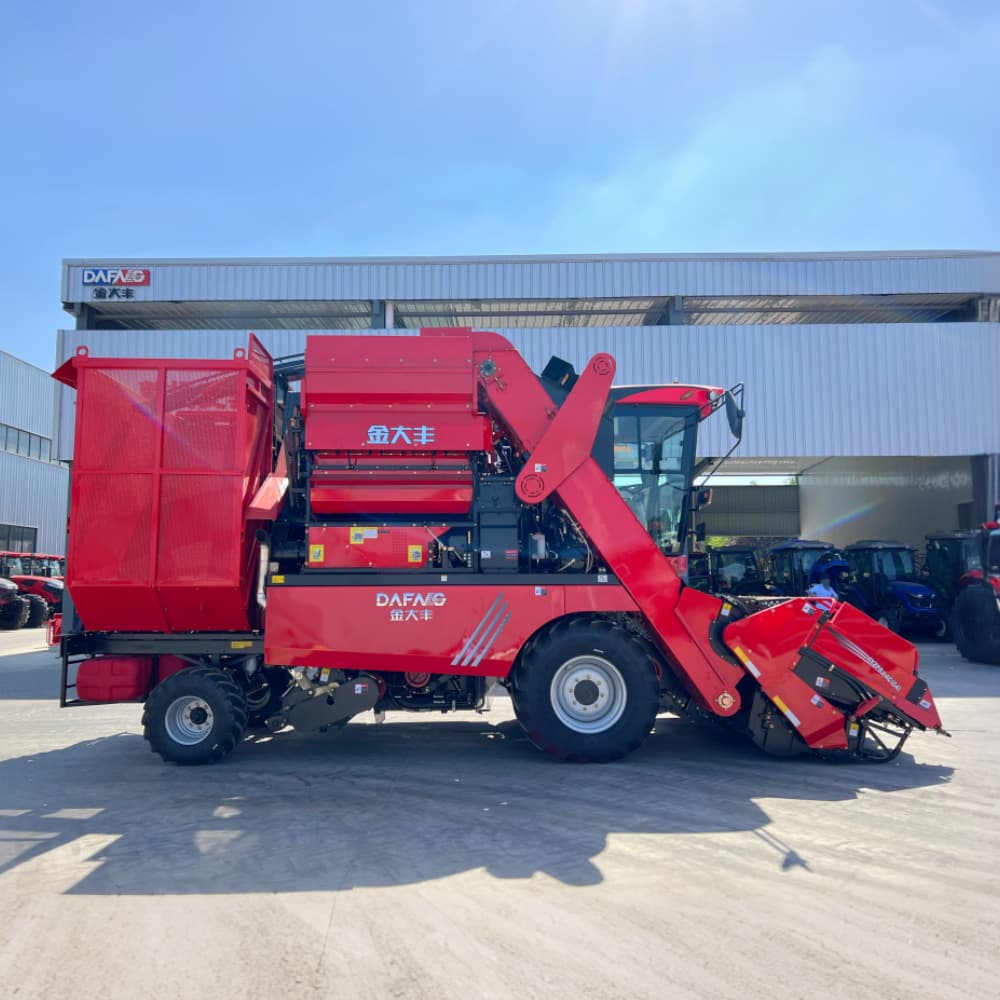

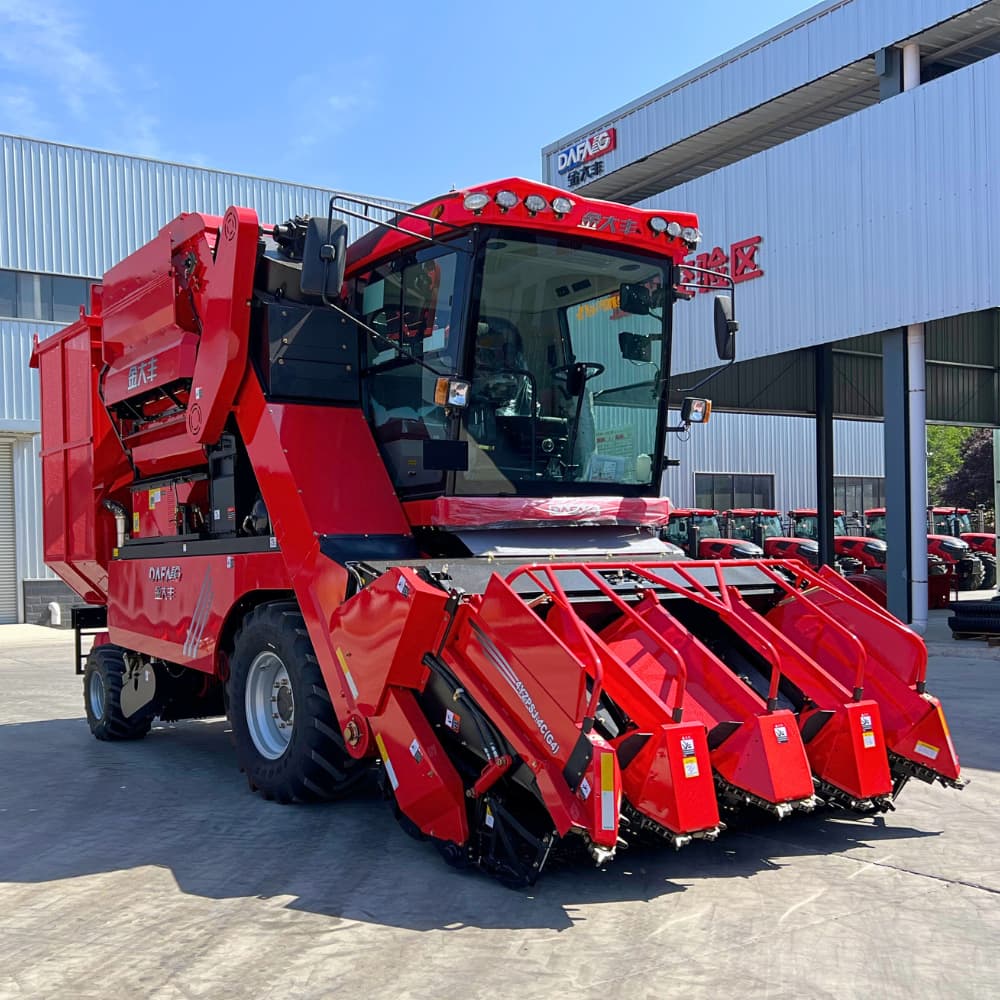

Product diagram
