Agricultural Tractors
0102
Product parameters
| Model | unit | XL300D | XL504D | |
| Dimension (L*W*H) | mm | 3300*1410*2100 | 3300*1410*2100 | |
| Min. operating weight | kg | 1630 | 1630 | |
| Wheelbase | mm | 1860 | 1860 | |
| Wheel track (front/rear) | mm | 1285/1205/1297/1325 | 1285/1205/1297/1325 | |
| Engine | Model | / | laidong | laidong |
| Type | / | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | |
| Qty of cylinders | Cylinder | 4 | 4 | |
| Rated power | HP/KW | 30HP/22.06Kw | 50HP/36.8Kw | |
| Rated speed | r/min | 2400 | 2400 | |
| Drive train | Clutch type | / | Single-acting | Single-acting |
| Gearbox | / | TY8F+2R | TY8F+2R | |
| Gear shift type | / | shift sleeve | shift sleeve | |
| Steering | Steering type | / | Full hydraulic steering | Full hydraulic steering |
| Walking device | Tire size (front/rear) | / | 7.0-12/9.5-16 | 7.0-12/9.5-16 |
| Working device | Suspension device type | / | Rear-mounted, three-point suspension, Class 1 | Rear-mounted, three-point suspension, Class 1 |
| Suspension device category | / | Class 1 | Class 1 | |
| Hydraulic output device | Group | 1 set of hydraulic output | 1 set of hydraulic output | |
| Standard PTO speed | r/min | 6keys540/1000 | 6keys540/1000 | |
Product advantages

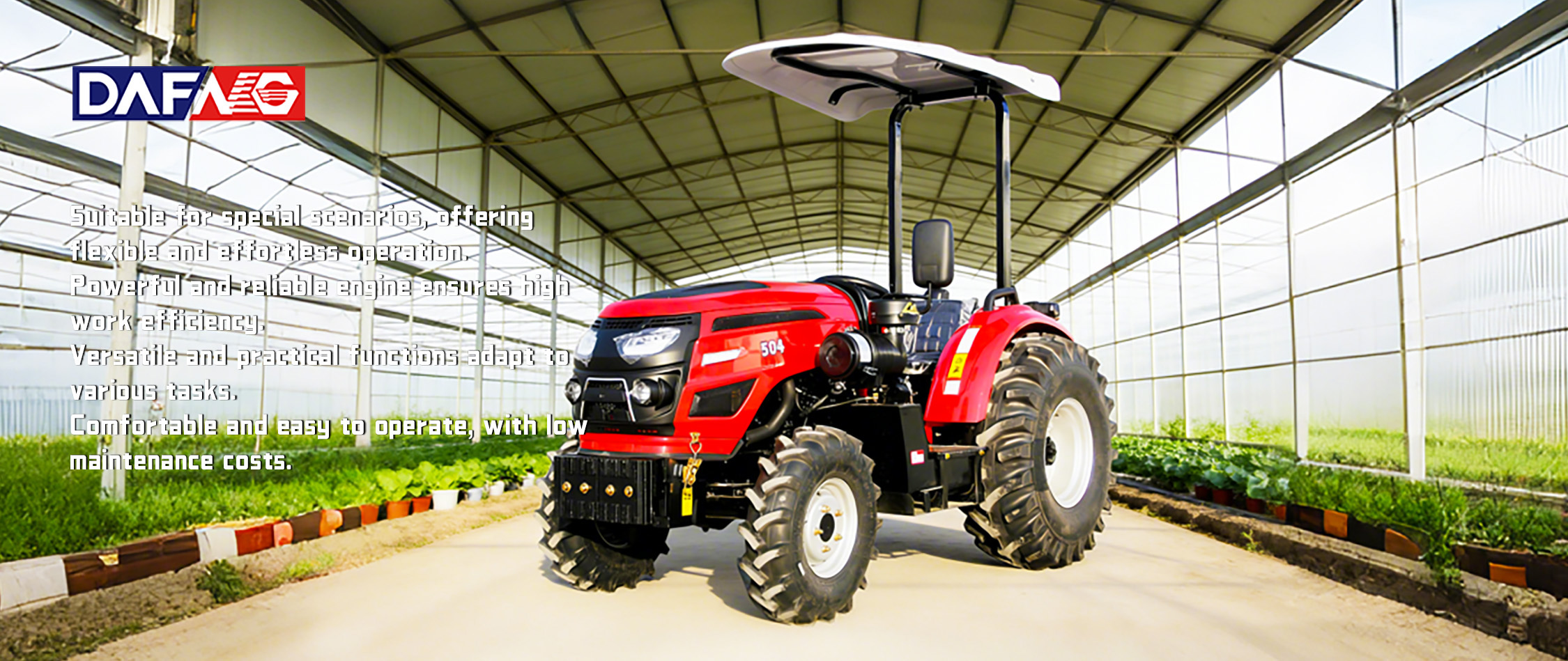

Compact and Agile: With its compact structure and small turning radius, it can maneuver easily in narrow spaces, facilitating operations in greenhouses or orchards among fruit trees.
Powerful Performance: Generally equipped with a brand-name diesel engine, providing strong power and ample torque reserves to meet the power needs of various agricultural operations such as rotary tillage, deep tillage, ditching, and ridging.
Easy and Comfortable Operation: Most models utilize hydraulic steering, offering flexible and easy handling. Some models also offer optional features such as high-back seats and larger water tanks, improving riding comfort and operational sustainability.
High Adaptability: Available in various models and wheelbases, it can be equipped with different agricultural implements such as rotary tillers, fertilizer applicators, ditchers, and ridging machines to complete a variety of operations including tillage, sowing, plant protection, and harvesting.
If you are interested in our products, please don't hesitate to get in touch with us immediately. We are looking forward to providing you with more assistance and support.
Powerful Performance: Generally equipped with a brand-name diesel engine, providing strong power and ample torque reserves to meet the power needs of various agricultural operations such as rotary tillage, deep tillage, ditching, and ridging.
Easy and Comfortable Operation: Most models utilize hydraulic steering, offering flexible and easy handling. Some models also offer optional features such as high-back seats and larger water tanks, improving riding comfort and operational sustainability.
High Adaptability: Available in various models and wheelbases, it can be equipped with different agricultural implements such as rotary tillers, fertilizer applicators, ditchers, and ridging machines to complete a variety of operations including tillage, sowing, plant protection, and harvesting.
If you are interested in our products, please don't hesitate to get in touch with us immediately. We are looking forward to providing you with more assistance and support.

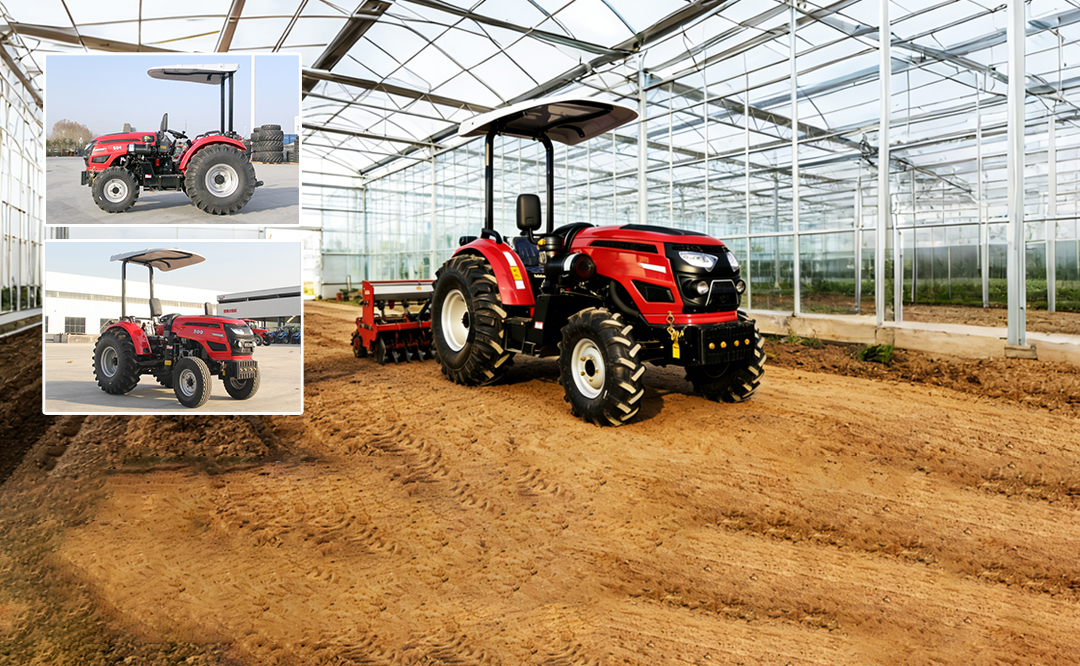

Product Application

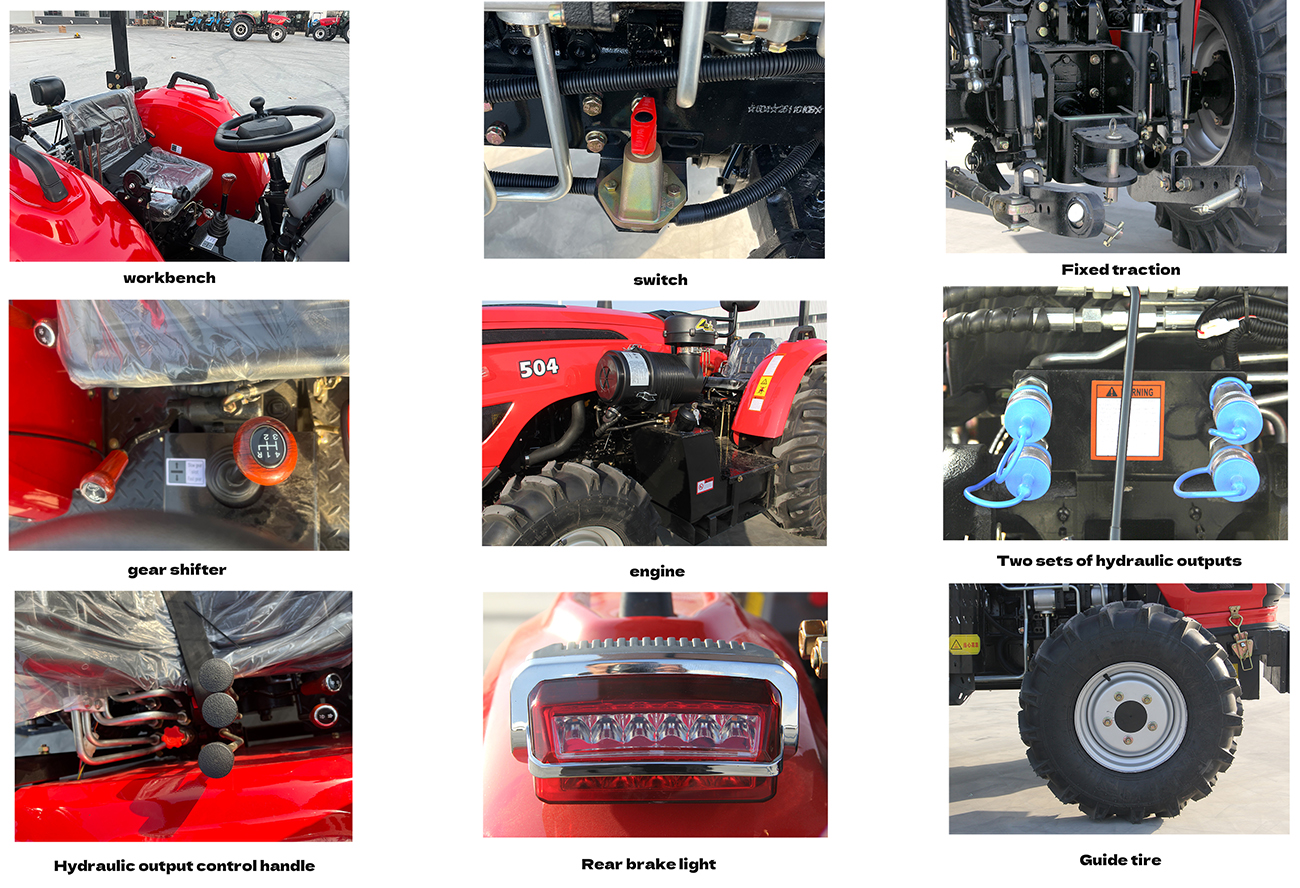

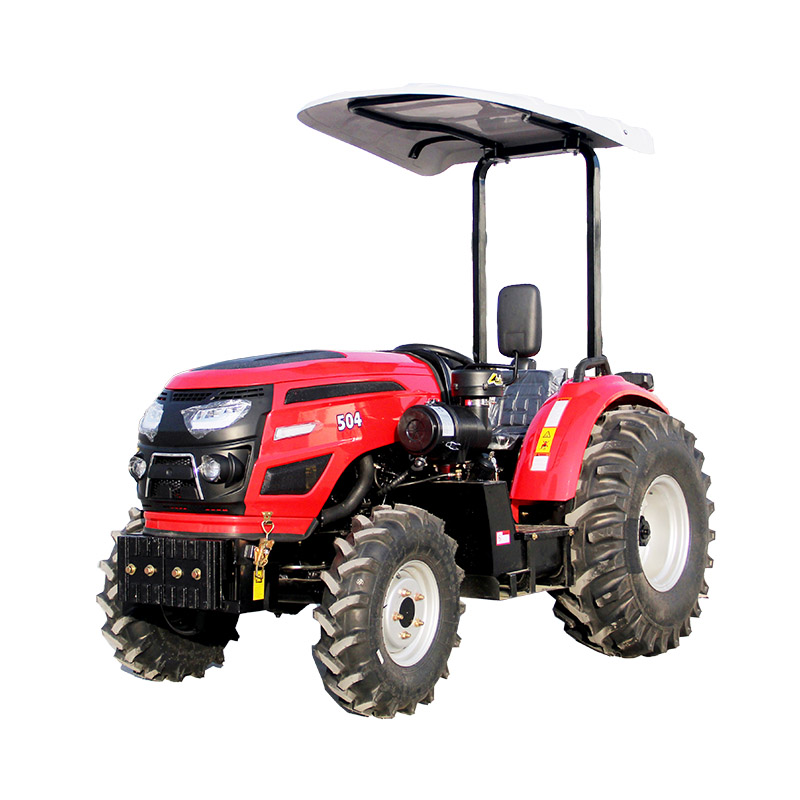

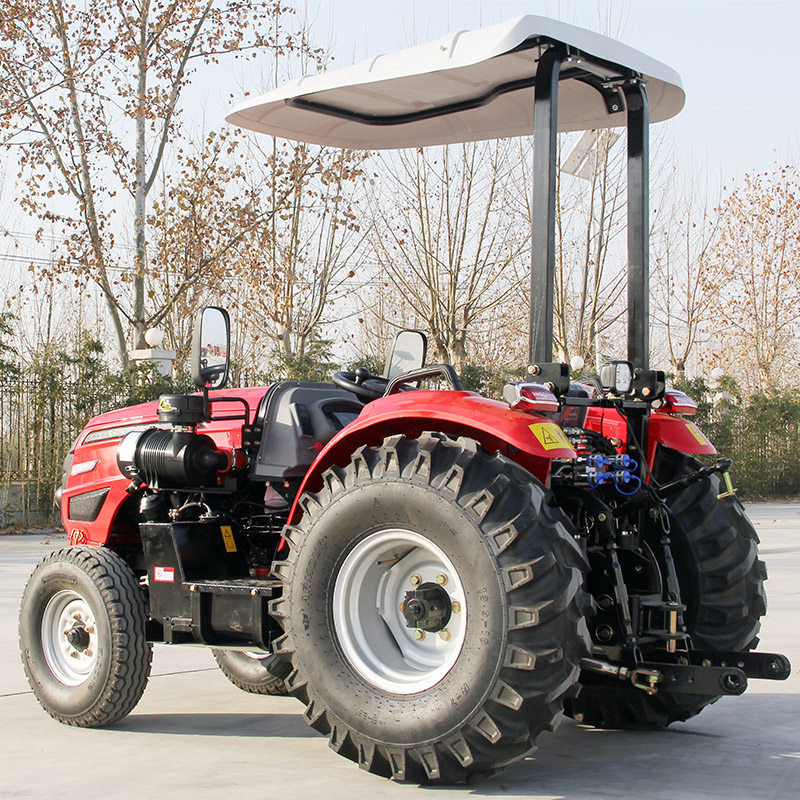

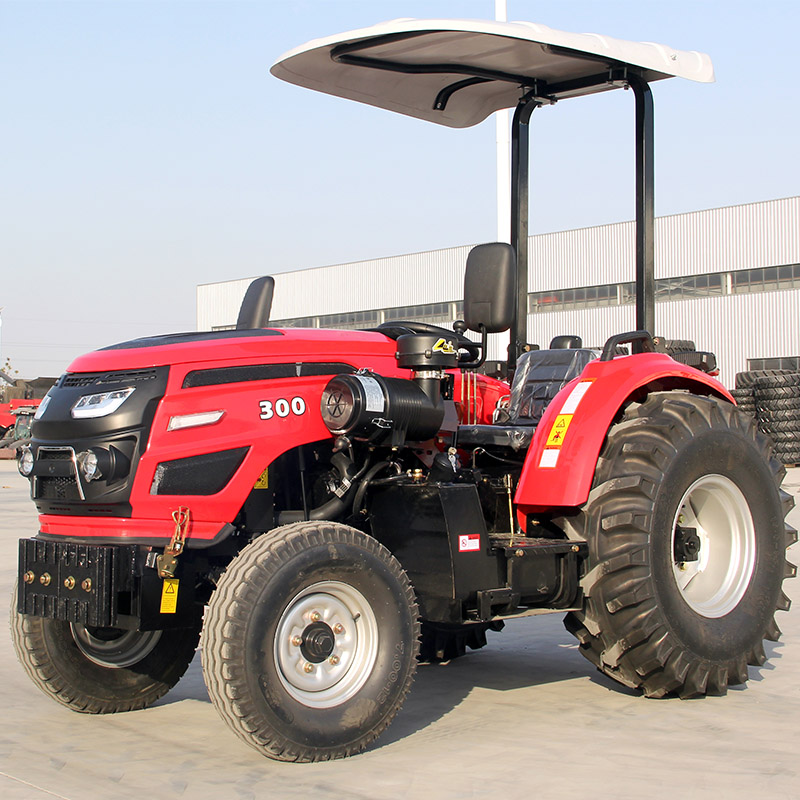

Product diagram
