Product parameters
| Model | unit | 2BQ-4 pneumatic precision seeder | 2BQ-6 pneumatic precision seeder | 2BQ-8 pneumatic precision seeder | 2BQ-10 pneumatic precision seeder | 2BQ-12 pneumatic precision seeder | |
| Type of structure | / | Pneumatic type; Suspension type | Pneumatic type; Suspension type | Pneumatic type; Suspension type | Pneumatic type; Suspension type | Pneumatic type; Suspension type | |
| Supporting power range | kW | 66.1～88.23 | ≥110.2 | ≥132.3 | ≥147 | ≥176.4 | |
| Overall dimensions (L × W × H) | mm | 2100×2970×1560 | 2000×4500×1500 | 2510×5250×1500 | 2510x7000x1580 | 2510x9000x1580 | |
| Operating speed range | km/h | 8～10 | 8～10 | 8～10 | 8～10 | 8～10 | |
| Hourly production rate of operation | hm2/h | 1.92～2.4 | 2.1～3.1 | 3.0～4.1 | 3.0～5.1 | 3.0～6.1 | |
| Row spacing | mm | 400～750 | 550～650 | 400～650 | 400~750 | 400~750 | |
| Number of working lines | lines | 4 | 6 | 8 | 10 | 12 | |
| weight | KG | 1090 | 1630 | 2096 | 2660 | 3200 | |
| Type of seed metering device | / | Pneumatic/Metal | Pneumatic/Metal | Pneumatic/Metal | Pneumatic/Metal | Pneumatic/Metal | |
| Number of seed metering device | Pcs | 4 | 6 | 8 | 10 | 12 | |
| Driving mode of seed metering device | / | Ground wheel drive | Ground wheel drive | Ground wheel drive | Ground wheel drive | Ground wheel drive | |
| Type of fertilizer discharge device | / | Outer sheave type | Outer sheave type | Outer sheave type | Outer sheave type | Outer sheave type | |
| Number of fertilizer dischargers | Pcs | 4 | 6 | 8 | 10 | 12 | |
| Driving mode of fertilizer discharge device | / | Ground wheel drive | Ground wheel drive | Ground wheel drive | Ground wheel drive | Ground wheel drive | |
| Volume of seed/fertilizer tank | L | 36×4 / 380×2 | 36×6 / 380×2 | 36×8 / 380×2 | 36×10 / 380×2 | 36×12/ 380×2 | |
| Crop/fertilizer discharge regulation mode | / | Type: gear drive adjustment/fertilizer: knob manual adjustment | Type: gear drive adjustment/fertilizer: knob manual adjustment | Type: gear drive adjustment/fertilizer: knob manual adjustment | Type: gear drive adjustment/fertilizer: knob manual adjustment | Type: gear drive adjustment/fertilizer: knob manual adjustment | |
| Type of transmission mechanism | / | Chain drive system | Cardan joint rotation+chain drive | Cardan joint rotation+chain drive | Cardan joint rotation+chain drive | Cardan joint rotation+chain drive | |
| Type of trencher | / | Species: double disc type/fertilizer: spade type | Species: double disc type/fertilizer: spade type | Species: double disc type/fertilizer: spade type | Species: double disc type/fertilizer: spade type | Species: double disc type/fertilizer: spade type | |
| Number of trenchers | Pcs | Sowing: 4/fertilizer: 4 | Crop: 6/fertilizer: 6 | Crop: 8/fertilizer: 8 | Crop: 10/fertilizer: 10 | Crop: 12/fertilizer: 12 | |
| Depth adjustment range of trencher | mm | Species: 0 ～ 60/Fertilizer: 0 ～ 100 | Species: 0 ～ 60/Fertilizer: 0 ～ 100 | Species: 0 ～ 60/Fertilizer: 0 ～ 100 | Species: 0 ～ 60/Fertilizer: 0 ～ 100 | Species: 0 ～ 60/Fertilizer: 0 ～ 100 | |
| Type of ground wheel | / | Striped pneumatic tire | Striped pneumatic tire | Striped pneumatic tire | Striped pneumatic tire | Striped pneumatic tire | |
| Diameter of ground wheel | mm | 650 | 650 | 650 | 650 | 650 | |
| Height adjustment range of ground wheel | mm | 0～200 | 0～160 | 0～160 | 0～160 | 0～160 | |
| Type of stubble breaking and ridge cleaning working parts | / | Shovel type shovel | Straight knife tool | Straight knife tool | Straight knife tool | Straight knife tool | |
| Fan type | / | Centrifugal fan | Centrifugal fan | Centrifugal fan | Centrifugal fan | Centrifugal fan | |
| Fan impeller diameter | mm | 400 | 400 | 400 | 400 | 400 | |
| Type of soil cover | / | V-type rubber tire | V-type rubber tire | V-type rubber tire | V-type rubber tire | V-type rubber tire | |
| Type of ballast | / | V-type rubber tire | V-type rubber tire | V-type rubber tire | V-type rubber tire | V-type rubber tire | |
| Configuration mode of pressing mechanism | / | Free standing type | Free standing type | Free standing type | Free standing type | Free standing type | |
| Regulating mode of compaction strength | / | Multiple stage regulation | Multiple stage regulation | Multiple stage regulation | Multiple stage regulation | Multiple stage regulation | |
| Form copying mode | / | Monomer independent synchronous profile | Monomer independent synchronous profile | Monomer independent synchronous profile | Monomer independent synchronous profile | Monomer independent synchronous profile | |
| Type of copying mechanism | / | Parallel four-bar type | Parallel four-bar type | Parallel four-bar type | Parallel four-bar type | Parallel four-bar type | |
| Configuration mode of stubble breaking and ridge cleaning working parts | / | / | Independent straight knife type | Independent straight knife type | Independent straight knife type | Independent straight knife type | |
| Lifting adjustment mode of ground wheel | / | Manual adjustment | Manual adjustment | Manual adjustment | Manual adjustment | Manual adjustment | |
Product advantages
(1) The imported air suction seed discharging device has high sowing accuracy and strong working reliability, and its seed plate is adjustable, which makes it suitable for different grains.
(2) The angle of the seed discharging tube is reasonable, which realizes precision hole seeding.
(3) It has a four-link profiling structure and can adjust the ground pressure by means of a spring, which enables the same depth of seeding.
(4) The fertilizer and sowing trencher is made of boron steel and bow plate, and the row spacing is adjusted in a wide range, which can realize flat cultivation and ridge cultivation.
(5) It adopts imported high speed and large air volume fan, which can meet the requirements of 24 lines of single air volume at most.
(6) Its enlarged fertilizer box improves sowing efficiency and reduces fattening time. The fertilizer discharger impeller is made of imported rubber with long life and corrosion resistance. It can easily realize the control requirement of fertilizer quantity by adjusting the handle.
(7) Its seed discharging monitor can detect missing seeds at the first time, which will greatly improve work efficiency.
(8) The plant spacing can be adjusted through the gearbox and adjusting the sprocket.
(9) The suppression intensity and soil cover angle can be adjusted by quickly adjusting the handle to meet the agronomic requirements of different lands and crops.
(10) The tire drive can provide reliable power even in the stubble ground, and the universal transmission shaft is well sealed and has the function of self-lubricating and maintenance-free.
(11) Fertilization method: double disc and leg lifting. The traction frame and marking device are optional.
(12) The design of cast iron compaction body with multi position adjustment can better maintain soil moisture and improve seedling emergence rate.
(2) The angle of the seed discharging tube is reasonable, which realizes precision hole seeding.
(3) It has a four-link profiling structure and can adjust the ground pressure by means of a spring, which enables the same depth of seeding.
(4) The fertilizer and sowing trencher is made of boron steel and bow plate, and the row spacing is adjusted in a wide range, which can realize flat cultivation and ridge cultivation.
(5) It adopts imported high speed and large air volume fan, which can meet the requirements of 24 lines of single air volume at most.
(6) Its enlarged fertilizer box improves sowing efficiency and reduces fattening time. The fertilizer discharger impeller is made of imported rubber with long life and corrosion resistance. It can easily realize the control requirement of fertilizer quantity by adjusting the handle.
(7) Its seed discharging monitor can detect missing seeds at the first time, which will greatly improve work efficiency.
(8) The plant spacing can be adjusted through the gearbox and adjusting the sprocket.
(9) The suppression intensity and soil cover angle can be adjusted by quickly adjusting the handle to meet the agronomic requirements of different lands and crops.
(10) The tire drive can provide reliable power even in the stubble ground, and the universal transmission shaft is well sealed and has the function of self-lubricating and maintenance-free.
(11) Fertilization method: double disc and leg lifting. The traction frame and marking device are optional.
(12) The design of cast iron compaction body with multi position adjustment can better maintain soil moisture and improve seedling emergence rate.

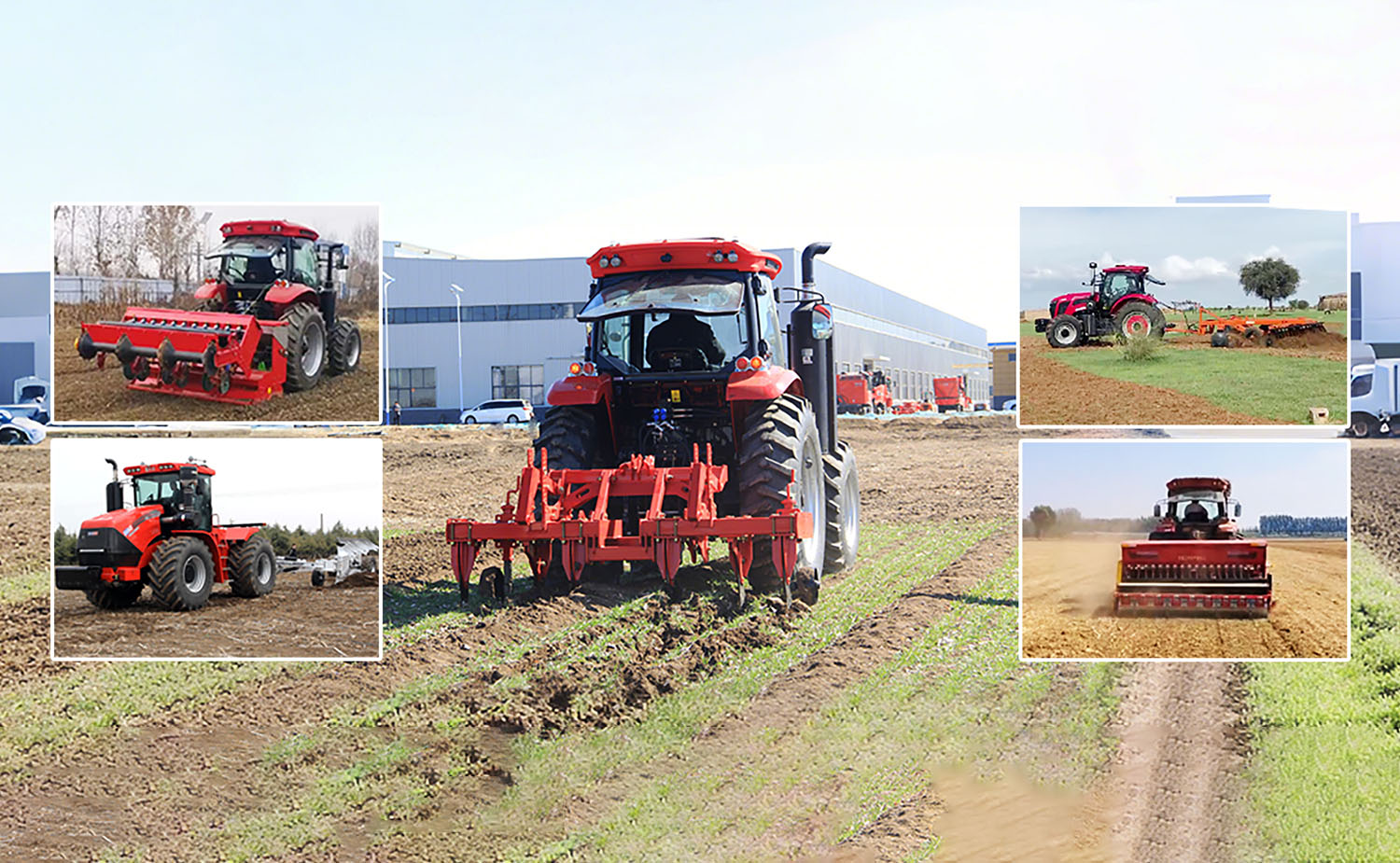

Product Application

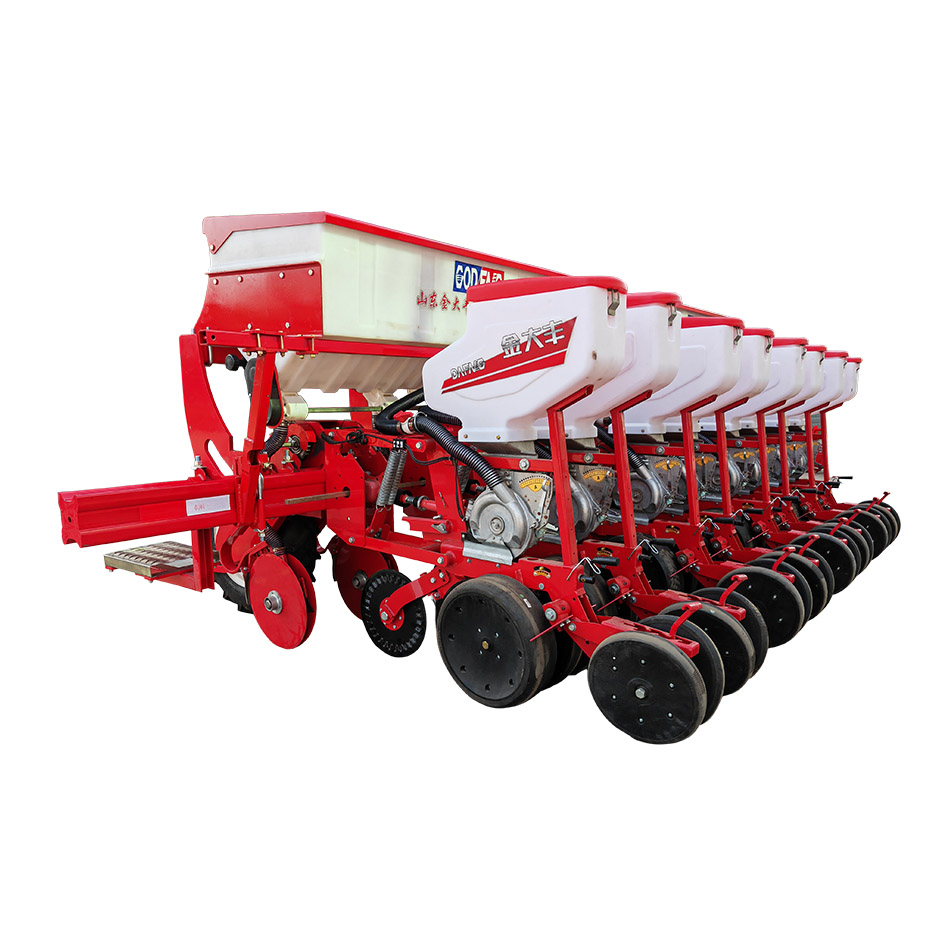

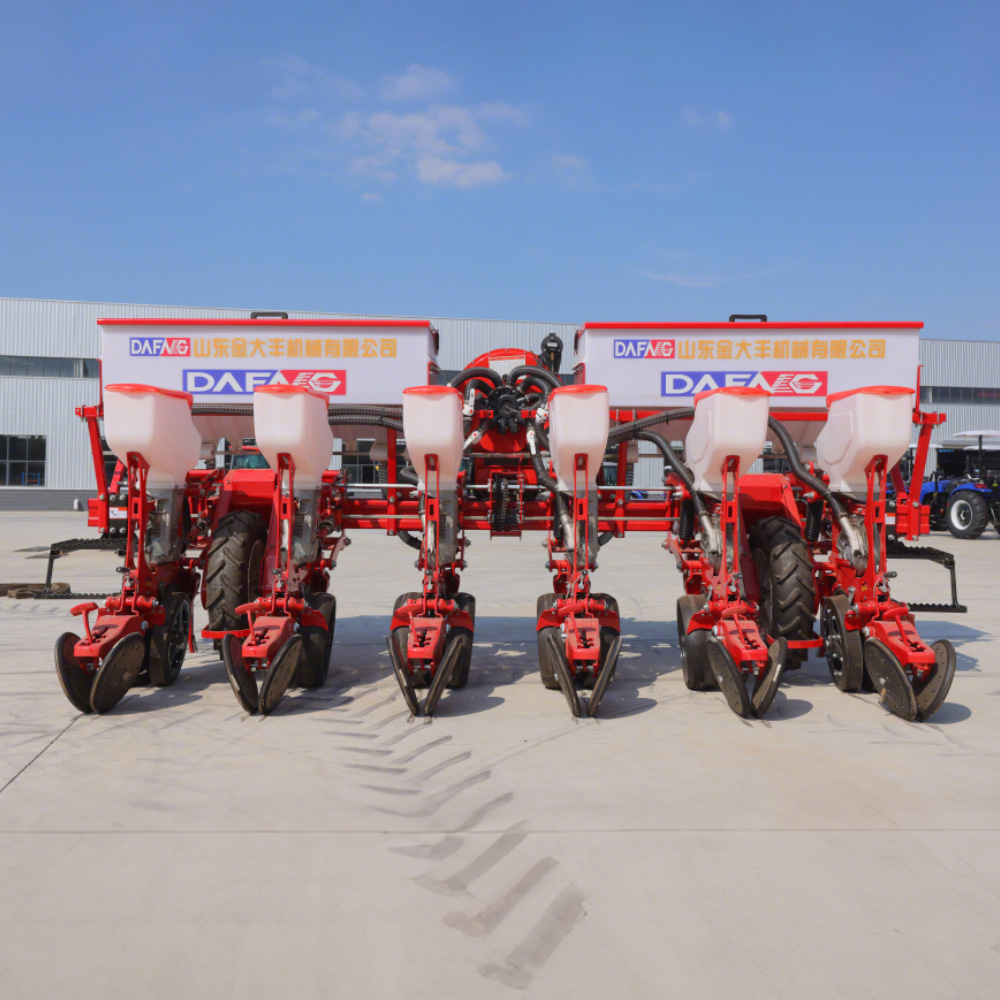

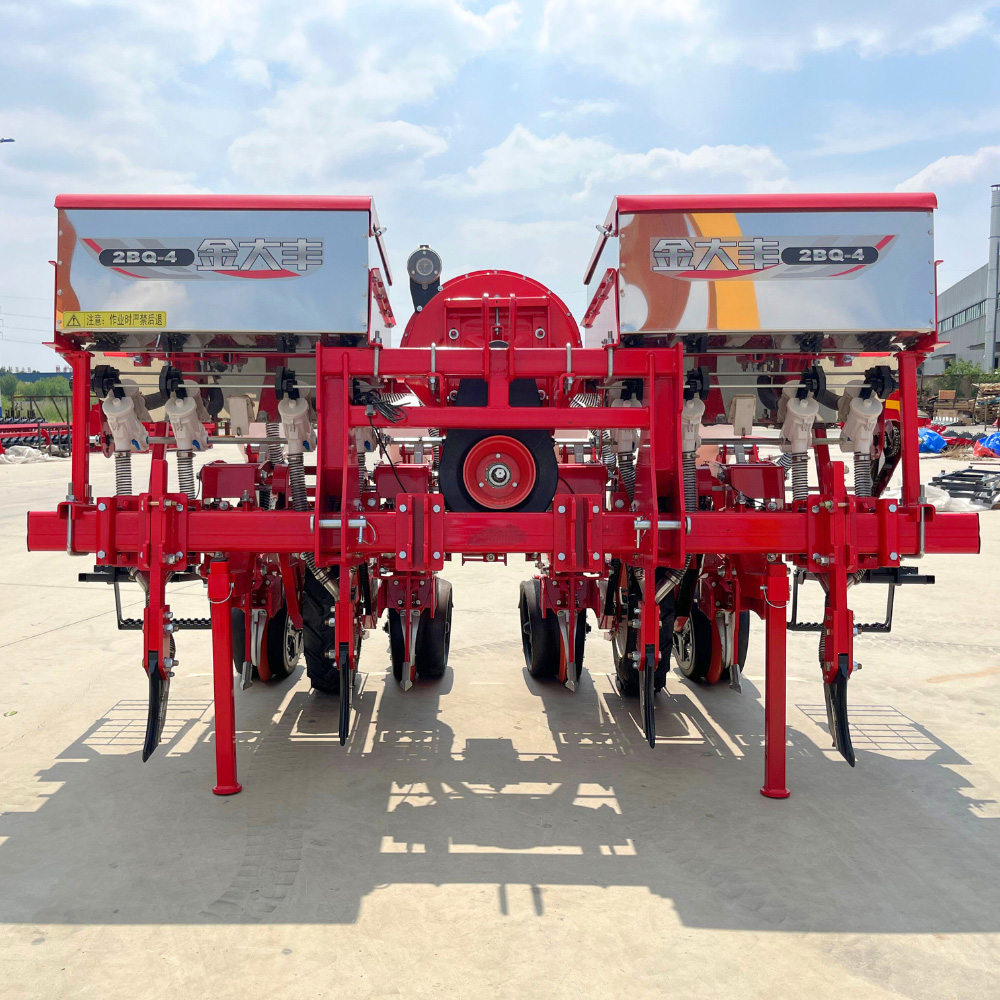

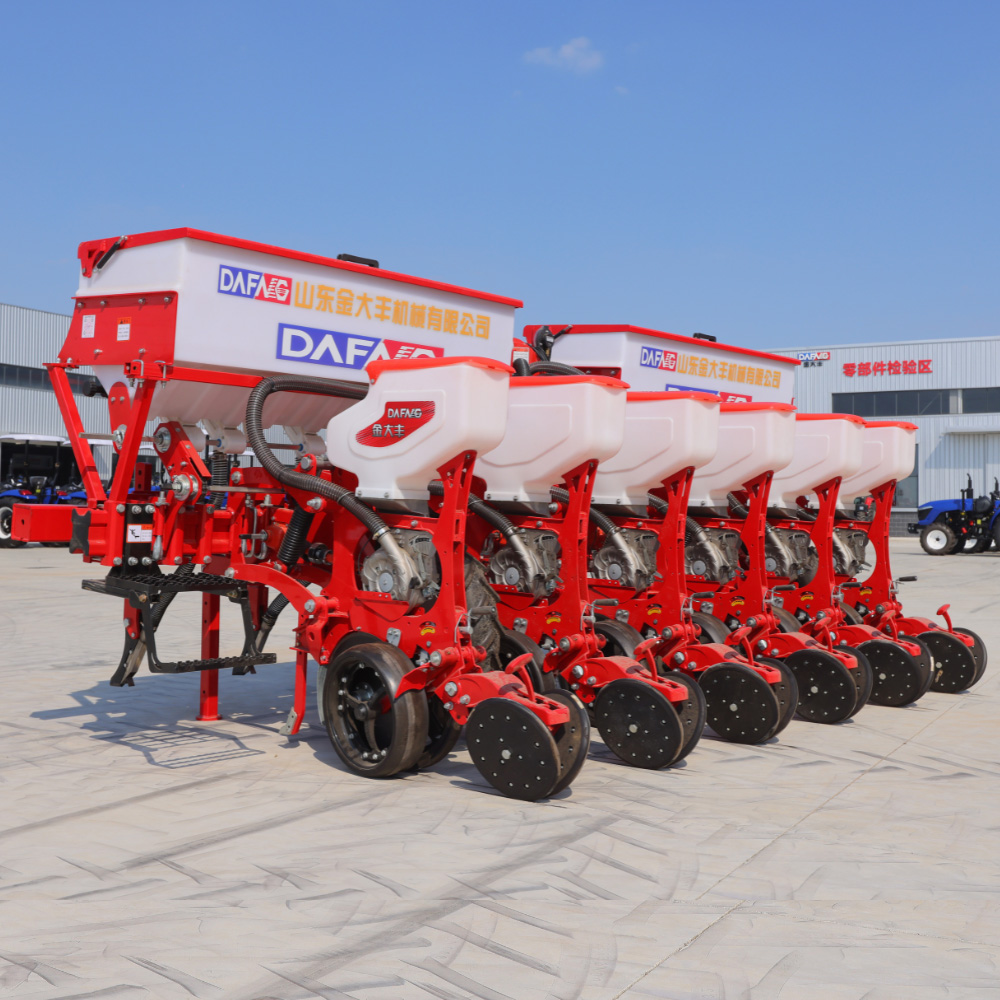

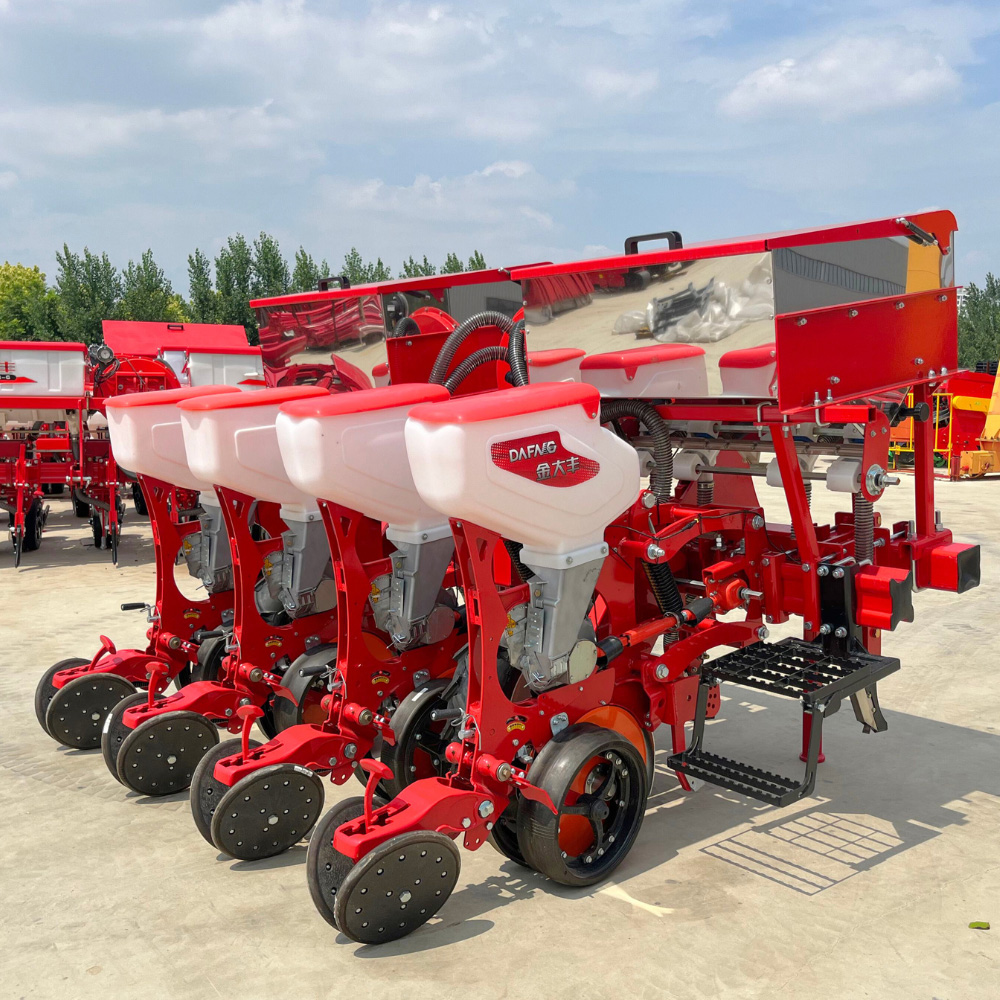

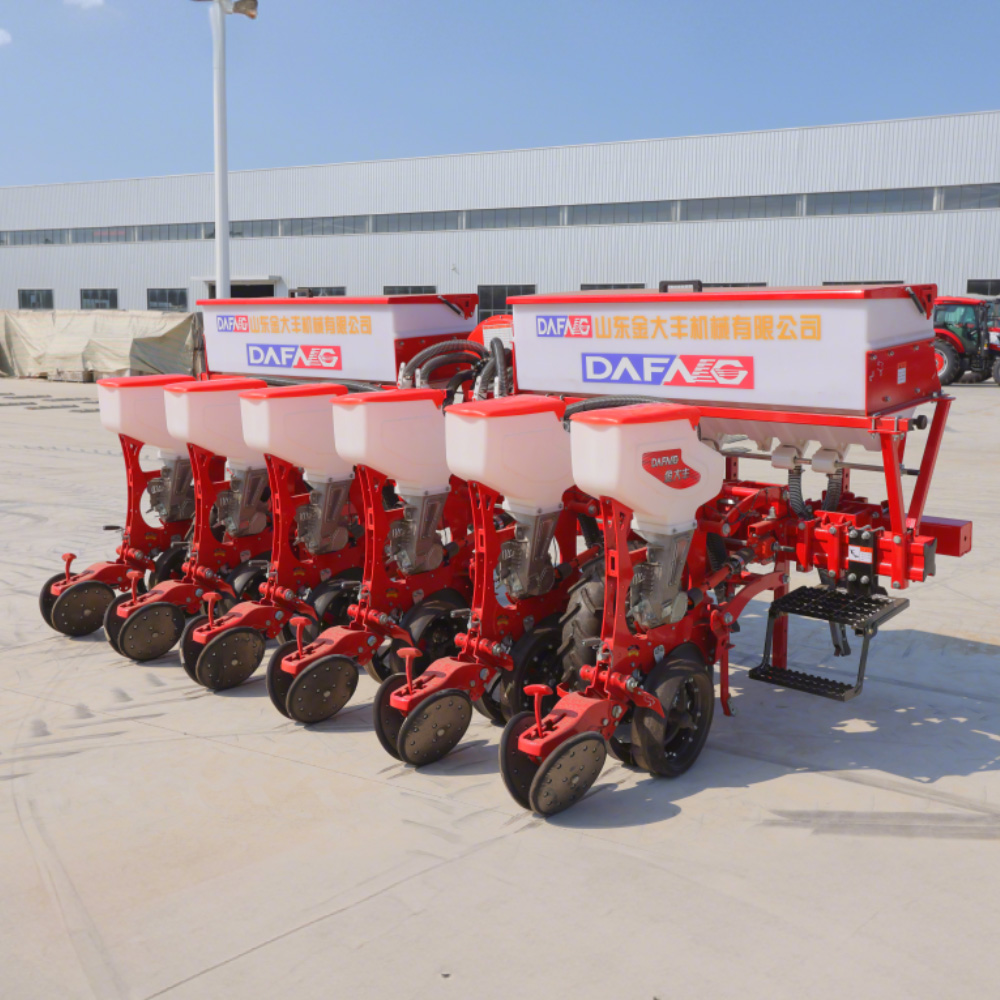

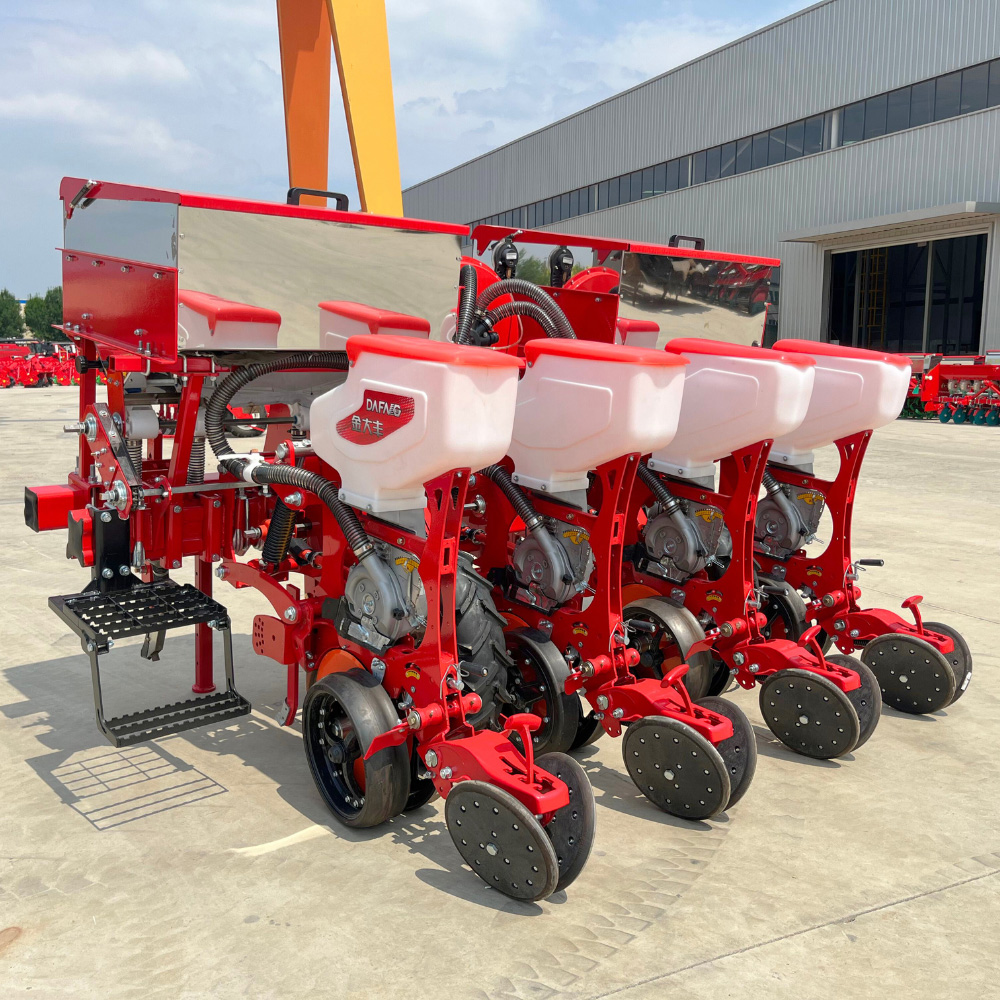

Product diagram
