XQ Series 220-260 HP
01
Product parameters
| Model | XQ1804 | XQ2004 | XQ2204 | XQ2404 | XQ2604 | ||
| Dimension (L*W*H) | mm | 5600*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | 5650*2800*3350 | |
| Min. operating weight | kg | 7700 | 7700 | 7700 | 7900 | 8340 | |
| Wheelbase | mm | 2800 | 2850 | 2850 | 2850 | 2850 | |
| Wheel track (front/rear) | mm | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | 1720、1820、1940、2040、2140/1700～2400 | |
| Engine | Model | / | YUCHAI 180HP | YUCHAI 200HP | YUCHAI 220HP | YUCHAI 240HP | YUCHAI 260HP |
| Type | / | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | Vertical, water-cooled, four-stroke, high-pressure common rail | |
| Qty of cylinders | Cylinder | 6 | 6 | 6 | 6 | 6 | |
| Rated power | HP/KW | 180HP/132.3KW | 200HP /147kW | 220HP /161.8kW | 240HQ 176.5kW | 260HP 191.1kW | |
| Rated speed | r/min | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Drive train | Clutch type | / | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action | Single-chip, dry, independent control dual-action |
| Gearbox | / | TS16F＋16R | TS16F＋16R | TS16F＋16R | TS16F＋16R | TS16F＋16R | |
| Gear shift type | / | Synchronizer | Synchronizer | Synchronizer | Synchronizer | Synchronizer | |
| Steering | Steering type | / | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering |
| Brake | Brake type | / | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes | Hydraulic brakes, wet brakes, disc brakes |
| Walking device | Tire size (front/rear) | / | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 | 16.9-28/20.8-38 |
| Working device | Suspension device type | / | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 | Rear-mounted, three-point suspension, Category 3 |
| Suspension device category | / | Category Ⅲ | Category Ⅲ | Category Ⅲ | Category Ⅲ | Category Ⅲ | |
| Tillage Depth Adjustment | / | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | |
| Hydraulic output device | Group | 4 | 4 | 4 | 4 | 4 | |
| Standard PTO speed | r/min | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | |
| Maximum lifting force | kN | ≥31.8kN | ≥35.3kN | ≥38.8kN | ≥42.3kN | ≥45.9kN | |
| Maximum traction | kN | ≥65.5kN | ≥65.5kN | ≥65.5kN | ≥67.0kN | ≥70.3kN | |
| Minimum turning circle radius (single-sided braking) | m | 5.1m | 5.1m | 5.1m | 5.1m | 5.1m | |

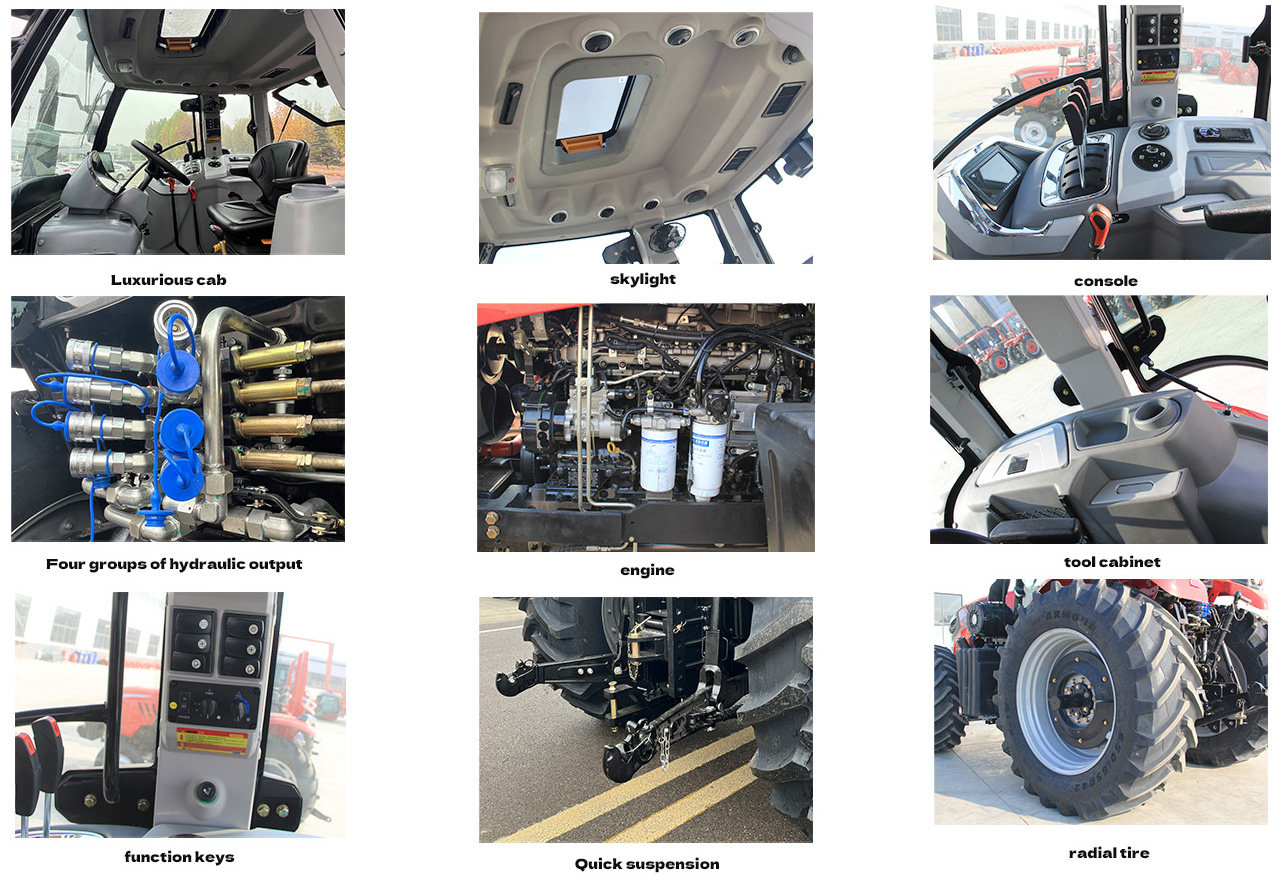

Product advantages
1. Core Power and Transmission System
Equipped with a Yuchai 200HP National III emission standard engine, providing powerful and compliant power, suitable for various operating scenarios;
Features a 15-inch independent double-acting clutch, combined with hydraulic power-assisted control design, making gear shifting light and effortless, with precise clutch response;
Adopts a shuttle-type 16F+16R synchronizer shifting structure, with reasonable gear distribution, smooth and efficient shifting, meeting the speed adjustment needs under complex working conditions.
2. Chassis and Cooling System
Equipped with a chassis engine oil cooling system + independent hydraulic oil tank, providing excellent heat dissipation efficiency and effectively maintaining the stable operating temperature of the hydraulic and transmission systems;
Equipped with a Collins professional-grade oil filter, with high filtration accuracy, extending the service life of core components;
Equipped with a 460-liter large-capacity diesel tank, providing a longer cruising range and reducing the frequency of refueling.
3. Operation and Driving Experience
Luxury air-conditioned cab, with precise temperature control and a comfortable driving environment, reducing fatigue during long hours of operation;
Adopts a foldable water tank design, with a flexible structure, facilitating maintenance and space adaptation;
540/1000 rpm 6-key power output, compatible with various agricultural implements, offering strong operational versatility.
4. Suspension and Lifting System
Equipped with a dual-pressure lifter + quick suspension device, providing strong lifting force, and efficient and convenient implement attachment and lifting operations;
Four sets of hydraulic output interfaces, meeting the needs of simultaneous operation of multiple agricultural implements, offering strong expandability;
Pendulum-type traction design, providing excellent traction stability, suitable for complex terrain operating scenarios.
5. Tire and Counterweight Configuration
Equipped with Xuzhou 16.9-28/20.8-38 professional agricultural tires, providing strong grip and suitable for various field conditions;
Front counterweight of 15 pieces (74 kg/piece) + one layer of rear counterweight (240 kg), providing balanced overall machine weight, outstanding operational stability, and effectively preventing slippage and tipping.
Equipped with a Yuchai 200HP National III emission standard engine, providing powerful and compliant power, suitable for various operating scenarios;
Features a 15-inch independent double-acting clutch, combined with hydraulic power-assisted control design, making gear shifting light and effortless, with precise clutch response;
Adopts a shuttle-type 16F+16R synchronizer shifting structure, with reasonable gear distribution, smooth and efficient shifting, meeting the speed adjustment needs under complex working conditions.
2. Chassis and Cooling System
Equipped with a chassis engine oil cooling system + independent hydraulic oil tank, providing excellent heat dissipation efficiency and effectively maintaining the stable operating temperature of the hydraulic and transmission systems;
Equipped with a Collins professional-grade oil filter, with high filtration accuracy, extending the service life of core components;
Equipped with a 460-liter large-capacity diesel tank, providing a longer cruising range and reducing the frequency of refueling.
3. Operation and Driving Experience
Luxury air-conditioned cab, with precise temperature control and a comfortable driving environment, reducing fatigue during long hours of operation;
Adopts a foldable water tank design, with a flexible structure, facilitating maintenance and space adaptation;
540/1000 rpm 6-key power output, compatible with various agricultural implements, offering strong operational versatility.
4. Suspension and Lifting System
Equipped with a dual-pressure lifter + quick suspension device, providing strong lifting force, and efficient and convenient implement attachment and lifting operations;
Four sets of hydraulic output interfaces, meeting the needs of simultaneous operation of multiple agricultural implements, offering strong expandability;
Pendulum-type traction design, providing excellent traction stability, suitable for complex terrain operating scenarios.
5. Tire and Counterweight Configuration
Equipped with Xuzhou 16.9-28/20.8-38 professional agricultural tires, providing strong grip and suitable for various field conditions;
Front counterweight of 15 pieces (74 kg/piece) + one layer of rear counterweight (240 kg), providing balanced overall machine weight, outstanding operational stability, and effectively preventing slippage and tipping.

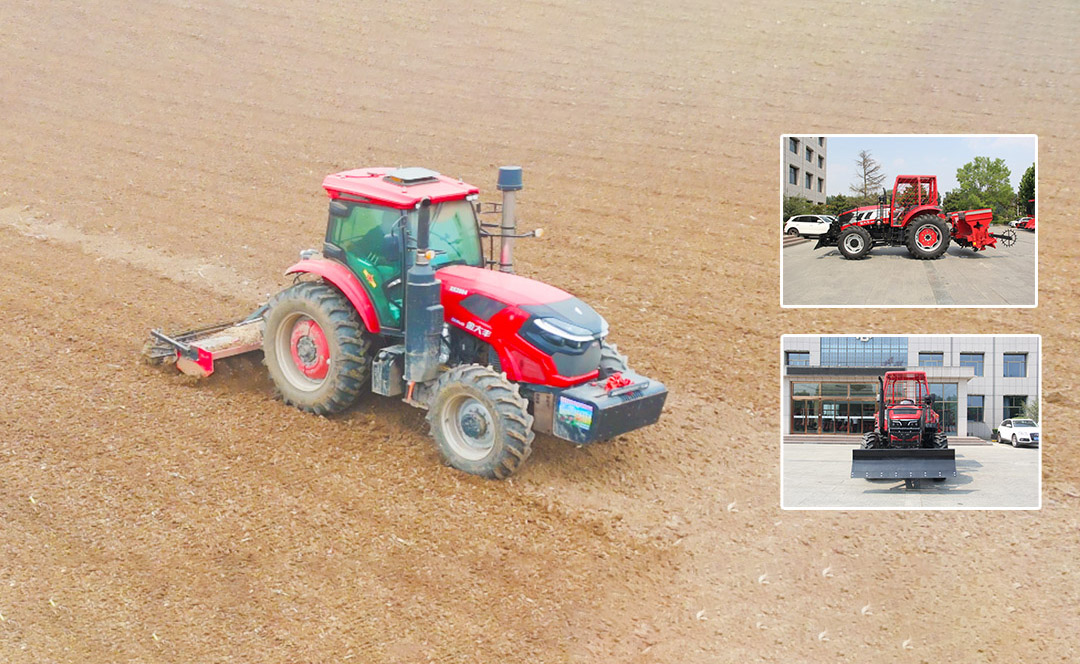

Product Application

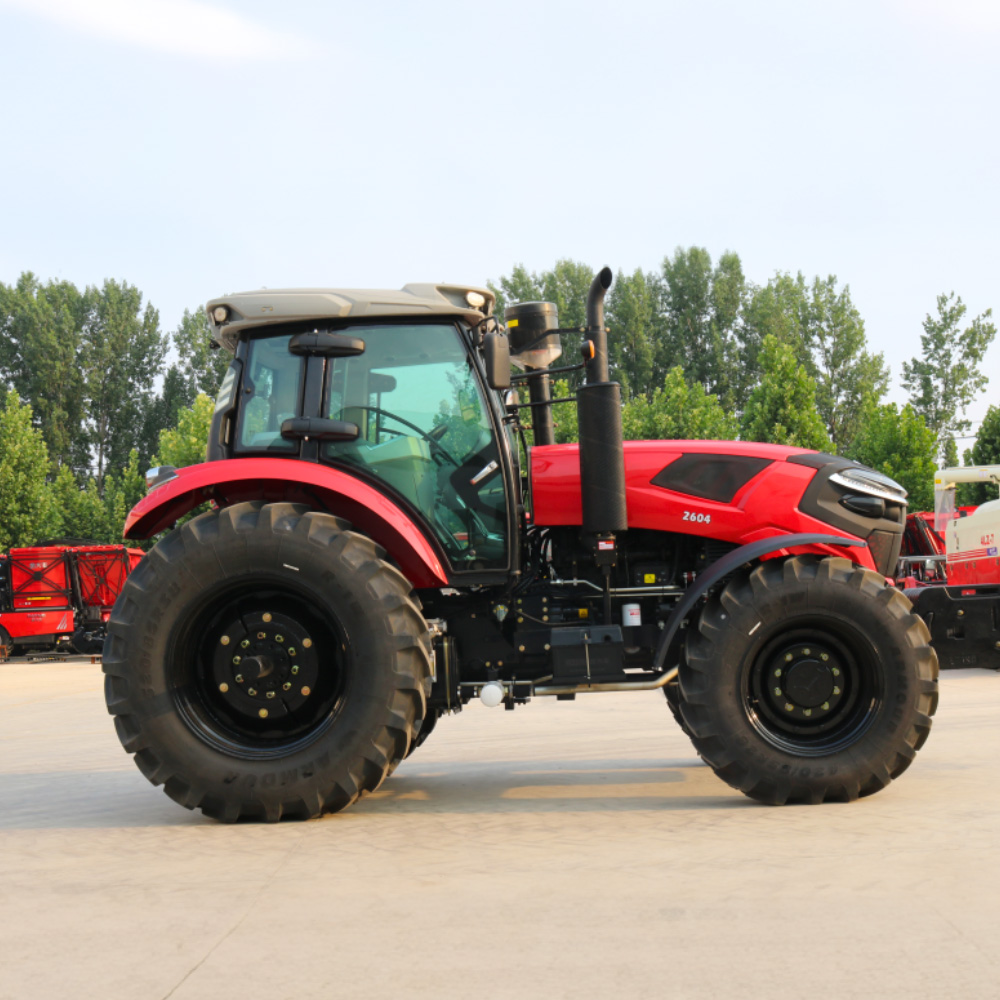

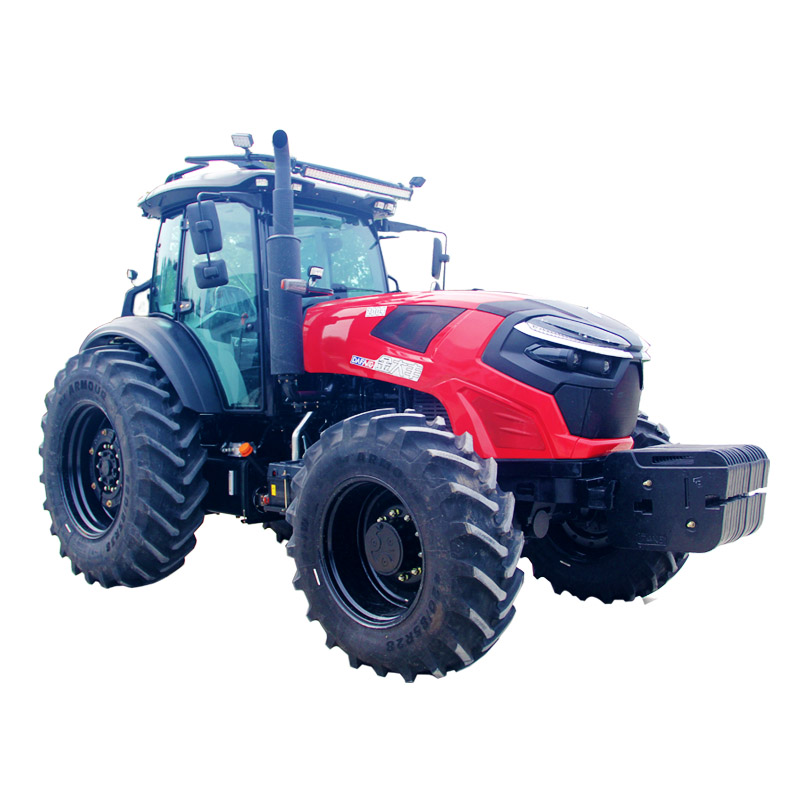

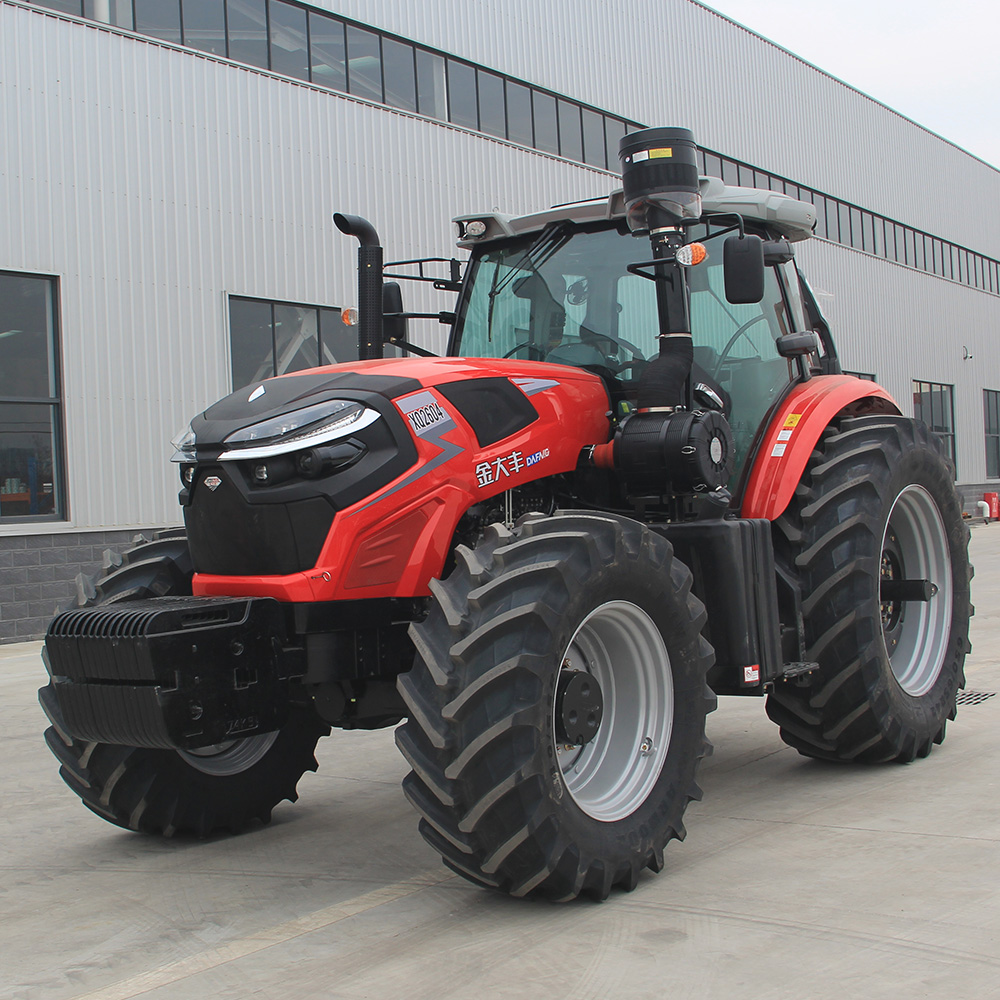

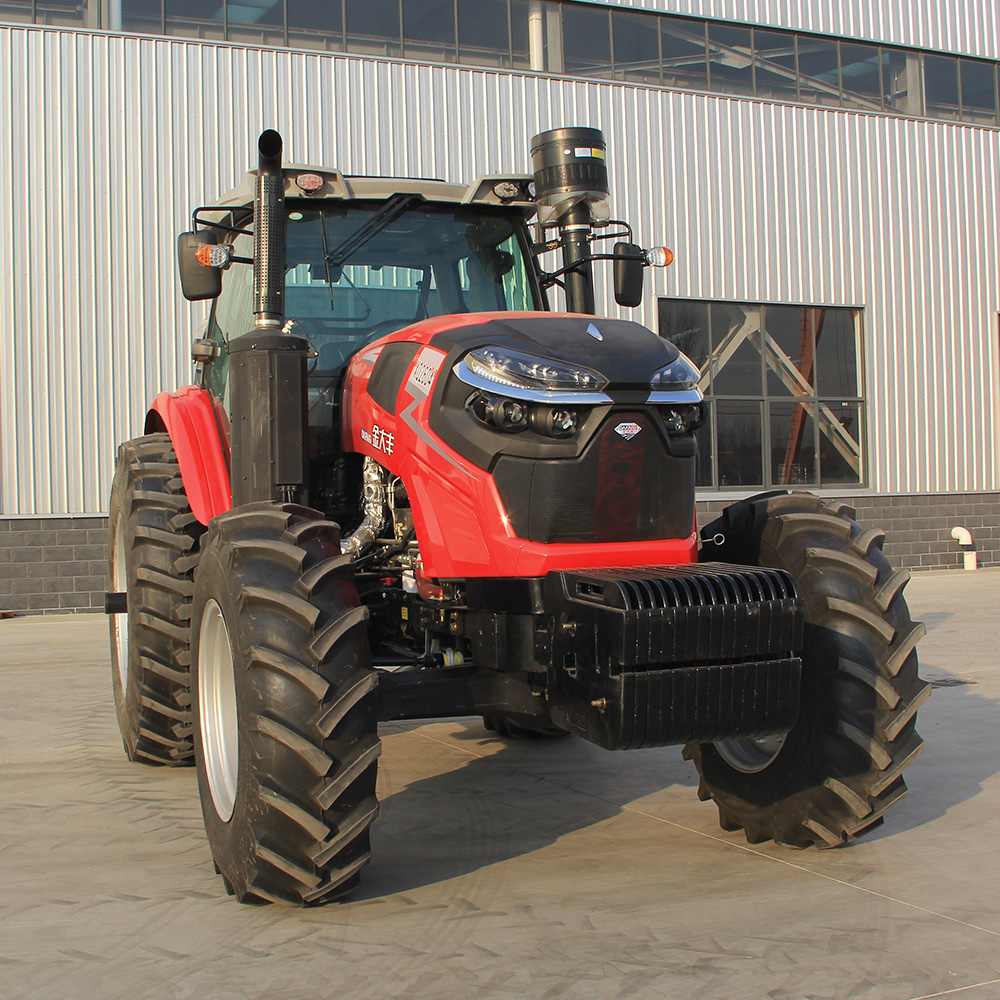

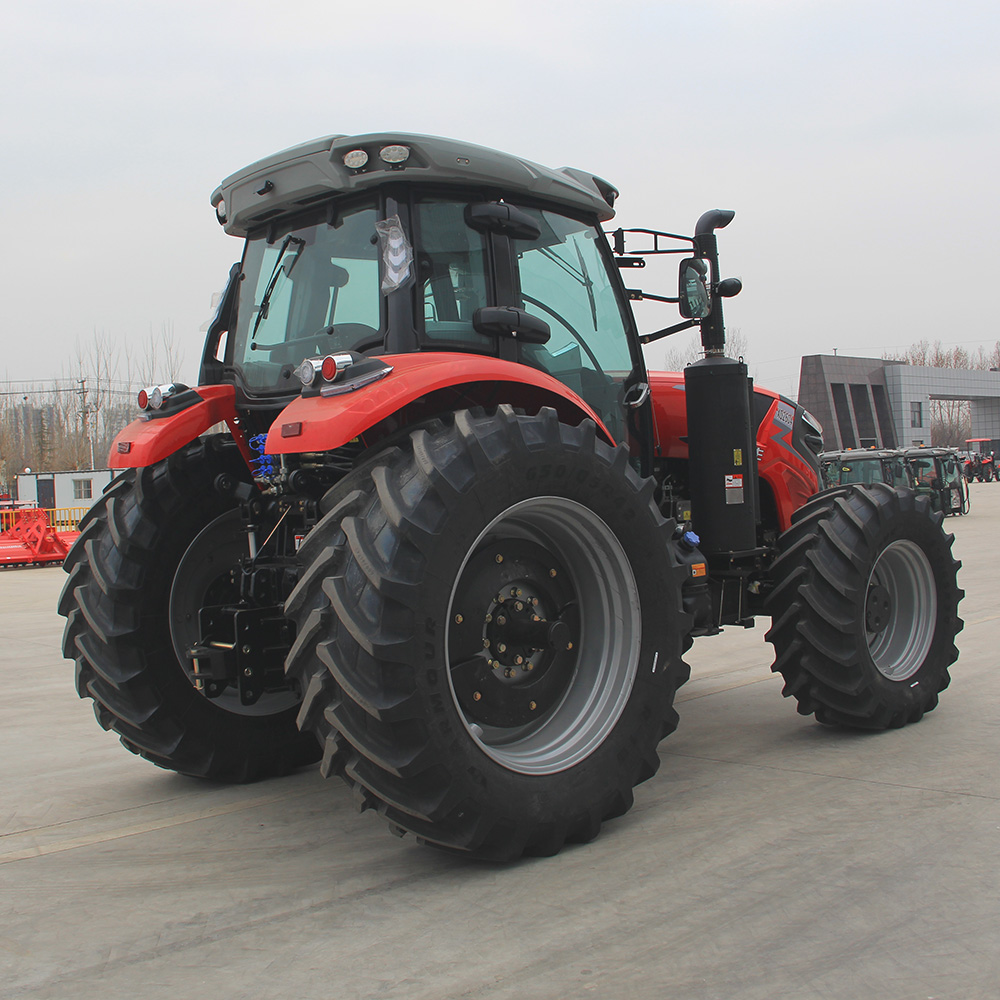

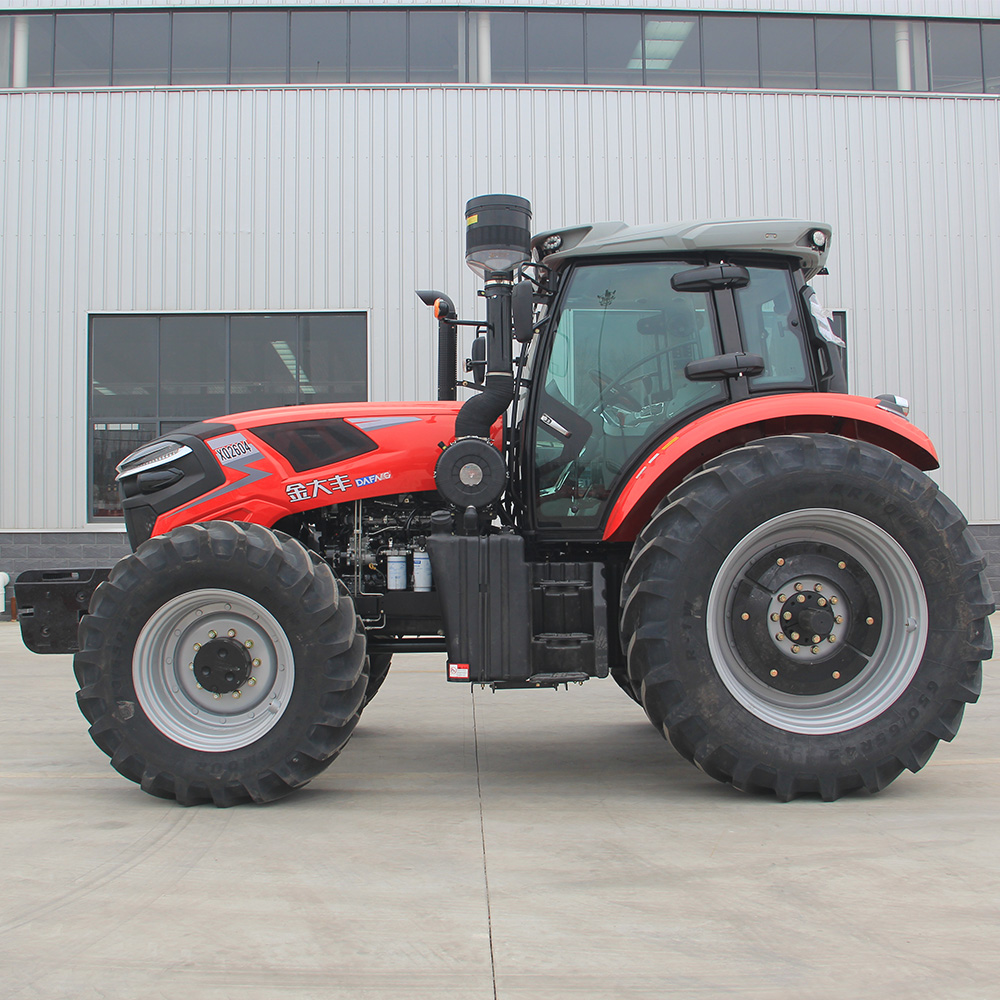

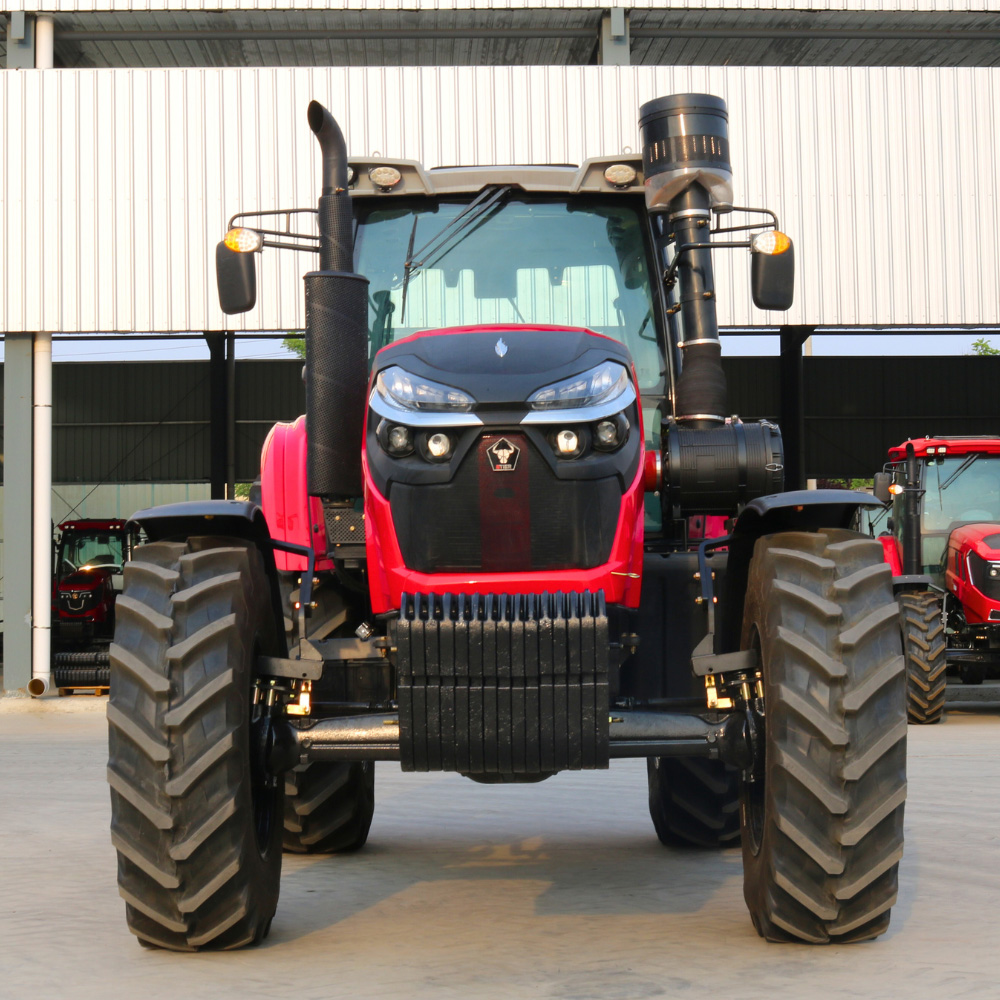

Product diagram
