XA Series 120-160HP
01
Product parameters
| Model | XA904 | XA1004 | XA1104 | XA1204 | XA1304 | XA1404 | XA1504 | XA1604 | ||
| Dimension (L*W*H) | mm | 4600*2200*2950 | 4600*2200*2950 | 4600*2200*2950 | 4600*2200*2950 | 4600*2200*2950 | 4600*2300*2950 | 5130*2300*3000 | 5220*2380*3250 | |
| Min. operating weight | kg | 3900 | 3900 | 3900 | 4220 | 4726 | 4490 | 5215 | 6000 | |
| Wheelbase | mm | 2240 | 2240 | 2240 | 2240 | 2500 | 2300 | 2610 | 2750 | |
| Wheel track (front/rear) | mm | 1600-1950/1620-2100 | 1600-1950/1620-2100 | 1600-1950/1620-2100 | 1440-1740/1610-2210 | 1440-1740/1610-2210 | 1750、1850、1950、2050/1620-2100 | 1750、1850、1950、2050/1620-2100 | 1750、1850、1950、2050/1620-2100 | |
| Engine | Model | / | YTO90HP | YTO100HP | YTO110HP | YTO120HP | YTO130HP | YTO140HP | YTO150HP | YTO160HP |
| Type | / | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | Vertical, water-cooled, four-stroke | |
| Qty of cylinders | Cylinder | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | |
| Rated power | HP/KW | 90HP/66.2KW | 100HP/73.5KW | 110HP/80.8KW | 120HP/88.3KW | 130HP/95.6KW | 140HQ/103KW | 150HP/110.3KW | 160HP/117.7KW | |
| Rated speed | r/min | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Gearbox | / | TDF16+8 | TDF16+8 | TDF16+8 | TDF16+8 | TDF16+8 | TDF16+8 | TDF16+8 | TDF16+8 | |
| Gear shift type | / | shift sleeve | shift sleeve | shift sleeve | shift sleeve | shift sleeve | shift sleeve | shift sleeve | shift sleeve | |
| Steering | Steering type | / | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering | Full hydraulic steering |
| Brake | Brake type | / | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type | Hydraulic brake, wet type, disc type |
| Walking device | Tire size (front/rear) | / | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 |
| Working device | Suspension device type | / | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear, 3-point suspension, type 2 | Rear,three-point suspension |
| Suspension device category | / | Category II | Category II | Category II | Category II | Category II | Category II | Category II | Category Ⅲ | |
| Tillage Depth Adjustment | / | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | Height adjustment, float control | |
| Hydraulic output device | Group | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Standard PTO speed | r/min | eys540/1000 | keys540/1000 | keys540/1000 | keys540/1000 | keys540/1000 | keys540/1000 | eys540/1000 | keys540/1000 | |

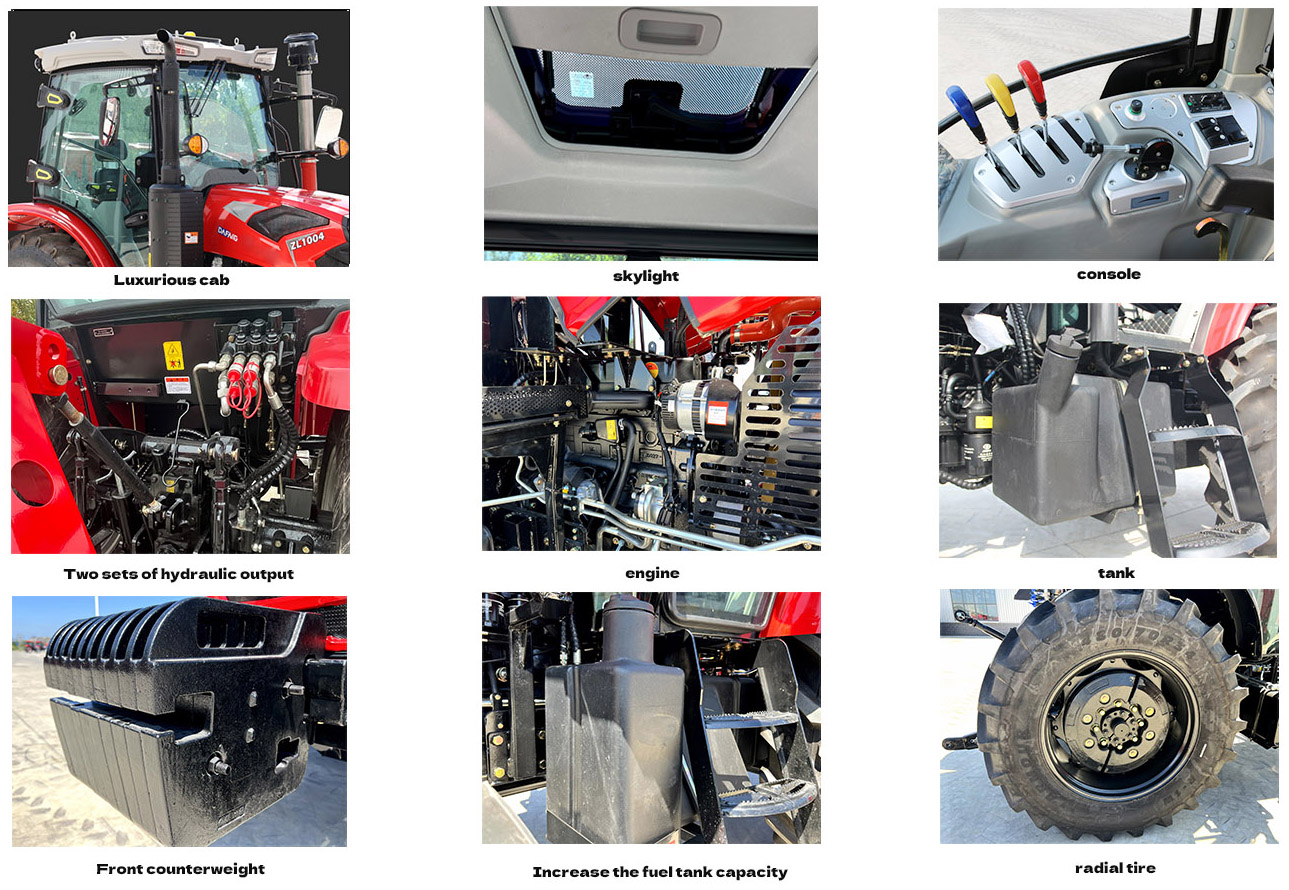

Product advantages
Universal thick front drive axle drive shaft, heavy truck structure.
The new double pressure cylinder has the advantages of very low failure rate, simple structure, large diameter of internal oil passage, straight through the upper and lower cavity, and fast pressure transfer speed.
Gearbox helical gear transmission, bearing capacity is 1.4 times that of the ruler, combined with smooth. Low noise and long life.
Luxury interior fine, good sealing, radio, USB interface, cigarette lighter, auxiliary seat, air conditioning hot and cold air, skylight, cup holder, sunshade, fan, reverse image function.
The new double pressure cylinder has the advantages of very low failure rate, simple structure, large diameter of internal oil passage, straight through the upper and lower cavity, and fast pressure transfer speed.
Gearbox helical gear transmission, bearing capacity is 1.4 times that of the ruler, combined with smooth. Low noise and long life.
Luxury interior fine, good sealing, radio, USB interface, cigarette lighter, auxiliary seat, air conditioning hot and cold air, skylight, cup holder, sunshade, fan, reverse image function.

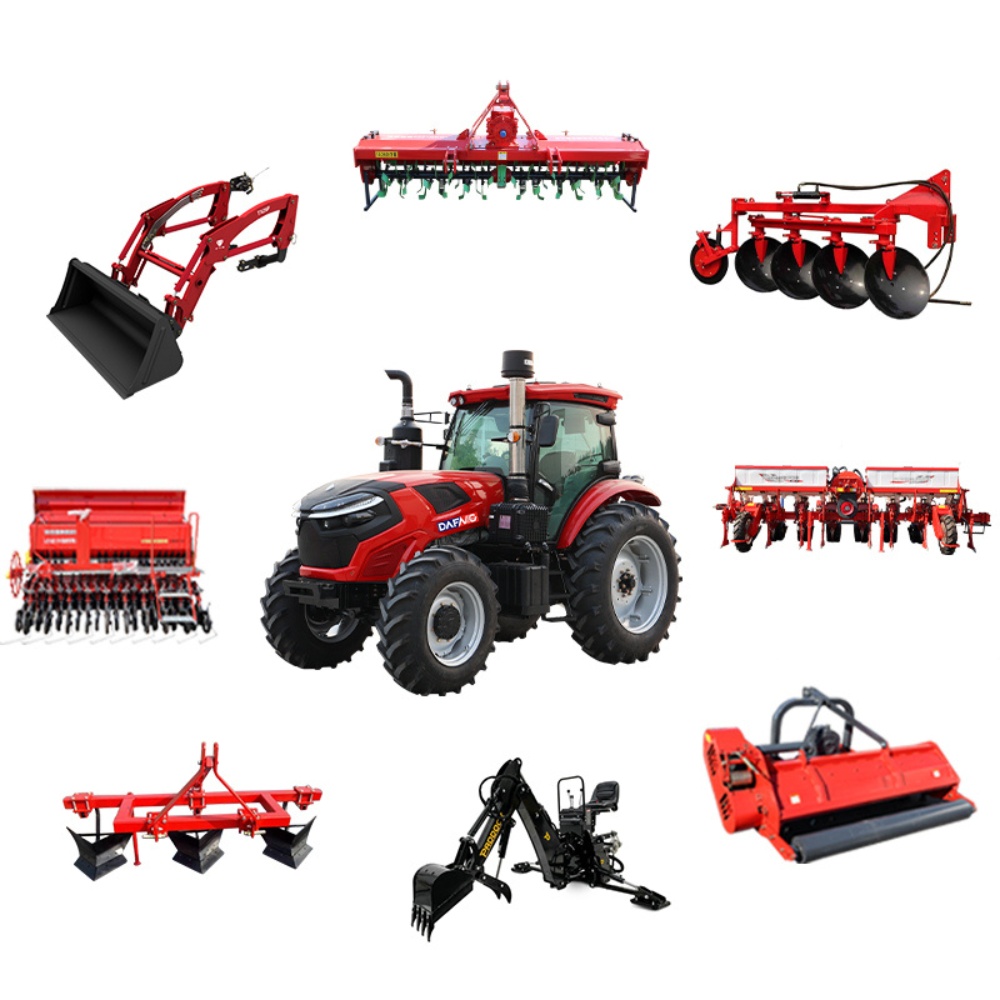

Product Application

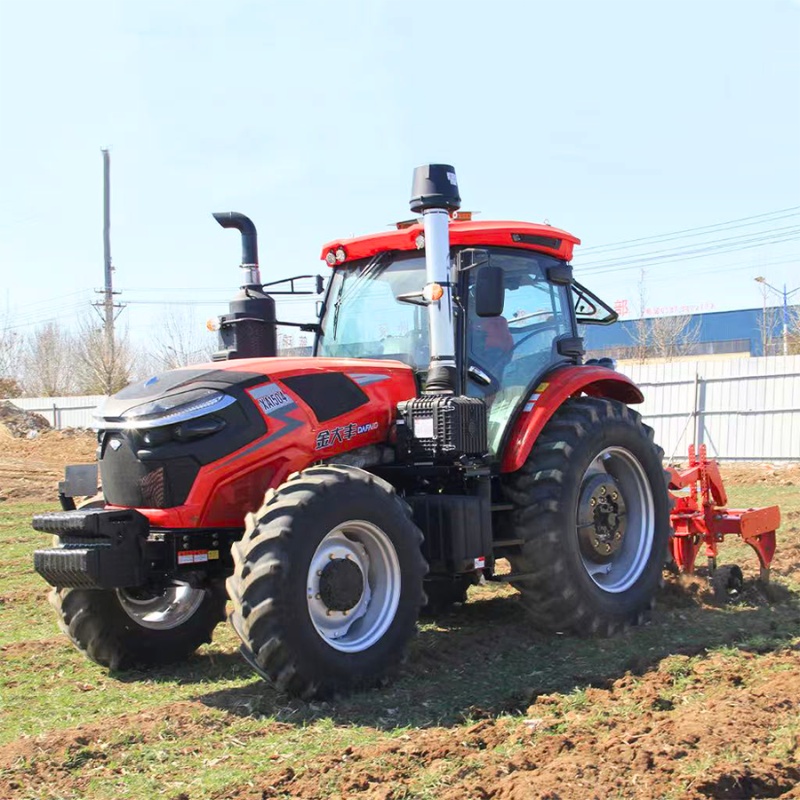

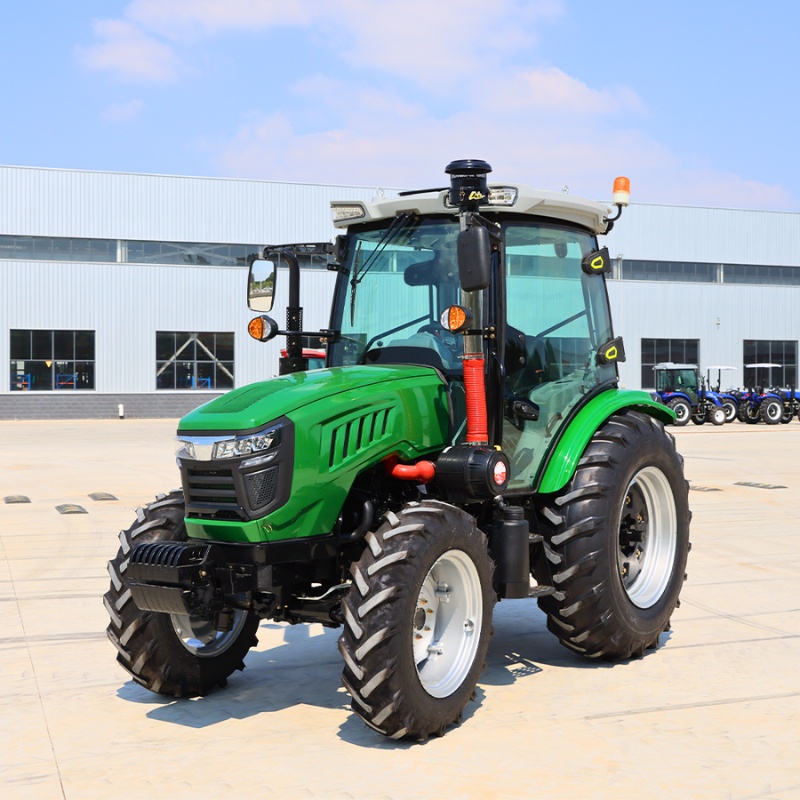

Product diagram
