440 Series 440 HP
01
Product parameters
-
Model:
4404
-
Dimension (L×W×H):
7500*3250*3800 mm
-
Min. operating weight:
18000 kg
-
Wheelbase:
3400 mm
-
Wheel track (front/rear):
2341/2341 mm
-
Engine model:
Yuchai 440hp, 6 cylinders, III
-
Engine Type:
Vertical, water-cooling, four stroke, common rail
-
Rated power:
440HP/323.4 kw
-
Rated speed:
2100 r/min
-
Clutch type:
Single disc, dry
-
Gearbox:
24F+24R
-
Gear shift type:
synchronizer
-
Steering type:
Full hydraulic steering
-
Brake type:
Clamp disc type
-
Tire size (front/rear):
800-65R32*2/800-65R32*2
-
Suspension device type:
Rear, 3-point suspension, type 3
-
Tillage Depth Adjustment:
Height adjustment and floating control
-
Suspension device category:
3/4N
-
Hydraulic output device:
Five units hydraulic outputs
Product advantages

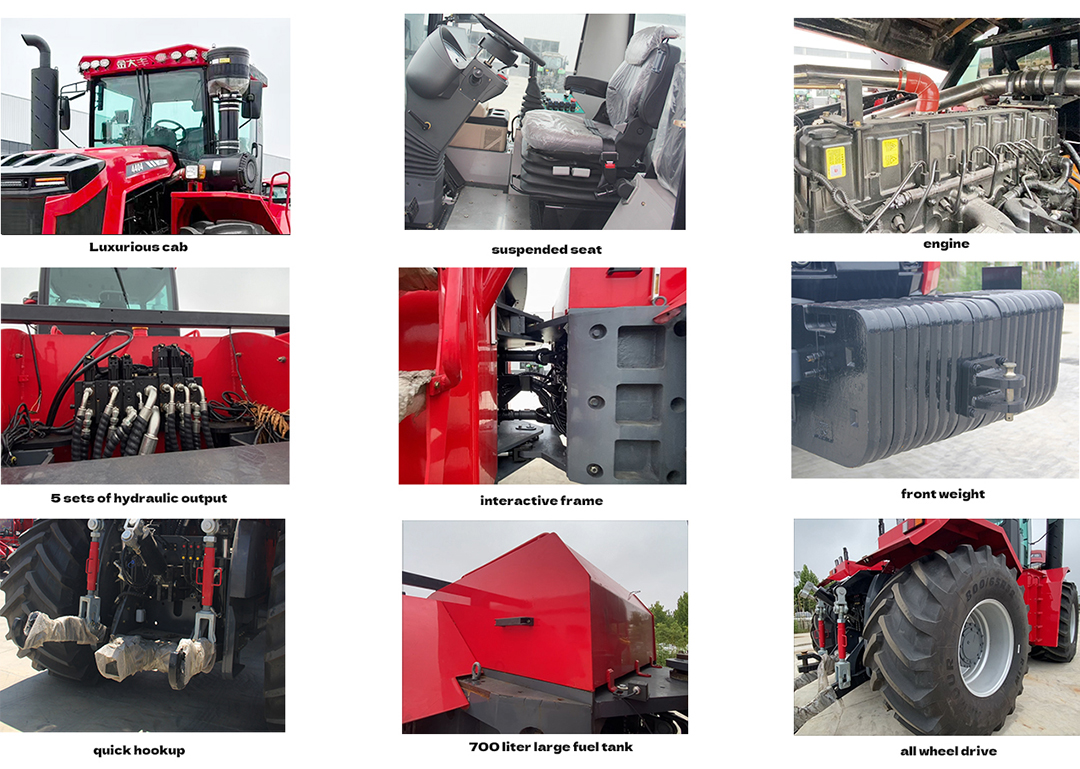

The cab boasts an extra-large space with a width of 1.8 meters and a 3-meter overhead viewing height, providing a wide field of vision and allowing for constant awareness of the surroundings. It utilizes shock-absorbing and sound-insulating materials, features roof-mounted air conditioning, under-seat heating, an ergonomic suspended seat, multi-functional control armrests, and a large display screen showing the vehicle's status. The driving experience is quiet, comfortable, and easy to operate.
It features an electronically controlled suspension lifting system, a variable displacement pump with five sets of double-acting hydraulic outputs, one-button lifting and automatic tilting, and a high-definition display screen.
The engine delivers powerful performance, utilizing a Yuchai K11 six-cylinder electronically controlled fuel injection engine (turbocharged and intercooled). The engine's total power output for 12 hours is 323.5 kW. An advanced exhaust after-treatment system ensures emissions meet the National IV standard.
The engine delivers powerful performance, utilizing a Yuchai K11 six-cylinder electronically controlled fuel injection engine (turbocharged and intercooled). The engine's total power output for 12 hours is 323.5 kW. An advanced exhaust after-treatment system ensures emissions meet the National IV standard.
The transmission uses the Fast 12JSDX240TA, a mature and reliable machine with a wide range of affordable parts and easy maintenance. It features a self-developed shuttle-type transfer case, synchronized shifting of the main transmission, and one-button switching between forward and reverse.
The machine boasts an articulated frame structure, fully hydraulic slalom steering, disc brakes, and a total load capacity of 71 tons across the front and rear axles, easily mounting various agricultural implements. With a 3.4-meter wheelbase and a turning radius of only 6.5 meters, it facilitates easy maneuvering. The addition of a 3.2-ton counterweight brings the total weight to 17.5 tons, providing strong traction and powerful all-wheel drive.
Equipped with GPS navigation and a 360-degree surround view system, the owner can remotely monitor the machine's status, and the driver can easily survey the surrounding environment.
Equipped with GPS navigation and a 360-degree surround view system, the owner can remotely monitor the machine's status, and the driver can easily survey the surrounding environment.

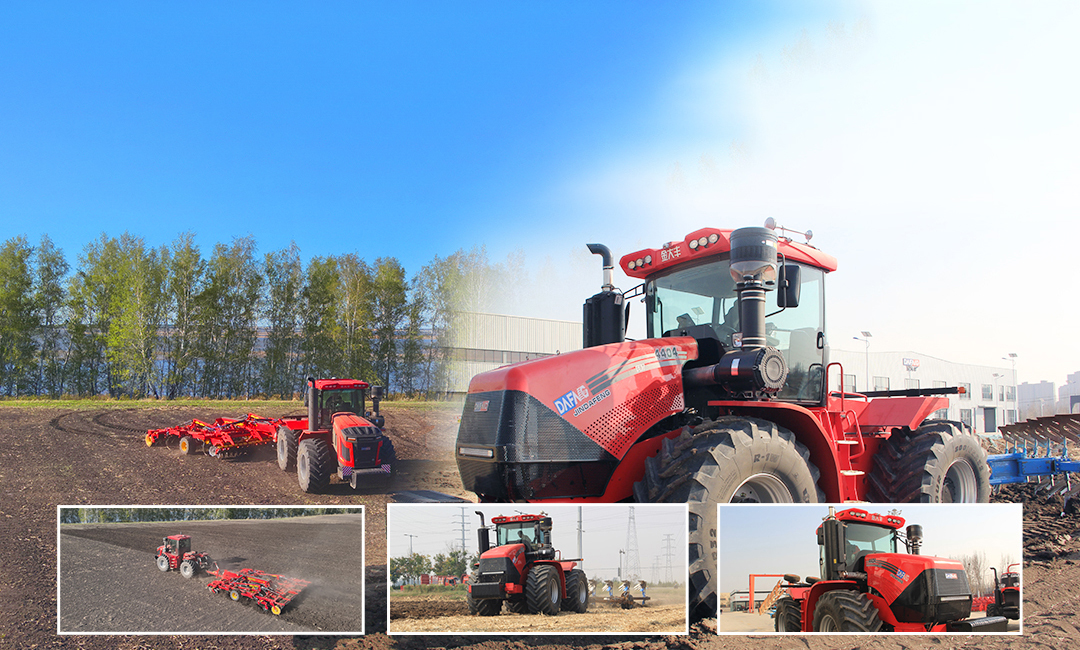

Product Application

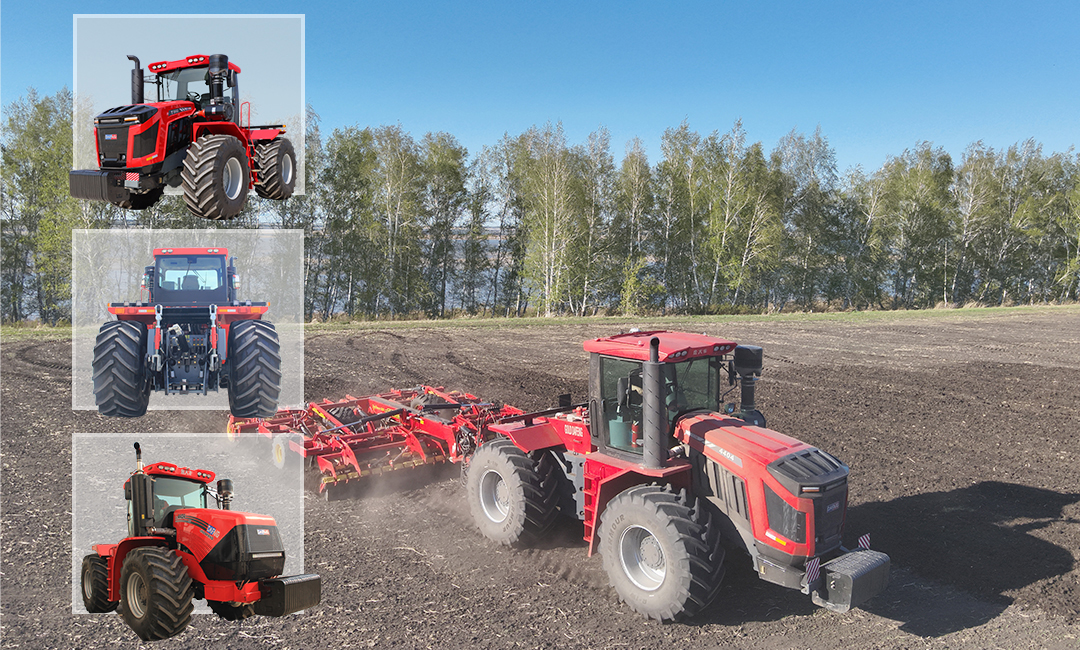

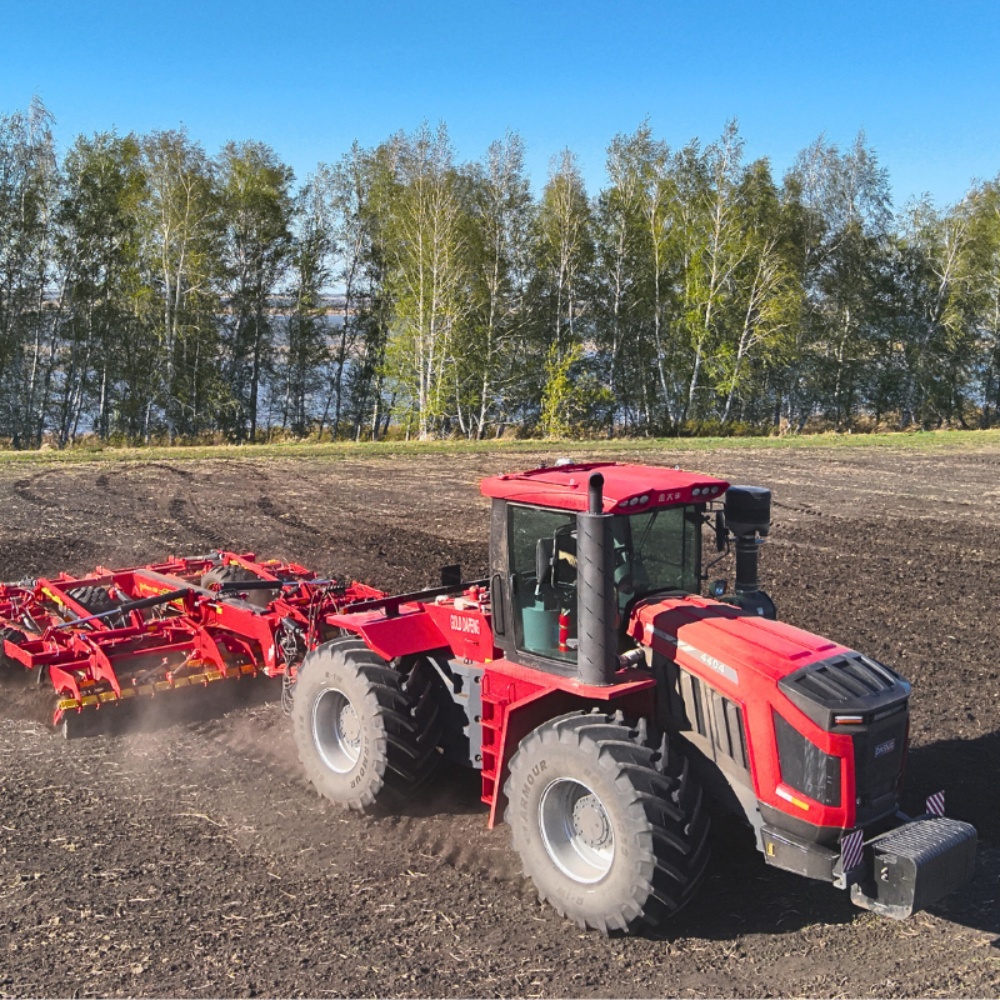

The 4404 tractor is a high-horsepower heavy-duty tractor, primarily used in large-scale, high-efficiency agricultural production and heavy engineering operations. With its high torque and strong traction, it is well-suited for large-area farmland operations and heavy-duty implements.

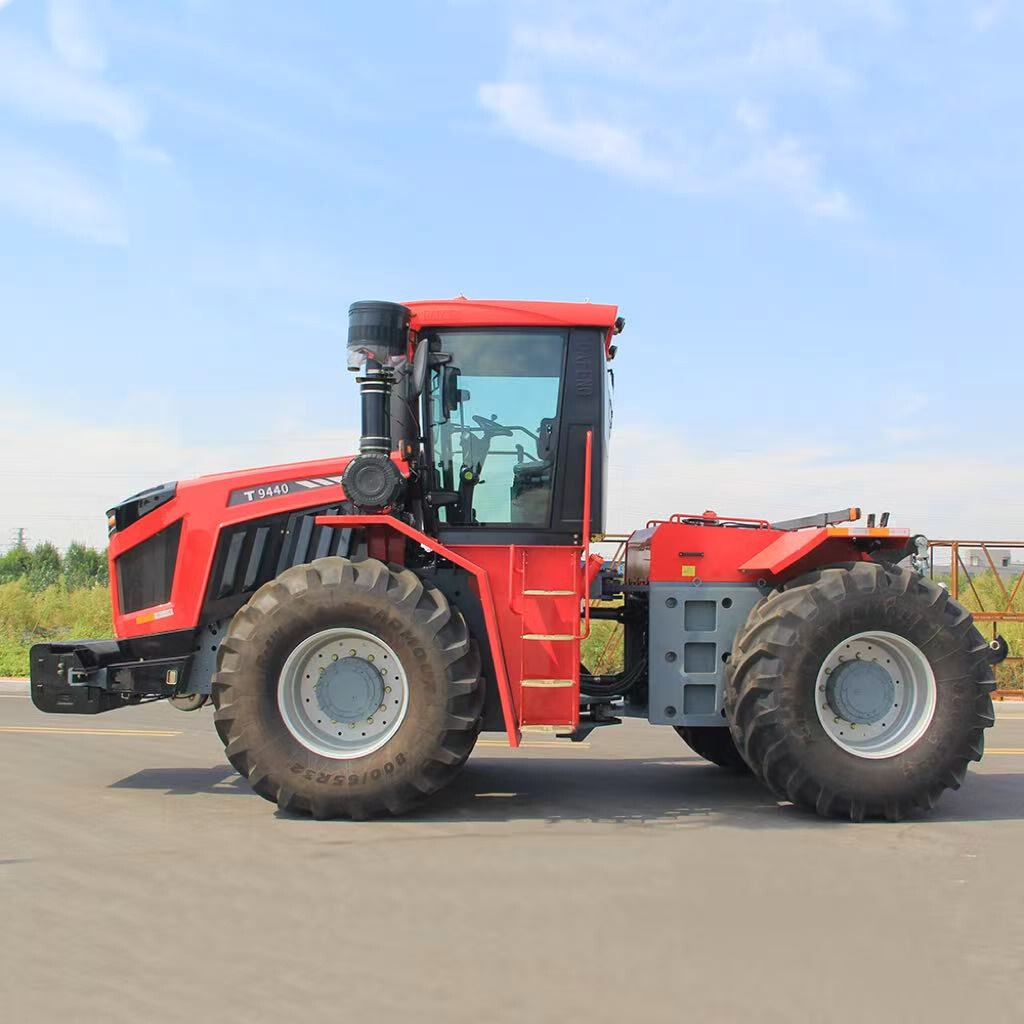

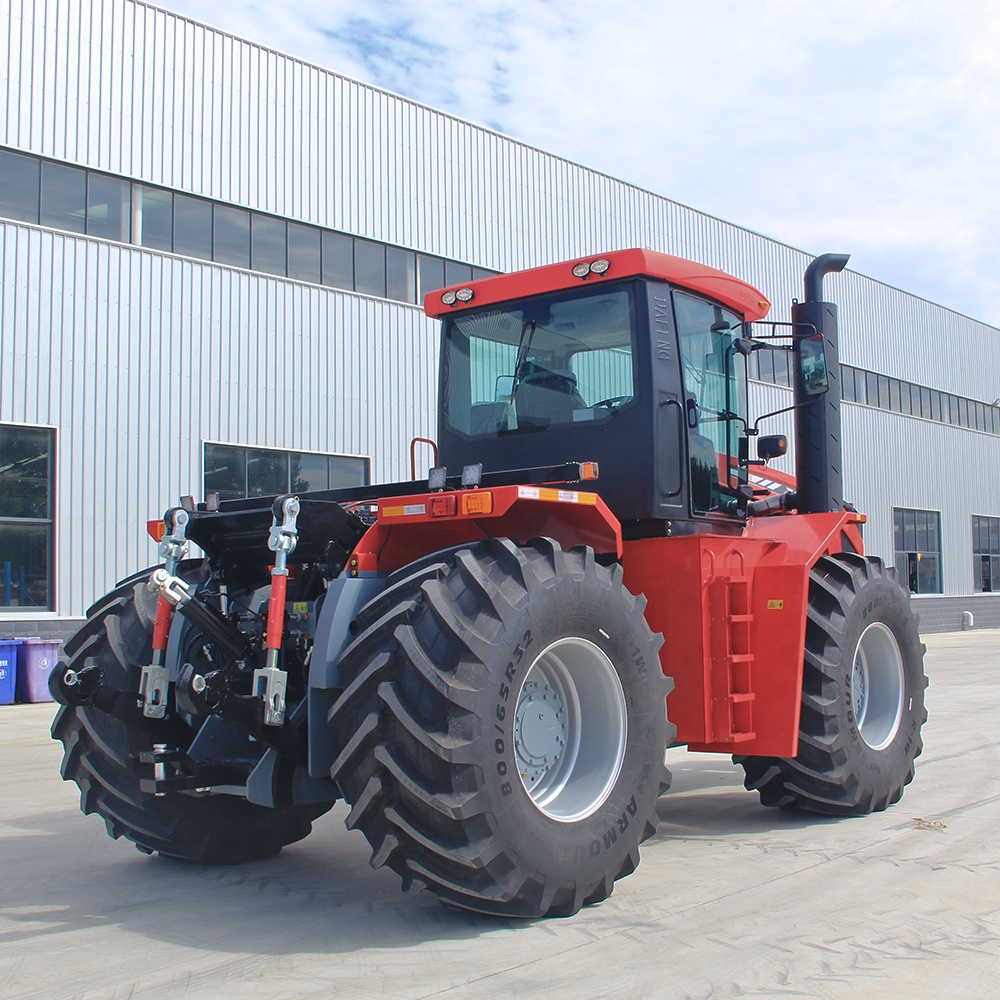

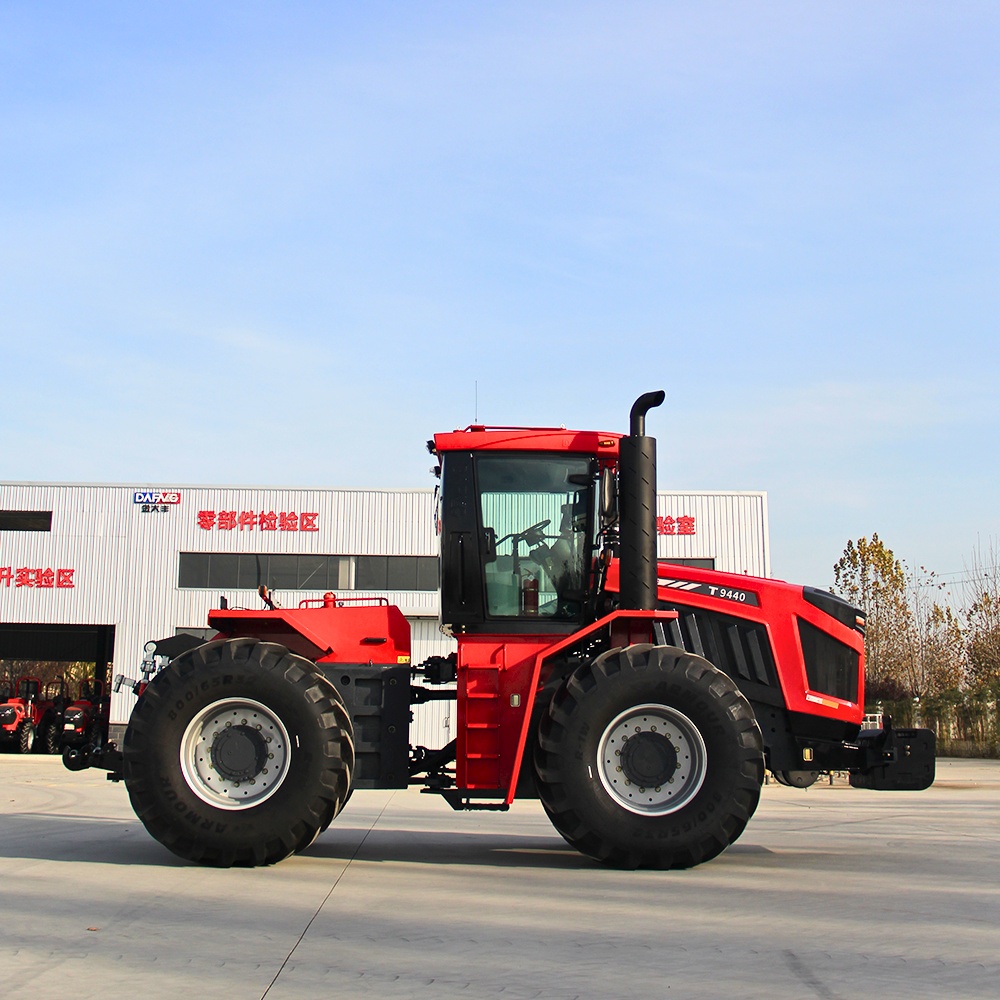

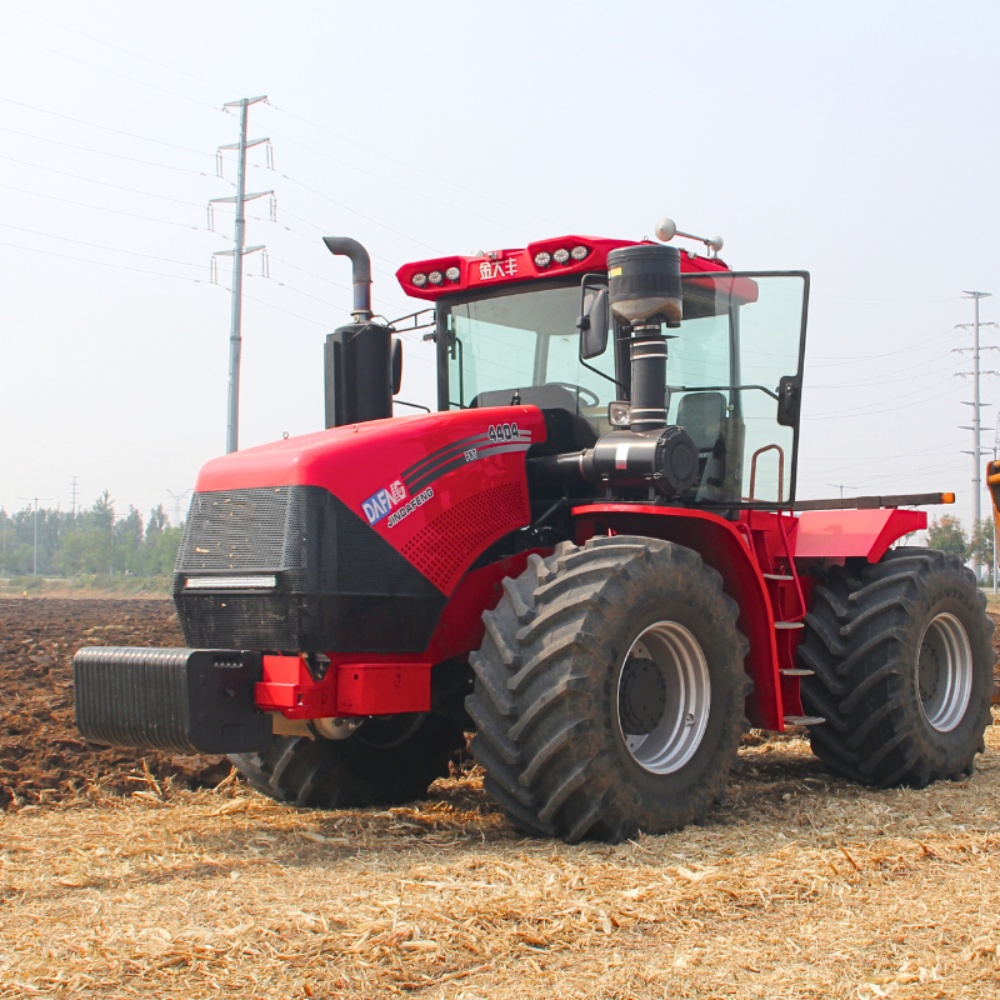

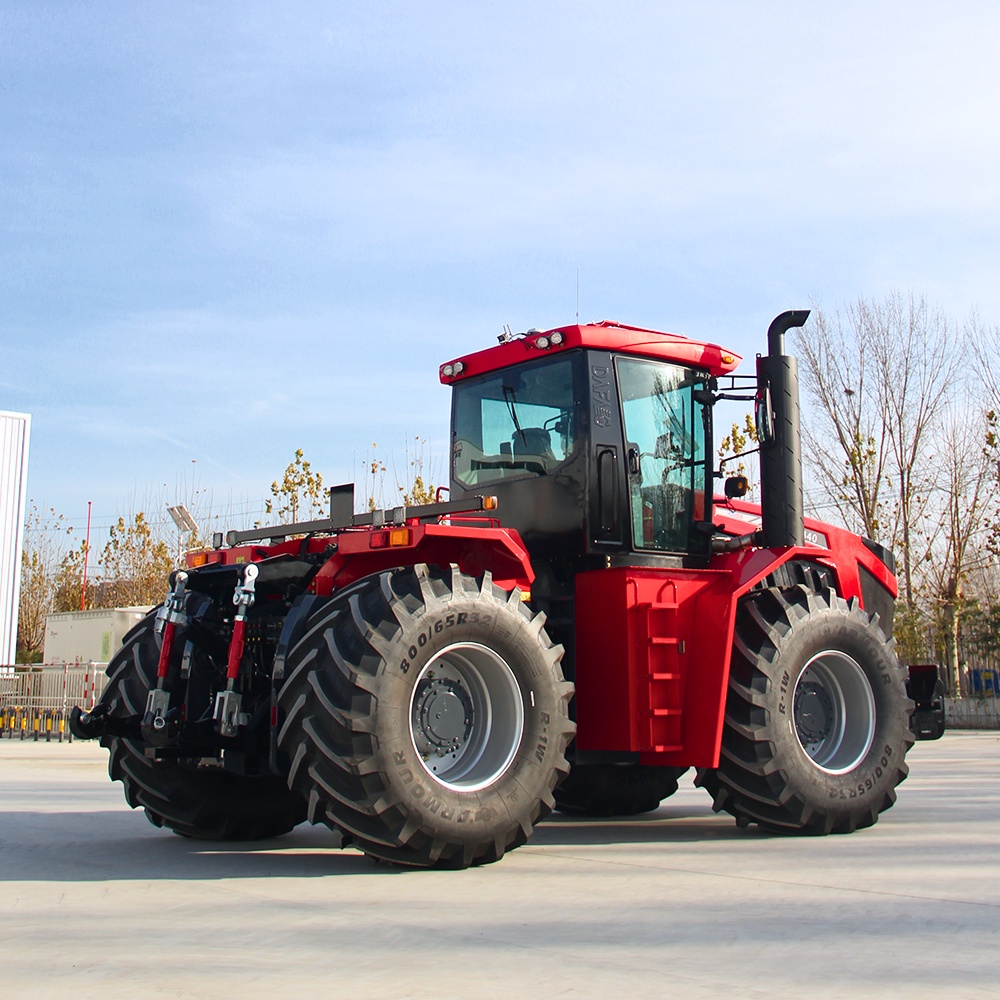

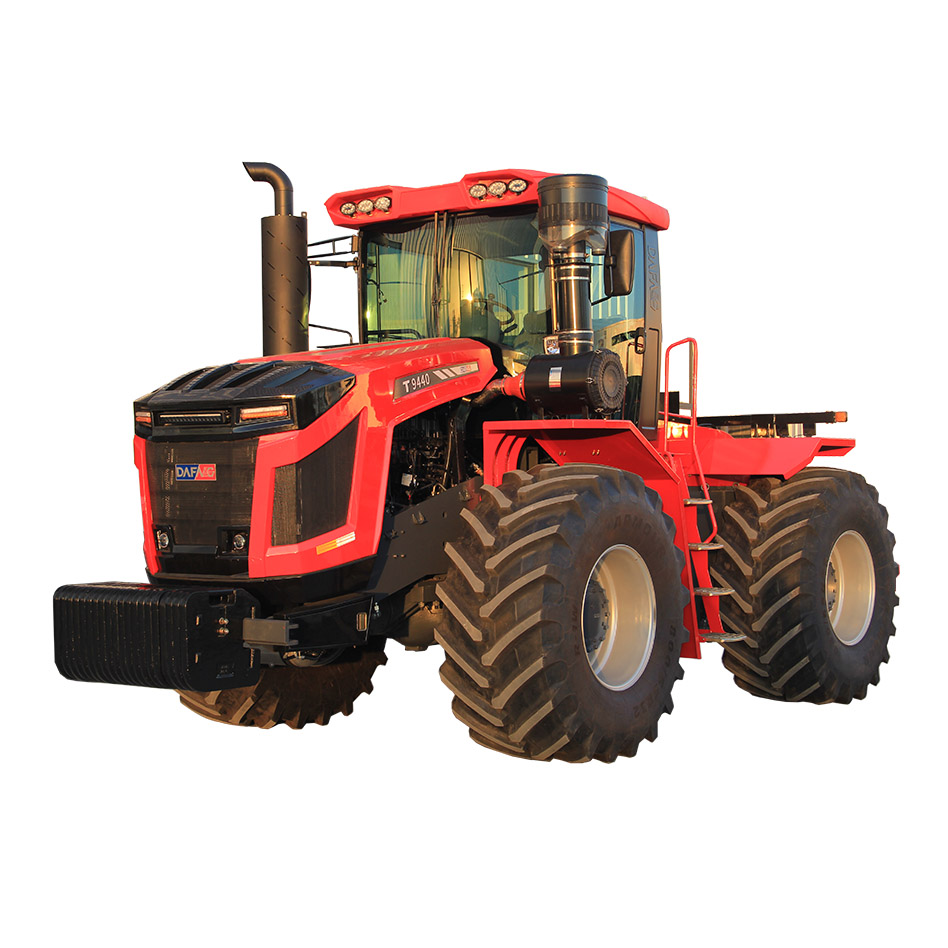

Product diagram
