Product parameters
| Model | unit | XL354 | |
| Dimension (L*W*H) | mm | 3300*1410*2100 | |
| Min. operating weight | kg | 1630 | |
| Wheelbase | mm | 1860 | |
| Wheel track (front/rear) | mm | 1285/1205/1297/1325 | |
| Engine | Model | / | laidong |
| Type | / | Vertical, water-cooled, four-stroke | |
| Qty of cylinders | Cylinder | 4 | |
| Rated power | HP/KW | 30HP/22.06Kw | |
| Rated speed | r/min | 2400 | |
| Drive train | Clutch type | / | Single-acting |
| Gearbox | / | TY8F+2R | |
| Gear shift type | / | shift sleeve | |
| Steering | Steering type | / | Full hydraulic steering |
| Walking device | Tire size (front/rear) | / | 6.50-16/11.2-24 |
| Working device | Suspension device type | Rear-mounted, three-point suspension, Class 1 | |
| Suspension device category | / | Class 1 | |
| Hydraulic output device | Group | 1Channel port | |
| Standard PTO speed | r/min | keys540/1000 | |
Product advantages
1.High-performance engine delivering stable power output and exceptional fuel efficiency.
2.Compact and agile design featuring flexible steering, perfectly suited for small-scale plots.
3.Simple mechanical controls ensure a quick learning curve and effortless daily operation.
4.Reinforced rear axle housing offers robust durability and a low incidence of mechanical failure.
5.Simplified hydraulic suspension system ensures stable lifting and is compatible with a wide range of agricultural implements.
6.Lightweight chassis design enhances field maneuverability, minimizing the risk of getting stuck in soft terrain.
7.Adjustable wheel track width accommodates the specific cultivation requirements of various crops.
8.Economical fuel consumption and low maintenance costs deliver outstanding overall value.
9.Rust-resistant baked enamel finish provides superior corrosion resistance and ensures a long service life.
10.Versatile across multiple environments—ideal for use in dry fields, vegetable gardens, and orchards.
product-related

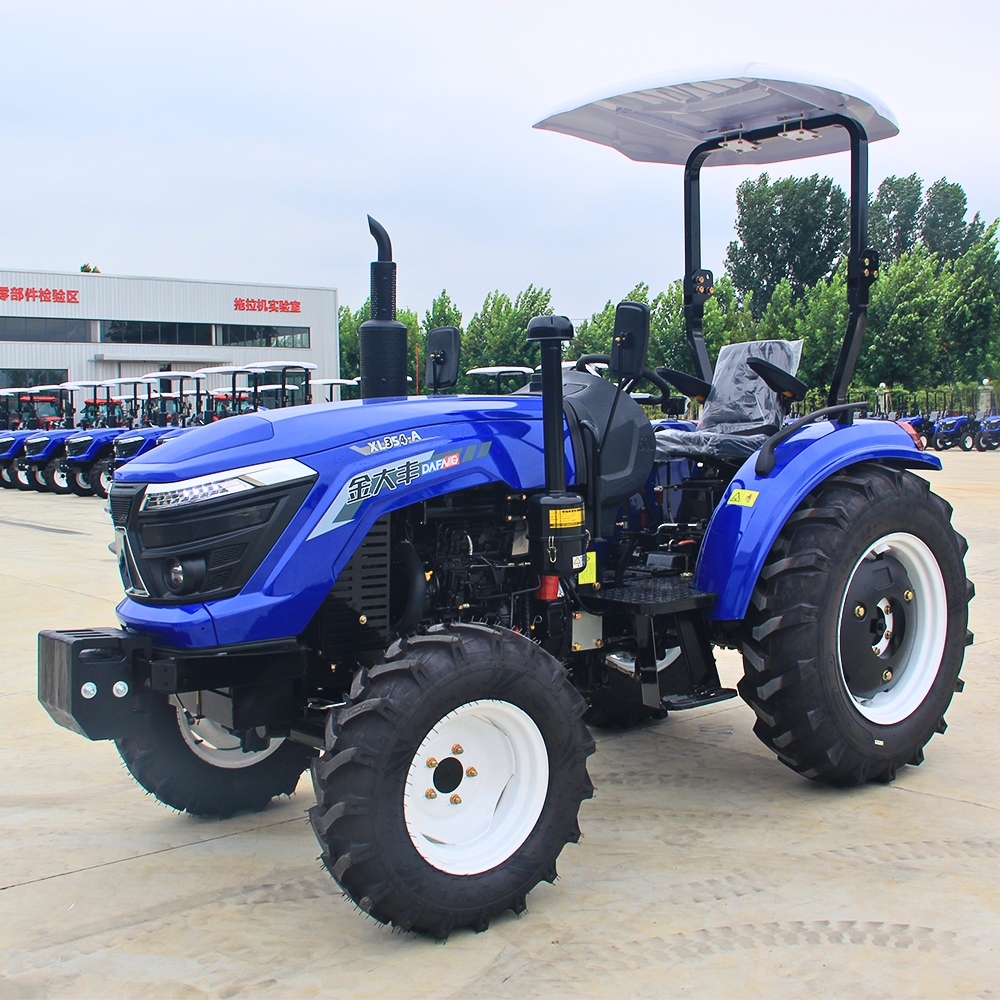

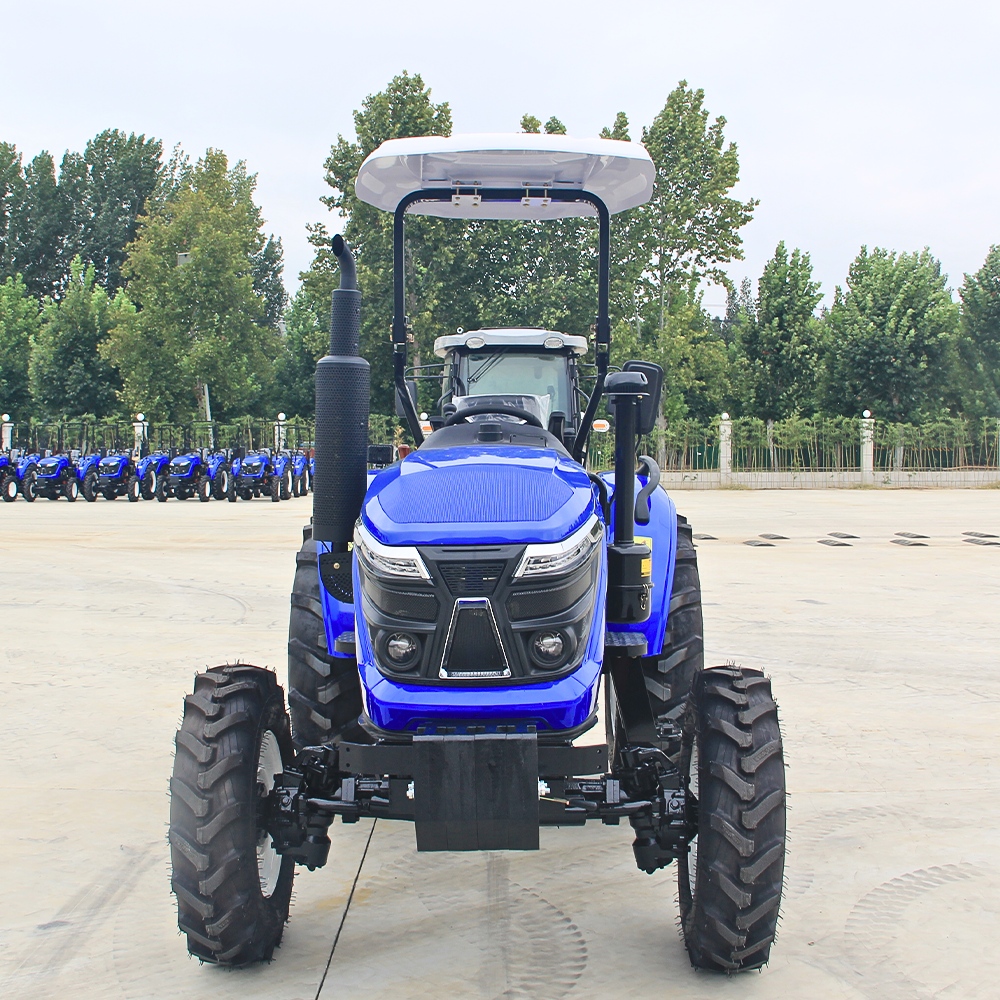

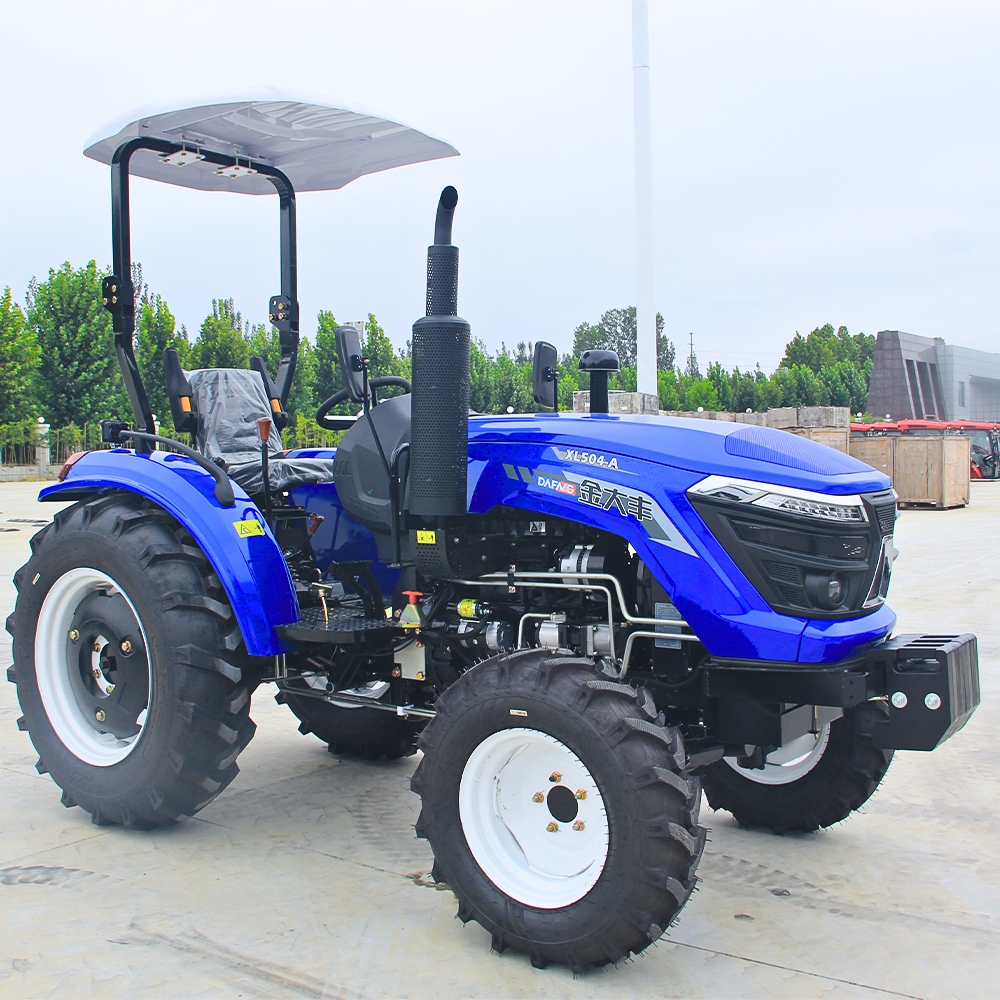

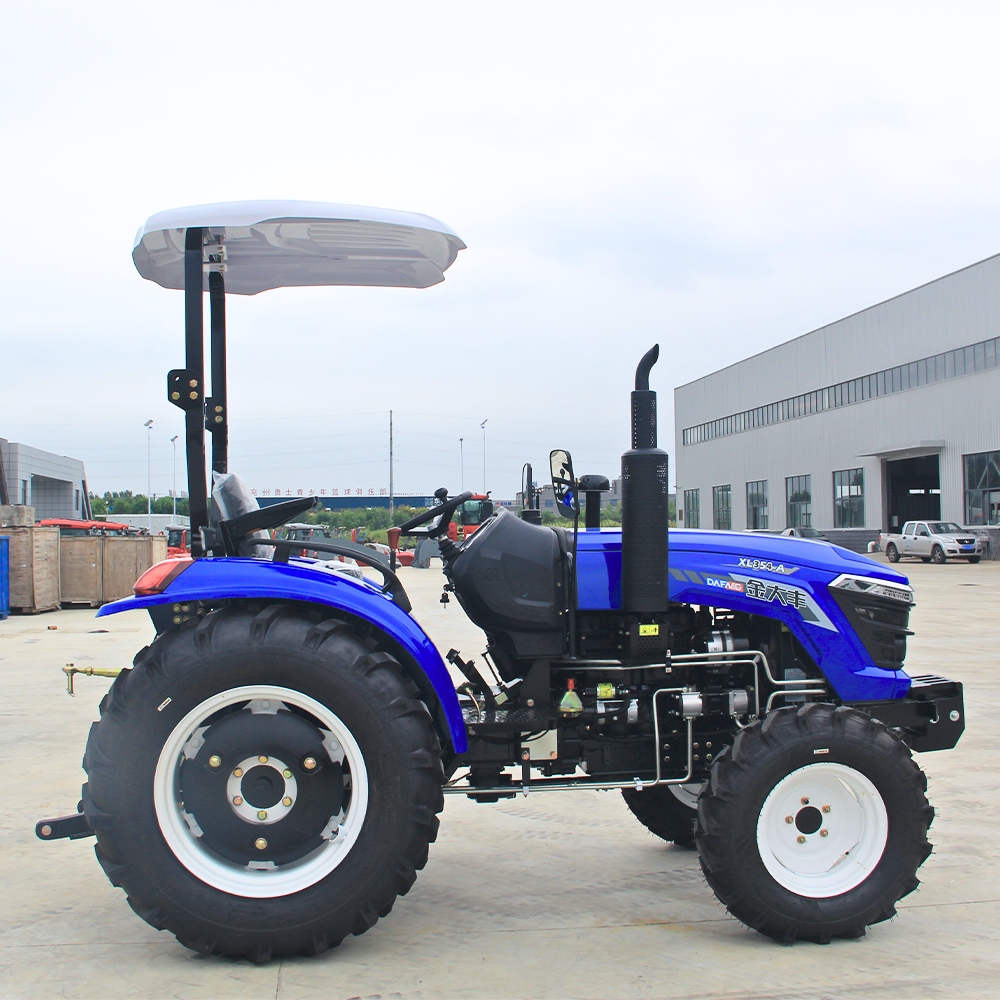

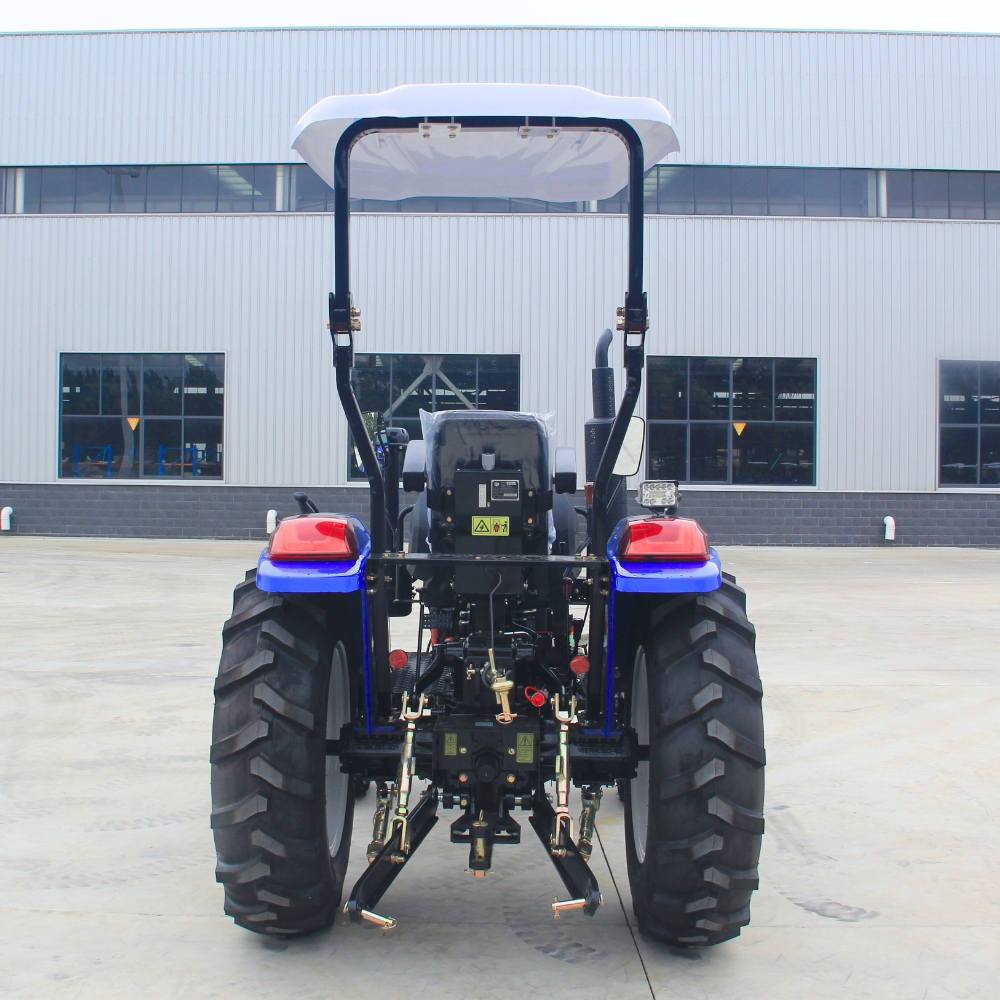

Product diagram
